Product Introduction

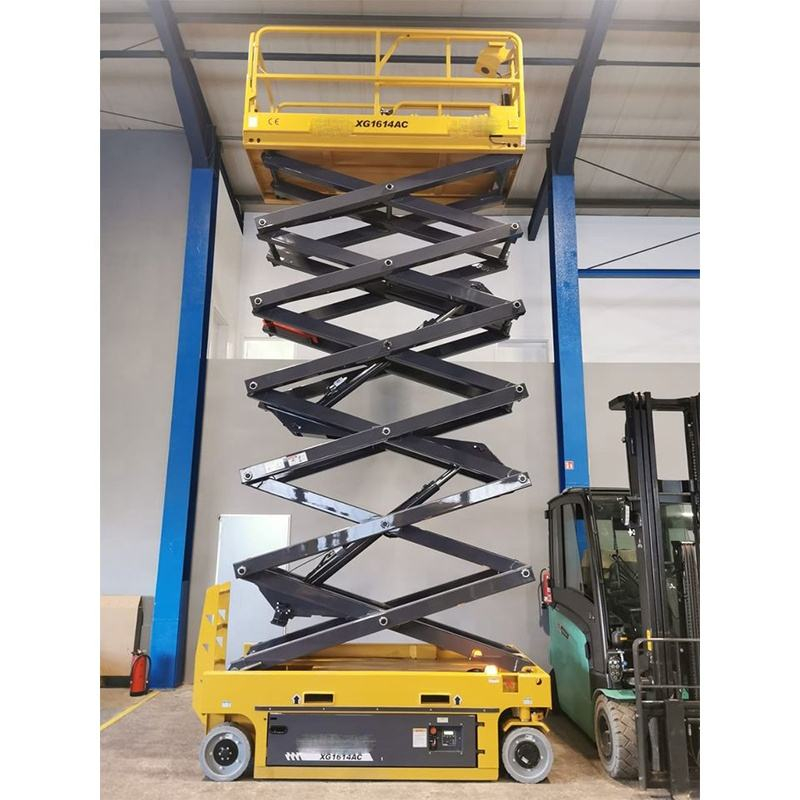

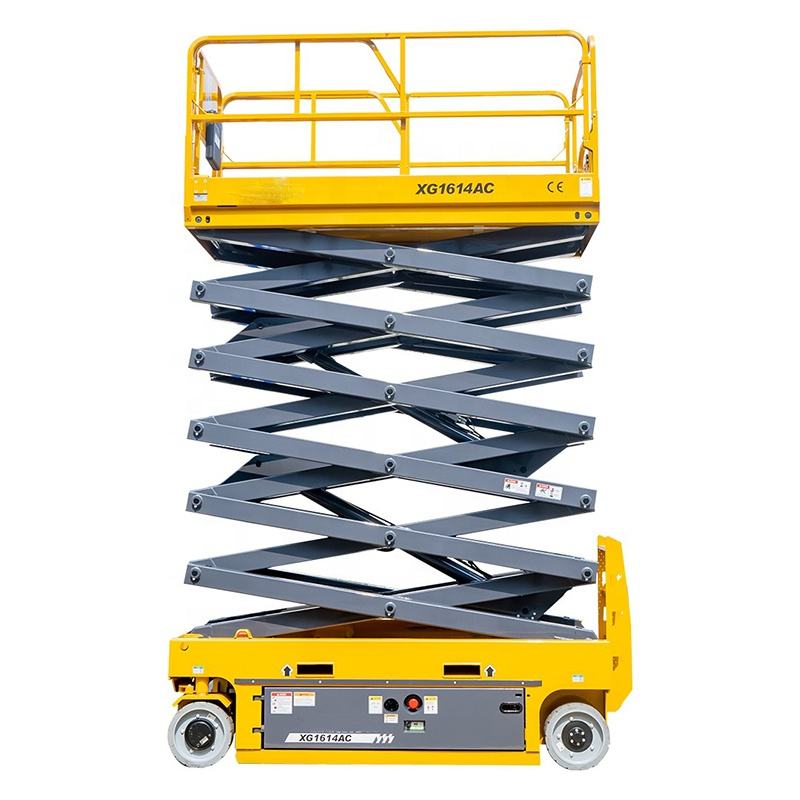

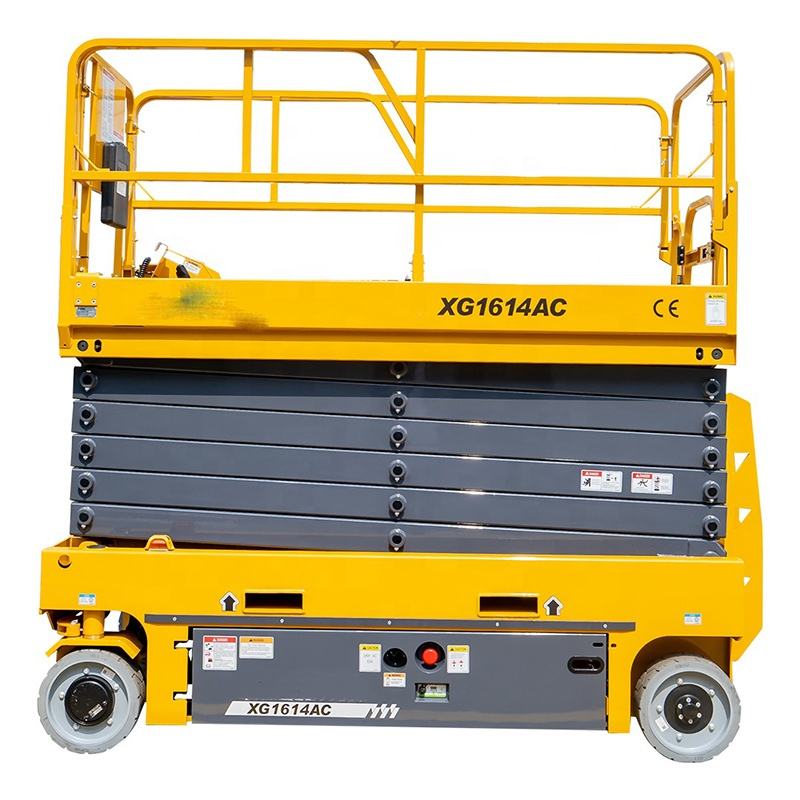

XG1614AC is a high-reach self-propelled AC electric scissor lift with a maximum working height of 17.8m and a rated load of 380kg. It is equipped with a stable AC power system and auxiliary battery, delivering steady power output, low noise and zero emissions. Featuring reinforced steel structure and durable solid tires, this lift ensures outstanding stability and flexible mobility. CE certified, it is a reliable choice for various high-altitude indoor operations.
Product Advantages
Stable AC Power System: Ensures continuous power supply, ideal for long-hour non-stop operation with low noise and no pollution.
High Reach & Heavy Load: 17.8m maximum working height and 380kg rated capacity meet demanding high-altitude and heavy-duty work requirements.
Reinforced Structure: Thickened steel frame and strengthened scissor arms improve overall rigidity and extend service life.
Solid Tires: Guarantees smooth and stable movement on flat indoor ground.
Flexible Maneuverability: Compact design and agile steering allow easy passage through doors, elevators and narrow aisles.
Complete Safety Protection: Built with overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip platform.
Extendable Platform: The extended deck enlarges working space and boosts working efficiency.
Easy Maintenance: Premium components and optimized structure reduce daily maintenance costs and workload.
Product Specification Table
Item | Specification |
Model | XG1614AC |
Max. Working Height | 17.8 m |
Max. Platform Height | 15.8 m |
Rated Load Capacity | 380 kg |
Extended Platform Load | 120 kg |
Platform Dimension (L × W) | 1870 × 800 mm |
Extended Platform Length | 0.9 m |
Overall Dimension (Folded, L×W×H) | 3050 × 810 × 2600 mm |
Total Weight | 2430 kg |
Inner Turning Radius | 0 m |
Outer Turning Radius | 1.8 m |
Ground Clearance (Raised / Stowed) | 22 mm / 72 mm |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 30 ~ 52 s |
Lowering Time | 38 ~ 52 s |
Power Type | AC Power + Auxiliary Battery |
Certification | CE |
Application Scenarios
Warehouse & Logistics: High rack maintenance, inventory checking and lighting repair.
Building Maintenance: Ceiling, air conditioning, pipeline and electrical maintenance for high-rise buildings.
Commercial Venues: Lamp replacement, billboard installation and space layout in malls, hotels and exhibition halls.
Indoor Construction & Renovation: Wall painting, wiring and interior decoration works.
Event Arrangement: Stage setup, banner hanging and equipment installation for exhibitions and large activities.
Operation Guide
1 Pre-operation Inspection
Check AC connection, battery level, tire condition and hydraulic oil level.
Examine safety railings, extendable platform and locking pins to ensure firm installation.
Test emergency stop, tilt alarm and pothole protection for normal operation.
Clear obstacles and confirm the ground is flat, solid and within 25% slope limit.
2 Driving Operation
Turn the key switch to ON to start the machine.
Control moving direction via joystick. Speed will be limited when the platform is elevated.
Steer gently. Do not make sharp turns or drive on slopes over 25% during high-altitude work.
3 Lifting & Lowering
Press the lift button to raise the platform and release to stop.
Press the lower button to descend. Keep the area below clear of people and obstacles.
Extend the auxiliary platform only after full elevation. Never exceed the rated load.
4 Safety Regulations
Overload is strictly prohibited: 380kg for main platform and 120kg for extended platform.
Do not travel on slopes over 25% while the platform is raised.
Operators must wear safety harness during high-altitude operation.
Fully lower and retract the platform before moving the lift.
5 Shutdown & Maintenance
Lower the platform completely and retract the extended deck.
Turn off the key switch and disconnect power supply.
Clean the machine and check for loose parts or damage.
Charge the battery timely after use. Store the machine in a dry and ventilated place.
FAQ
Q1: What is the maximum working height and load?
A: The maximum working height is 17.8m, platform height is 15.8m, and rated load is 380kg.
Q2: Is it suitable for outdoor use?
A: It is mainly designed for indoor work. Short-time operation on flat outdoor ground is allowed. Please avoid heavy rain, strong wind and rough terrain.
A: The extended platform can bear a maximum load of 120kg. Overload is forbidden.
A: Maximum 2 people, and the total weight shall not exceed 380kg.
Q5: What safety devices are equipped?
A: It is equipped with overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip platform.
Q6: What are the daily maintenance requirements?
A: Do full inspection before use. Check battery and hydraulic system every week, and lubricate movable parts regularly.
