Product Introduction

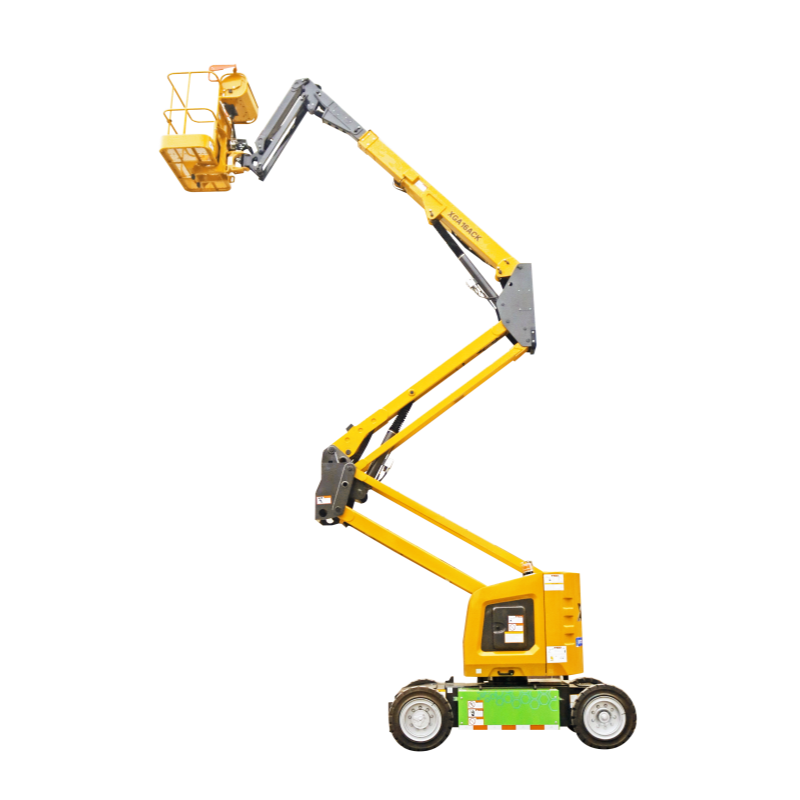

XGA16ACK is a compact self-propelled electric articulated boom lift built for versatile aerial operations. It features a maximum working height of 16m, 8.2m horizontal outreach and 227kg rated load. Adopting full electric drive, the machine operates with zero emission and low noise. Thanks to the articulated boom and zero tail swing design, it delivers outstanding flexibility to navigate narrow spaces and bypass obstacles. It serves as a reliable solution for indoor maintenance, commercial venues, building renovation and general outdoor aerial tasks.
Product Advantages
Zero Tail Swing Design: No rear overhang during rotation, effectively avoiding collisions in confined working areas.
Flexible Articulated Boom: Multi-joint structure adapts to complex angles and surrounding barriers for flexible positioning.
Eco-friendly Electric Power: No exhaust fumes and ultra-low running noise, suitable for indoor and environmentally restricted sites.
Compact Body Structure: Small overall dimension for easy transportation and flexible movement in narrow passages.
Strong Trafficability: 45% gradeability ensures stable driving on sloped and uneven ground.
Smooth Hydraulic Control: Optimized hydraulic system enables steady boom movement and simple operation.
Complete Safety System: Equipped with overload protection, tilt alarm and emergency lowering device for full safety protection.
Low Operation Cost: Electric drive reduces daily fuel expenses and maintenance workload.
Product Specifications
Item | Unit | XGA16ACK |
Max. Working Height | m | 16 |
Max. Platform Height | m | 14 |
Max. Horizontal Outreach | m | 8.2 |
Rated Platform Load | kg | 227 |
Platform Dimension | mm | 1420 × 720 × 1100 |
Overall Dimension (Stowed) | mm | 6950 × 1750 × 2030 |
Total Weight | kg | 6750 |
Power Source | - | Electric Battery |
Travel Speed (Stowed / Extended) | km/h | 4.0 / 0.7 |
Max. Gradeability | % | 45 |
Turntable Rotation Angle | ° | 360° Continuous |
Platform Swing Angle | ° | 180 |
Ground Clearance | mm | 188 |
Tail Swing | - | Zero Tail Swing |
Application Scenarios
Indoor Maintenance: High-altitude cleaning, equipment inspection and decoration works in factories, shopping malls and hotels.
Commercial Venues: Roof maintenance, lighting and billboard installation for exhibition halls, theaters and stadiums.
Building Projects: Exterior wall renovation, pipeline installation and small-scale overhead construction.
Municipal Works: Street lamp repair, tree trimming and roadside facility maintenance.
Warehouse & Logistics: High shelf inspection and maintenance inside large warehouses and logistics centers.
Operation Guide
Pre-operation Inspection
Check the remaining battery power to ensure sufficient electricity for continuous work.
Examine tire pressure and appearance, and tighten loose wheel bolts.
Inspect hydraulic oil level and confirm there is no fluid leakage.
Check safety guardrails, platform door, emergency stop button and alarm devices for normal function.
Operating Steps
Turn on the main power switch and wait until the system finishes self-check.
Drive the machine to a firm and flat area, then engage the parking brake securely.
Operate the control levers gently to lift, extend and rotate the boom to the target position.
Adjust the platform angle for precise positioning; never exceed the rated load capacity.
After completing work, fully retract and lower the boom, then cut off the main power.
Safety Regulations
Do not exceed 227kg rated load; only one operator is allowed on the working platform.
Operate solely on solid ground; the ground slope shall not exceed 5 degrees during operation.
Stop all operations immediately when wind speed exceeds 12.5m/s.
Operators must wear safety helmets and safety harnesses while working at height.
Carry out regular inspection on safety components and hydraulic parts periodically.
FAQ
Q1: Can XGA16ACK be used indoors?
A: Absolutely. It is fully electric with zero emission and low noise. The zero tail swing design also makes it perfect for narrow indoor spaces.
Q2: How long can it work continuously after being fully charged?
A: It can run continuously for 5 to 7 hours under normal working conditions. A full charge takes approximately 8 hours.
Q3: What does zero tail swing mean?
A: The turntable will not extend beyond the machine body when rotating. It prevents collisions with walls, pillars and other obstacles in tight sites.
Q4: Is it capable of driving on sloped roads?
A: Yes. It has a maximum gradeability of 45%, which enables stable travel on common slopes and rough roads.
Q5: What safety features does this model have?
A: It is equipped with overload protection, tilt alarm, emergency stop and emergency lowering system to guarantee operational safety.
Q6: What is the warranty policy?
A: The whole machine is warranted for 12 months or 2000 working hours, whichever comes first. We provide professional global after-sales and technical support.
