Product Introduction

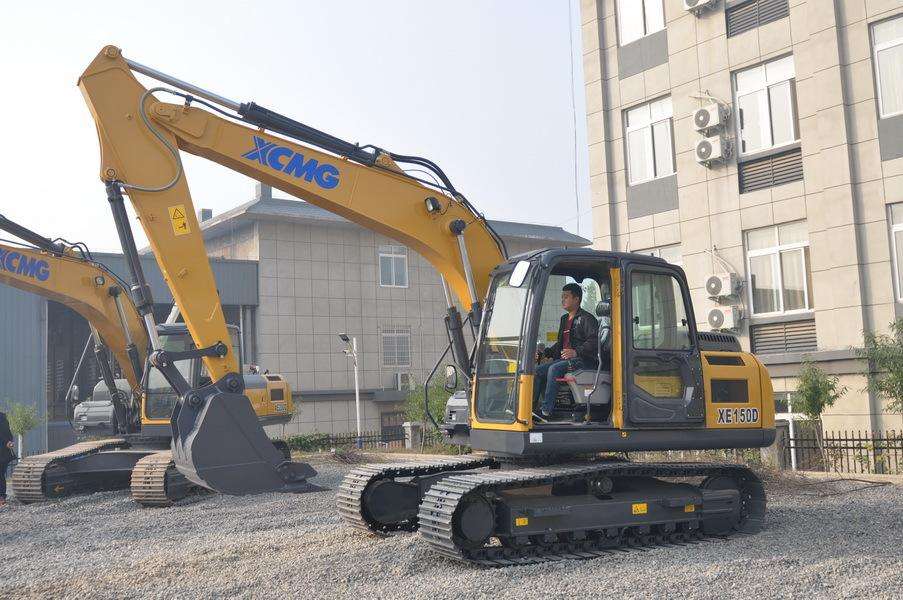

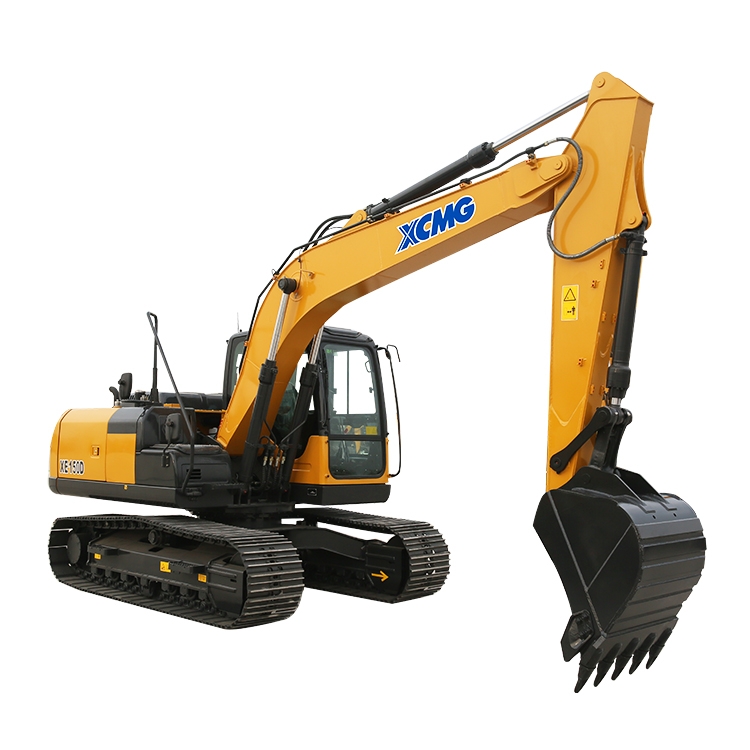

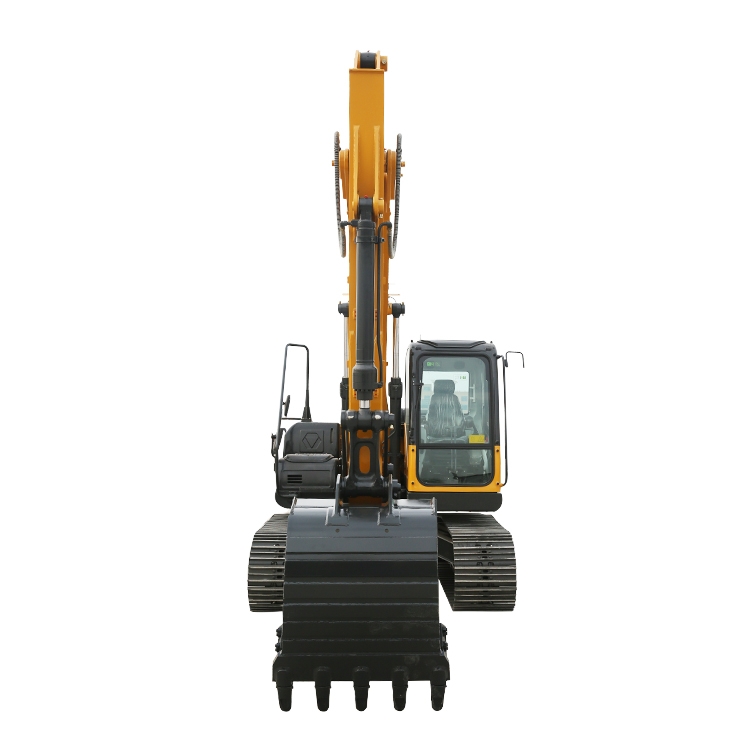

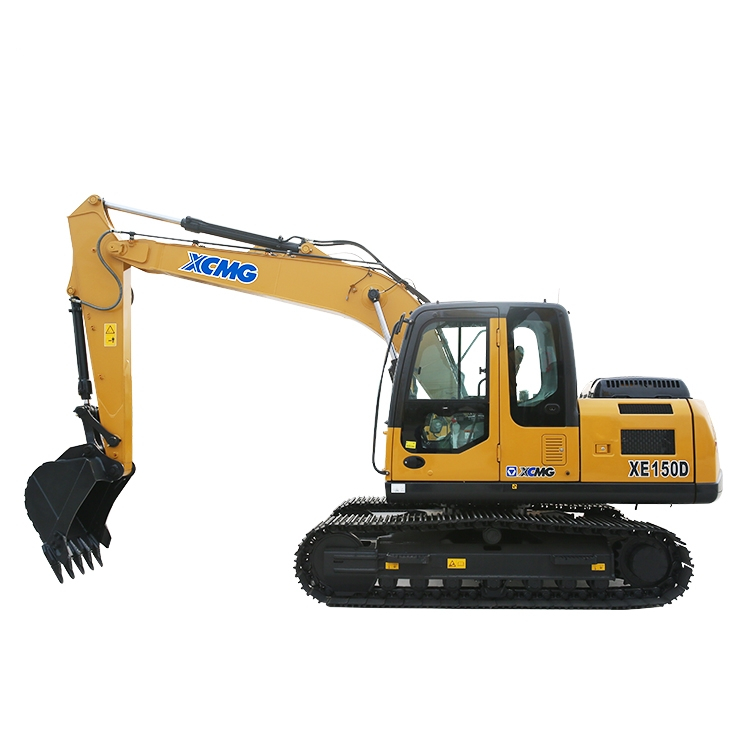

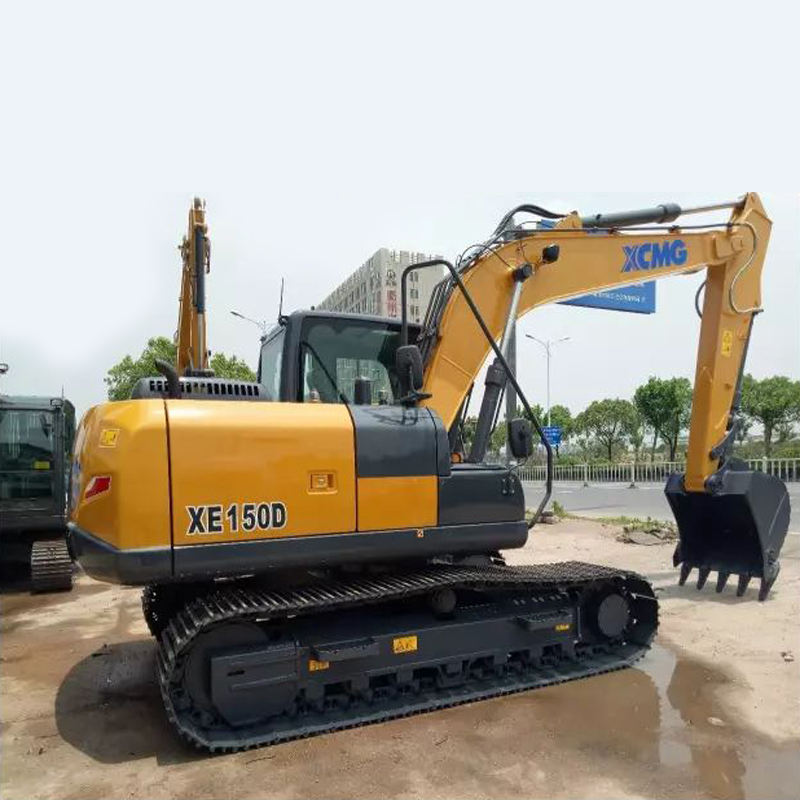

The XE150D excavator is a medium-sized tracked hydraulic excavator suitable for general applications such as municipal construction and road construction. This model is equipped with an original imported 4BTAA3.9 engine with a rated power of 93 kW/2200 rpm, featuring low fuel consumption and low noise characteristics, and complying with EPA and EC Tier 2 emission standards. The hydraulic system uses core components from international brands and is matched with an efficient cooling design to ensure stable operation.
The machine's operating weight ranges from 14,400 to 14,600 kg, with a standard bucket capacity of 0.32 to 0.71 m³. The maximum digging depth is 5,535 to 5,538 mm.
Product Advantage
Ecological and economical
Customized exclusive engine can meet Euro stage IV Emission Standard. Well-known hydraulic components, higher efficiency. Minicomputer control technology makes operation more economical.
Multiple applications
Different boom, arm and bucket combinations can provide excellent all-around versatility. Multi-functional work tool system can meet various operational requirements including digging, breaking and so on.
Comfortable operating experience
Air conditioner and heater ensure the appropriate temperature. Air-suspension seat equipped with electric heating function. Integrated control panel and large display screen provide multiple information.
Technical Parameters
| Model | Unit | XE150D |
| Operating weight | Kg | 14600 |
| Bucket capacity | m³ | 0.32~0.71 |
| Engine | Model | / | QSF3.8 |
| Rated power/speed | kw/rpm | 93/2200 |
| Maximum torque/speed | N.m | 500/1300 |
| Displacement | L | 3.76 |
| Main performance | Travel speed(H/L) | km/h | 5.3/3.2 |
| Swing speed | r/min | 70 |
| Gradeability | ° | 11.7 |
| Ground pressure | kPa | 37 |
| Bucket digging force | kN | 106.9 |
| Arm digging force | kN | 73.4 |
| Hydraulic system | Main pump | / | K7V63DTP |
| Rated flow of main pump | L/min | 2×123.5 |
| Main safety valve pressure | MPa | 34.3/37 |
| Travel system pressure | MPa | 3.9 |
| Oil Capacity | Fuel tank capacity | L | 260 |
| Hydraulic tank capacity | L | 105 |
| Engine oil capacity | L | 11 |
| Appearance size | Overall length | mm | 7795 |
| Overall width | mm | 2590 |
| Overall height | mm | 2900 |
| Width of platform | mm | 2490 |
| Track length | mm | 3658 |
| Overall width of chassis | mm | 2590 |
| Track shoe width | mm | 600 |
| Wheel base of crawler | mm | 2910 |
| Track gauge | mm | 1990 |
| Counterweight clearance | mm | 948 |
| Min. ground clearance | mm | 477 |
| Min. tail swing radius | mm | 2325 |
| Working scope | Max. digging height | mm | 8649 |
| Max. dumping height | mm | 6185 |
| Max. digging depth | mm | 5535 |
| Maximum depth cut for 2240mm(8 ft) level bottom | mm | 5324 |
| Max. vertical wall digging depth | mm | 4697 |
| Max. digging radius | mm | 8304 |
| Min. swing radius | mm | 2445 |
Product Uses
1. Municipal and Road Construction
The XE150D is ideal for urban infrastructure projects such as laying pipes, constructing roads, and site leveling. With an operating weight of approximately 14.5 tons, it can be equipped with various buckets to handle a wide range of earthmoving tasks, making it a reliable tool for municipal engineering projects.
2. Agriculture and Land Reclamation
In the agricultural sector, the XE150D is commonly used for land preparation, constructing livestock farms, and digging ditches. Combining the operational efficiency of a medium-sized excavator with the flexibility and fuel efficiency of a small excavator, it helps farmers efficiently complete various land reclamation tasks.
3. Ancient Town Renovation and Cultural Development Projects
As demonstrated in the construction project at the Taohuayuan Ancient Town in Changde, Hunan Province, the XE150D can efficiently complete earthwork excavation and foundation treatment tasks. Its low fuel consumption and high reliability help projects reduce costs, improve efficiency, and ensure project schedules.
4. Multi-Functional Attachment Expansion Applications

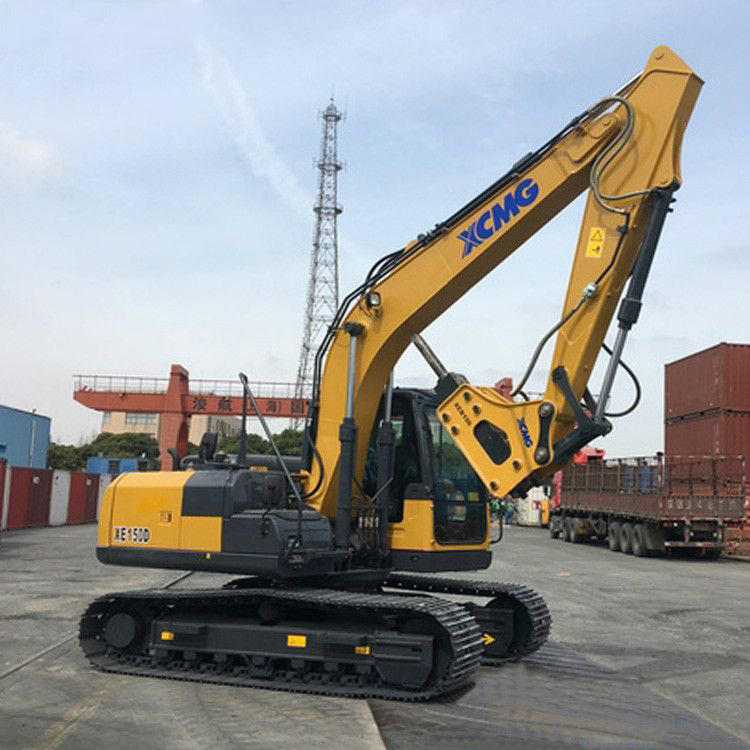

The XE150D is equipped with interfaces for installing various attachments such as breakers, soil splitters, and log grapples. This allows it to easily switch functions for special tasks like road breaking and forestry transportation, achieving multi-functional use with a single machine.
Product Operate Guide
First, fasten your seatbelt and check the dashboard for any alarms. When operating, use the intelligent power control system (S mode for more power, P mode for better fuel economy) to match different working conditions. Operate the handle gently to avoid sudden stops and turns. Make full use of the quick connectors to change attachments and achieve multiple uses with one machine. Regularly clean the radiator and check the track tension to effectively improve the durability of the equipment and your user experience.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
3. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
4. ENGINE OIL CONSUMPTION TOO HIGH?
Check for oil burning (blue smoke) or external leaks (oil seals, gaskets, fittings).
5. ENGINE IDLES ROUGH, SHAKES, OR STALLS?
Check for clogged diesel fuel filter, water in fuel system, or one or more malfunctioning injectors.
6. ALL ACTUATORS OPERATE SLOWLY AND WEAKLY?
Root cause lies in the common system: Check engine speed, hydraulic oil level and quality, main pump output pressure/flow, and main relief valve setting.
