TY160
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

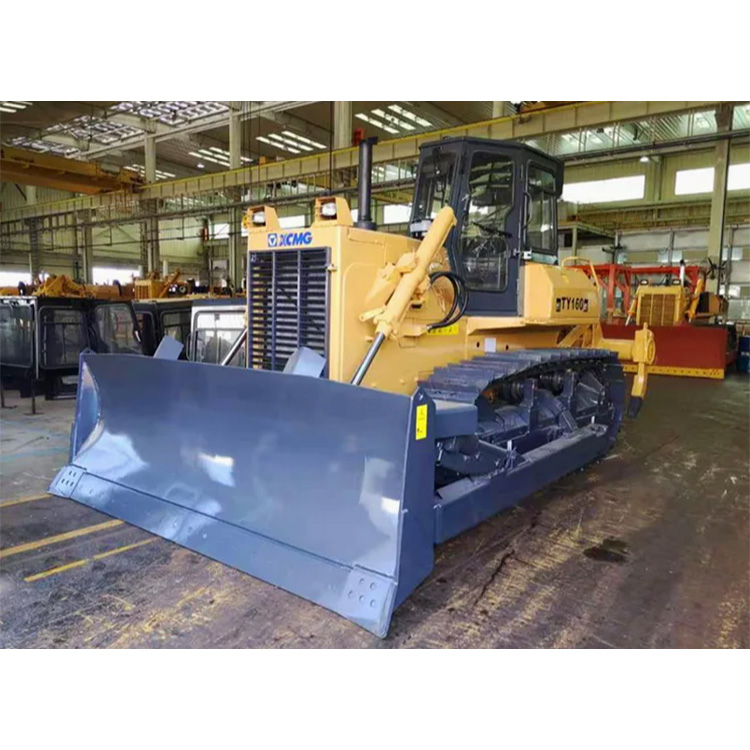

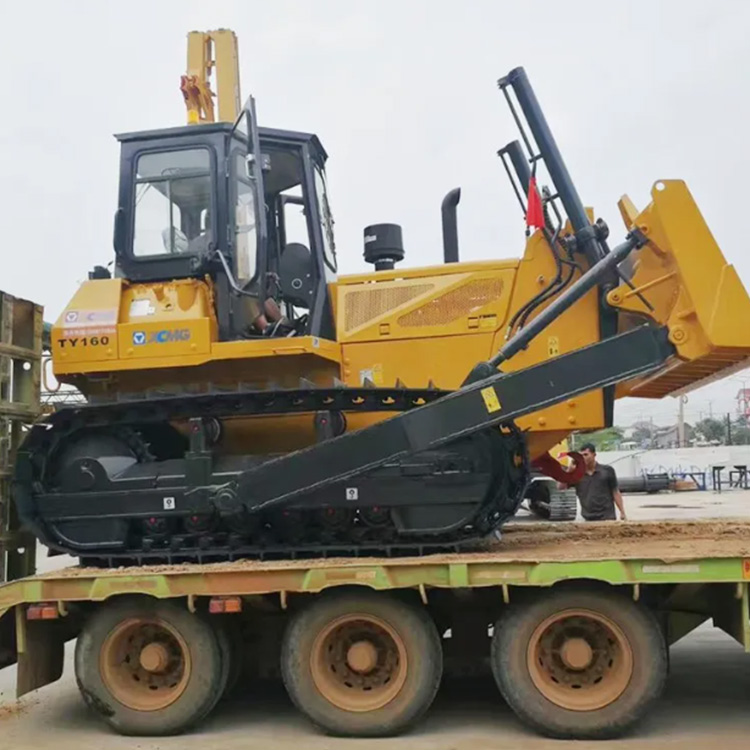

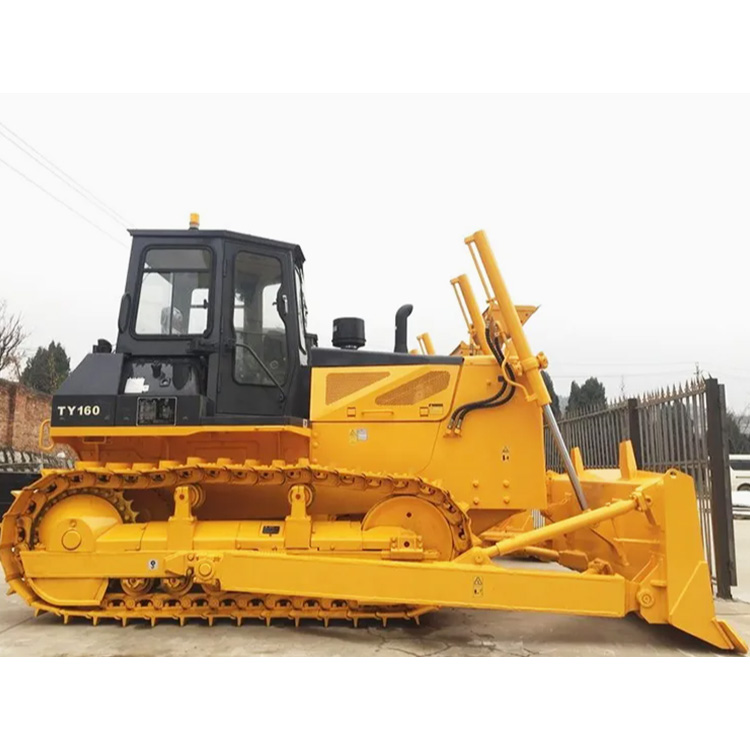

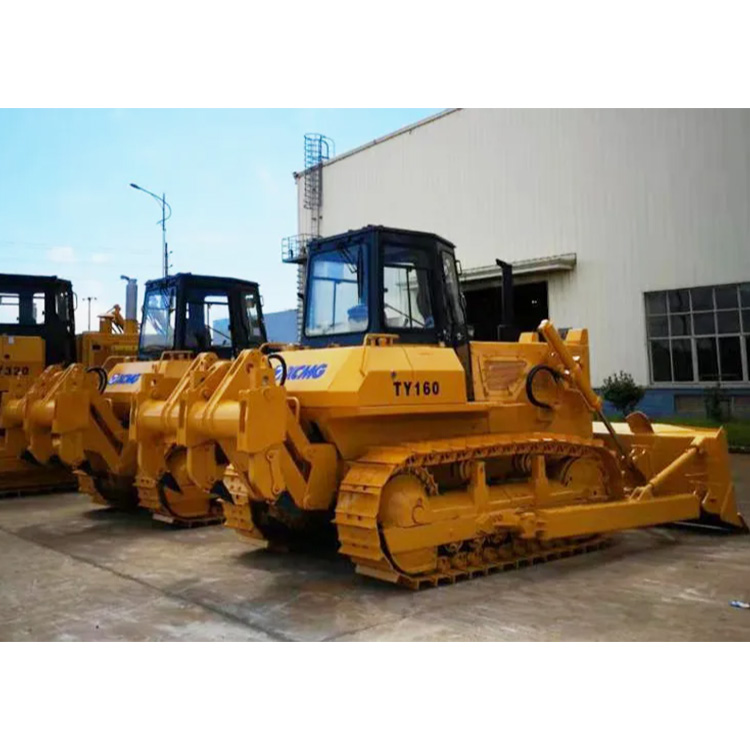

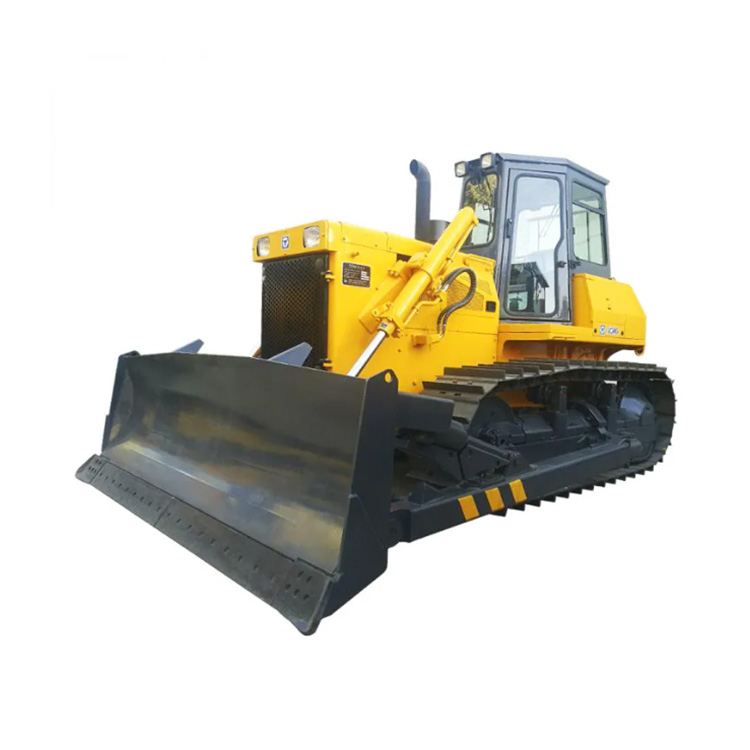

The TY160 bulldozer which has excellent power, reliability and a long service life. Through the introduction of Japanese D65A-8 bulldozer technology, at the same time absorb the advantages of D60A-8, The TY160 crawler type bulldozer has been developed by the domestic design.
Product Advantage
1. High engine power reserve, strong torque output, low fuel consumption, reliable controls.
2. Hydraulically powered, automatic speed change, shift the gears without stop the vehicle.
3. 3 elements, single stage and single phase torque convertor features high efficiency and capacity.
4.The updated hexahedral cab features outstanding visibility and good tightness.
5. Using the triangle spline and the gear of crowned teeth and tip relief in the final drive to average the loads on the trans-mission components for more stability, prolong the lifetime.
6. New blade is more durable and capacious.
Technical Parameters
| Name | Remarks | Ty160 |
| The use quality of the whole machine(kg) | Straight shovel, traction rod | 17100 |
| Straight shovel, three toothed soil loosen | 18700 | |
| Maximum traction power (kN) | 148 | |
| Minimum turning radius (mm) | 3100 | |
| Maximum climbing performance (掳) | 30 | |
| Minimum ground clearance (mm) | No crawler | 400 |
| Average ground specific pressure (MPa) | 0.065 | |
| Tracked ground length (mm) | 2430 | |
| Caterpillar center distance (mm) | 1880 | |
| Production efficiency (m3/h) | 30m distance | 350 |
| Engine | ||
| Model | Weichai WD10G178E25 | |
| type | Water cooling,straight line,four stroke,direct injection | |
| The number of cylinder - bore * stroke (mm) | 6-126×130 | |
| Working device | ||
| Straight shovel single shovel capacity (M3) | 3.9 | |
| The maximum lifting height of the blade (mm) | 1095 | |
| The maximum depth of soil cutting blade (mm) | 545 | |
| The maximum tilt blade height (mm) | 860 | |

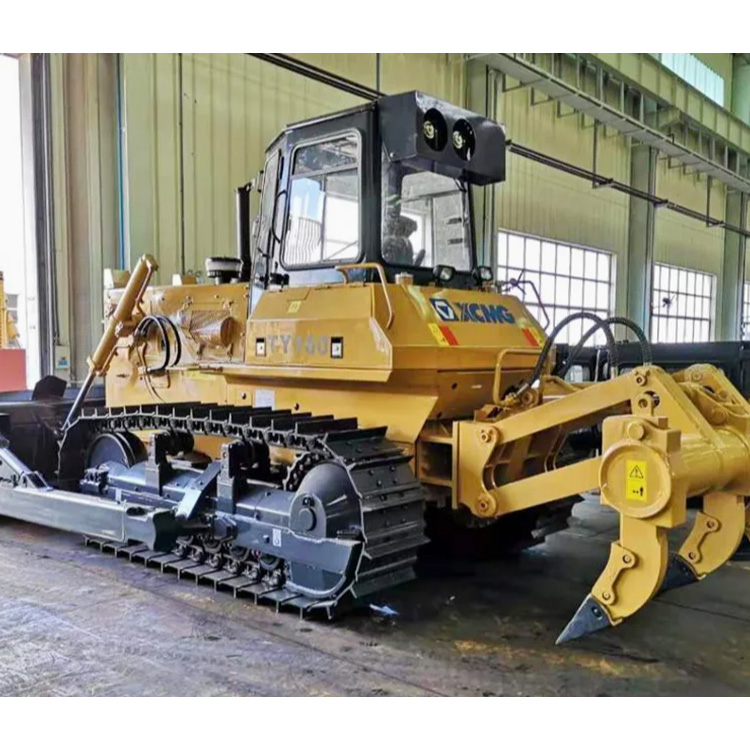

| Type of soil looser | Three teeth | |
| Three tooth looser tooth distance (mm) | 950 | |
| Three tooth looser | Soil depth (mm) | 572 |
| Elevation (mm) | 702 | |
| The three tooth scarifier weight (kg) | 1621 | |
Product Uses
It is mainly suitable for excavation, backfilling, and transporting earth and rock on roads, railways, airports, river channels, and other surfaces.
It is an indispensable construction machine for national defense projects, urban construction, and water conservancy projects.
Product Operate Guide
Pre-operation inspection: Check the hydraulic oil level, track tension, and engine coolant. In cold environments, preheat to above 10°C.
Efficient operation techniques: Use the segmented bulldozing method, maintain a 30° angle between the blade and the ground, and utilize the hydraulic system to achieve a leveling accuracy of ±3 cm.
Regular maintenance: Replace the oil filter every 250 hours and lubricate all pins; inspect the wear condition of the undercarriage track rollers every 1,000 hours.
Safety regulations: Maintain straight-line travel when operating on slopes; strictly prohibit overloading or sharp turns.
