Product Introduction

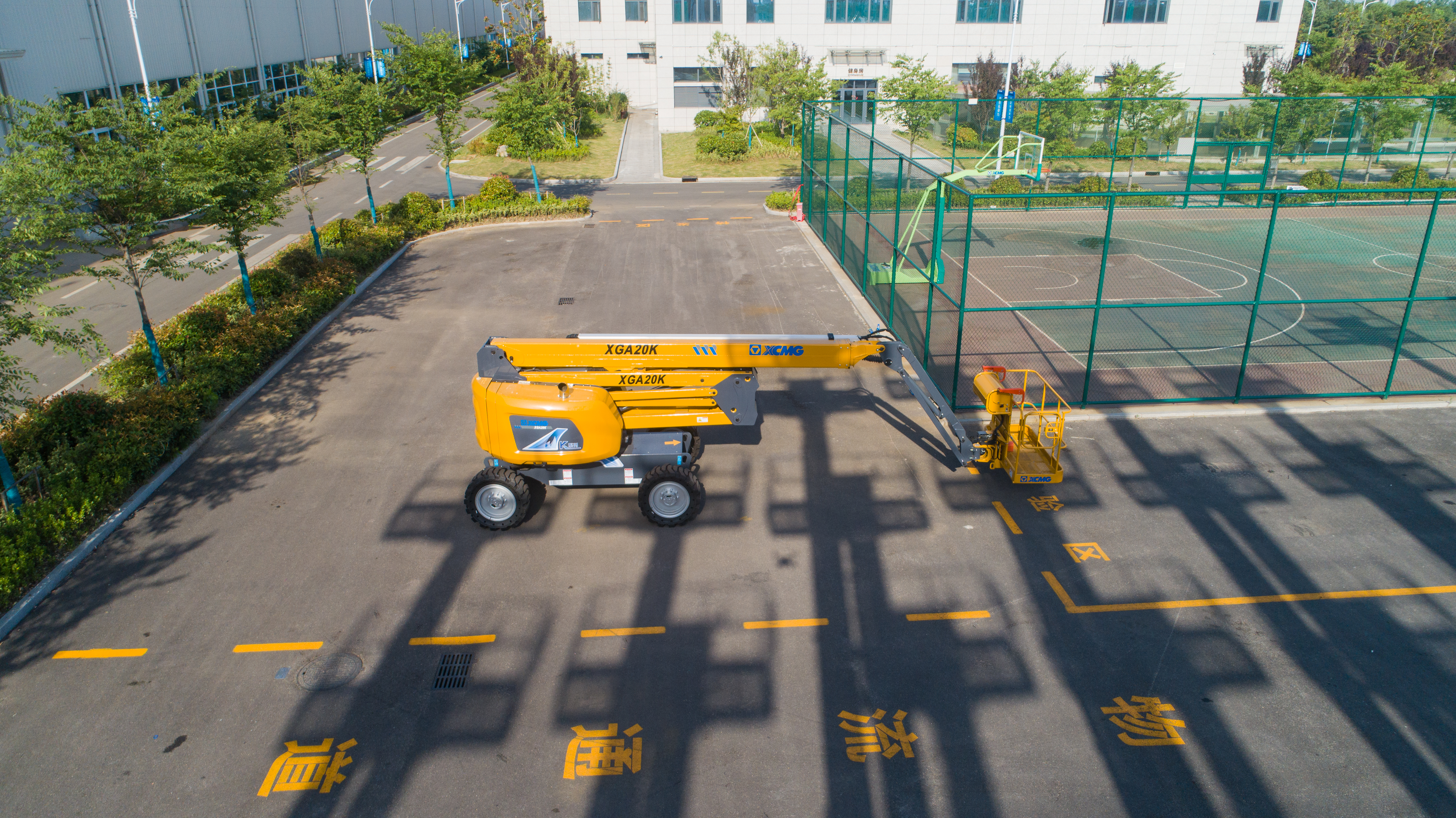

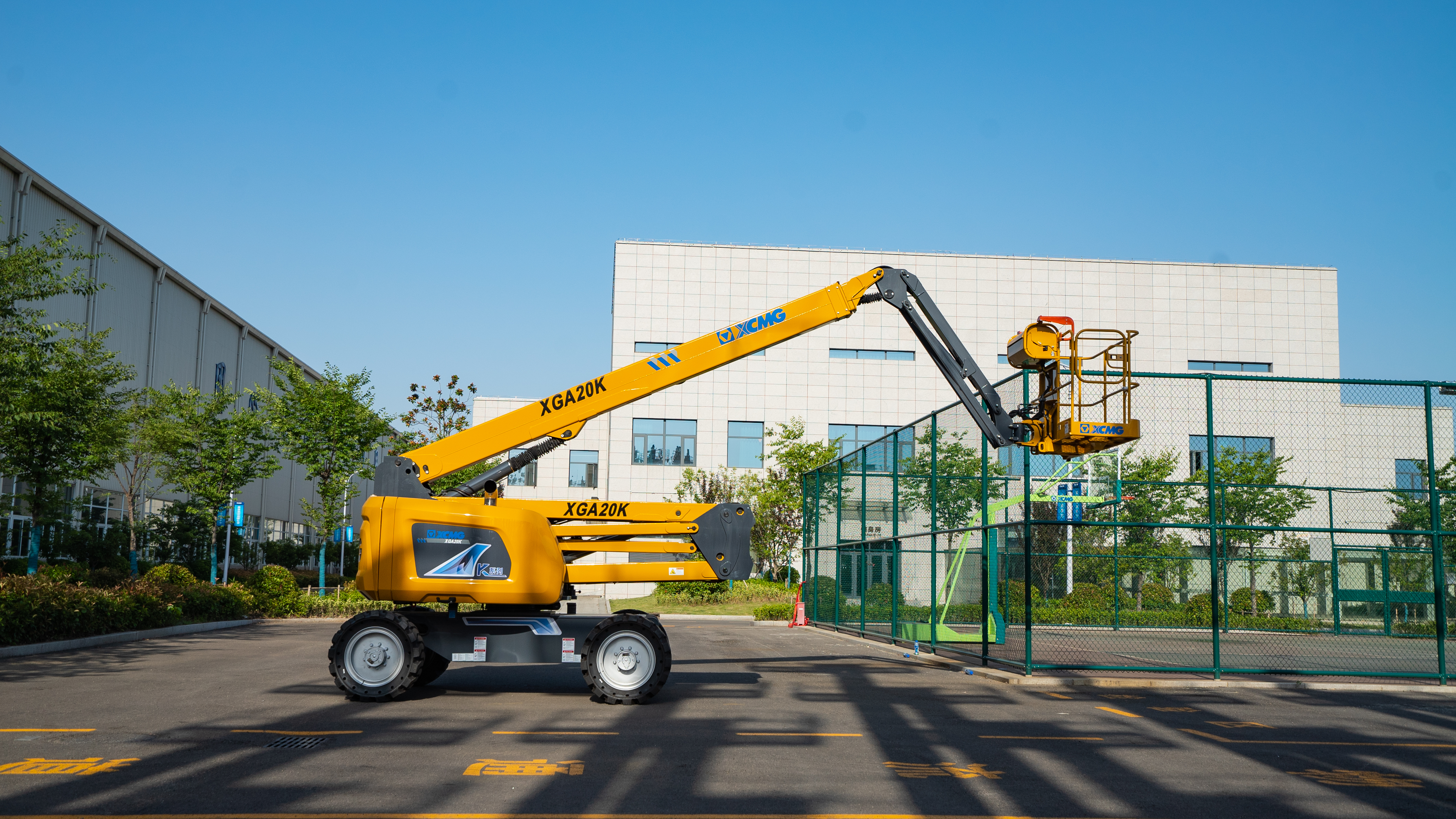

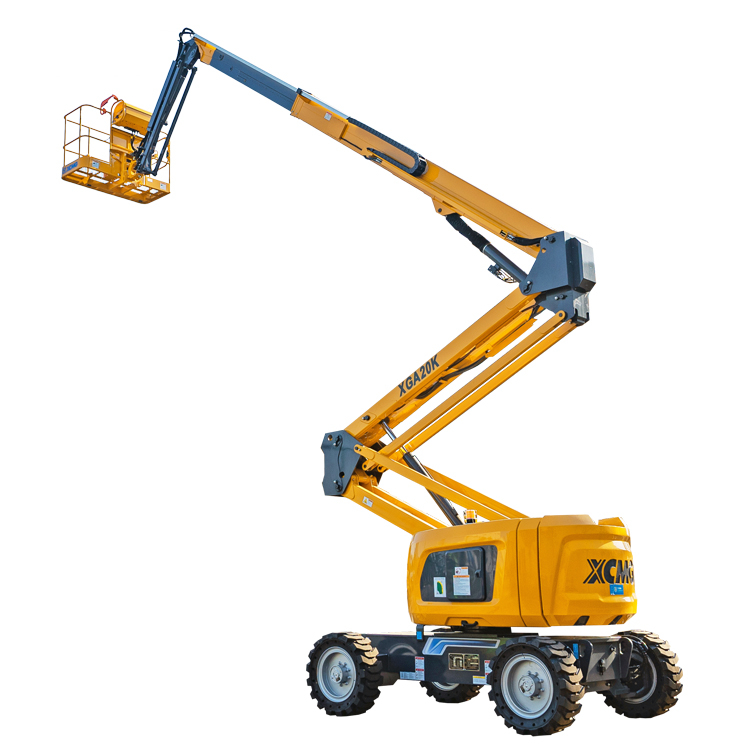

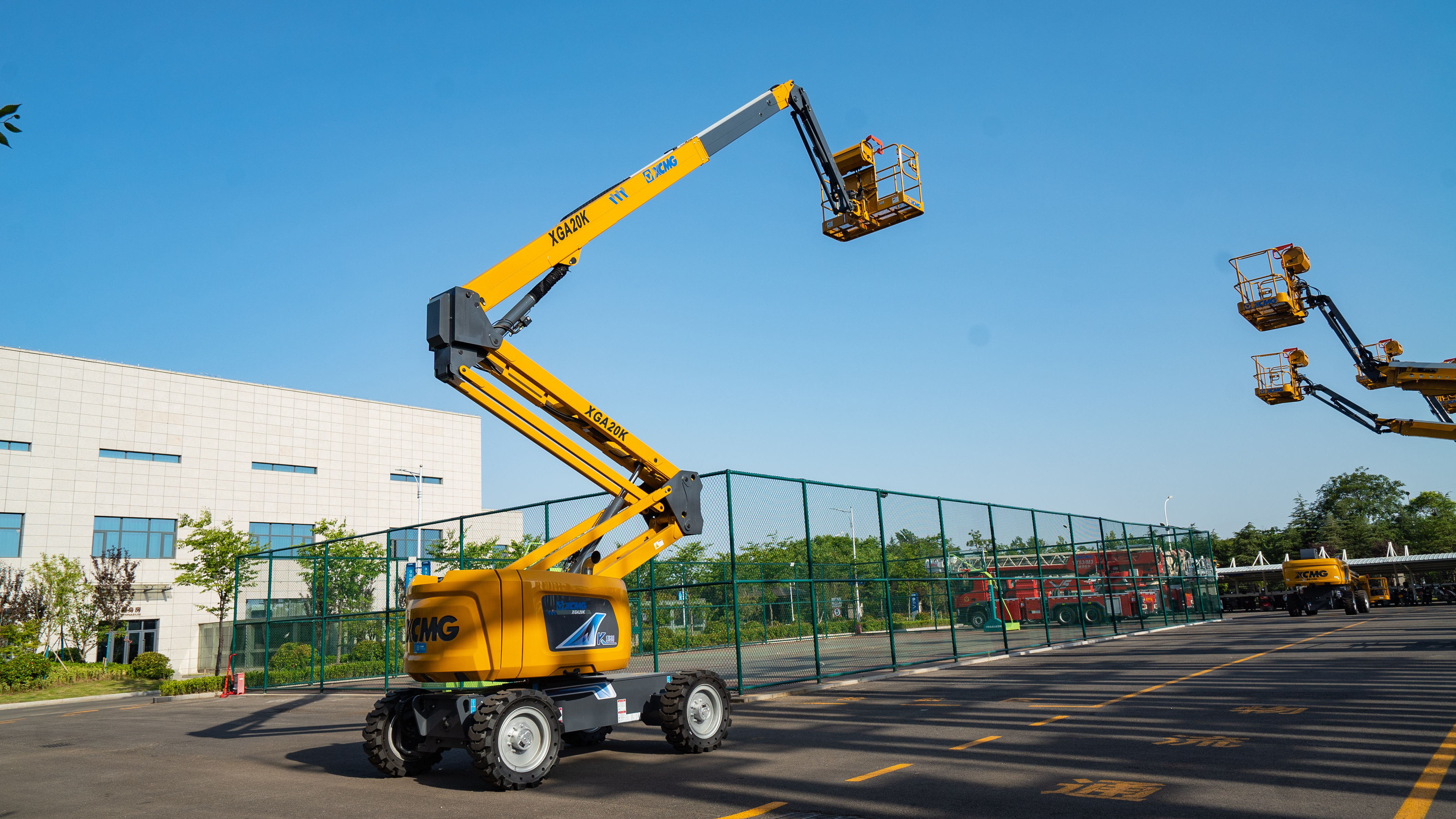

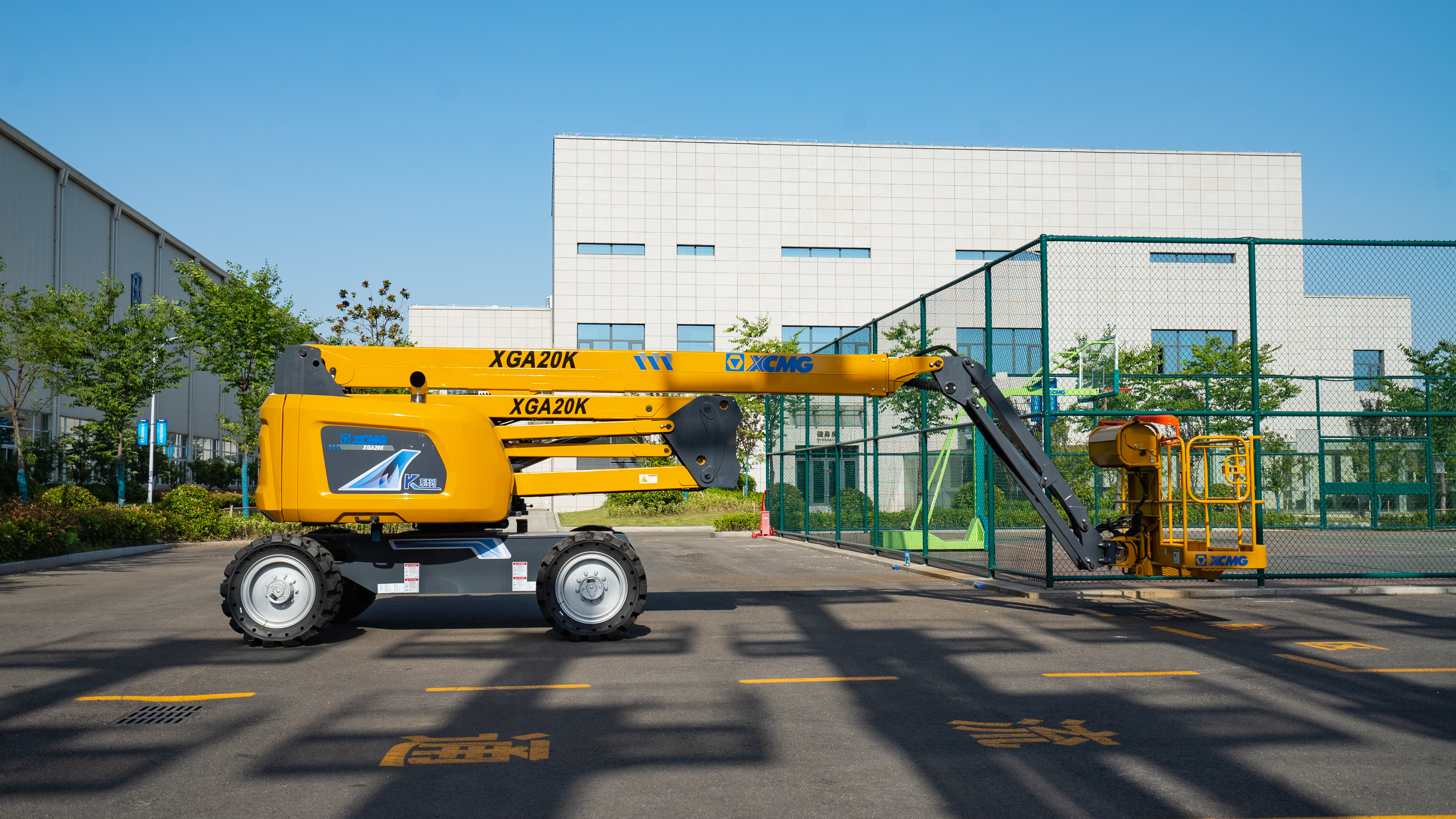

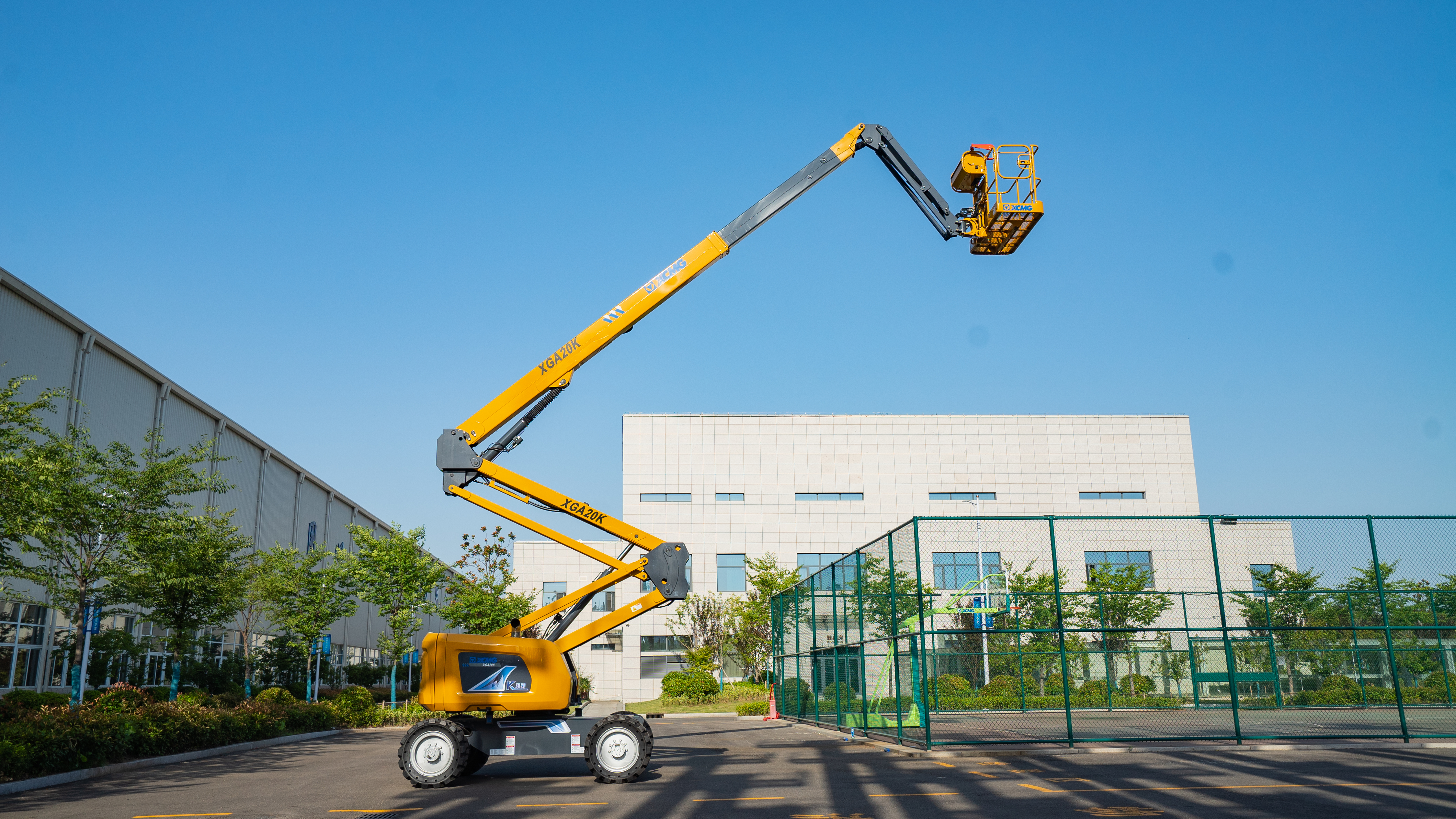

The XGA20k is a high-performance self-propelled straight boom aerial work platform developed by XG Group, with a maximum working height of up to 20 meters. The product integrates core advantages such as intelligent control, efficient operation and safety and reliability, and is suitable for various operation requirements in middle and high-rise Spaces.
Product Advantage
1.256/350 kg of double load and big load design, load performance in the industry advanced level.
2.Multi-directional precise positioning up, down and across functions as well as excellent stretch functions.
3.Electrical system USES a distributed PLC control technology, adaptive proportional valve control method, make the product environment adaptability with lead.
4.Full hydraulic pressure drive, 360 °angular free rotation, there is no Angle limits in full operation and simple operation, high reliability.
5. Compact clever, vehicle layout is compact, convenient for container transportation.
Technical Parameters
| Item | Unit | Parameters |
| Overall length | mm | 8520 |
| Overall width | mm | 2300 |
| Overall height | mm | 2400 |
| Wheelbase | mm | 2500 |
| Max. working height | m | 20.63 |
| Max. platform height | m | 18.63 |
| Max. working range | m | 12.08 |
| Max. carrying weight | kg | 256(unlimited)/350(limited) |
| Scope of luffing of No. 1 arm | ° | 0~+72 |
| Scope of luffing of Boom No.2 | ° | 0~+73 |
| Crank arm luffing range | ° | -64~70 |
| Slewing angle of turntable | ° | 360 |
| Max. Tail swing | mm | 0.54 |
| Dimension of platform | mm | 1830×760×1150 |
| Slewing angle of platform | ° | 160 |
| Overall weight | kg | 9900 |
| Max. traveling speed | km/h | 5.5 |
| Min. turning radius | m | 5.0 |
| Min. ground clearance | mm | 330 |
| Max. gradeability | % | 45 |
| Specification of tire | / | 355/55D625 |
| Engine model | / | YCF3050-T302 |
| Engine rated power | kW/(r/min) | 36.8/(2400) |
Product Uses
Installation and maintenance of steel structure buildings
• Maintenance of large-scale factory equipment
• Construction and maintenance of sports venues
Municipal bridge inspection
• Shipbuilding and maintenance
Product Operate Guide
The XGA20K aerial work platform is a high-performance and highly safe self-propelled straight boom product. To ensure safe and efficient operation, please receive professional training and read this manual carefully before use. This guide covers safety checks before equipment startup, detailed explanations of control panel functions, emergency handling, operation norms for walking and lifting, as well as key points for daily maintenance and care. Strictly adhering to operating procedures is the core to ensuring personal safety and the reliable operation of equipment. When working, please always fasten your safety belt, pay attention to observing the surrounding environment, and ensure that the load on the platform is uniform and not overloaded.
FAQ
1.On which ground surfaces is it suitable for driving?
A: The XGA20K has excellent ground adaptability and can travel on solid and flat concrete, asphalt and other hard surfaces. Its relatively high ground clearance of the chassis can handle some slightly uneven roads, but it is not suitable for soft, muddy or extremely uneven ground.
2.What type of battery does the XGA20K use?How long is the battery life?
A: It comes standard with high-performance, maintenance-free lead-acid batteries and can be optionally equipped with more advanced lithium battery solutions. The battery life depends on the actual load, driving speed, frequency of lifting and lowering, and ground conditions. Under typical working conditions, lead-acid batteries can generally support continuous operation for 6 to 8 hours, while lithium batteries have a longer endurance and support opportunistic charging (charging and discharging at any time), which can basically meet the needs of all-day operation.
3.How long does it take to fully charge a battery?
A: Lead-acid batteries usually take 8 to 10 hours to be fully charged. Lithium batteries charge faster, taking about 6 to 8 hours to fully charge, and they support fast charging mode.
4.How should batteries be maintained?
A: Lead-acid batteries need to be regularly inspected for the electrolyte level (non-maintenance-free type) and the corrosion condition of the terminal blocks. Lithium batteries basically do not require daily maintenance, but attention should be paid to the storage environment. No matter what kind of battery it is, it is recommended to charge it in time before the battery level drops below 20% to avoid over-discharge.
5.What checks and maintenance are needed on a daily basis?
A: Daily inspections should be conducted before each day's work, including:
• Check whether the structural components are deformed or cracked.
Check whether the hydraulic oil level is normal and if there is any leakage in the pipelines.
• Check the battery power and wiring.
Test whether all control functions and safety devices (such as emergency stop buttons and alarms) are functioning properly.
• Clean the platform and chassis.
6.If the equipment malfunctions, how can I conduct a preliminary investigation?
The intelligent control system of the XGA20K is equipped with A fault code display function. When a fault occurs, the dashboard will display the corresponding fault code. You can refer to the fault code table in the "Operation and Maintenance Manual" at the first time to understand the cause of the fault and the initial handling suggestions. If the problem cannot be solved, please contact professional maintenance personnel immediately. Do not disassemble the key components by yourself.
