XG0807AC AC Electric Scissor Lift 7.8m Working Height 240kg Aerial Work Platform

Product Introduction

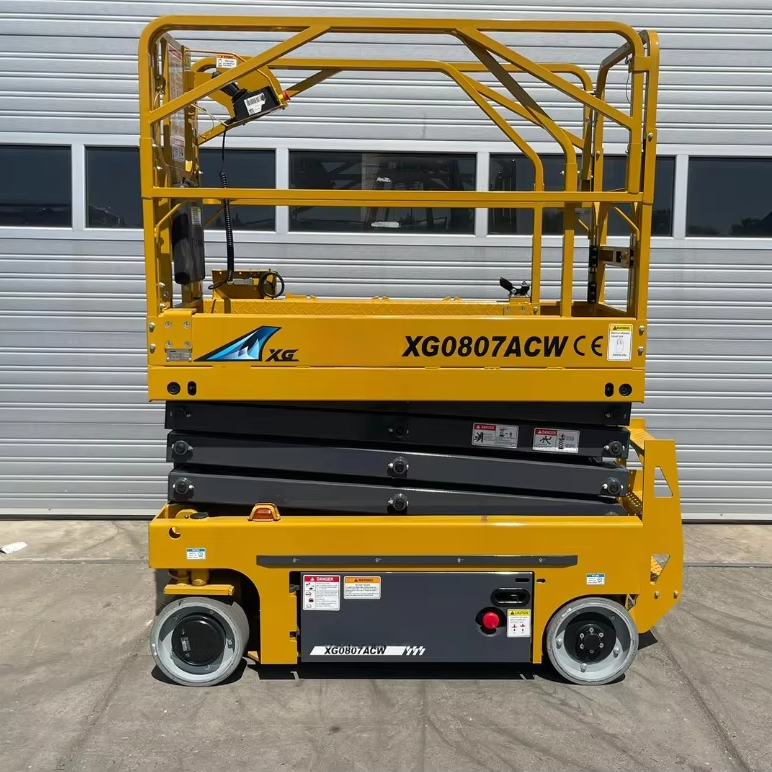

XG0807AC is a compact AC electric self-propelled scissor lift, engineered for 7.8m maximum working height and 230kg rated load. Featuring a narrow 760mm width and solid non-marking tires, it delivers zero emissions, low noise, and stable performance for both indoor and light outdoor aerial tasks. CE-certified and built with robust all-steel structure, it meets global safety standards for warehouses, commercial spaces, and light construction.

Product Advantages

• AC Electric Drive: Consistent power output, low noise, zero emissions; ideal for long-duration indoor operation.

• Ultra-Compact & Maneuverable: 760mm width, zero inner turning radius, easily passes standard doors/elevators and navigates narrow aisles.

• High Safety Configuration: Overload protection, tilt alarm (1.5°/3°), emergency stop, automatic pothole protection, anti-slip platform.

• Enhanced Working Area: 0.9m extendable platform (115kg load) expands operational flexibility.

• Durable & Low Maintenance: Heavy-duty scissor structure, long-lasting components, simplified daily upkeep.

• Indoor & Outdoor Versatility: Stable on flat ground; suitable for warehouses, malls, and light outdoor maintenance.

Product Specification Table

Application Scenarios

• Warehouse & Logistics: Inventory counting, shelf assembly, lighting/ventilation maintenance in narrow aisles.

• Commercial Spaces: Fixture installation, sign hanging, ceiling cleaning, lamp replacement in malls, hotels, exhibition halls.

• Building Maintenance: Indoor wall repair, HVAC/pipeline upkeep, electrical wiring for offices, apartments, public facilities.

• Light Construction: Interior renovation, painting, drywall installation, window/door fitting.

• Events & Exhibitions: Stage setup, banner hanging, AV equipment installation for conferences and temporary activities.

• Light Outdoor Tasks: Facade maintenance, garden lighting repair on flat, solid ground (no heavy rain/wind).

Operation Guide

1 Pre-operation Inspection

• Check AC power connection/battery charge, tire condition, and hydraulic oil level.

• Verify safety railings, platform extension, and pins are secure.

• Test emergency stop, tilt alarm, and pothole protection for normal function.

• Clear ground obstacles; ensure surface is flat, solid, and free of debris.

2 Driving Operation

• Turn key switch to ON; activate AC power.

• Use joystick for forward/backward; speed limited to 0.8km/h when elevated.

• Steer gently; avoid sharp turns or slopes >25% while platform is raised.

3 Lifting & Lowering

• Press lift button to raise; release to stop.

• Press lower button to descend; keep area below clear.

• Extend platform only when fully elevated; do not exceed 115kg on extension.

4 Safety Regulations

• No Overload: 230kg main / 115kg extension max load.

• Slope Limit: Do not drive on slopes >25% when elevated.

• Safety Harness: Required for all elevated work.

• Lower Before Moving: Fully retract platform before repositioning.

5 Shutdown & Maintenance

• Fully lower platform and retract extension.

• Turn off key switch; disconnect AC power.

• Clean surface; check for loose bolts or damage.

• Charge battery after use; store in dry, ventilated area.

FAQ

Q1: What is the max working height of XG0807AC?

A: Max working height is 7.8m; max platform height is 5.8m.

Q2: Can it be used outdoors?

A: Yes, for light outdoor use on flat, solid ground. Avoid heavy rain, strong wind, or uneven terrain.

Q3: What is the machine width?

A: 760mm—fits standard doors, elevators, and narrow spaces.

Q4: How many people can it hold?

A: Max 2 persons (total load ≤230kg).

Q5: What safety features are included?

A: Overload protection, tilt alarm, emergency stop, automatic pothole protection, anti-slip platform.

Q6: What is the power source?

A: AC electric with 24V lead-acid battery (4×6V/225Ah) for backup.
