Product Introduction

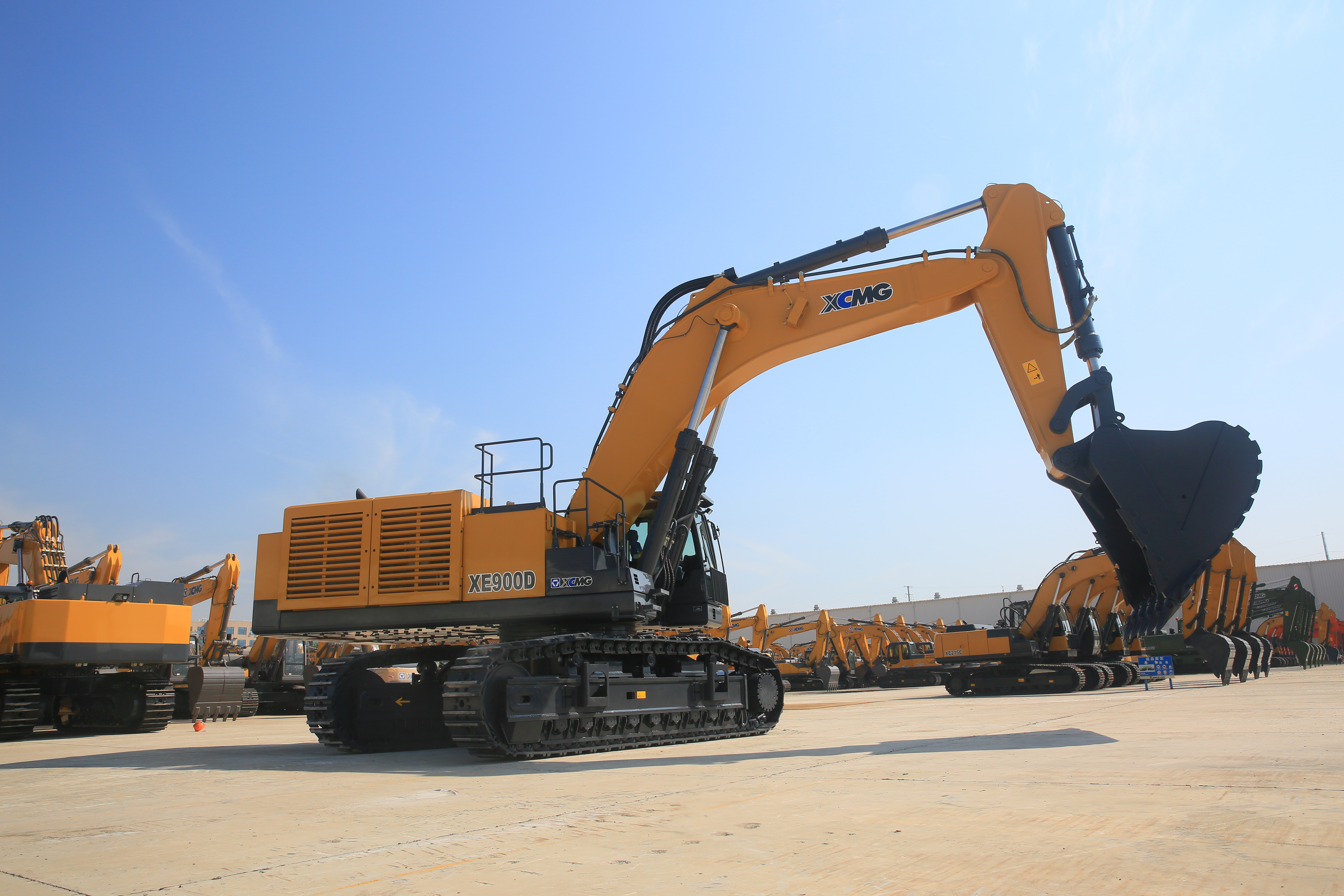

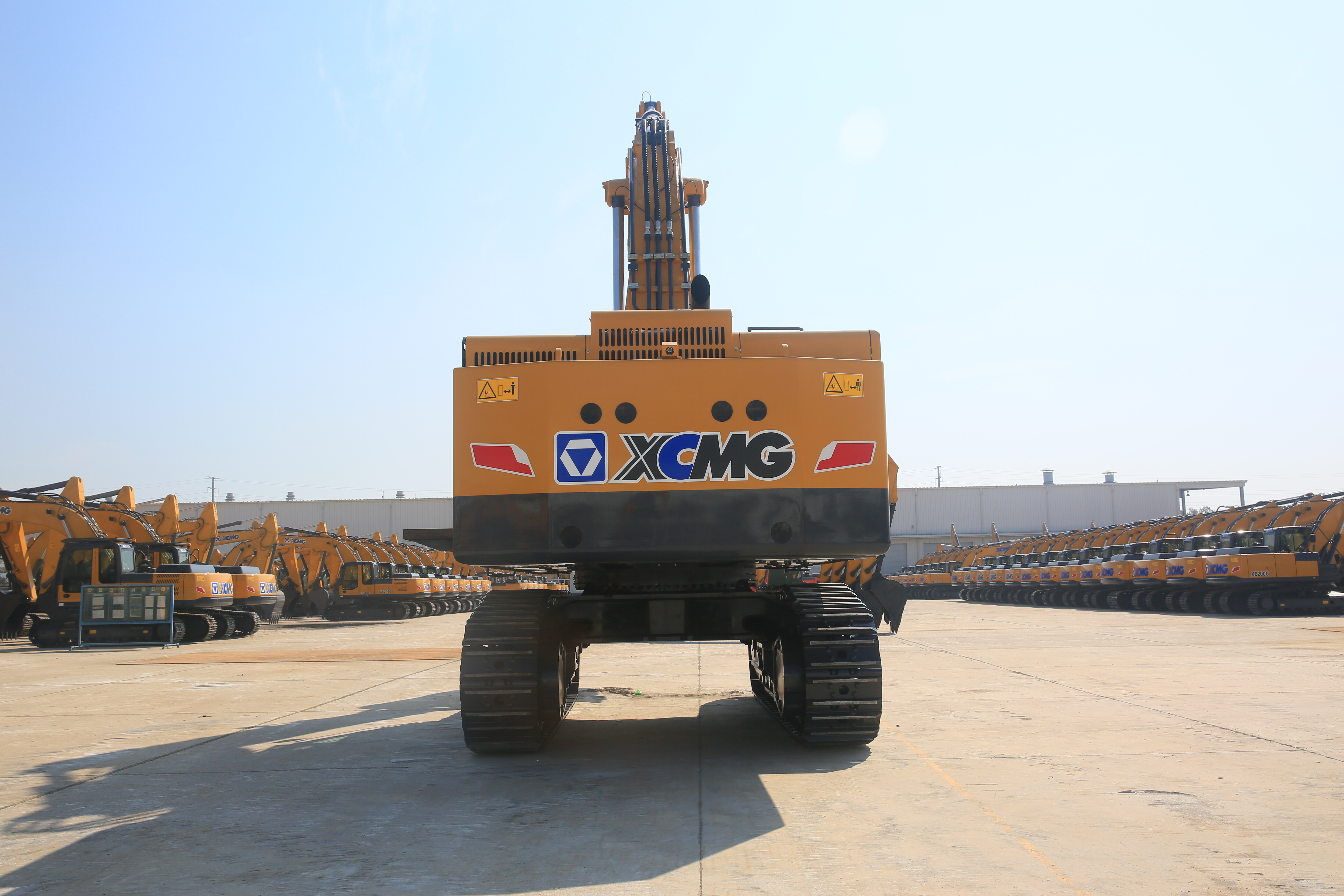

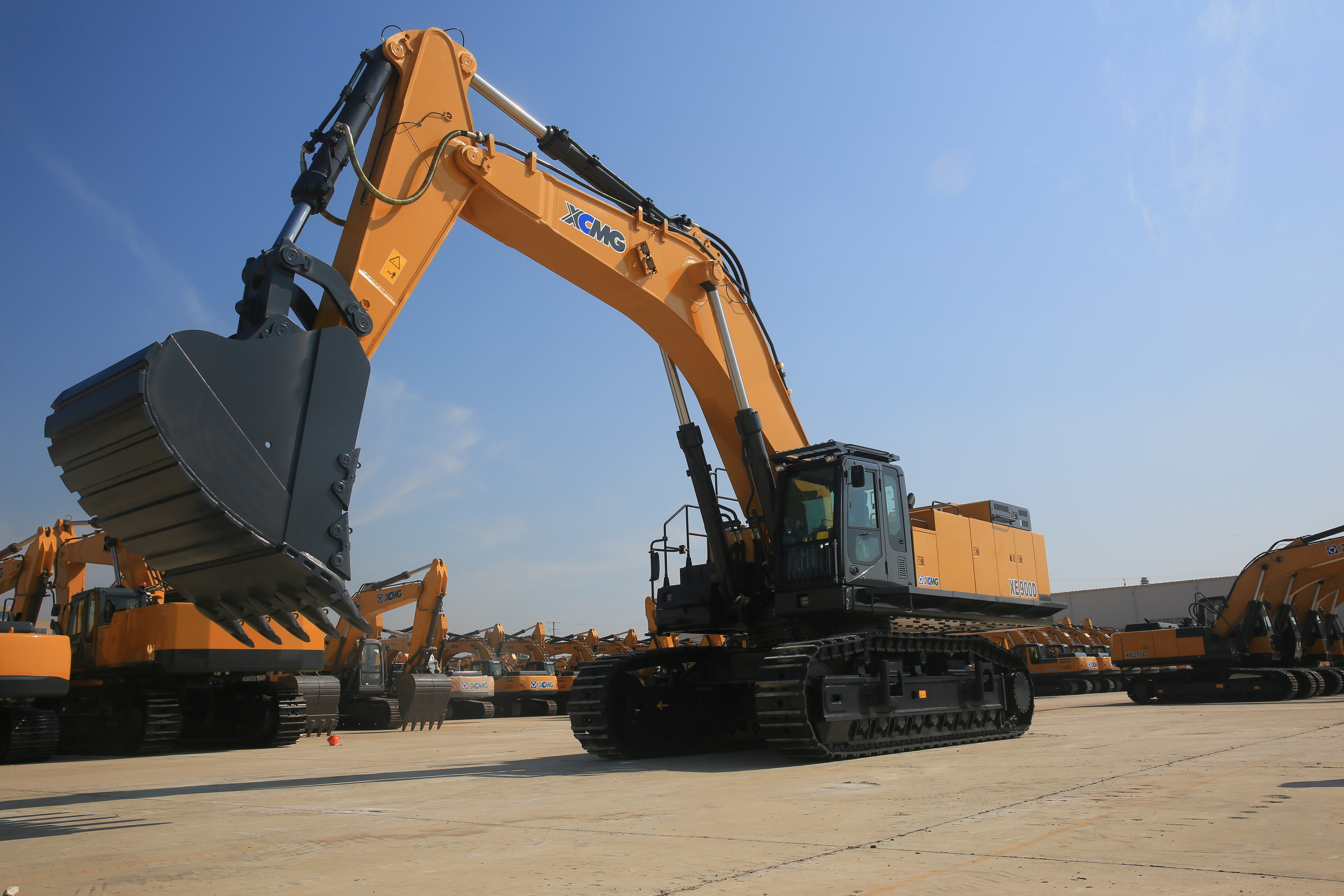

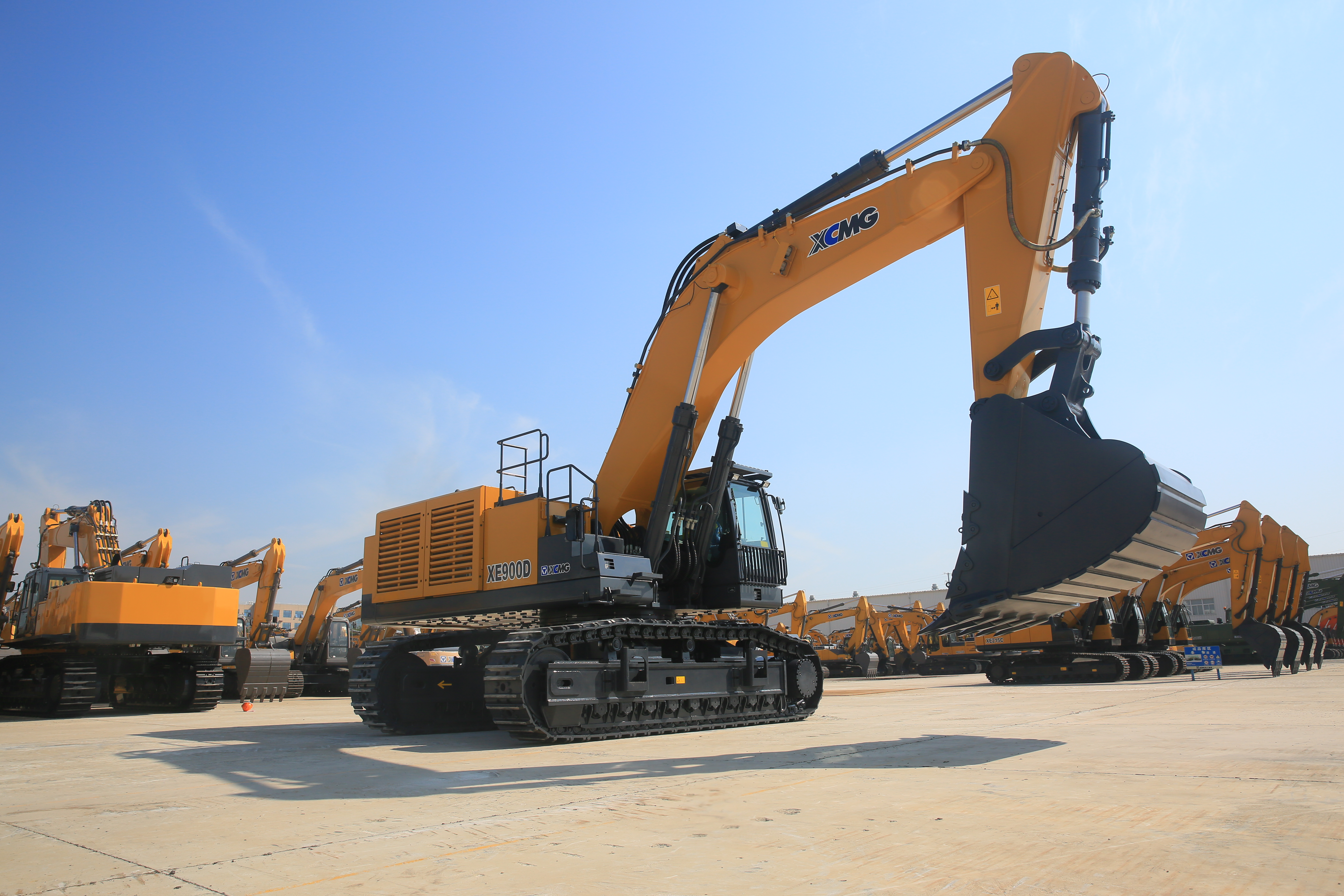

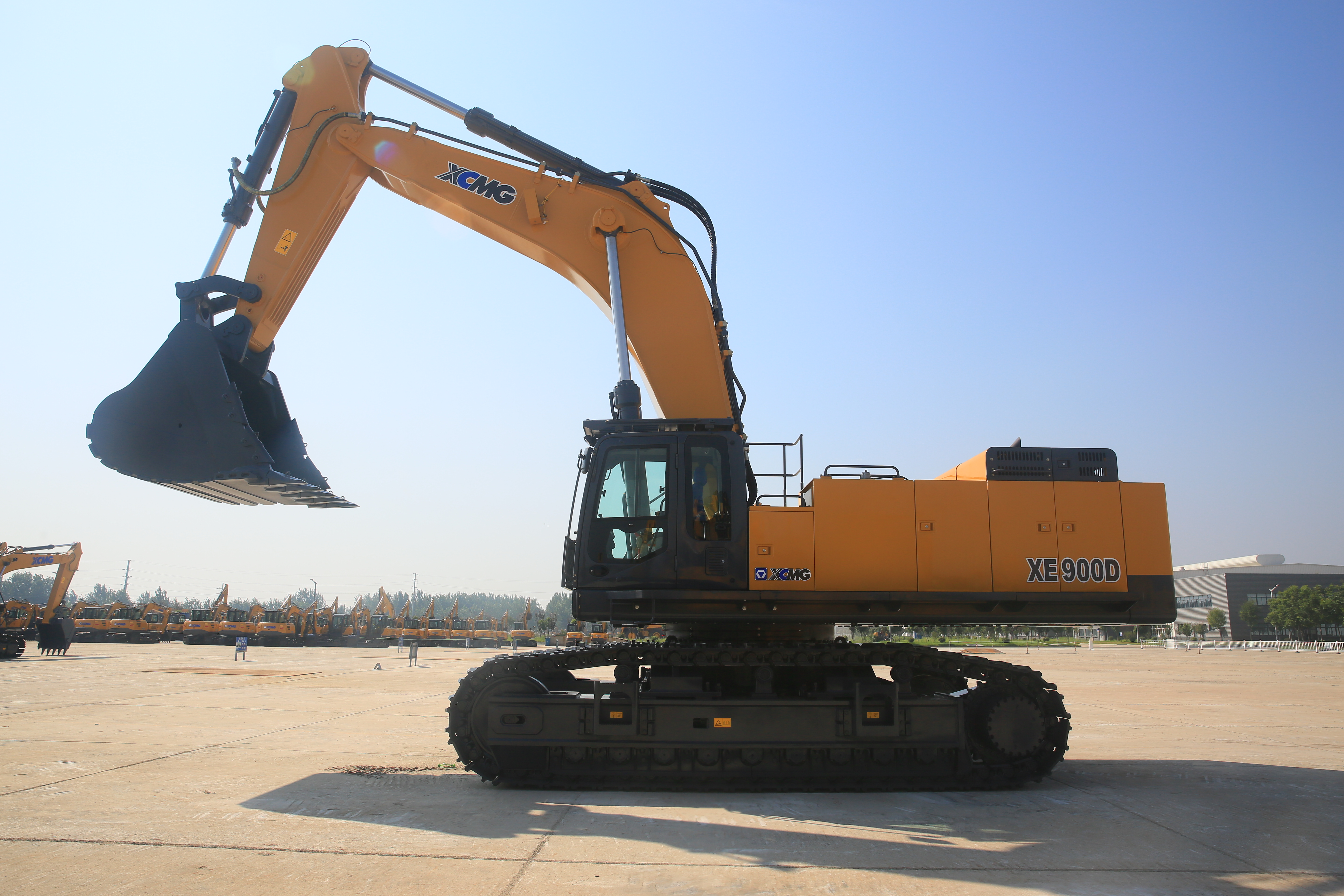

The XE series of large mining hydraulic excavators bring you an extraordinary driving experience with lean manufacturing, professional design and excellent reliability. Moreover, this series of products boast strong excavating power and quick operating speed, making them have matchless operating performance and economic efficiency even in severe mining condition.
Product Advantage
1. More energy-conservation and environmental protection
By adopting the engine which complies with national stage III emission standard and features with direct injection, four strokes, water cooling, turbocharging, air to air intercooler and six-cylinder, it can meet mining application requirements. Blending with proven, sturdy and durable parts and delicate manufacturing process, higher reliability and efficiency can be achieved.
2. More efficient return
By adopting the full electric control engine with low speed and large torque customization which complies with excavating working conditions, the torque reserve can be improved by 11% and the oil consumption can be reduced by 9%.
3. More reliable and durable
High quality integrated electric system, with higher indicator and electric centralized control, the design is more concise and the system is more reliable.
Technical Parameters
| Description | Unit | Parameter value | |
| Operating weight | kg | 89600 | |
| Bucket capacity | m³ | 3.5-6.0 | |
| Engine | Model | Engine | QSX15 |
| Output power | kW/ r/min | 399/2100 | |
| torque/speed | N.m | 2539/1400 | |
| Displacement | L | 15 | |
| Main performance | Travel speed(H/L) | km/h | 4.2/2.8 |
| Gradeability | % | 35 | |
| Rotary speed | r/min | 6.3 | |
| Ground pressure | kPa | 120.9 | |
| Bucket digging force | kN | 480 | |
| Arm digging force | kN | 370 | |
| Travel traction force | kN | 656 | |
| Hydraulic system | Rated flow of main pump | L/min | 2×549 |
| Pressure of prime valve | MPa | 31.4/34.3 | |
| Pressure of travel system | MPa | 34.3 | |
| Pressure of swing system | MPa | 24.5 | |
| Pressure of pilot system | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 1230 |
| Hydraulic tank capacity | L | 760 | |
| Engine oil capacity | L | 48 | |
| Appearance size | Overall length | mm | 13570 |
| Overall width | mm | 4545 | |
| Overall height | mm | 5380 | |
| Width of platform | mm | 3370 | |
| Length of crawler | mm | 6350 | |
| Overall width of chassis | mm | 4150 | |
| Width of crawler | mm | 650 | |
| Track length on ground | mm | 5070 | |
| Crawler gauge | mm | 2960/3500 | |
| Clearance under counterweight | mm | 1660 | |
| Min. ground clearance | mm | 850 | |
| Min. tail swing radius | mm | 4700 | |
| Working scope | Max. digging height | mm | 12060 |
| Max. dumping height | mm | 8070 | |
| Max. digging depth | mm | 7250 | |
| Max. digging depth at the range of level 8 feet | mm | 7100 | |
| Max. vertical wall digging depth | mm | 4200 | |
| Max. digging reach | mm | 12330 | |
| Min. swing radius | mm | 5200 | |
Product Uses
1. Large-scale mining operations
The XE900D is equipped with a 4.5m³ extra-large rock bucket and heavy-duty work equipment, enabling it to easily load 90-tonne mining dump trucks. Its reinforced chassis and high-pressure hydraulic system ensure reliability and efficiency in high-intensity mining operations, with a daily mining capacity of up to 10,000 tons.
2. Large-scale earthmoving projects
Ideal for large-scale earthmoving projects such as reservoir dams and railway embankments. The dual-pump hydraulic system delivers immense digging force, combined with intelligent power control for efficient and energy-saving operations, significantly reducing project timelines.
3. Port Bulk Material Handling
Optional grab buckets or clamshell buckets enable efficient handling of bulk materials such as coal and ore. The smooth and precise rotation system meets the demands of high-intensity operations in ship loading/unloading and yard.
4. Rock Breaking and Demolition
Equipped with a heavy-duty breaker, it easily handles hard rock breaking, secondary mining operations, and the demolition of large concrete structures. Advanced vibration reduction design and energy control systems effectively protect the main equipment structure.
5. Water Conservancy Infrastructure Construction
The long boom configuration is suitable for river dredging and slope grading operations. Enhanced corrosion protection and multi-stage filtration systems ensure long-term durability in humid and dusty environments.
Product Operate Guide
1. Intelligent start-stop:
Cold start idle preheating for 5 minutes, wait until the hydraulic oil temperature reaches 45°C before operation; enable “power optimization mode” to automatically match working conditions, saving 15% energy
2. Efficient operation:
Enable the “Dual Pump Combination” function during heavy-duty excavation to enhance power.
Select the “High-Frequency Mode” for crushing operations and maintain the drill bit in a vertical position.
Achieve millimeter-level precision control through hydraulic pilot control.
3. Safety Standards:
When operating on slopes, ensure the tracks move vertically.
Water depth must not exceed the center of the track roller.
Monitor real-time alerts from the multifunctional instrument panel.
4. Smart Maintenance:
Clean the hydraulic return oil filter every 500 hours
Remotely diagnose faults via the XCMG Cloud Platform
Release hydraulic system pressure when parked for extended periods
