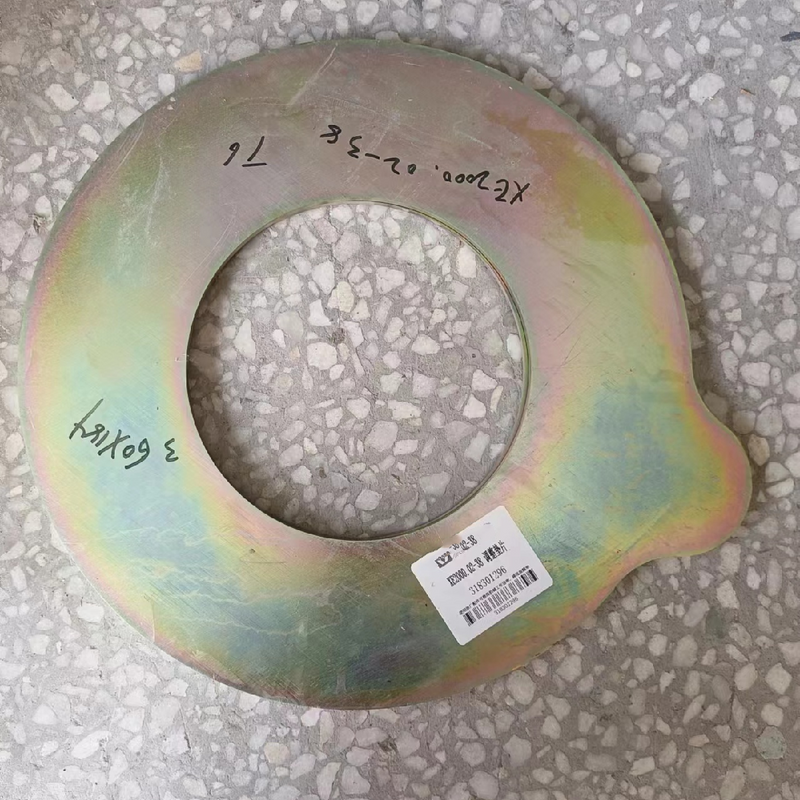

XE2000 Excavator Adjusting Shim Product Manual
The XE2000 excavator adjusting shim with model specification XE2000.02-38 and part number 318301296 is a high-precision customized mechanical accessory developed exclusively for XE2000 heavy-duty mining crawler excavators. As a critical thin flat structural component for excavator assembly, it is mainly applied to core movable connection parts including boom pin shafts, arm pin shafts, bucket pin shafts and link assembly structures. Its core functions cover assembly gap fine-tuning, installation position calibration and mechanical wear compensation for key joint components.
This adjusting shim is fabricated with high-grade structural steel, supplemented by standardized heat treatment processing and professional anti-corrosion surface finishing. It boasts excellent flatness index, ultra-precise dimensional tolerance and superior wear resistance, fully compliant with the original factory assembly technical specifications of XE2000 series excavators. In actual operation, it can effectively reduce friction and wear between mating components, lower mechanical operating noise, improve transmission efficiency of the whole machine, and guarantee the stable, safe and long-duration operation of XE2000 excavators in extreme working conditions such as open-pit mining, quarry exploitation and large-scale engineering construction.
Adopting advanced CNC precision machining technology, this shim achieves consistent overall thickness and excellent flatness with a strict dimensional tolerance of ±0.01mm, ensuring perfect fitting accuracy with equipment components. It can precisely fill assembly gaps between structural parts, effectively eliminating equipment looseness, position deviation and operational jamming faults during heavy-load excavation construction.
Constructed with high-quality high-carbon structural steel and processed through standardized strict heat treatment procedures, the product reaches a hardness value of 70-90 HRB, delivering outstanding mechanical strength and wear resistance. It can withstand long-term cyclic friction, mechanical impact and heavy-pressure extrusion without deformation, cracking, structural fatigue damage or other quality failures, adapting to long-cycle industrial operation.
All design parameters are strictly implemented in accordance with the original factory technical standards of XE2000 heavy-duty mining excavators, fully matching the installation size and gap assembly standards of all movable joint parts of the equipment. The product supports direct installation and replacement without secondary cutting, drilling or modification processing, greatly shortening equipment maintenance cycles and reducing labor and time costs.
The surface is treated with anti-rust oil coating or hot-dip galvanizing process, which can effectively resist oxidation, rusting and chemical corrosion caused by external harsh factors such as industrial dust, humid air and mechanical lubricating oil. It maintains stable structural performance and fitting accuracy in high-dust, high-humidity and high-temperature mining operation sites, adapting to complex and changeable construction environments.
Featuring thin-wall lightweight structural design, the shim is easy to carry and operate. Daily installation and replacement can be completed with conventional basic hand tools, without professional precision equipment or complex construction processes. General maintenance personnel can finish the operation efficiently, effectively reducing equipment downtime and improving construction efficiency.
By precise gap adjustment and real-time wear compensation of joint parts, the shim effectively protects high-value core components such as pin shafts, shaft sleeves and connecting joints from premature wear and damage. It reduces the overall failure rate of excavator mechanical structures, lowers long-term equipment maintenance frequency and operation and maintenance costs, and extends the comprehensive service life of the whole machine.
Item | Detailed Specification |
|---|---|
Product Name | XE2000 Excavator Adjusting Shim |
Model Specification | XE2000.02-38 |
OEM Part Number | 318301296 |
Applicable Equipment | XE2000 Heavy-Duty Mining Crawler Excavator |
Core Material | High-Carbon Structural Steel |
Material Hardness | 70-90 HRB |
Standard Thickness Range | 0.1mm - 2.0mm (custom thickness supportable) |
Flatness Tolerance | ±0.01mm |
Surface Treatment Process | Anti-Rust Oil Coating / Galvanization |
Applicable Working Temperature | -40℃ ~ 120℃ |
Core Functions | Assembly Gap Adjustment, Mechanical Wear Compensation, Component Alignment Correction |
Quality Certification Standard | ISO 9001 Certified, Industrial-Grade Engineering Spare Parts |
Model XE2000.02-38 (318301296) adjusting shim is a special supporting accessory for XE2000 heavy-duty mining crawler excavators. It is widely applicable to multiple complex construction scenarios, ensuring the precise and stable operation of the equipment’s mechanical transmission system.
In coal, iron ore and other mineral open-pit mining operations, the product is used for gap adjustment and wear compensation of excavator boom, arm and bucket joint structures. It offsets mechanical wear caused by long-term heavy-load operation and frequent friction, prevents component loosening and position deviation, and maintains stable equipment operation in high-dust and high-vibration mining environments.
During hard rock excavation, crushing and aggregate processing operations, it calibrates the assembly accuracy of excavator movable parts, fills assembly gaps generated by rock impact and long-term mechanical loss. It effectively reduces equipment operating noise, avoids jamming and abnormal wear, and prevents premature failure of core parts such as pin shafts and shaft sleeves.
Suitable for key engineering scenarios including water conservancy dam construction, highway and railway foundation excavation, and port expansion projects. The shim ensures precise alignment of excavator joint parts, maintains the optimal assembly gap of mechanical structures, improves overall operation flexibility and transmission efficiency, and prolongs the service life of the whole equipment.
As a standard supporting maintenance accessory, it is used for regular replacement of aged, deformed and worn shims of XE2000 excavators. By readjusting component assembly gaps, it restores the original optimal operating accuracy and working performance of the equipment, realizing standardized daily maintenance.
With excellent low-temperature resistance, high-temperature resistance and anti-corrosion performance, the product adapts to extreme working environments in high-altitude, ultra-low temperature and humid regions such as Australia, South America and Central Asia. It maintains stable structural accuracy and working performance in complex extreme climates to ensure continuous and normal operation of excavators.
First, shut down the XE2000 excavator engine completely, lower the bucket to the ground to fix the whole machine stably, and cut off the equipment power supply to avoid accidental startup or component displacement and ensure construction safety.
Verify that the shim’s model (XE2000.02-38), part number (318301296) and selected thickness meet the equipment technical specifications and actual installation gap requirements of the XE2000 excavator.
Visually inspect the shim for structural defects such as deformation, cracks and surface corrosion. Thoroughly clean the installation contact surfaces of pin shafts, shaft sleeves and connecting joints to remove dust, oil stains and rust deposits, ensuring a flat, clean and tight fitting foundation for the shim.
Prepare conventional operating tools such as wrenches, screwdrivers and micrometers in advance for subsequent installation and gap detection work.
Use a wrench to loosen the fixing bolts and fasteners at the boom, arm and bucket pin joint positions, and slightly separate the connected structural parts to reserve a reasonable installation gap for the shim.
Accurately measure the actual assembly gap with a micrometer, select the shim with matching thickness. Adopt the installation principle of thin sheet priority and layered stacking as required, lay the shim flat in the reserved gap to ensure flat placement without inclination, warping or loose fitting.
Fine-tune the shim position to achieve full alignment with the component installation surface, then tighten the fastening bolts in accordance with the standard torque parameters specified in the official XE2000 excavator manual to fix all structural parts firmly.
Re-measure the component assembly gap with a micrometer. The optimal standard gap range is 0.5mm to 1.0mm. Adjust the number or thickness of shims until the gap meets the factory standard.
Start the excavator and keep it running at idle speed, repeatedly operate the boom, arm and bucket mechanisms. If no abnormal noise or jamming occurs, the installation is completed successfully.
Shut down the excavator engine, stabilize the fuselage, and lock the pilot operating lever to prevent accidental movement of the equipment during replacement construction.
Loosen the fastening bolts at the target joint with the old shim, slightly separate the connecting components, and gently take out the worn and aged old shim with a screwdriver. Forbid forced prying and pulling to avoid scratching or damaging precision parts such as pin shafts and shaft sleeves.
Completely clean the equipment installation surface to remove accumulated dust, oil dirt and rust. Inspect pin shafts, shaft sleeves and joint structures for severe wear or damage, and repair or replace faulty parts in a timely manner to ensure subsequent equipment operating stability.
Install the new XE2000.02-38 (318301296) adjusting shim strictly in accordance with the standard installation steps, select the appropriate thickness to ensure the assembly gap reaches the optimal standard, and fasten all bolts to the specified torque.
Complete equipment operation test, check whether the boom, arm and bucket move flexibly without abnormal noise and stagnation. Record the replacement time for subsequent equipment maintenance file reference.
It is strictly forbidden to carry out shim installation and replacement operations when the excavator is running or powered on, so as to avoid personal safety accidents caused by sudden movement of mechanical components.
Do not use shims with unqualified thickness or inconsistent specifications. Unmatched accessories will lead to over-tight or loose fitting of components, easily causing mechanical failure and potential safety hazards.
Ensure the shim is placed flat and fully fitted with the installation surface. Deformed, cracked, rusted or damaged shims are prohibited from being put into use.
After installation, all fastening bolts must be rechecked and tightened to the standard torque to prevent the shim from shifting or falling off during equipment operation.
Store unused spare shims in a dry, clean and ventilated environment to avoid moisture erosion, rust deformation and performance deterioration, ensuring the usability of spare parts.
Q1: Which excavator models is the 318301296 shim applicable to?
A1: This adjusting shim is exclusively customized for the XE2000 heavy-duty mining crawler excavator, with a matching model code of XE2000.02-38, and is not applicable to other series of equipment.
Q2: What is the thickness range of this adjusting shim?
A2: The standard thickness specification ranges from 0.1mm to 2.0mm. We support customized thickness processing to meet the personalized gap adjustment requirements of different working conditions of XE2000 excavators.
Q3: How to select the appropriate shim thickness?
A3: Firstly, use a micrometer to accurately measure the actual gap of the excavator’s boom, arm or bucket pin joints. Select a matching shim thickness according to the measured data, and control the final assembly gap within the optimal range of 0.5mm-1.0mm to ensure stable and efficient operation of the equipment.
Q4: Can this shim adapt to harsh mining working environments?
A4: Yes. The product adopts high-strength wear-resistant steel material and professional anti-corrosion surface treatment, which can resist dust erosion, humid oxidation, oil contamination and high-temperature aging. It can stably maintain structural accuracy and working performance in harsh mining and engineering construction sites.
Q5: Does the installation require professional precision equipment?
A5: No professional precision equipment is required. Conventional hand tools such as wrenches and screwdrivers can complete all installation and replacement work. The operation process is simple and standardized, and can be efficiently completed by non-professional maintenance personnel.
Q6: When is it necessary to replace the shim?
A6: When the shim has deformation, severe wear, rust and damage, or when the equipment joint gap exceeds 1.0mm, resulting in abnormal operating noise, unstable equipment operation and accelerated wear of core components, the shim needs to be replaced in a timely manner.
