Gr100
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

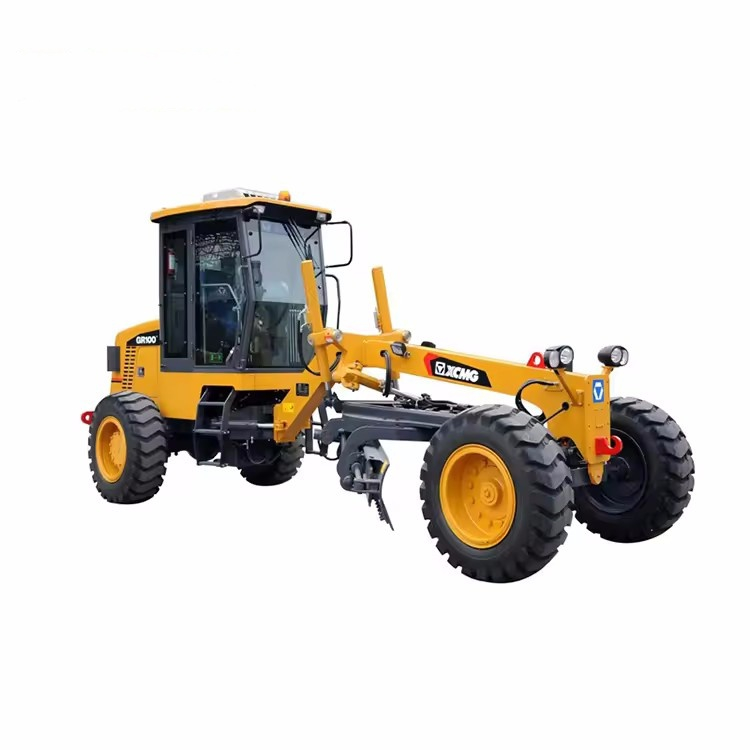

The GR100 motor grader is a medium-sized motor grader with stable performance, flexible operation and economic practicality. It perfectly inherits XG's technological accumulation in the field of construction machinery. Its flexible operation capacity, reliable performance and excellent cost performance make it an ideal choice for various small and medium-sized earthwork leveling projects. Whether it is large-scale farmland land leveling or the maintenance of rural roads, the GR100 can provide efficient and reliable solutions, serving as a powerful assistant for users to create value.
Product Advantage

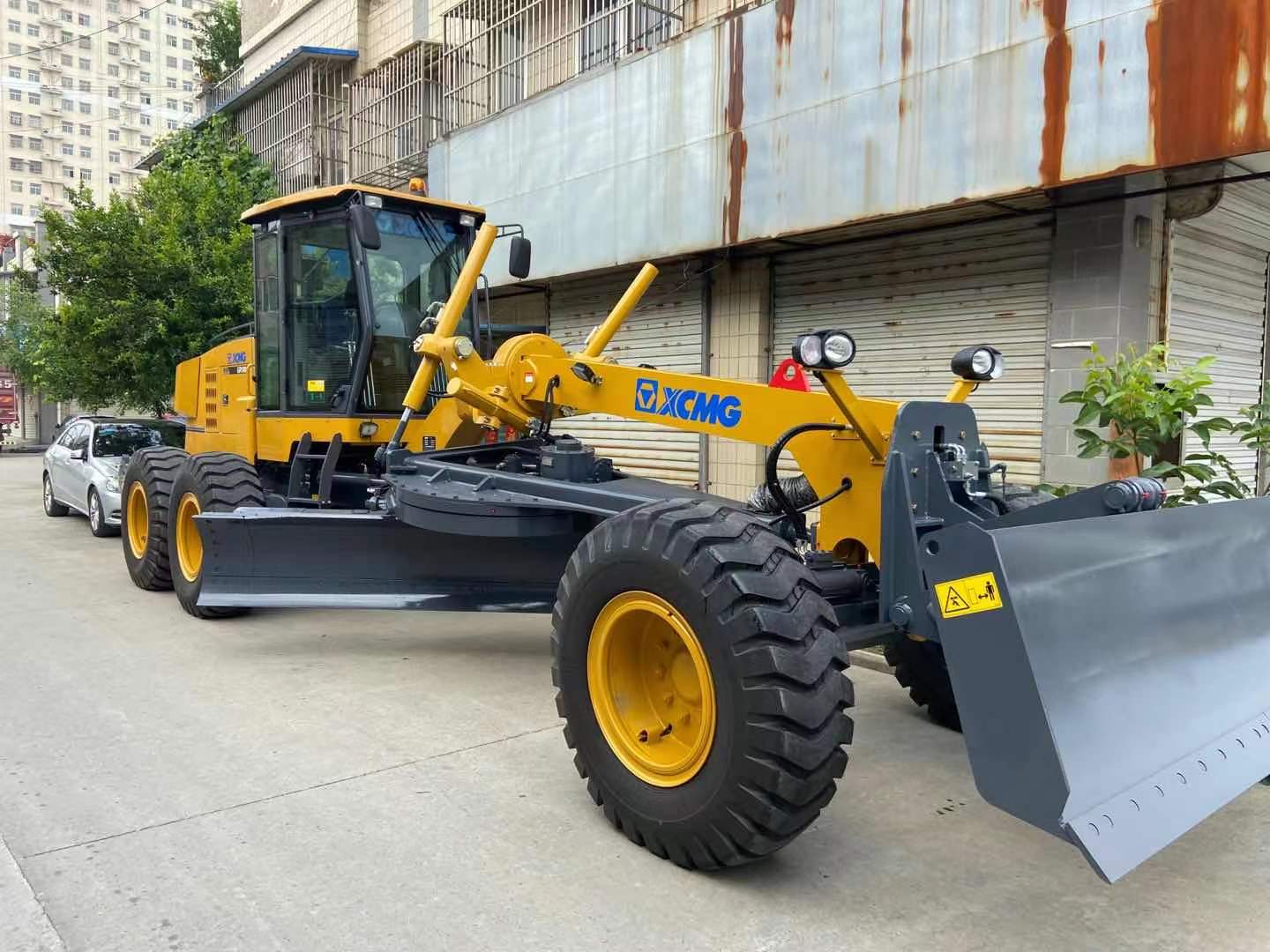

360° flexible operation without blind spots: The scraper supports multi-dimensional actions such as full rotation, side extension, and inclination, easily handling complex working conditions like slope scraping, trenching, and fine leveling. It is multi-functional with one machine, reducing equipment investment.
Strong traction and adaptability: The rear axle drive combined with the middle axle swing structure ensures that all six wheels are always in contact with the ground. Even in muddy, uneven farmland or dirt road conditions, it can still maintain excellent traction and passability.
High-efficiency and economical power matching: Equipped with a low-fuel-consumption engine and a hydraulic transmission, the power output is stable, balancing operational efficiency and fuel economy, making it particularly suitable for long-term continuous operation.
Technical Parameters
| Item | GR100 |
| Engine model | J-XZGR100-4BT3.9 |
| Rated power/speed | 75(2400r/min) |
| Overall dimension (standard) | 6880*2375*3150mm |
| Total weight (standard) | 7000kg |
| Tire specification | 16/70-24 |
| Ground clearance (front axle) | 550mm |
| Tread | 1900mm |
| Space of front and rear axles | 4885 mm |
| Forward velocity | 5,8,11,17,24,38km/h |
| Reverse speed | 5,11,24km/h |
| Tractive effort f=0.75 | 39.2N |
| Maximum gradeability | 20% |
| Tire inflation pressure | 300kPa |
| Working system pressure | 16MPa |
Product Uses
Farmland land leveling: Fine leveling of large-scale farmland, facilitating the development of modern agriculture.
Rural road construction and maintenance: roadbed shaping, ditch excavation, pavement maintenance.
Small-scale water conservancy projects: Repair of river embankments, excavation and cleaning of ditches.
Site leveling: Leveling operations for small industrial parks, breeding farms and other sites.
Snow removal operations: After installing snow removal devices, road snow removal can be carried out.
Product Operate Guide
Start the engine：
Rotate the key to the "ON" position and wait for the preheating indicator light to go out (if any).
Continue to rotate the key to the "START" position to start the engine. Release the key immediately after starting.
After starting, let the engine idle for 3 to 5 minutes to warm up. During this period, observe whether the readings of all the instruments (such as oil pressure and water temperature) are normal.
Turn off the engine：
Let the engine idle for 3 to 5 minutes to cool down components such as the turbocharger.
Turn the key to the "OFF" position and the engine will turn off.
Turn off the main power switch.
FAQ
A: This is a typical "no movement of the entire vehicle" fault. Possible causes include
The parking brake is not released: Check if the brake valve is released.
Shift the transmission to neutral: Check if the gear selection is in N gear.
The pilot control lock lever is not lowered: Most modern motor grader cabs have a safety lock lever. When it is not lowered, all pilot control valves are locked.
Failure of the main safety valve or pump source of the hydraulic system: Professional service personnel are required for inspection and repair.
A: The Angle of the scraper needs to be adjusted according to the specific operation content
Leveling operation: The scraper can be set at a smaller positive Angle (with the tip facing forward), which is conducive to the forward rolling of materials and enables smooth pushing.
Slope scraping operation: It is necessary to utilize the rotation function of the scraper to form a certain Angle with the slope surface.
Soil transfer operation: A larger negative Angle (with the blade tip backward) can be adopted to increase the cutting depth and improve efficiency.
Principle: Start with a small Angle and make fine adjustments based on the actual effect and engine load to avoid engine stalling or severe impact on the equipment due to an overly large Angle.
A: Strictly follow the cycles stipulated in the official operation manual, usually based on working hours. For example:
First replacement: Generally around 500 hours (after the running-in period).
Subsequent replacement: Usually every 2,000 hours or once a year (whichever comes first).
Note: If the hydraulic oil is contaminated (water enters, turns milky white, has metal shavings) or deteriorates, it must be replaced immediately, regardless of whether the time is up or not.
