Product Introduction

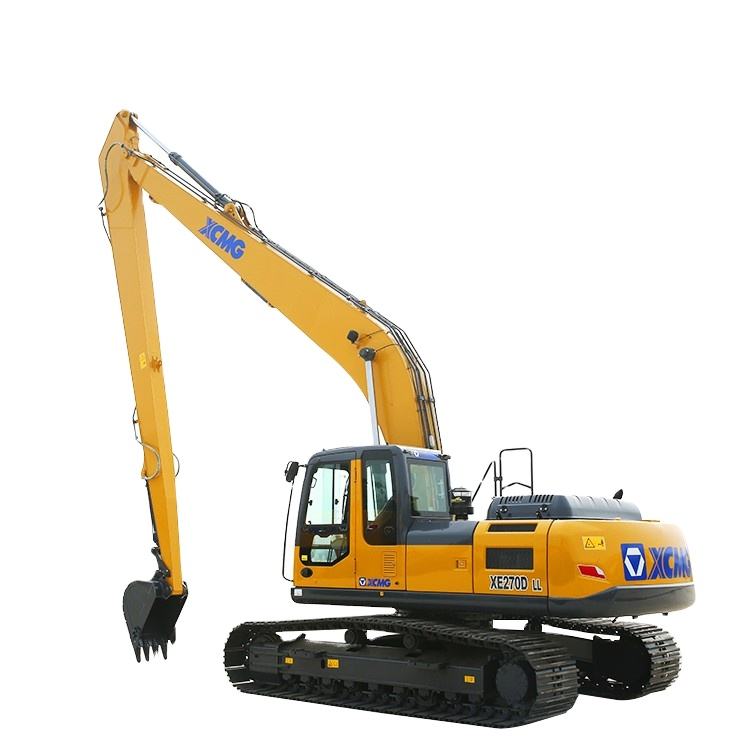

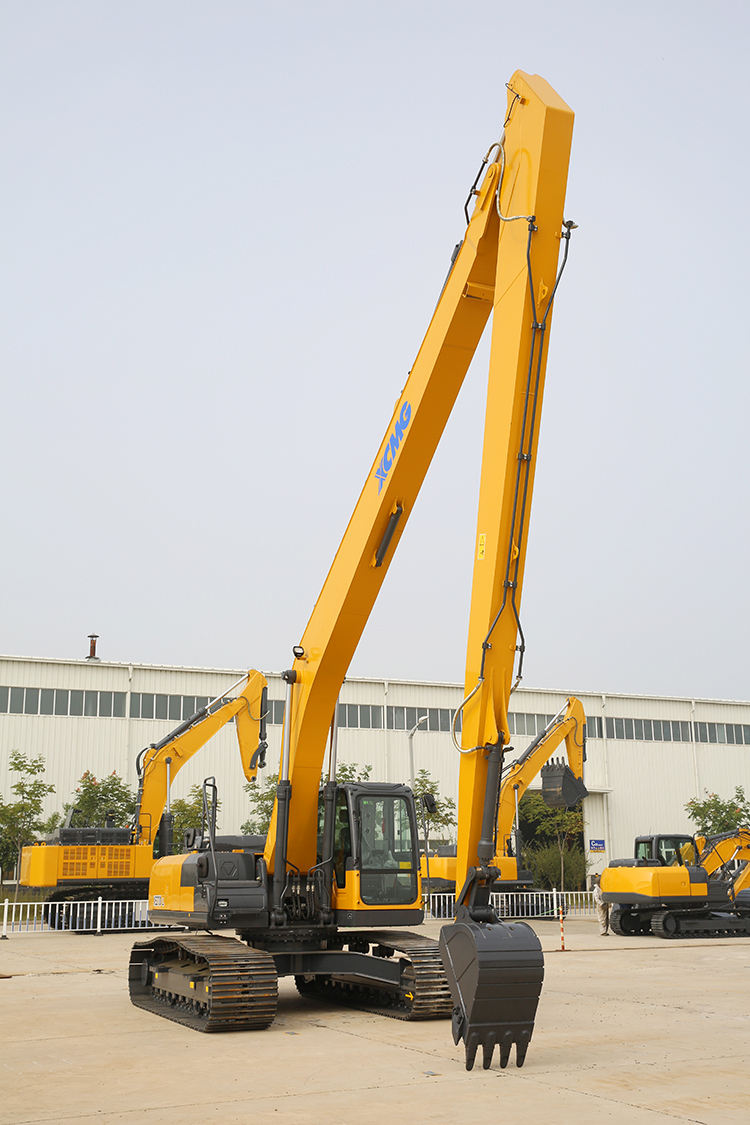

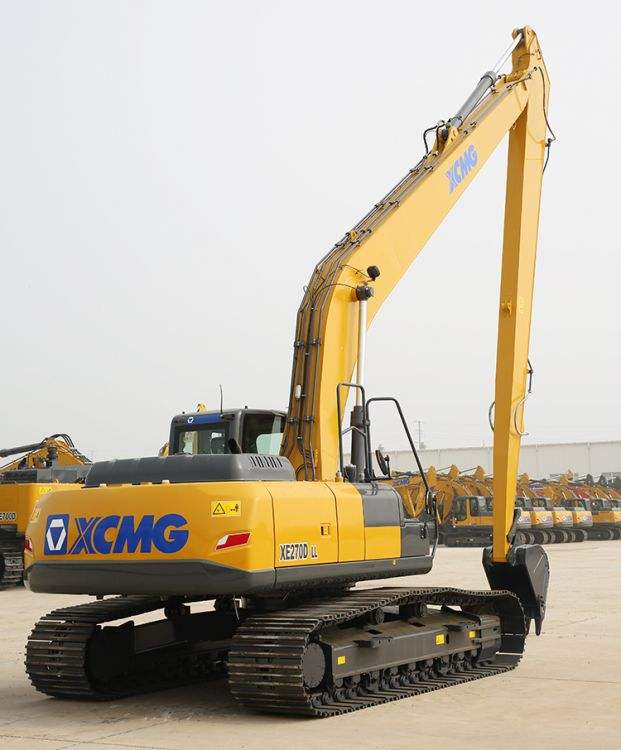

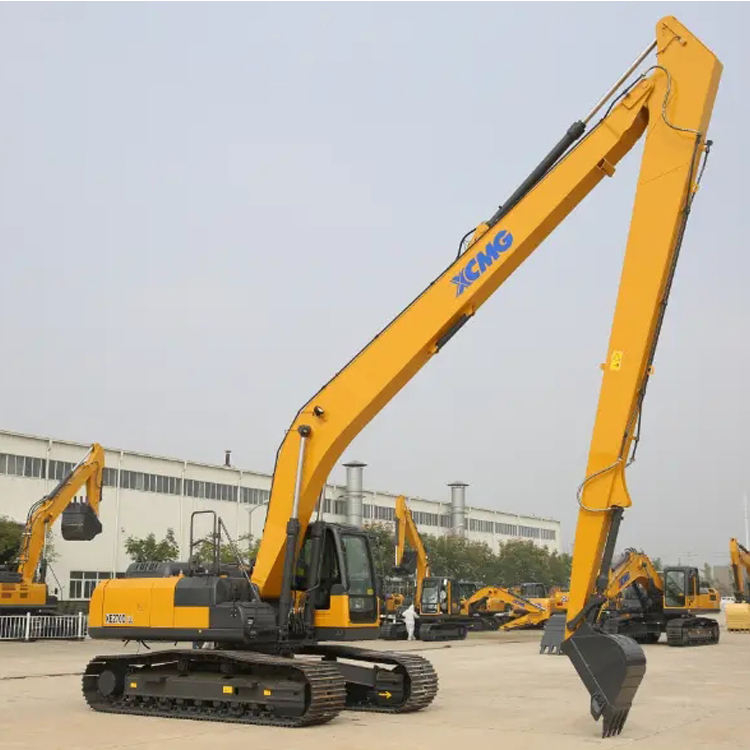

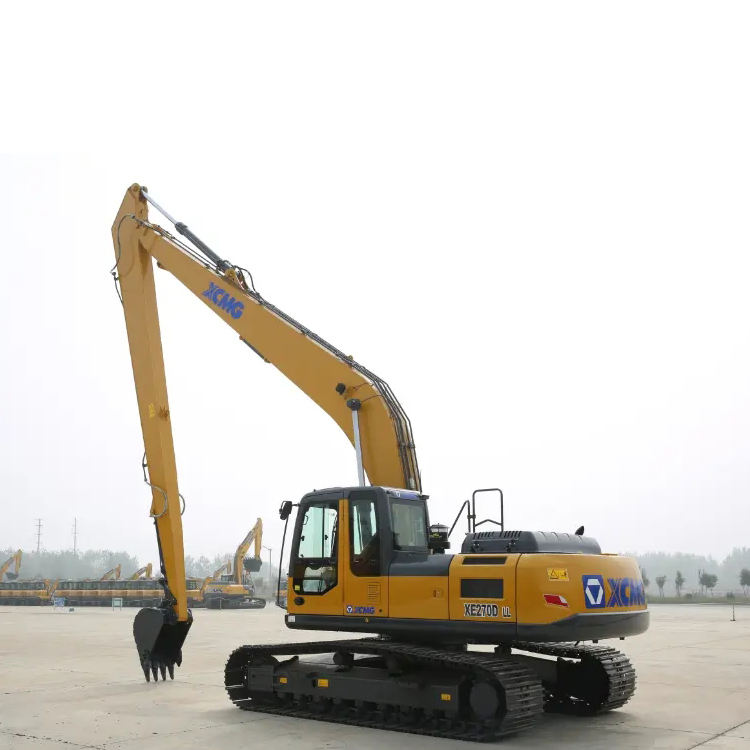

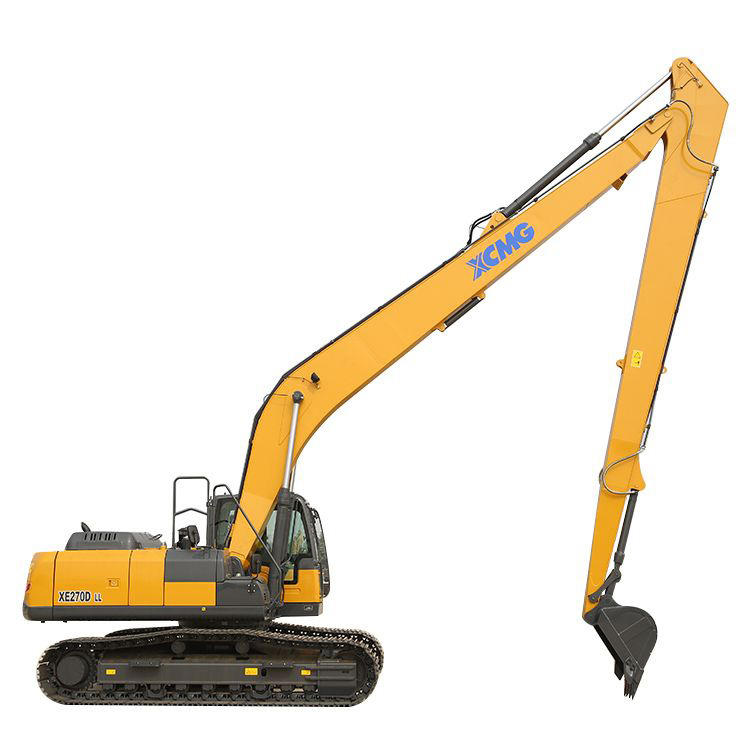

XE270DLL Medium-size hydraulic Excavator. High-end Configuration and Excellent Performance. Imported engine with original packing. More powerful. Low oil consumption and environmental friendly. Optimize the comprehensive performance.
Product Advantage
* Medium-size hydraulic Excavator
* High-end Configuration and Excellent Performance
* Imorted engine with original packing
* More powerful
* Low oil consumption and environmental friendly
* Optimize the comprehensive performance
Technical Parameters
| Operating weight | 28300Kg |
| Bucket capacity | 0.4m³ |
| Rotating speed | 11.4r/min |
| Ground pressure | 41.9kPa |
| Bucket digging force | 91kN |
| Max. digging height | 13250mm |
| Max. dumping height | 10955mm |
| Max. digging depth | 15040mm |
| Max. digging reach | 18275mm |
| Min. swing radius | 7030mm |
| Gradeability | 35% |
| Fuel tank capacity | 400 L |
| Output power | 135.5 kw |
Product Uses
1. River Dredging and Waterway Management
The XE270DLL excels in earthmoving tasks for river desilting, channel widening, and port construction. Its extended boom efficiently removes sediment, increases water cross-sectional area, and supports flood prevention while improving aquatic environments.
2. Municipal and Utility Tunnel Construction
This machine excels in urban utility tunnel construction, deep pit excavation, and pipeline laying. Its extended arm design covers a wider working range with minimal machine repositioning, boosting efficiency—particularly advantageous for deep excavation or long-reach utility tunnel projects.
3. Port and Coastal Operations
For port construction and coastal projects, the XE270DLL handles dock maintenance, revetment reinforcement, and material handling. Its strong terrain adaptability tackles complex port conditions.
4. Operations in Special Terrain and Sensitive Environments
The XE270DLL also excels in soft ground with low ground pressure requirements (e.g., marshes, tidal flats) and sensitive areas with strict environmental vibration/noise restrictions (e.g., near residential zones). Its crawler tracks provide excellent mobility, while its design prioritizes low fuel consumption and environmental friendliness.
Product Operate Guide
Before operation, thoroughly inspect the welded joints and pins of the extended boom structure. After starting, idle for 3-5 minutes to warm up. When operating the extension arm, move exceptionally slowly and steadily to prevent sudden stops or turns that could cause center-of-gravity imbalance. Exercise particular caution regarding overall machine stability when working on slopes or soft ground. Thoroughly clean the equipment after operation, focusing on inspecting wear on the boom structure. Perform regular maintenance on the hydraulic system and lubricate all hinge points of the extension arm. Continuously monitor the surrounding environment, maintain safe operating distances, and pay special attention to the boom's rotation range.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
3. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
4. ENGINE SUDDENLY STALLS DURING OPERATION?
Check for fuel depletion, severe fuel line blockage, or electrical faults (e.g., faulty kill switch solenoid).
5. EXCESSIVE ENGINE OIL CONSUMPTION?
Check for oil burning (blue smoke emission) or external leaks (oil seals, gaskets, fittings).
6. ENGINE COOLANT CONSUMPTION TOO FAST?
Check for external leaks (hoses, fittings, radiator) or internal leaks (e.g., damaged cylinder head gasket, accompanied by oil emulsification and white smoke).
