XG1212AC
| Availability: | |
|---|---|
| Quantity: | |
XG1212AC 自行式交流电动剪叉式升降平台产品说明书

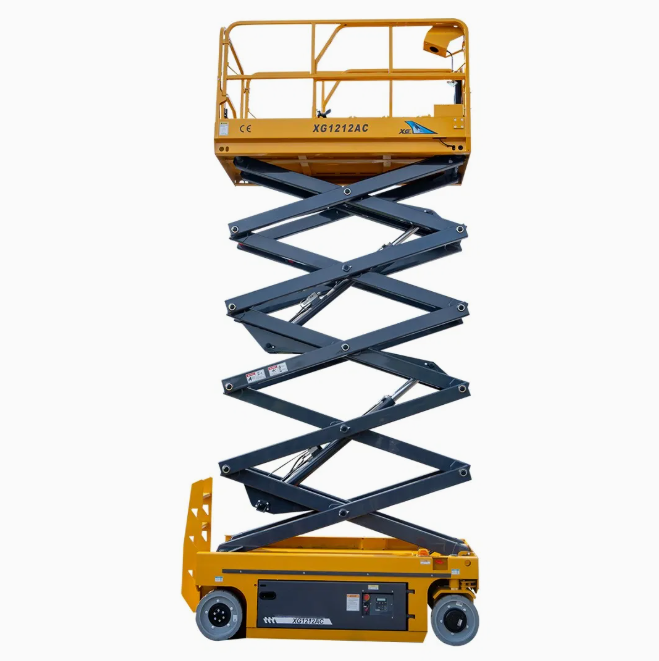

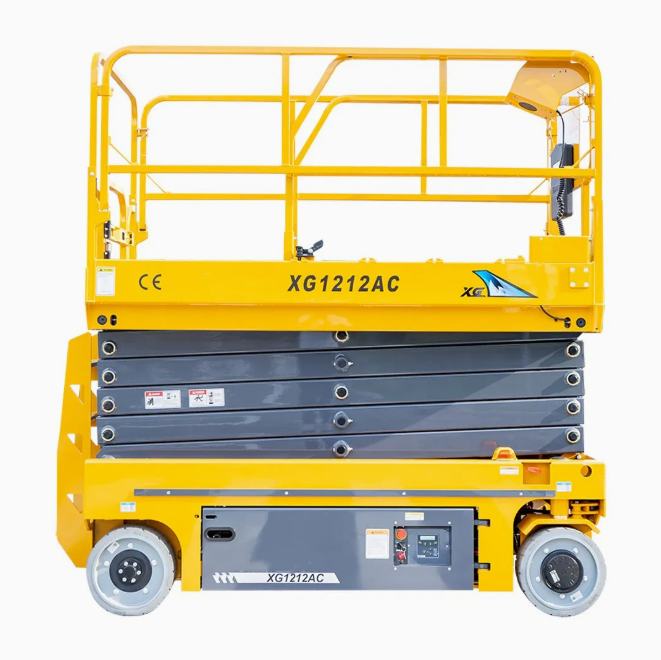

The XG1212AC is a newly developed self-propelled AC electric scissor lift, tailor-made for diverse indoor high-altitude operation tasks. Boasting a maximum working height of 13.8 meters and a standard rated load of 320 kilograms, this equipment integrates a high-stability AC power supply system and an upgraded reinforced scissor mechanical structure. It features low-noise operation and zero pollutant emissions, fully complying with green construction standards. Equipped with wear-resistant solid rubber tires and a complete set of safety protection mechanisms, the machine delivers superior operational stability and flexible mobility in complex indoor spaces. With official CE certification, the lift is widely applicable to indoor high-altitude work scenarios such as building maintenance, warehouse operation management, commercial site services and interior renovation construction.
Stable AC Power Supply System: Adopts high-performance AC power configuration to deliver consistent and reliable power output, enabling long-hour uninterrupted operation. The system operates with ultra-low noise and zero tail gas pollution, realizing eco-friendly and efficient construction.
Superior Working Height and Load Capacity: Features a 13.8-meter maximum working height and 320-kilogram rated bearing capacity, which fully meets the operational demands of various high-altitude and medium-heavy load construction tasks.
Reinforced Structural Design: Utilizes thickened high-strength steel frames and optimized reinforced scissor arm structures, effectively improving the overall mechanical rigidity and structural stability of the equipment, extending the service life and reducing structural failure risks.
Agile and Flexible Maneuverability: Adopts a streamlined and compact body design with sensitive steering control, allowing the equipment to freely pass through standard building doors, indoor elevators and narrow working aisles, with strong site adaptability.
Comprehensive Safety Protection Mechanism: Comes with full-standard safety configurations including load overload protection, body tilt monitoring and warning system, emergency cut-off device, automatic terrain adaptive pothole protection and anti-slip working platform, eliminating potential safety hazards during operation.
Expandable Working Platform: Matches a retractable auxiliary platform structure, which can effectively expand the effective working area, greatly improving the operating flexibility and overall construction efficiency of high-altitude work.
Low Daily Maintenance Cost: The overall mechanical structure is scientifically optimized with high-quality original built-in components, which reduces daily maintenance workload, lowers equipment failure rate and cuts long-term operational and maintenance costs.
Smooth and Stable Travel Performance: Equipped with heavy-duty solid tires that provide excellent ground adhesion and shock resistance, ensuring stable and smooth traveling on flat indoor ground surfaces without jitter or deviation.
Item | Specification |
|---|---|
Model | XG1212AC |
Max. Working Height | 13.8 m |
Max. Platform Height | 11.8 m |
Rated Load Capacity | 320 kg |
Extended Platform Load | 120 kg |
Platform Size (L × W) | 1870 × 800 mm |
Extended Platform Length | 0.9 m |
Overall Dimension (L×W×H, Folded) | 2650 × 810 × 2450 mm |
Total Weight | 2080 kg |
Outer Turning Radius | 1.8 m |
Ground Clearance | 22 mm (Raised) / 72 mm (Stowed) |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 25 ~ 45 s |
Lowering Time | 32 ~ 45 s |
Power Type | AC Power + 24V Auxiliary Battery |
Certification | CE |
Warehouse and Logistics Industry: Suitable for high shelf maintenance, inventory inspection, indoor lighting equipment repair and other high-altitude operations in large storage and logistics venues.
Building Maintenance Engineering: Applicable to ceiling cleaning, air conditioning system maintenance, pipeline inspection and repair, electrical circuit maintenance and other work for high-rise office buildings and public service facilities.
Commercial Venue Operation: Ideal for lamp replacement, advertising banner installation, indoor space layout adjustment and other high-altitude work in shopping malls, hotels, exhibition centers and other commercial places.
Indoor Construction and Renovation: Adaptable to indoor wall painting, circuit wiring, interior decoration and renovation construction of commercial buildings and residential houses.
Event On-site Layout: Used for stage assembly and disassembly, banner hanging, on-site equipment installation and other high-altitude auxiliary work for large-scale exhibitions, business conferences and various events.
General Indoor High-altitude Work: Applicable to all types of high-reach aerial operation scenarios inside closed building spaces.
Check the connectivity and working status of the AC power supply system, confirm the remaining power of the auxiliary battery, and inspect the integrity and wear of solid tires and the liquid level of hydraulic oil.
Inspect the firmness of safety guardrails, check the flexible expansion function and locking structure of the auxiliary platform to ensure all parts are installed stably and reliably.
Test the emergency stop function, tilt alarm system and automatic pothole protection device one by one to verify that all safety systems can respond normally.
Clean up obstacles in the working area, confirm that the construction ground is flat, solid and stable, and ensure the ground slope is within the safe allowable range of the equipment.
Turn the equipment key switch to the ON gear to activate the whole machine system and complete pre-operation self-inspection.
Control the forward and backward traveling of the equipment through the operating joystick. The system will automatically limit the traveling speed when the platform is lifted to ensure high-altitude operation safety.
Operate the steering mechanism gently during movement. It is forbidden to perform sharp steering operations or drive on a slope with a gradient exceeding 25% when the platform is in a lifted state.
Press the lift control button to raise the working platform, and release the button to stop the lifting action in real time.
Press the lowering button to descend the platform. During the descending process, ensure there are no personnel or obstacles in the lower working area to avoid safety accidents.
The auxiliary expansion platform can only be stretched out after the main platform is completely lifted. It is strictly prohibited to exceed the specified load limit of the extended platform during use.
Overload operation is strictly prohibited. The maximum load of the main working platform is 320kg, and the maximum load of the extended auxiliary platform is 120kg.
When the platform is lifted, the equipment shall not travel on a slope with a gradient higher than 25%.
All operators must wear qualified safety harnesses throughout the whole high-altitude operation process to ensure personal safety.
Before moving the equipment, the working platform must be completely lowered and the extended auxiliary deck must be fully retracted and locked.
After the operation is completed, fully lower the working platform and retract and fix the extended auxiliary deck.
Turn off the equipment key switch and cut off the external AC power supply.
Clean the dust and stains on the equipment surface, and comprehensively check whether there are loose fasteners, damaged parts or abnormal wear components.
Charge the auxiliary battery in a timely manner after each use, and store the equipment in a dry, ventilated and flat indoor storage environment.
Q1: What is the maximum working height of the XG1212AC scissor lift?
A: This model features a maximum working height of 13.8 meters, with a maximum pure platform height of 11.8 meters, meeting most indoor high-altitude operation needs.
Q2: What power system configuration does the XG1212AC adopt?
A: It is equipped with a main AC power supply system and matched with a 24V auxiliary battery, which can provide stable and continuous power support for long-term uninterrupted operation.
Q3: Is this scissor lift available for outdoor operation?
A: The equipment is professionally designed for indoor high-altitude working scenarios. Short-term light outdoor operation on flat and solid ground is allowed. It is forbidden to operate the equipment in heavy rain, strong wind and rugged uneven terrain.
Q4: What is the load bearing limit of the extended platform?
A: The retractable auxiliary platform has a maximum bearing capacity of 120kg, and overloading operation is strictly forbidden to avoid structural safety risks.
Q5: How many operators can work on the platform at the same time?
A: The working platform can support up to 2 operators working simultaneously, and the total load of personnel and tools shall not exceed the standard 320kg rated load.
Q6: What safety protection devices are equipped on the equipment?
A: The machine is fully equipped with multiple safety configurations including overload protection device, body tilt warning system, emergency stop switch, automatic pothole protection mechanism and anti-slip working platform, realizing all-round operation safety guarantee.
