227kg Capacity XGA16 Electric Aerial Work Platform Low Noise and Zero Emission

Product Introduction

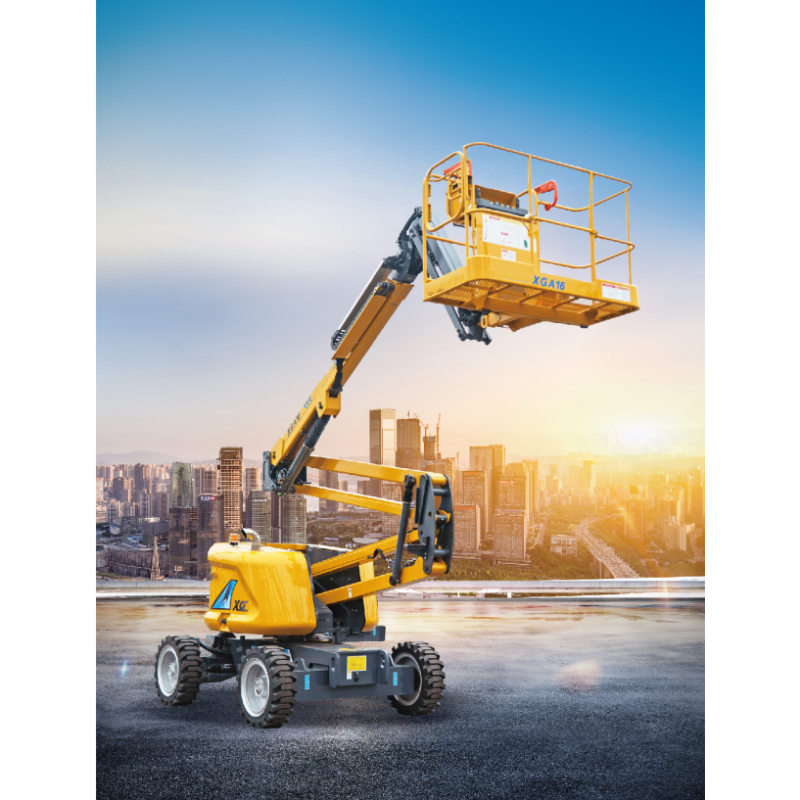

XGA16 is a compact self-propelled electric articulated boom lift. It features a maximum working height of 16.05m, horizontal outreach of 8.22m and rated load of 227kg. Adopting full electric drive, the machine runs with low noise and zero emission. Thanks to articulated boom design and zero tail swing, it delivers outstanding flexibility to operate in narrow spaces. It is an ideal choice for indoor maintenance, commercial venues and outdoor general aerial work.

Product Advantages

• Flexible Articulated Boom: Agile joint boom structure adapts to complex working angles and obstacles.

• Zero Tail Swing: No rear overhang during rotation, perfect for narrow passages and tight job sites.

• Eco-friendly Electric Drive: Zero exhaust and ultra-low noise, suitable for indoor and environmentally sensitive areas.

• Solid Performance: 45% gradeability and stable travelling performance for varied ground conditions.

• Smooth Operation: Optimized hydraulic system ensures steady boom movement and easy control.

• Complete Safety System: Equipped with overload protection, tilt alarm and emergency lowering device.

• Compact Structure: Small overall size, easy to transport and store with low operation cost.

Product Specifications

Application Scenarios

• Indoor Maintenance: High-altitude cleaning, equipment inspection and decoration inside factories, malls and hotels.

• Commercial Venues: Roof repair, lighting and advertising installation for exhibition halls, theaters and stadiums.

• Building Construction: Exterior renovation, pipeline installation and small-scale overhead operations.

• Municipal Works: Street lamp maintenance, landscape trimming and roadside facility repair.

• Warehouse & Logistics: High shelf maintenance and cargo handling in large warehouses.

Operation Guide

Pre-operation Inspection

• Check remaining battery power to ensure sufficient electricity for work.

• Examine tires for pressure and damage, and check wheel fasteners.

• Inspect hydraulic oil level and confirm no leakage.

• Test safety guardrails, platform door, emergency stop and alarm devices.

Operating Steps

• Turn on the main power and wait for system self-check to complete.

• Drive the machine to a firm and flat area, then engage the parking brake.

• Operate control levers gently to lift, extend and rotate the boom to the target position.

• Adjust the platform angle for precise positioning and do not overload.

• After work, retract the boom to fully stowed position, then cut off the power.

Safety Regulations

• Do not exceed 227kg rated load; only one operator is allowed on the platform.

• Work only on solid ground, and the ground slope shall not exceed 5 degrees.

• Stop working immediately when wind speed exceeds 12.5m/s.

• Wear safety helmet and safety harness during high-altitude operation.

• Inspect safety components and hydraulic parts regularly.

FAQ

Q1: Is this boom lift suitable for indoor use?

A: Yes. Full electric design produces no exhaust gas and low noise. Zero tail swing also makes it easy to work in narrow indoor spaces.

Q2: How long is the continuous working time on a full charge?

A: It can work continuously for 5 to 7 hours under normal operating conditions. Charging fully takes around 8 hours.

Q3: What does zero tail swing mean?

A: The turntable will not extend beyond the machine body when rotating. It avoids collision with surrounding obstacles, ideal for confined work areas.

Q4: Can it drive on sloped roads?

A: The maximum gradeability is 45%. It can climb common slopes and travel stably on general rough roads.

Q5: What safety features are equipped?

A: It comes with overload protection, tilt alarm, emergency stop and emergency lowering system to guarantee operational safety.

Q6: What is the warranty period?

A: The whole machine is warranted for 12 months or 2000 working hours (whichever comes first). Professional after-sales support is provided globally.
