SQS100-4
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

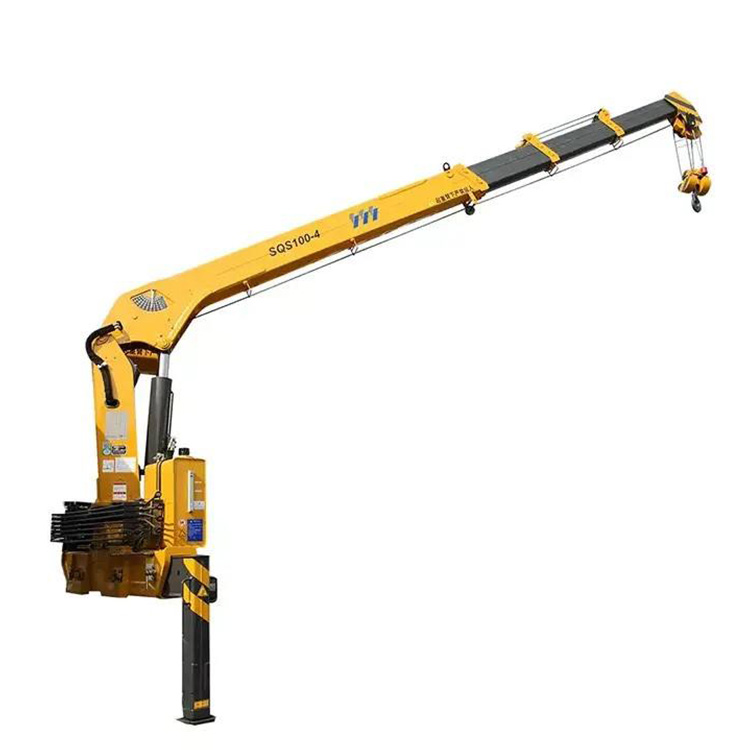

Straight type SQS100-4 loader crane is a straight type with the maximum working range of 11m and the maximum lifting capacity of 4t. Use hexagon section boom, it consists of base boom and three boom extensions.
Product Advantage
Box legs with big span improved the operation stability, at the same time lighten the weight. Operation system of accelerator linkage make the operation more convenient and comfortable, achieved greater work efficiency. Automatic stowing hook technology can carry out work easily, ensure travelling safety.
The accelerator linkage control system can control the accelerator through terminal position of hand handles on the both sides, so you can operate the machine easily because of smooth speed change. Automatic stow hook can save operation preparation time and put the user's machine in the traveling configuration in the shortest time, prevent hook from swaying. Hand operated box type leg with big span can improve the operation stability and lower the leg cylinder failure rate, increased leg rigidity and lifting capacity of mid-long range, and reduce the unit weight as well.
Technical Parameters
| Item | Unit | Parameter |
| Max lifting Moment | kN·m | 100 |
| Max.lifting capacity | Kg | 4000 |
| Max.hydraulic outreach | m | 11 |
| Stabilizer spread | m | 4.51 |
| Slewing Angle | ° | 360°continue |
Product Uses

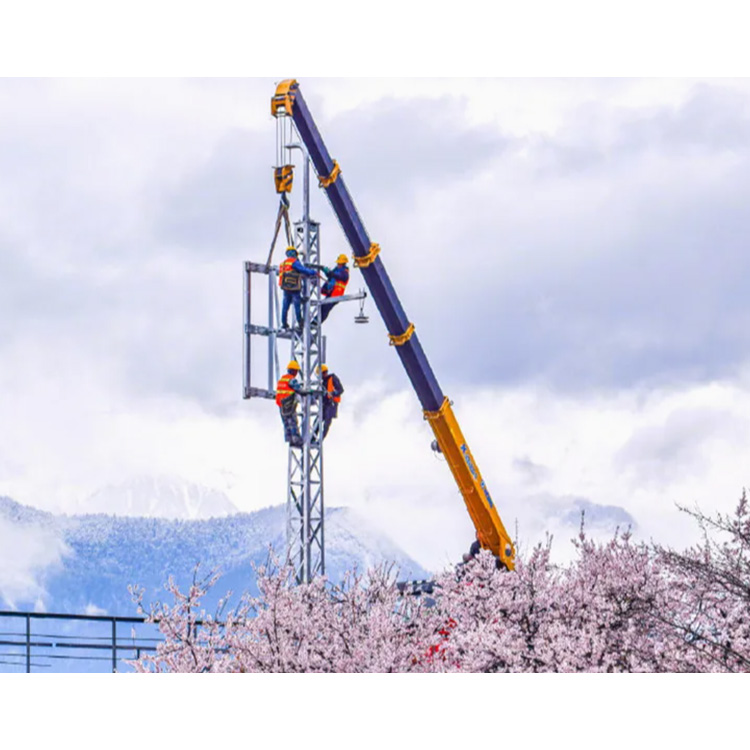

1. Construction sites: Used for material hoisting, equipment installation, and high-altitude installation of structural components.
2. Ports and terminals: Commonly used for cargo loading and unloading, especially for the rapid handling of containers, bulk cargo, and bulk goods.
3. Factory workshops: Used for material handling on production lines, with bridge cranes being particularly common.
4. Power industry: Used for the installation and maintenance of power equipment, as well as for hoisting large equipment during power plant construction.
Product Operate Guide
1. Observe the operating environment of the truck-mounted crane, select an appropriate angle for lifting operations, ensure there is sufficient space for the left and right outriggers to fully extend, and position the vehicle at an appropriate distance from the cargo based on its weight.
2. After completing the pre-operation inspection of the truck-mounted crane, the crane may be used to operate the outriggers and boom;
3. Move the selector valve to the outrigger position indicated on the label to operate the outriggers. Release the locking mechanism of the movable outriggers and extend the left and right horizontal outriggers and left and right vertical outrigger cylinders according to the corresponding markings on the control lever, ensuring that the outriggers are fully extended to support the crane;
4. After the outrigger cylinders have supported the crane, move the selector valve to the crane position indicated on the label and perform the lifting operation using the crane.
