Product Description

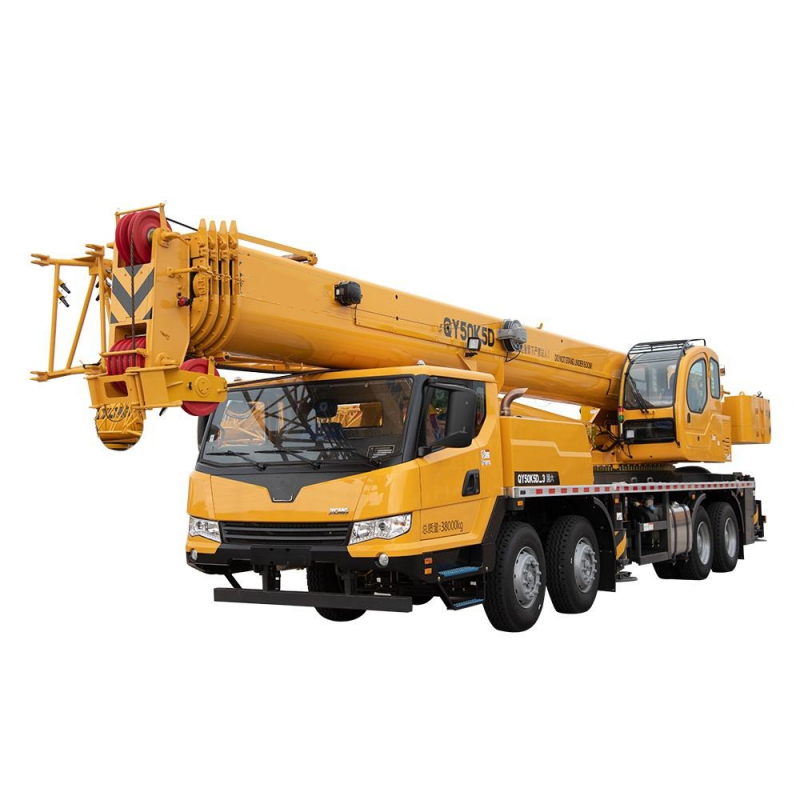

The QY50K5D-3 is a 50-ton heavy-duty hydraulic truck crane built for medium-to-heavy lifting tasks in construction, infrastructure, and industrial projects. It features a 5-section 44m U-shaped synchronous telescopic main boom and a 9m jib, delivering a maximum lifting height of 53m. The compact body (14.155×2.65×3.48m) and 4-axle chassis ensure excellent maneuverability on narrow roads, bridges, and tunnels. Powered by a 251kW Euro VI diesel engine (340hp, 1500N·m peak torque), it offers strong power and a top travel speed of 90km/h. Equipped with an intelligent hydraulic system, dual-pump automatic flow combination, and multi-stage buffer control, it provides precise, smooth, and efficient operation. The reinforced high-strength steel boom and heavy-duty slewing ring ensure reliability in harsh conditions. Ideal for factory construction, urban renewal, bridge engineering, and heavy equipment installation, it balances high performance, stability, and low operational costs.
Product Advantages
Superior Lifting Performance: 50t max capacity (3m radius), 44m main boom, 53m max height (with jib), 1,600kN·m max lifting moment.
Efficient Synchronous Boom: 2–5th sections extend synchronously; full extension ≤85s; dual-pump tech boosts efficiency by 15%.
Compact & Flexible: 2.65m width, 3.48m height; 45% gradeability; adapts to narrow urban/rural paths.
Powerful & Economical: 251kW engine; 8–10% lower fuel consumption via intelligent hydraulics.
Precise & Stable Control: Multi-stage buffer control, load anti-disturbance tech; smooth start/stop; 360° camera & 10-inch touchscreen.
High Safety: Triple-color alarm lamp, overload protection, stability monitoring, FOPS/ROPS cab.
Easy Maintenance: Ground-level service points; reinforced chassis; 1-year/2,000-hour warranty.
Product Parameters
Parameter | Specification |
Model | QY50K5D-3 |
Machine Type | 50-ton Hydraulic Truck Crane |
Max. Rated Lifting Capacity | 50 t (at 3m radius) |
Operating Weight | 48,500 kg |
Main Boom Length | 11m–44m (5 sections) |
Main Boom + Jib Length | Up to 53 m |
Max. Lifting Height | 43.5 m (main boom) |
Max. Lifting Moment | 1,600 kN·m |
Outrigger Span (L×R) | 5.91 m × 7.35 m |
Engine Power | 251 kW / 2200 rpm |
Travel Speed | ≤90 km/h |
Min. Turning Diameter | 24 m |
Gradeability | ≥45% |
Fuel Tank Capacity | 400 L |
Boom Extension Time (Full) | ≤85 s |
Slewing Speed | ≥2.2 r/min |
Product Applications
Building Construction: Steel structure installation, prefabricated component hoisting, and high-rise material handling.
Infrastructure Projects: Bridge erection, highway guardrail installation, and tunnel equipment placement.
Urban Renewal: Demolition support, rooftop unit installation, and streetlight/advertising hoisting.
Industrial & Logistics: Heavy machinery installation, container handling, and port/warehouse operations.
Energy Projects: Wind turbine maintenance, power line construction, and oil/gas equipment installation.
Operation Guidelines (Integrated with Safety Notes)
1 .Pre-Operation Inspection & Safety
Check engine oil, coolant, hydraulic oil, and fuel levels; inspect hoses/joints for leaks. Never operate with fluid leaks or low levels.
Verify outriggers, boom sections, and pins for wear, looseness, or damage; tighten loose parts. Do not use damaged components.
Test safety devices: seat belt, emergency stop, 360° camera, horn, touchscreen, and overload alarm. Ensure all safety systems are functional.
Check tire pressure/wear and outrigger pads; place pads on firm, level ground. Never extend outriggers on soft or uneven surfaces.
Confirm the work area is clear of personnel, obstacles, and power lines (minimum 10m distance). No unauthorized personnel within the swing radius.
2 .Starting & Operation
Enter the cab, fasten the seat belt, adjust the seat, and set all levers to neutral.
Turn the key to “ON”, wait 15s for system self-check, then start the engine; idle 3–5min to warm up. Do not overload during warm-up.
Extend outriggers fully, level the crane via the touchscreen, and set the lifting mode (standard/heavy). Never lift without fully extended and leveled outriggers.
Operate levers: left for slewing/boom luffing, right for boom extension/hook hoisting; use slow, smooth movements. Avoid sudden starts, stops, or jerky motions.
Monitor the load moment indicator; never exceed the rated capacity. Reduce load on slopes >2° or in wind >6m/s.
3 .Post-Operation & Safety
Lower the hook to the ground, retract the boom fully, and stow outriggers.
Idle the engine for 2–3min to cool down, then turn it off.
Clean the cab and inspect for damage; record operating hours and any issues.
Never leave the crane unattended with a suspended load.
FAQ
Q1: What is the fuel consumption under standard conditions?
A1: 22–26 L/h (standard mode); eco mode reduces consumption by 6–9%.
Q2: Does it support synchronous extension of all boom sections?
A2: Yes. 2nd–5th sections extend synchronously with no sequence required, improving efficiency.
Q3: What is the warranty period?
A3: Standard warranty: 1 year or 2,000 working hours (whichever comes first); extended warranty available.
Q4: What is the maximum lifting height with a jib?
A4: Up to 53 m (44m main boom + 9m jib).
Q5: How to handle an overload alarm?
A5: Immediately stop lifting, lower the load, and check the weight/radius. Reduce the load or increase the radius before resuming operation.
