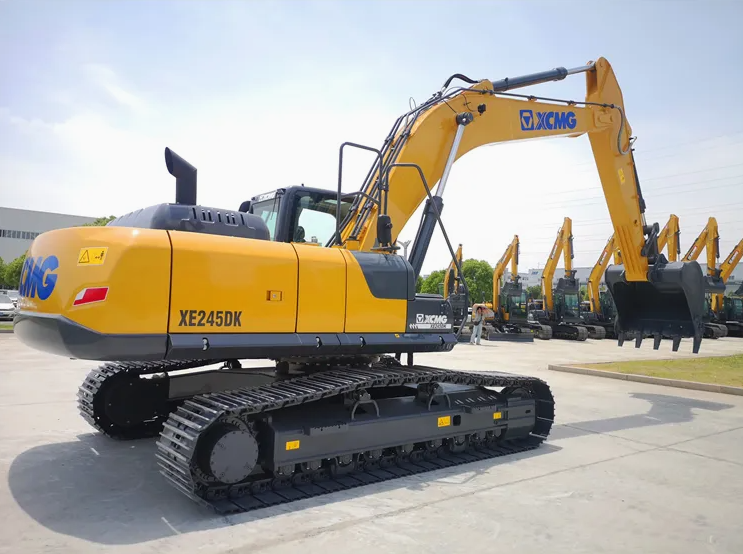

XE245DK
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
XE245DK adopts a new engine jointly. It has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy. It can reduce fuel consumption by 7% compared with the previous generation. New generation internationally famous hydraulic elements are of high rated working pressure, high efficiency, precise control, small impact and long service life.
Product Advantage
1.More energy-saving and environmental friendly

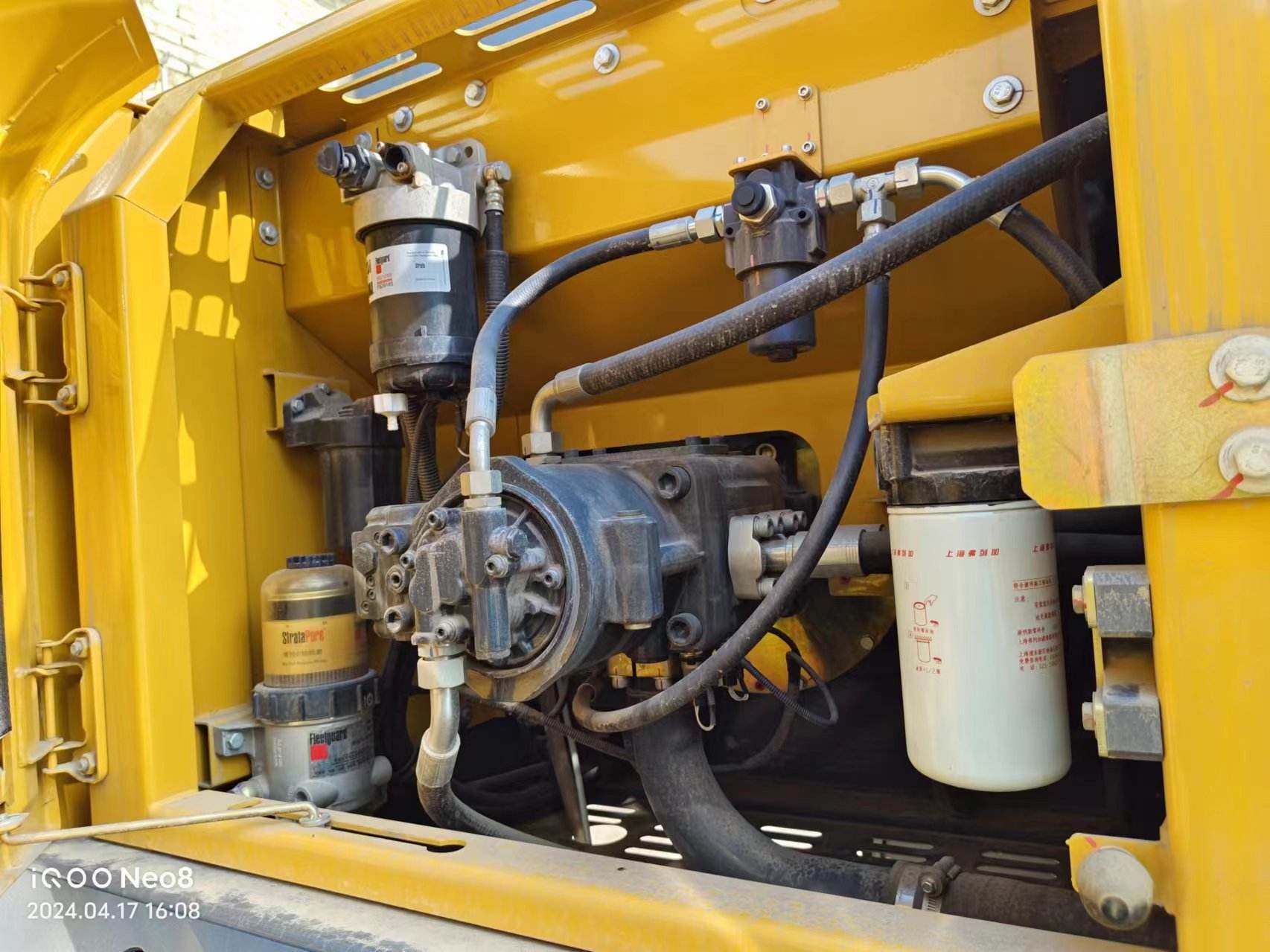

The common rail super high pressure injection engine compliant with National III emission standard has low speed, large torque, low fuel consumption and good economy. New generation hydraulic components have higher efficiency, more accurate control and higher reliability with combination of latest research achievements so that reliable strong digging force and excellent operating efficiency are ensured. With new generation microcomputer control technology, fuel injection time and quantity of the engine can be controlled accurately so that the engine is always running in the optimum economic area, which ensures optimum efficiency and economy of the machine in various operating conditions.
2.More efficient return
The brand new optimization design with 1.3m³ reinforced bucket greatly improves digging and loading efficiency. The self-developed intelligent control system realizes high efficiency and low fuel consumption in mine heavy-load mode through automatic flow distribution and accurate power matching control.
3.More reliable and durable
The integrated electric system has more concise design and higher reliability. The optimization design of box structure of work devices and XCMG's own patented technology support contribute higher reliability.
Technical Parameters
| Model | Unit | XE245DK | |
| Operating weight | Kg | 25500 | |
| Bucket capacity | m³ | 0.9-1.4 | |
| Engine | Model engine | / | QSB7 |
| Injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo-charging | / | √ | |
| No. of cylinders | / | 6 | |
| Rated power/speed | kw/rpm | 150/2050 | |
| Maximum torque/speed | N.m/rpm | 825/1250 | |
| Displacement | L | 6.7 | |
| Main performance | Travel speed | km/h | 5.3/3.6 |
| Swing speed | r/min | 11.2 | |
| Gradeability | ° | ≤35 | |
| Ground pressure | kPa | 56.7 | |
| Bucket digging force | kN | 185 | |
| Arm digging force | kN | 129 | |
| Maximum tractive force | kN | 199 | |
| Hydraulic system | Rated flow of main pump | L/min | 2×242 |
| Travel system pressure | MPa | 34.3 | |
| Swing system pressure | MPa | 25 | |
| Pilot system pressure | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 400 |
| Hydraulic tank capacity | L | 220 | |
| Engine oil capacity | L | 19.5 | |
| Appearance size | Overall length | mm | 10170 |
| Overall width | mm | 3190 | |
| Overall height | mm | 3130 | |
| Width of platform | mm | 2830 | |
| Total width of chassis | mm | 3190 | |
| Track shoe width | mm | 600 | |
| Wheel base of crawler | mm | 3655 | |
| Track gauge | mm | 2590 | |
| Counterweight clearance | mm | 1062 | |
| Min. ground clearance | mm | 490 | |
| Working range | Max. digging height | mm | 10048 |
| Max. dumping height | mm | 7123 | |
| Max. digging depth | mm | 6972 | |
| Max. vertical wall digging depth | mm | 5567 | |
| Max. digging radius | mm | 10240 | |
| Min. swing radius | mm | 3510 | |
| Standard | Length of boom | mm | 6000 |
| Length of arm | mm | 2964 | |
| Bucket capacity | m³ | 1.3 | |
Product Uses

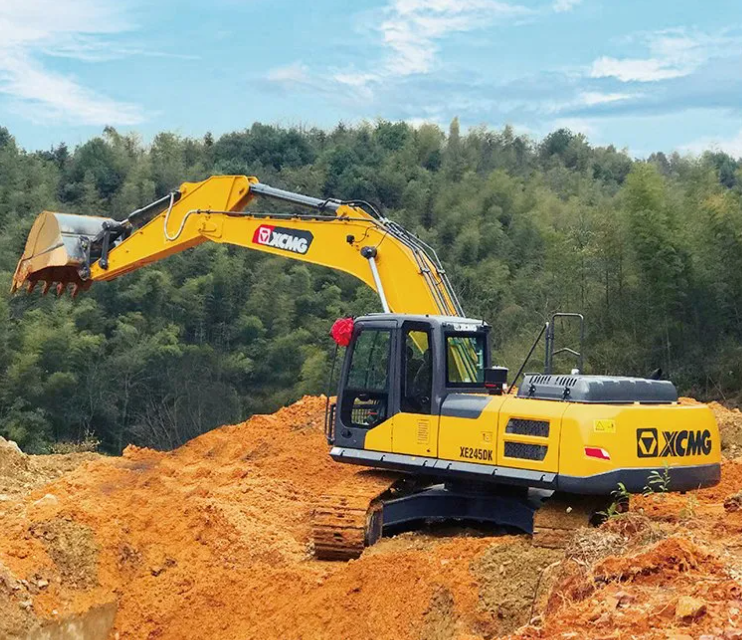

1. Mining, Quarrying, and Heavy-Duty Operations
The XE245DK excels in small-to-medium-sized mines and quarries. Its upgraded undercarriage track rollers feature dual-side support (boosting load capacity by over 50%), thickened mushroom-head track links (extending service life by 15%), and a non-uniformly distributed slewing ring design (reducing slewing ring bolt breakage risk by 12%). These enhancements make it particularly suitable for rock extraction, ore excavation, and heavy-duty material handling. The optional 1.5m³ high-efficiency earthmoving bucket further boosts digging and loading efficiency.

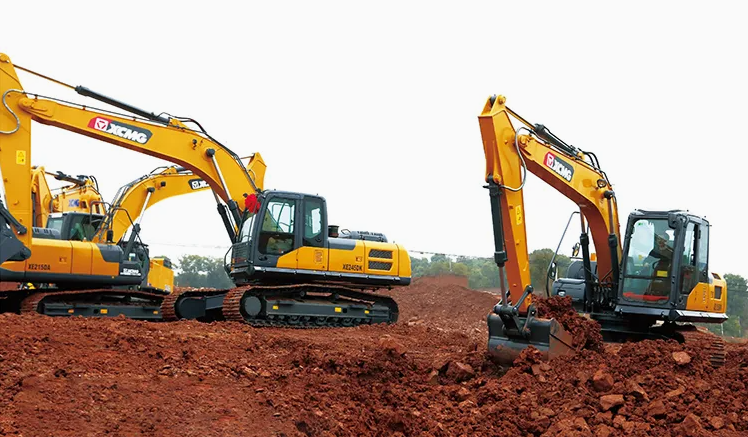

2. Infrastructure Construction and General Earthmoving
This excavator model is widely applicable for earthmoving projects such as highway and bridge construction, municipal works (e.g., urban foundation excavation), and more. Its robust performance enables tasks including earth excavation, trench laying, and site leveling.

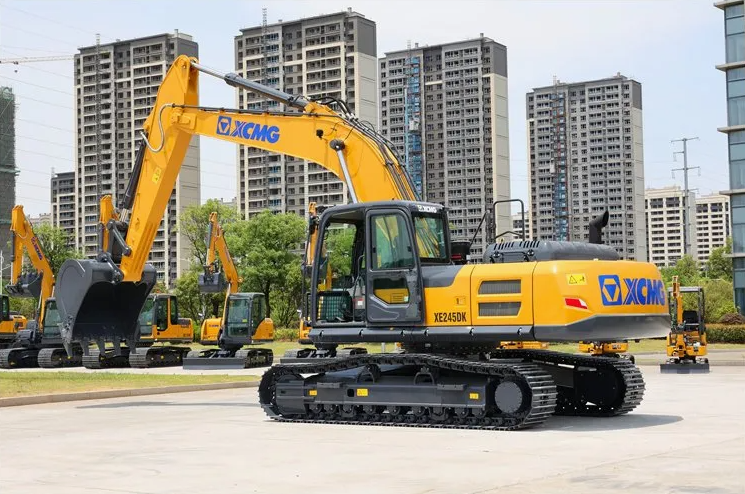

3. Municipal and Urban Construction
The XE245DK is also highly suitable for municipal projects. Its maneuverability allows adaptation to relatively confined worksites, as demonstrated in earthmoving for projects like Xi'an Metro Line 5, effectively reducing construction timelines. Its new cab, designed for comfortable and safe operation, enhances operator comfort and efficiency during extended urban work shifts.
4. Operations in Special Environments like Plateaus and High Altitudes
The XE245DK demonstrates excellent environmental adaptability. During high-altitude railway tunnel construction projects above 3,800 meters, it flawlessly performed tasks like rock breaking, hazard clearance, and debris removal during tunnel excavation under harsh conditions of low oxygen and temperatures ranging from -20°C to 20°C. The equipment operated without any malfunctions, with all systems functioning normally throughout the process. Additional user feedback indicates that at 4,000 meters elevation, power loss was negligible, maintaining robust performance.
Product Operate Guide
Before operation, check engine oil, hydraulic fluid levels, and reinforced chassis structure. After starting, idle for 3-5 minutes to warm up. Extend warm-up time appropriately in high-altitude regions. Maintain smooth operation during use and select appropriate working modes to enhance energy efficiency. Avoid abrupt turns and stops during heavy-load operations. Regularly inspect the condition of slewing support bolts. Thoroughly clean the equipment after operation, focusing on checking wear of working attachments. Perform regular maintenance on the air filter and hydraulic system, paying special attention to engine maintenance in high-altitude regions. Always observe the surrounding environment and maintain safe operating distances.
FAQ
1. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
2. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
3. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
4. WHAT PRECAUTIONS SHOULD BE TAKEN FOR LONG-TERM EQUIPMENT STORAGE?
Clean the equipment, drain all coolant (or fill with antifreeze), disconnect the battery negative terminal, fully retract all hydraulic cylinder piston rods and apply rust-preventive oil, and elevate tires to prevent contact with the ground.
5. WHAT SHOULD BE NOTED DURING THE BREAK-IN PERIOD FOR NEW EQUIPMENT?
Strictly follow break-in specifications: reduce load and speed (typically below 70%-80% load), monitor gauges closely, frequently check fasteners and lubrication, and promptly replace oils and filters during the first maintenance.
6. WHAT CHECKS SHOULD BE PERFORMED BEFORE DAILY STARTUP?
Walk around the machine to inspect for leaks, loose components, or damage; check fluid levels (engine oil, hydraulic oil, coolant); verify tire pressure or track tension; check for warning indicators on the instrument panel.
