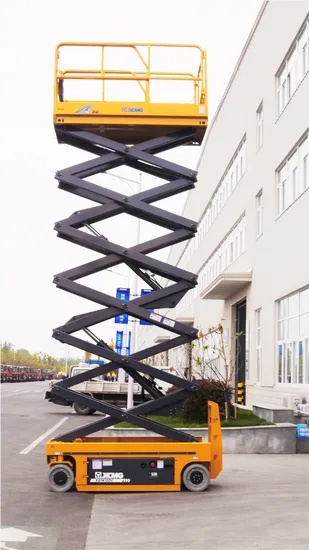

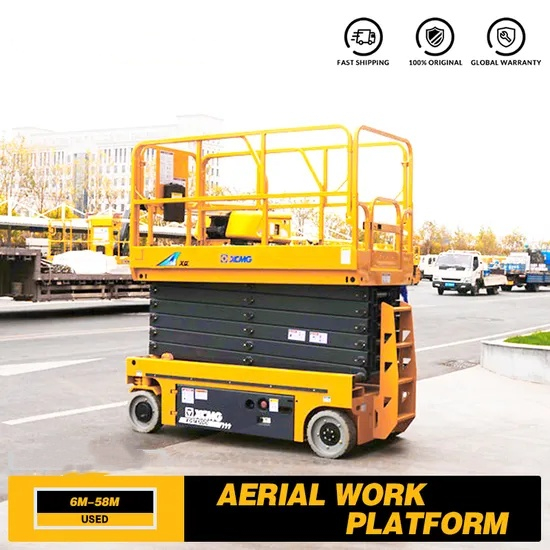

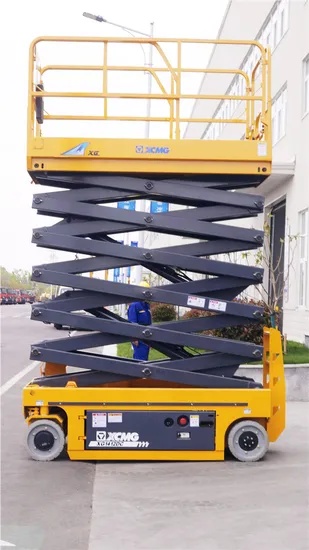

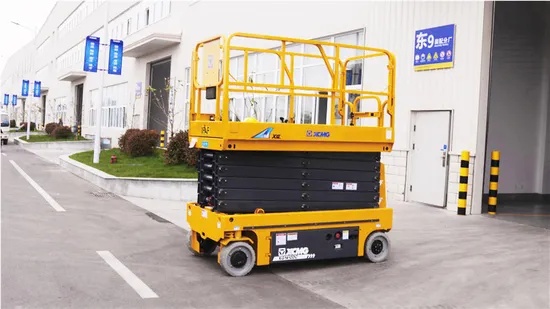

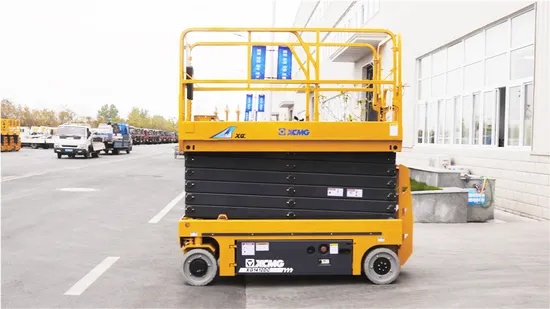

Product Introduction
In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations.
Product Advantage
1.Effective and energy-saving electric-drive system features zero emission and low noise.
2.Active protective mechanism such as pothole protective mechanism and the self-developed safety control system meeting the customer needing for safety, reliability and intelligence.
3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier. "Zero Turning Radius "is unique and enable machine to corner in narrow room.
4.Maximum payload at 230kg, leading the industry. Maximum traveling speed 4.5 km/h and 25% gradeability make the driving easier
Technical Parameters
| Item | Unit | XG1612DC |
| Dimensions (LxWxH) | mm | 2840x1250x2600 |
| Wheel base | mm | 2240 |
| Wheel track | mm | 1123 |
| Min. Ground clearance (pit protector lifting / decline) | mm | 100/20 |
| Platform dimensions(LxWxH) | mm | 2640x1120x1263 |
| Platform dimensions Platform extension length | mm | 900 |
| Vehicle center of mass position Horizonal distance from front axis | mm | 1127 |
| Vehicle center of mass position Height of center of mass | mm | 720 |
| Total weight | kg | 3350 |
| Max. Platform height | m | 13.7 |
| Min. Platform height | m | 1.478 |
| Max. Working height | m | 15.7 |
| Min. Turning radius (inner wheel / outer wheel) | m | 0/2.65 |
| Platform rated load | kg | 230 |
| Extension platform rated load | kg | 115 |
| Platform lifting time | s | 65-82 |
| Platform decline tine | s | 61-80 |
| Max. Walking speed (low position) | km/h | 4 |
| Max. Walking speed (high position) | km/h | 0.8 |
| Max. gradeability | % | 25 |
| Tilt warning angle(side / forward and backward) | ° | 1.5/3 |
| Lifting /walking motor Rated power | kW | 4.5/0.75 |
| Battery Voltage | v | 24 |
| Battery Capacity | Ah | 300 |
| Battery Manufacturer | - | Trojan/Leoch |
Product Uses
Commercial Complex Maintenance: Working height covers high-altitude cleaning and decoration tasks in shopping mall atriums, glass domes, and other areas, flexibly adapting to complex spatial structures.
Industrial Plant Construction: The dual-load design accommodates simultaneous work by two people, making it suitable for heavy-duty construction scenarios such as steel structure installation and pipe welding.
Ship Repair: Explosion-proof models are suitable for shipyard operations, with corrosion-resistant structures adapted to marine environments, enabling tasks such as hull painting and inspections.
Emergency Rescue and Disaster Response: Equipped with emergency descent devices, suitable for firefighting assistance, personnel rescue at disaster sites, and other emergency situations.
Product Operate Guide
Intelligent Pre-inspection System: Automatically diagnoses the status of hydraulic and electrical systems upon startup, with real-time display of fault codes and recommended solutions on the LCD screen.
Dual-Mode Operation: Supports switching between platform and ground control positions. Proportional control combined with fine-tuning mode enables millimeter-level precise positioning.
Enhanced Safety Measures: Triple protection featuring tilt protection, overload alarm, and collision detection. Manual pump descent is possible in case of sudden power failure.
Efficient Maintenance Solution: Modular design allows for quick replacement of critical components. The smart terminal automatically generates maintenance schedules and provides reminders.
