Product Introduction
High productivity: Meeting the demanding working conditions with extremely high requirements for load capacity, range and handling efficiency.
• Top-notch security: Integrating multiple active and passive security designs, it builds a comprehensive security protection system.
• Green and environmentally friendly: Pure electric drive, zero emissions, low noise, suitable for indoor and outdoor occasions with strict environmental protection requirements.
• Intelligent interconnection: Through intelligent management, reduce operation and maintenance costs and enhance equipment management levels.
Product Advantage
Dual parallel linkage and telescopic arm could realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable. With 4WD, off-road wide tires and axle balance system, the machine is excellent in drive and adaptability to road. Multi-load envelope control technologies could real-time monitor the load, effectively making use of boom and making its work performance at leading edge. Auto balance extending mechanism improves safety of extending mechanism and extends service life of steel rope. Electrical control system adopts the distributed control technologies based on PLC and CAN, implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.
Technical Parameters
| Item | Unit | Parameter |
| Machine length | mm | 9800 |
| Full width | mm | 2490 |
| Overall height | mm | 2640 |
| Wheelbase | mm | 2500 |
| Maximum operating height | m | 20.5 |
| Maximum platform height | m | 18.5 |
| Maximum operating range | m | 13.2 |
| Maximum load weight (Unrestricted/Restricted) | kg | 300 |
| Boom range | ° | -5~76 |
| Turntable rotation angle (continuous) | ° | 360 |
| Maximum tail swing | mm | 1630 |
| Platform size | mm | 1800×760×1150 |
| Platform rotation angle | ° | 160 |
| Machine weight | kg | 8500 |
| Maximum driving speed | km/h | 4.8 |
| Minimum turning radius (outside) | m | 5 |
| Minimum turning radius (inside) | m | 3.5 |
| Maximum climbing ability | % | 30 |
| Engine rated power | kW | 36.8 |
Product Uses
Large industrial plants: Equipment installation, maintenance, pipeline construction.
• Warehousing and logistics center: Shelf maintenance, lamp replacement, and surveillance installation.
• Commercial complexes and venues: Ceiling decoration, fire protection installation, cleaning and maintenance.
• Infrastructure construction: Interior construction of airports, stations and Bridges.
• Any occasion that requires efficient, safe and clean high-altitude operations.
Product Operate Guide

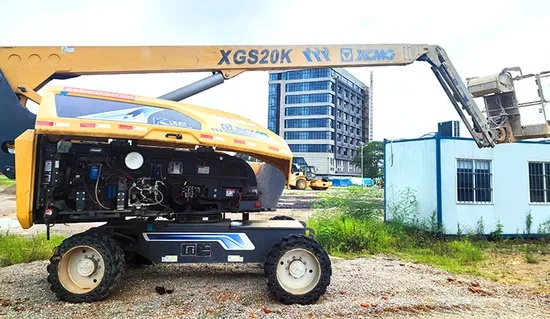

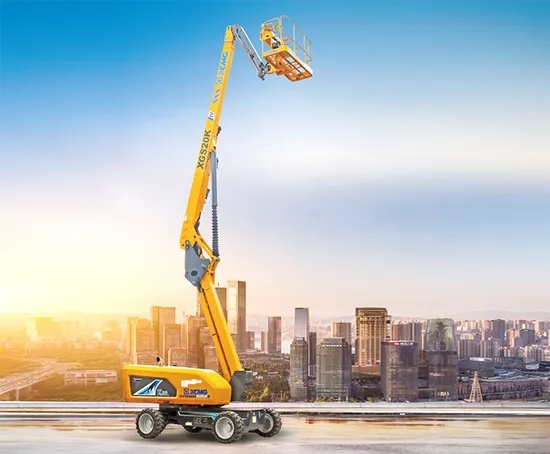

The XGS20K electric aerial work platform is intelligent and convenient to operate. Before starting the operation, it is necessary to check that the structure, battery and functions are in good condition. After startup, it can be operated through the platform control box or the ground remote control, sensitively responding to lifting and traveling. The equipment is integrated with an intelligent safety system, featuring tilt protection, emergency descent and self-diagnosis of faults, ensuring operational safety. It adopts pure electric power, features low noise and zero emissions, and is suitable for high-standard indoor and outdoor working conditions. All operators are required to be certified and strictly abide by the manual procedures to ensure efficient and safe production.
FAQ
1.What safety protection measures are there for the equipment?
A: Equipped with multiple safety devices: tilt protection system (automatically alarms and stops when exceeding the limit), emergency descent device (manual descent upon power failure), anti-collision edge contact, sound and light alarm, and intelligent fault diagnosis system.
2.What kind of battery does the equipment use? How long is the battery life?
A: It is equipped with a high-efficiency lithium battery pack as standard and supports the dual-battery parallel option. Under typical working conditions, the battery life can reach 10 to 12 hours, which can meet the demands of high-intensity operations throughout the day.
3.How to charge and maintain batteries?
A: Supports opportunistic charging (charge as needed) and is equipped with an intelligent charger. Lithium battery packs are basically maintenance-free, but it is necessary to keep them clean and dry and avoid over-discharging.
4.What daily checks are needed?
A: Before each daily operation, a daily inspection should be conducted: check for leaks in structural components and the hydraulic system, battery power, tire condition, and test whether all safety functions (such as the emergency stop button) are functioning properly.
5.What should I do if the equipment shows a fault code?
A: The control panel will display the fault code. Please immediately refer to the fault code table in the "Operation and Maintenance Manual" and conduct a preliminary troubleshooting according to the instructions.
6.How to obtain genuine spare parts?
A: You can contact us directly online and we will provide original factory spare parts supply.
