XE390G
| Availability: | |
|---|---|
| Quantity: | |

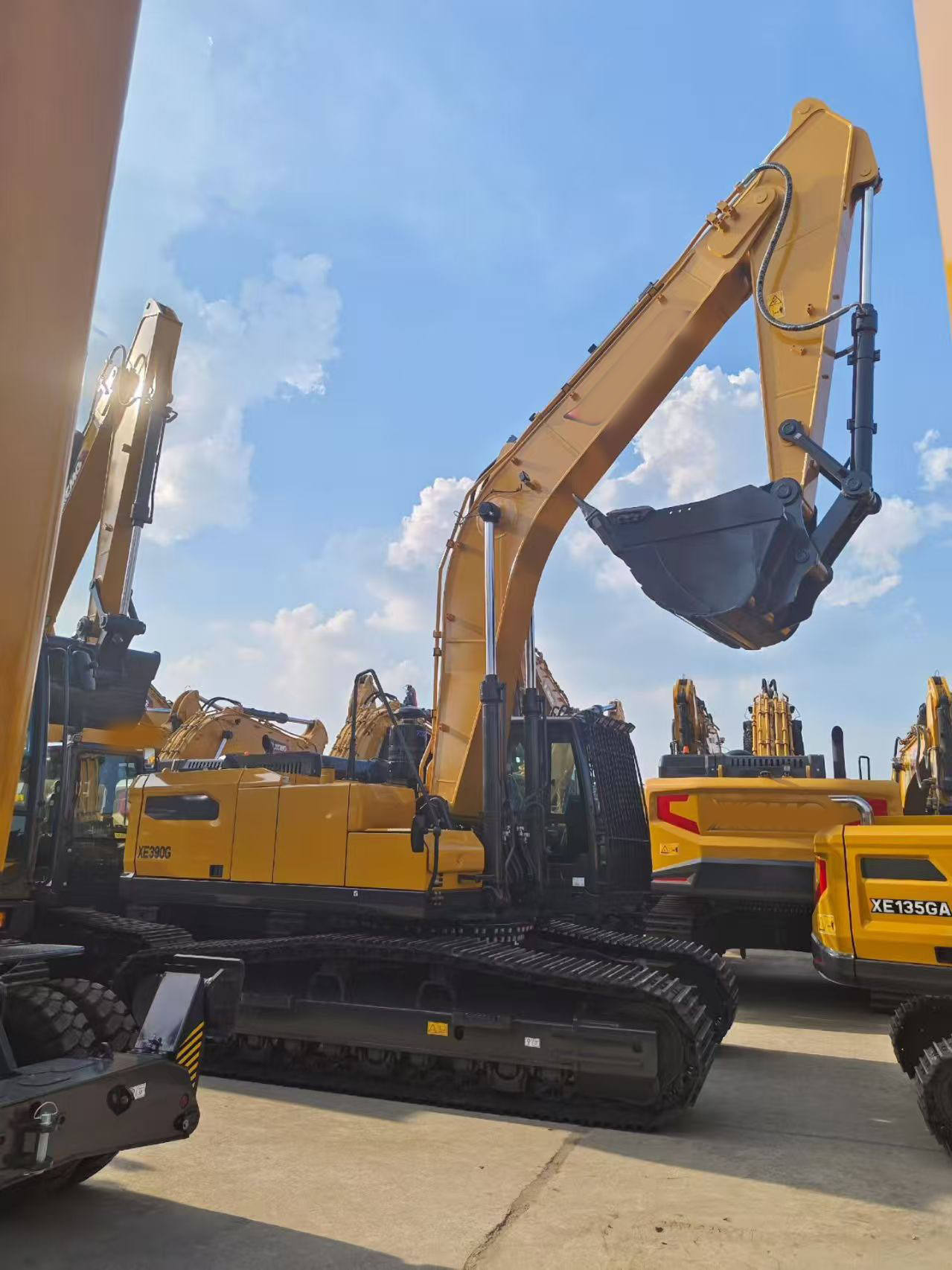

The XE390G is a high-performance 39-ton hydraulic crawler excavator designed for heavy-duty engineering scenarios. It integrates advanced hydraulic technology, robust structural design and intelligent control systems to deliver reliable, efficient and cost-effective operation in complex working environments. Suitable for large-scale mining, earthmoving, road construction, quarrying and infrastructure projects, the XE390G balances power and fuel efficiency, ensuring stable performance even under long-term continuous operation, and meets the strict requirements of modern engineering construction for equipment reliability and productivity.
Superior Power & Efficiency: Equipped with a high-power diesel engine that meets international emission standards, combined with an optimized hydraulic system, it achieves fast response, strong digging force and low fuel consumption. The intelligent energy-saving control reduces fuel consumption by 8-12% compared with similar products, significantly lowering operating costs.
Robust & Durable Structure: The boom, arm and bucket are made of high-strength wear-resistant steel,经过 heat treatment and precision welding to enhance structural strength and wear resistance. The crawler track adopts high-quality rubber or steel material, with strong load-bearing capacity and long service life, adapting to various harsh working conditions such as gravel, mud and uneven terrain.
Intelligent & Comfortable Operation: The cab is designed with ergonomics, equipped with a suspension seat, adjustable steering wheel and intuitive operation panel. The large-size LCD display real-time shows equipment parameters, fault prompts and operation status, making operation simple and efficient. The cab is sound-insulated, dust-proof and shock-absorbing, providing a comfortable working environment for operators during long hours of work.
Easy Maintenance & High Reliability: The key maintenance parts (such as engine, hydraulic pump, filter) are designed with easy access, reducing maintenance time and labor intensity. The integrated fault diagnosis system can quickly locate faults, minimizing downtime and improving equipment availability. The whole machine undergoes strict quality inspection before leaving the factory, ensuring stable and reliable operation in long-term use.
Versatile Adaptability: It can be equipped with various attachments (such as bucket, breaker, grapple, ripper) to meet different operation needs of mining, earthmoving, crushing, loading and unloading, greatly expanding the application scope of the equipment.
Specification Item | Parameter |
|---|---|
Machine Weight | 39,000 kg |
Engine Model | Diesel Engine (4-stroke, turbocharged, intercooled) |
Rated Power | 243 kW / 2200 rpm |
Max. Digging Depth | 7,800 mm |
Max. Digging Height | 11,200 mm |
Max. Unloading Height | 7,900 mm |
Max. Digging Radius | 12,100 mm |
Bucket Capacity | 1.8 - 2.2 m³ (standard bucket) |
Hydraulic System Pressure | 31.4 MPa |
Crawler Track Width | 600 mm |
Crawler Gauge | 2,500 mm |
Fuel Tank Capacity | 600 L |
Cooling System Capacity | 100 L |
Operation Weight | 39,000 ± 500 kg |
Emission Standard | EU Stage III / US Tier 3 |
Mining Industry: Used for ore extraction, loading and transportation in open-pit mines, such as coal mines, iron ore mines and non-ferrous metal mines. It can efficiently complete the digging, loading and cleaning of ore and waste rock, adapting to the harsh environment of high dust and heavy load.
Earthmoving Projects: Suitable for large-scale earthwork excavation, filling and leveling in urban construction, industrial parks, residential districts and other projects. It can quickly complete the excavation of foundation pits, trenches and the leveling of construction sites, improving construction efficiency.
Road & Bridge Construction: Used for roadbed excavation, embankment filling, slope trimming and bridge foundation construction in highway, railway and bridge projects. It can cooperate with other equipment to complete the construction of roadbeds and bridge piers, ensuring the smooth progress of the project.
Quarrying Industry: Used for stone mining, crushing and loading in quarries. Equipped with a breaker attachment, it can crush large stones into small pieces, which is convenient for transportation and processing; equipped with a bucket, it can load the crushed stones into transport vehicles.
Infrastructure Construction: Applied to water conservancy projects (reservoir construction, river dredging), pipeline laying (water supply, gas, power pipelines) and other infrastructure projects. It can complete the excavation of trenches, the cleaning of river beds and the construction of water conservancy facilities.
Waste Treatment & Environmental Protection: Used for sorting, loading and transporting waste in waste treatment plants and environmental remediation projects, helping to improve the efficiency of waste treatment and environmental governance.
Check the appearance of the machine: Inspect the boom, arm, bucket and crawler track for damage, deformation or loose bolts; check the cab for damage and the door and window seals for tightness.
Check the fluid levels: Check the fuel, engine oil, hydraulic oil, coolant and brake fluid levels, and add them in time if they are insufficient; check for oil leaks in the hydraulic system, engine and fuel system.
Check the electrical system: Inspect the battery for loose connections and sufficient power; check the lights (headlights, taillights, turn signals), horn and instrument panel for normal operation.
Check the attachments: If equipped with a bucket, breaker or other attachments, check the connection bolts for tightness and the hydraulic hoses for damage or leaks.
Start the engine: Turn on the power switch, start the engine, let it idle for 3-5 minutes, and check the engine sound, oil pressure, water temperature and other parameters for normal operation; check the hydraulic system for abnormal noise.
Starting the machine: After completing the pre-operation check, sit in the cab, fasten the safety belt, adjust the seat and steering wheel to a comfortable position, turn on the power switch, start the engine, and wait for the engine to run stably.
Moving the machine: Push the left joystick forward to move the machine forward, pull it back to move backward; push the joystick to the left or right to turn left or right. When moving on uneven terrain, slow down to avoid tipping.
Digging operation: Push the right joystick forward to lower the bucket, pull it back to lift the bucket; push the joystick to the left to curl the bucket, push it to the right to unload the bucket. During digging, keep the bucket level, avoid excessive digging to prevent damage to the machine.
Loading operation: After digging, lift the bucket to the appropriate height, move the machine to the transport vehicle, align the bucket with the vehicle compartment, push the right joystick to the right to unload the materials; after unloading, return the bucket to the original position.
Stopping the machine: Stop the machine on a flat and stable ground, lower the bucket to the ground, turn off the engine, turn off the power switch, and pull the parking brake. After stopping, clean the machine and check for any abnormalities.
Operators must be trained and certified before operating the machine; do not allow untrained personnel to operate the machine.
Do not operate the machine under the influence of alcohol, drugs or fatigue; keep a clear mind during operation.
When operating near personnel, obstacles or buildings, slow down and sound the horn to remind; do not allow personnel to stand under the boom, arm or bucket.
Do not operate the machine on steep slopes (slope angle should not exceed 30 degrees); avoid sudden acceleration, deceleration or turning to prevent tipping.
When the machine is working, do not touch the hot parts (engine, exhaust pipe) to avoid burns; do not open the fuel tank cap when the engine is running to avoid fuel splashing and ignition.
If the machine fails during operation, stop the machine immediately, turn off the engine, and perform maintenance after troubleshooting; do not continue to operate the faulty machine.
Q: What should I do if the engine fails to start?
A: First, check the battery power and connection status; if the battery is dead, charge it or replace it. Then check the fuel level and fuel filter; if the fuel is insufficient, add fuel; if the fuel filter is blocked, replace it. If the problem still exists, check the engine ignition system and fuel injection system, or contact professional maintenance personnel.
Q: Why does the hydraulic system have insufficient pressure?
A: Possible reasons include insufficient hydraulic oil, blocked hydraulic filter, damaged hydraulic pump, or leakage in the hydraulic pipeline. First, check the hydraulic oil level and add it if necessary; then check the hydraulic filter and replace it if blocked; check the hydraulic pipeline for leaks and repair them; if the hydraulic pump is damaged, replace it.
Q: How to reduce fuel consumption during operation?
A: Operate the machine smoothly, avoid sudden acceleration and deceleration; adjust the engine speed according to the operation load, do not keep the engine at high speed for a long time; regularly maintain the engine and hydraulic system to ensure their normal operation; choose high-quality fuel that meets the standard.
Q: What is the maintenance cycle of the XE390G excavator?
A: The regular maintenance cycle is as follows: 50 hours (first maintenance) - check and tighten bolts, replace engine oil and filter; 250 hours - replace hydraulic oil filter and fuel filter; 500 hours - replace hydraulic oil and coolant; 1000 hours - inspect the boom, arm and crawler track, replace worn parts if necessary. Specific maintenance items can refer to the product maintenance manual.
Q: Can the XE390G be equipped with different attachments?
A: Yes, the XE390G can be equipped with a variety of attachments, including standard bucket, heavy-duty bucket, breaker, grapple, ripper, etc. Different attachments can be replaced according to different operation needs, which greatly expands the application scope of the equipment. It is recommended to use original attachments to ensure compatibility and safety.
Q: What should I do if the machine tips during operation?
A: Immediately stop the machine, turn off the engine, and do not move the joystick randomly. Ensure the safety of the operator first, then call professional rescue personnel to handle it; do not try to lift the machine by yourself to avoid secondary damage.
Q: Why does the bucket have serious wear?
A: Possible reasons include using the bucket to dig hard materials (such as rocks, concrete) for a long time, the bucket material does not meet the requirements, or the operation method is incorrect. It is recommended to choose the appropriate bucket according to the operation material; avoid using the bucket to hit hard objects; regularly check the bucket wear and replace the wear-resistant parts in time.
Q: How to store the machine when it is not used for a long time?
A: Park the machine on a flat and dry ground, lower the bucket to the ground, turn off the engine, and turn off the power switch. Drain the fuel, engine oil, hydraulic oil and coolant if necessary; clean the machine, apply anti-rust oil to the metal parts; cover the machine with a waterproof cover to prevent dust and rain erosion. Check the machine regularly during storage to ensure it is in good condition.
