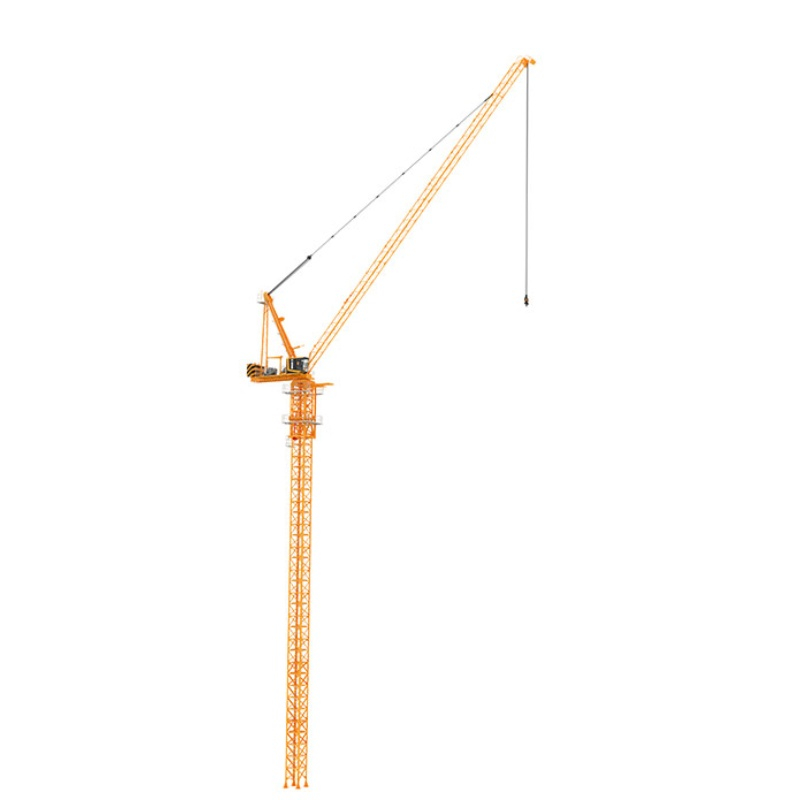

Product Description
The XGL160-10S super high-torque luffing jib tower crane is a professional heavy-duty lifting equipment tailored for complex narrow-site and heavy-load high-rise construction. The whole machine adopts thickened low-alloy high-strength steel tower sections and integral welding stress elimination technology, which comprehensively improves structural rigidity, torsion resistance and long-term high-altitude anti-fatigue ability. Compared with ordinary 140t·m luffing cranes, the 160t·m ultra-high torque design greatly enhances overall lifting reserve power, ensuring stable operation under long-term heavy-load and strong wind conditions.
Equipped with a new generation of intelligent variable-frequency stepless speed regulation system, the XGL160-10S realizes smooth, jitter-free and low-impact switching for hoisting, luffing and slewing actions. The optimized hydraulic power matching system provides continuous and powerful power output, stably supporting frequent lifting of 10-ton heavy steel structures, precast concrete components and large construction materials. The professional vertical luffing structure features 10°-85° wide-angle amplitude adjustment, flexibly adapting to complex height differences and dense building spacing in urban core areas. With a 90m/min high-speed hoisting system and 550m super-long rope capacity, it fully meets the continuous lifting demands of 150.7m ultra-high attached height construction.
The whole machine adopts standardized modular split design with compact and regular components, which greatly reduces cross-border transportation costs and improves container loading efficiency. The independent automatic hydraulic climbing system supports rapid on-site layered heightening and fast assembly, effectively shortening the project construction cycle. The core electrical and hydraulic accessories are all brand high-quality matching parts, with low failure rate and long service life. In terms of safety configuration, the crane is equipped with a full set of intelligent limit protection systems and emergency braking devices, realizing full-range overload monitoring and automatic power-off protection. All finished cranes pass strict factory full-load aging tests and extreme working condition simulation to ensure long-term stable and safe high-intensity operation.
Product Advantages
160t·m Ultra-high Lifting Torque:
Upgraded super-large torque output provides stronger heavy-load reserve power than conventional luffing cranes, ensuring stable operation in high-intensity heavy-load construction and complex wind environments.
10-ton Heavy Load & 2.5t Super Strong Tip Load:
Industry-leading 2.5-ton jib-end lifting capacity solves the long-standing pain point of insufficient far-end load of medium tower cranes, realizing real high-efficiency long-distance heavy-duty operation.
Professional Zero Tail Swing Luffing Structure:
Vertical luffing jib design without horizontal tail radius occupation, perfectly adapting to narrow urban sites, dense building clusters and limited-space reconstruction projects without collision risk.
Upgraded Intelligent Variable-frequency Control:
Full-action stepless speed regulation achieves smooth start, stable operation and precise stop, minimizing high-altitude vibration and material damage, greatly improving construction accuracy and safety.
Super Strong High-altitude Stability & Wind Resistance:
Thickened high-rigidity tower body + optimized force balance structure enhance overall wind resistance, suitable for long-term high-altitude operation in coastal and strong wind areas.
High-efficiency Hydraulic Climbing System:
Automatic hydraulic heightening design simplifies on-site assembly procedures, saves labor and time costs, and significantly accelerates the construction progress of super high-rise projects.
Modular & Export-oriented Design:
Standard split components are convenient for container transportation, with high assembly flexibility and low later maintenance cost, achieving ultra-high comprehensive cost performance for global projects.
Full Intelligent Safety Protection System:
Equipped with torque limit, height limit, amplitude limit and emergency braking device, realizing automatic early warning and power-off protection to eliminate all hidden dangers of high-altitude operation.
Technical Parameters
Item | Specification |
Model | XGL160-10S |
Crane Type | Luffing Jib Tower Crane |
Rated Lifting Moment | 160 t·m |
Max Lifting Capacity | 10 Ton |
Max Jib Length | 50m |
Jib End Tip Load | 2.5 Ton |
Max Free-standing Height | 36.7m |
Max Attached Height | 150.7m |
Max Hoisting Speed | 90m/min |
Luffing Speed | 10°~85° ≤2.2min |
Slewing Speed | 0~0.75r/min |
Rope Capacity | 550m |
Tower Section Size | 1.8m × 1.8m × 2.8m |
Mast Type | High-strength Thickened Integral Tower Section |
Control System | Intelligent Variable-frequency Stepless Speed Control |
Safety Device | Torque Limiter, Height Limiter, Amplitude Limiter, Emergency Brake System |
Product Applications

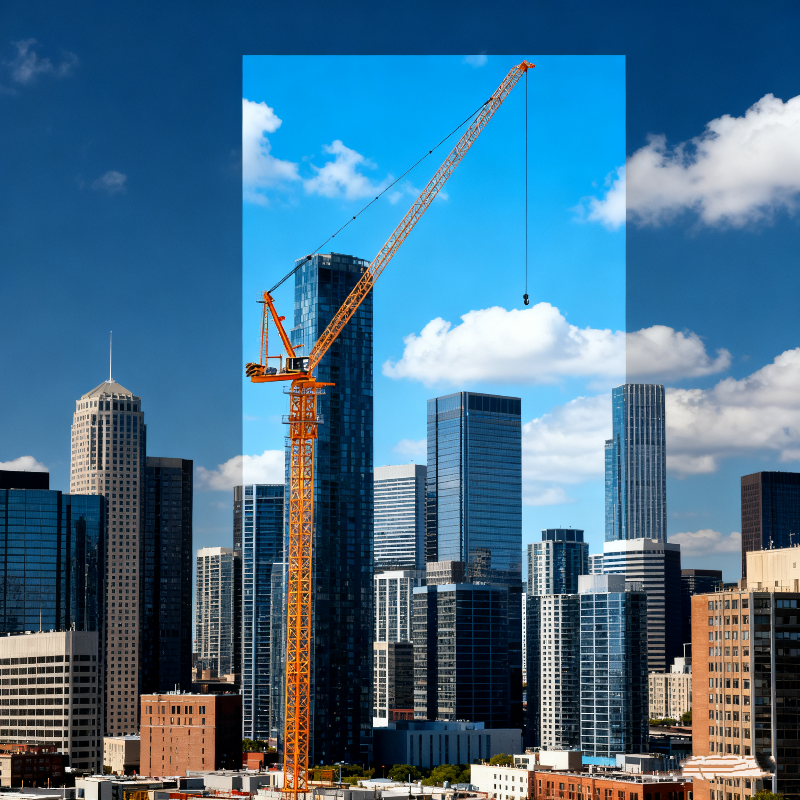

Urban Core Super High-rise Buildings:
Professional heavy-duty lifting and high-precision component installation for high-rise residential clusters and ultra-high commercial landmarks in crowded urban central areas, adapting to strict space-limited construction conditions.
Large Bridge & Viaduct Engineering:
Stable hoisting of heavy bridge steel beams, precast pier components and large construction equipment, meeting the high-load and high-precision construction requirements of municipal key traffic projects.
Dense Building Cluster Reconstruction Projects:
Zero tail swing design perfectly adapts to old urban renovation, building expansion and adjacent construction projects, effectively avoiding building and equipment collision risks.
High-standard Industrial & Public Facilities:
Heavy steel structure installation and large concrete component lifting for high-end industrial parks, stadiums, exhibition centers and public landmark buildings.
Coastal & Strong Wind Area Construction:
Super-high torque and enhanced wind resistance structure ensure stable all-weather operation in coastal windy environments and complex climate conditions.
High-difficulty Narrow-site Projects:
It is the ideal equipment for special construction scenarios where ordinary horizontal jib cranes and medium torque luffing cranes cannot meet the load and space requirements.
FAQ
Q1: What are the core upgrades of XGL160-10S compared with XGL140-10S?
A: The XGL160-10S has comprehensive performance upgrades. The rated lifting moment is upgraded from 140t·m to 160t·m, and the jib-end tip load is greatly improved from 1.8 tons to 2.5 tons. It possesses stronger long-distance heavy-load operation capacity and higher lifting reserve power, with better stability in strong wind and heavy-load working conditions, more suitable for high-standard and high-difficulty key engineering projects.
Q2: What is the maximum working height of XGL160-10S?
A: It supports 36.7m free-standing independent height without wall attachment, and the maximum attached working height can reach 150.7m. It fully meets the construction needs of various super high-rise buildings, large bridges and municipal landmark projects.
Q3: Why is 2.5t tip load a key advantage for luffing cranes?
A: For urban narrow-site construction, the far-end lifting capacity directly determines construction efficiency. The 2.5-ton ultra-strong jib-end load of XGL160-10S can stably lift heavy materials at the maximum jib radius, avoiding repeated position adjustment and reducing construction downtime, which is the core advantage for high-efficiency construction of large-scale complex projects.
Q4: Is the XGL160-10S suitable for complex urban construction?
A: Absolutely yes. Adopting zero tail swing luffing jib structure, it occupies no extra horizontal space and will not interfere with surrounding buildings. Matched with 160t·m super-high torque and high stability performance, it is perfectly adapted to dense urban buildings, narrow road sections and limited construction sites, solving many construction pain points of traditional tower cranes.
Q5: What about the transportation and assembly efficiency of this crane?
A: The whole machine adopts standardized modular split design, which is convenient for container transportation and reduces cross-border logistics costs. Equipped with a mature automatic hydraulic climbing system, on-site heightening and assembly are labor-saving and efficient, greatly shortening the project construction cycle and improving overall engineering benefits.
Q6: What safety protection configurations does XGL160-10S have?
A: It is equipped with a complete intelligent safety protection system, including torque limiter, height limiter, amplitude limiter and emergency braking device. It can automatically alarm and cut off power in case of overload or over-range operation, realizing full-range safety monitoring to ensure standardized and safe high-altitude construction.
