Zl30g
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

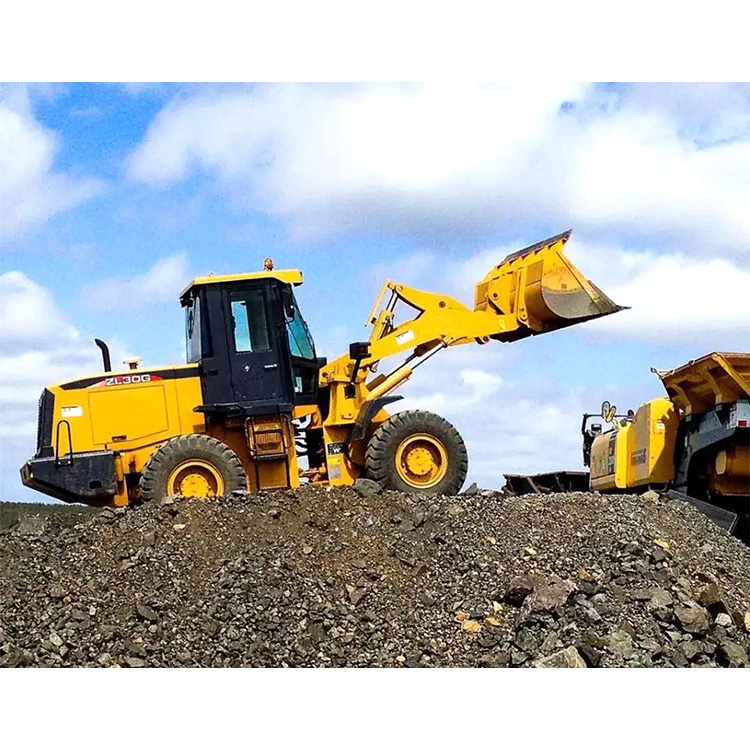

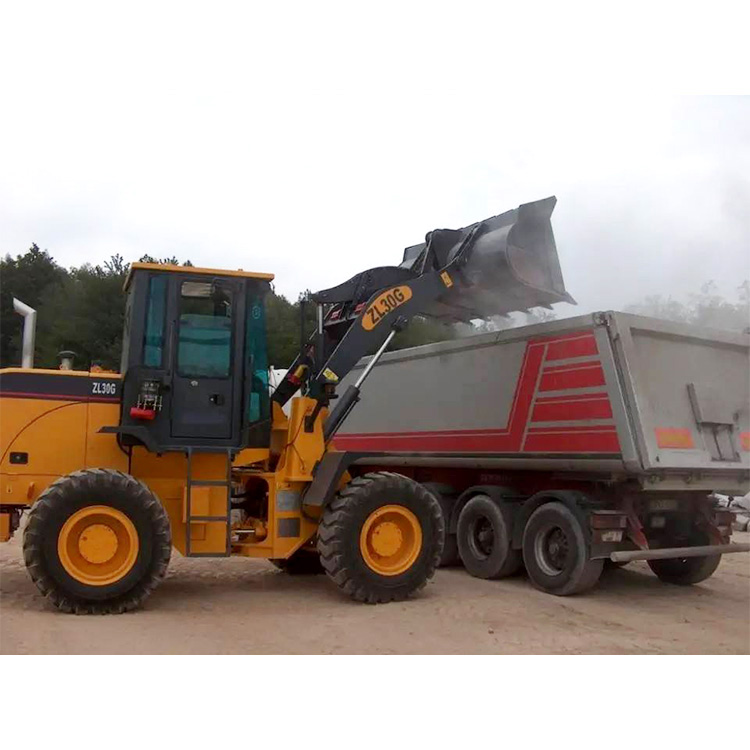

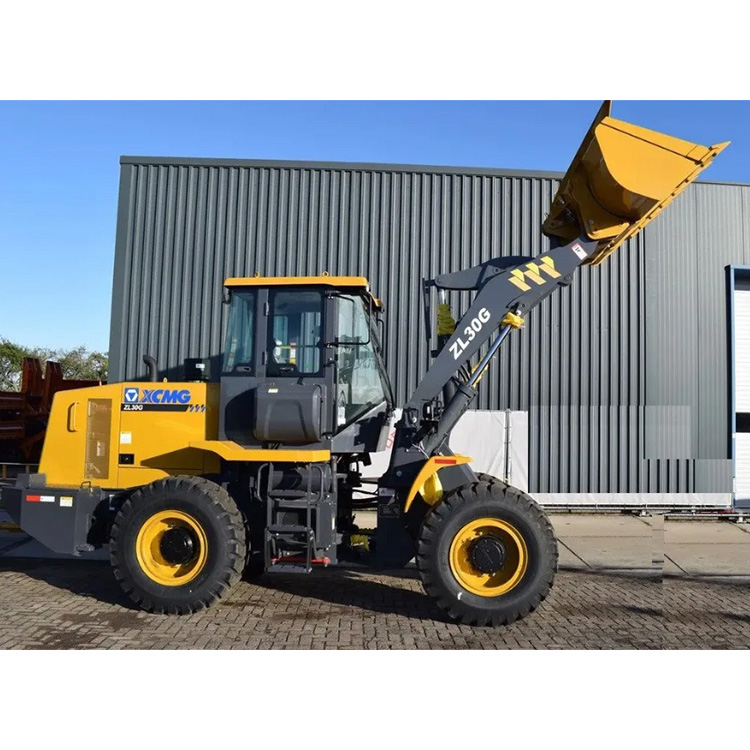

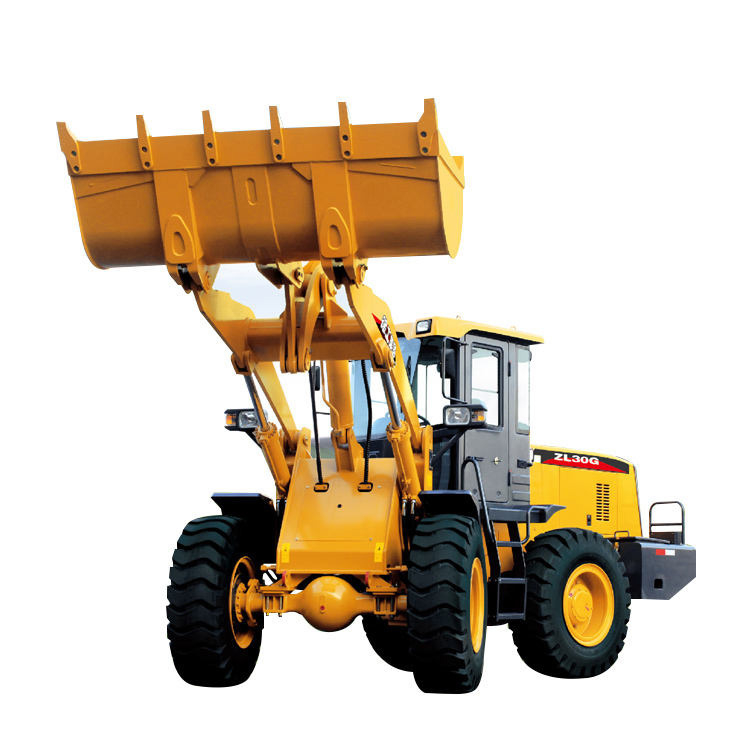

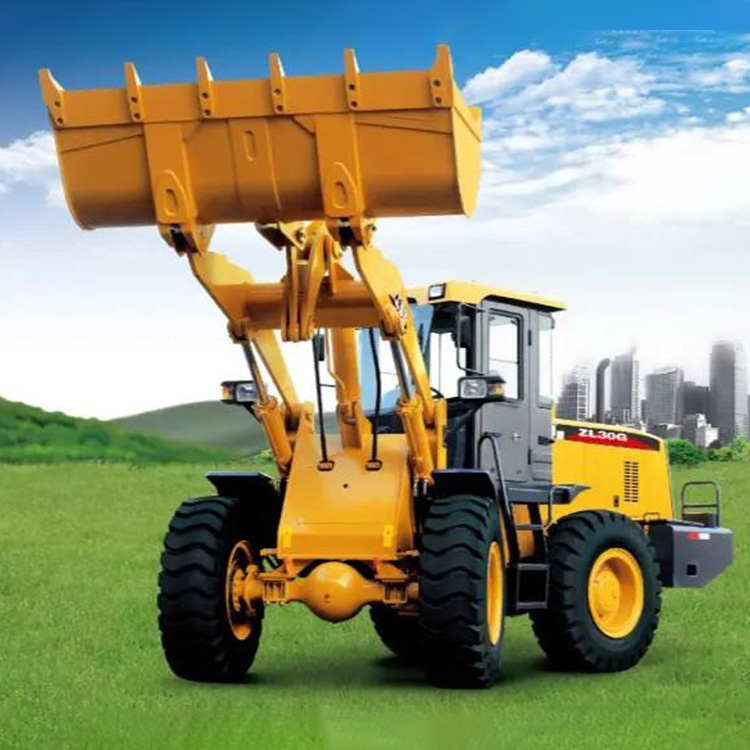

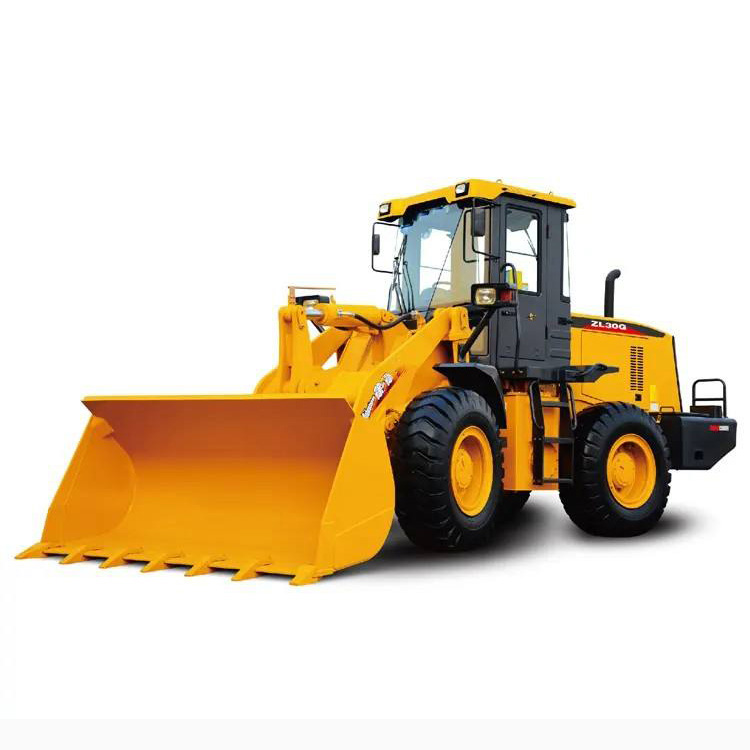

The ZL30G is a highly efficient and durable medium-sized wheel loader designed for earthmoving, sand and gravel handling, and site leveling operations. Equipped with a powerful and fuel-efficient engine, it offers both environmental friendliness and ample power. The optimized hydraulic system ensures responsive operation and enhanced work efficiency. The robust overall structure provides excellent stability and adaptability to various complex working conditions. The ergonomically designed cab features a spacious layout, excellent visibility, and comfortable operation. It comes standard with a universal bucket and can be equipped with various attachments to meet diverse needs. The ZL30G, with its high cost-effectiveness and reliable performance, is an ideal choice for small and medium-sized engineering projects.
Product Advantage
1. High torque and high efficiency drive chain features reasonable matching.
2. This engine meets the instant overload demand during operations and sufficiently provides the power
required for heavy-load operations.
3. The air-assisted hydraulic four-wheel caliper brakes feature stable braking and high safety and reliability.
4. The easy and convenient daily maintenance ensure that the machine is under the best ready status at all times.
Technical Parameters
| Overall dimensions | ||||||
| Overall 1ength (bucket on the ground) | 7250 mm | |||||
| Bucket width | 2470 mm | |||||
| Overall height | 3290 mm | |||||
| Wheel base | 2900 mm | |||||
| Tread | 1850 mm | |||||
| Min. ground clearance | 370 mm | |||||
| Specification | ||||||
| Rated capacity | 3000 kg | |||||
| Bucket volume | 1.8 m3 | |||||
| Operating weight | 10.8 t | |||||
| Traveling speeds | ||||||
| 8 km/h | ||||||
| 13 km/h | ||||||
| 27 km/h | ||||||
| 36 km/h | ||||||
| Reverse | 8 km/h | |||||
| Reverse | 13 km/h | |||||
| Reverse | 27 km/h | |||||
| Max. tractive force | 90 kn | |||||
| Max. climbing gradient | 28 º | |||||
| Max. dumping angle | 45 º | |||||
| Max. dumping height | 2930 mm | |||||
| Dumping reach | 1000 mm | |||||
| Overturn angle of bucket | ||||||
| The lowest position | 43 º | |||||
| The highest position | 57 º | |||||
| Bucket automatic leveling function | yes | |||||
| Max. Breakout force | 130 kn | |||||
| Total cycling time | 10 s | |||||
| Min. Turning radius | ||||||
| Outside of the bucket | 5170 mm | |||||
| Turning angle of the frames | 38±1 º | |||||
| Oscillating angle of the rear axle | ±12 º | |||||
| Engine | Rated Power | Rated Speed | Maximum Torque | |||
| 1006D-6TA92 | 92 | 2300 | 460/1400~1600 | |||
| Transmission system | ||||||
| Torque converter | ||||||
| Model | YJ315X-2 | |||||
| Type | 1 stage, 3-elements, single turbo | |||||
| Cyclic diameter | 315 mm | |||||
| Conversion coefficient | K=4.458 | |||||
| Cooling method | Oil cooling-pressure circulating type | |||||
| Oil inlet pressure | 0.3~0.45Mpa | |||||
| Oil outlet pressure | 0.2~0.3Mpa | |||||
| Transmission | ||||||
| Model | BS428(YD 13004059) | |||||
| Type | Fixed shaft type, power shift | |||||
| Gear number | 4 forward and 3 reverse | |||||
| 1 | 3.91 | 3.91 | ||||
| 2 | 2.304 | 2.304 | ||||
| 3 | 0.964 | 0.964 | ||||
| 4 | 0.617 | |||||
| Transmission working oil pressure | 1.5-1.7MPa | |||||
| Transmission oil pump model | CBN-E46 | |||||
| Displacement of transmission oil pump | 46 ml/r | |||||
| Front and rear axle | ||||||
| Speed ratio | 5.286 | |||||
| Hub reducer | ||||||
| Type | One stage-planetary deceleration | |||||
| Speed ratio | 3.882 | |||||
| Tyres | ||||||
| Tyre specification | 17.5-25 | |||||
| Inflating pressure | Fore tyre: 0.32-0.35 MPa | |||||
| Rear tyre: 0.28-0.30 MPa | ||||||
| Braking system | ||||||
| Foot brake | Oil disc braking on 4 wheels | |||||
| Braking air pressure | 784-833 KPa | |||||
| Hand brake | Clamp disc brake | |||||
| Steering system | ||||||
| System pressure | 12 MPa | |||||
| Max turning angle | ±38º | |||||
| Hydraulic system of the working device | ||||||
| System pressure | 16 MPa | |||||
| Oil liquid volume | ||||||
| Fuel (diesel) | 180 L | |||||
| Lubricating oil of engine | 20 L | |||||
| T/M & T/C oil | 32 L | |||||
| Hydraulic reservoir | 170 L | |||||
| Axle | 25 L | |||||
Product Uses
1. Construction
The ZL30G is suitable for earth excavation, sand and gravel loading and unloading, and backfilling operations at construction sites. Its flexible steering and powerful loading capabilities enable efficient transportation of building materials. When used with a bucket or forklift attachment, it can easily handle materials such as bricks and steel bars, thereby improving construction efficiency.
2. Mining and Quarrying
In small to medium-sized mines or quarries, the ZL30G can quickly load loose materials such as crushed stone and ore. Its robust chassis and wear-resistant bucket design are designed for high-intensity operations, ensuring stable performance over extended periods.
3. Agricultural and Water Conservancy
Used for land leveling, ditch excavation, and the transportation of fertilizers and grains in agricultural fields. Its low ground pressure reduces damage to soft ground, making it a reliable assistant for agricultural infrastructure projects.
4. Municipal Engineering
In municipal operations such as road maintenance and pipeline laying, the ZL30G can load and unload asphalt and construction debris, and can be equipped with sweepers or snow plows to adapt to different seasonal municipal maintenance needs.
5. Logistics and Warehousing
Equipped with a fork attachment, the ZL30G can transport palletized goods, making it suitable for short-distance transportation in warehouses, ports, and other locations, improving loading and unloading efficiency and reducing labor costs.
Product Operate Guide
Startup Preparation: Check the oil level, tire pressure, and dashboard indicator lights to ensure the equipment is in good working condition.
Basic Operations: Use the steering wheel to control direction, the joystick to control bucket elevation/tilt, and the pedals to adjust speed.
Efficient Operation: Maintain smooth acceleration and deceleration, keep the bucket in contact with the ground during loading, and minimize idle movement time.
Safety Tips: Monitor the surrounding environment during operation, maintain low speed on slopes, and regularly inspect the braking system.
