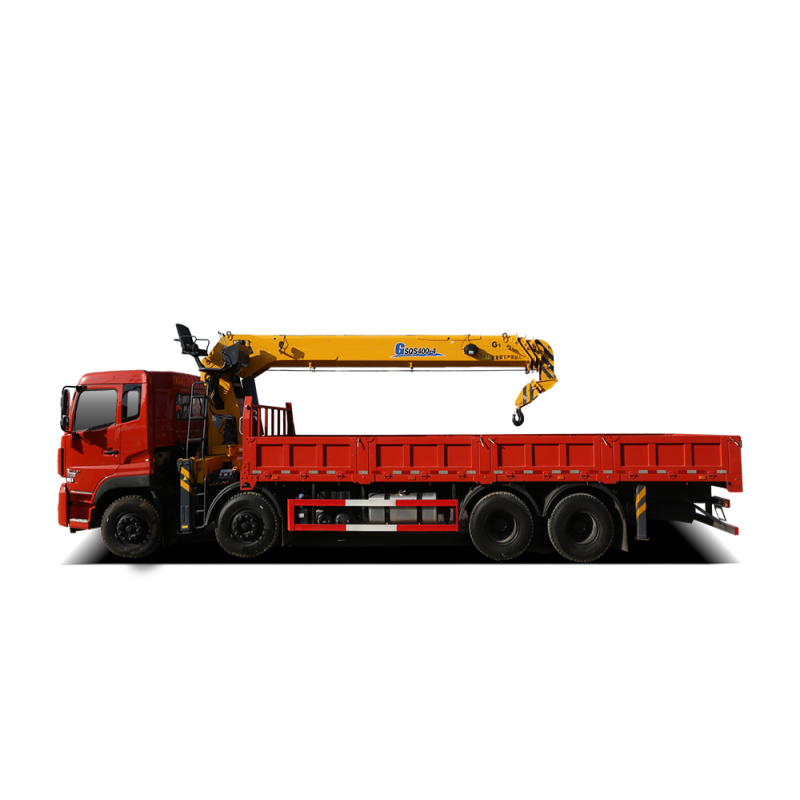

GSQS400-4 16 Ton Straight Arm Truck Mounted Crane 19.3m Boom 420kN·m 4 Sections Telescopic Hydraulic Lorry Crane

Detailed Product Description

The GSQS400-4 is a flagship heavy-duty truck-mounted crane independently developed by XCMG, fully optimized for global high-intensity, heavy-load and long-duration lifting scenarios. The whole machine adopts high-grade high-strength alloy steel and integral welding & secondary stress relief technology. The upgraded thickened hexagonal boom section effectively improves bending resistance, torsion resistance and overall structural rigidity, completely solving the deformation and fatigue problems of traditional cranes under long-term heavy-load operation and greatly extending the service life.

Equipped with a professional 4-section reinforced synchronous telescopic structure, the GSQS400-4 realizes zero-jitter stable extension and retraction under full load conditions. It optimizes the loaded telescopic stability defect of traditional heavy-duty cranes, significantly improving on-site construction efficiency and operational safety. The self-developed flow-sharing proportional hydraulic system achieves precise and balanced oil circuit distribution, enabling synchronous and smooth compound operations including lifting, luffing and slewing, with sensitive response and ultra-high micro-operation accuracy to reduce operating difficulty and construction risk.

Supporting 360° full continuous rotation without any working dead angles, the crane realizes omnidirectional flexible operation and adapts to narrow urban construction spaces, complex mountain sites and large open engineering scenarios. It is highly compatible with mainstream 8×4 heavy-duty truck chassis with compact and scientific layout, retaining complete cargo transportation capacity while realizing 16-ton super heavy lifting functions. Optional configurations such as wireless remote control, auxiliary hook, aerial working bucket and intelligent torque limiting safety system further enrich functional diversity. All core hydraulic accessories adopt upgraded high-temperature resistant, low-temperature resistant and wear-resistant sealing parts, with excellent dustproof, anti-corrosion and anti-fatigue performance, adapting to long-term high-intensity operation in various harsh outdoor environments.

Core Product Advantages

• Super Heavy-load Lifting Performance:

  Equipped with 420kN·m large rated lifting moment and 16-ton maximum lifting capacity, matched with 19.3m ultra-long 4-section telescopic boom, providing ultra-large working radius and lifting height to meet various large-scale heavy-duty lifting requirements.

• Full-load Stable Telescopic Technology:

  Upgraded heavy-duty reinforced synchronous telescopic mechanism ensures smooth and steady boom expansion and retraction under full load, eliminating jitter and shaking, greatly improving construction stability and overall working efficiency.

• Precision Intelligent Hydraulic Control:

  Adopts XCMG original flow-sharing proportional hydraulic system with balanced oil circuit output. All compound actions are smooth, sensitive and accurate, supporting high-precision micro-operation for complex construction scenarios.

• Thickened High-rigidity Hexagonal Boom:

  Optimized thickened hexagonal boom section enhances overall structural strength and anti-torsion ability, with stronger load-bearing performance and deformation resistance than traditional same-tonnage square boom cranes.

• 360° Full-angle Omnidirectional Operation:

  Unlimited continuous rotation design completely removes working dead angles, realizing all-round flexible operation and adapting to diversified complex construction environments.

• Professional Heavy Chassis Matching:

  Perfectly matches mainstream 8×4 heavy-duty truck chassis. The scientific compact layout does not occupy cargo space, realizing dual functions of super heavy lifting and full-load cargo transportation.

• Diversified Expandable Configurations:

  Supports wireless remote control, auxiliary hook, aerial working bucket and intelligent torque limiter, meeting multiple demands of large engineering construction, heavy equipment maintenance and high-altitude operation.

• Excellent Environmental Adaptability & Durability:

  Upgraded wear-resistant and temperature-resistant hydraulic components and fully sealed structure provide outstanding dustproof, anti-corrosion and anti-fatigue performance, suitable for long-term high-intensity outdoor operation in harsh climates and complex sites.

Technical Parameter Table

Product Application Scenarios

Featuring 16-ton super heavy-load capacity, 19.3m ultra-long boom and ultra-high operational stability, the GSQS400-4 truck-mounted crane is widely applied in large-scale heavy engineering and logistics fields worldwide:

• Super Heavy Logistics Handling:

  Ideal for loading, unloading and transshipment of large mechanical equipment, heavy container cargo and bulk materials in large logistics parks, freight terminals and long-distance heavy transportation projects.

• Large Municipal Infrastructure:

  Suitable for urban bridge maintenance, large steel structure hoisting, heavy pipeline installation and municipal key project construction, adapting to complex large-scale urban construction conditions.

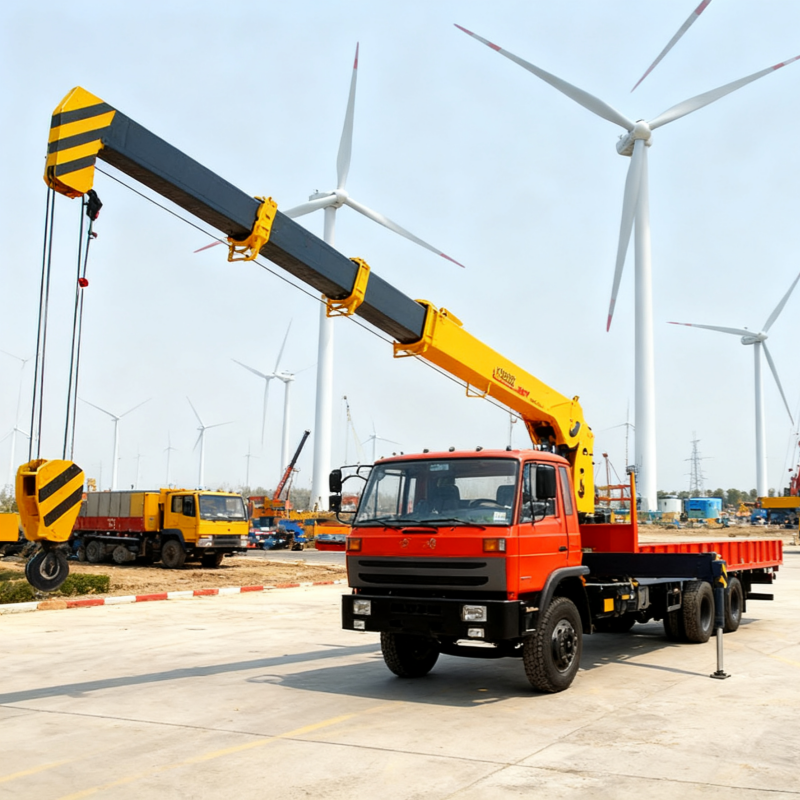

• Electric Power & New Energy Engineering:

  Widely used for large power pole erection, transformer hoisting, wind power accessory installation and outdoor heavy power equipment maintenance with high safety and stability.

• Field & Remote Heavy Construction:

  Flexible mobile operation without fixed-site restriction, perfect for mountain road reconstruction, water conservancy hub projects, suburban fields and remote large-scale infrastructure construction.

• Large Building & Steel Structure Projects:

  Used for hoisting heavy steel components, large building materials and construction core auxiliary equipment in various large-scale construction sites.

• Port & Industrial Park Heavy Operation:

  Efficiently completes heavy cargo stacking, loading and unloading tasks in large docks, industrial parks and heavy warehouses to improve overall operational efficiency.

FAQ

• Q1: What are the core parameters of XCMG GSQS400-4?

  A1: The GSQS400-4 heavy-duty truck mounted crane has a 420kN·m rated lifting moment, 16-ton maximum lifting capacity, 19.3m 4-section hydraulic telescopic boom and 360° full continuous rotation, delivering super heavy-load performance and ultra-wide working coverage.

• Q2: What are the advantages of the thickened hexagonal boom?

  A2: The thickened high-rigidity hexagonal boom has stronger anti-bending and anti-torsion performance than traditional booms. It effectively resists deformation under long-term heavy load, ensures stable operation and greatly prolongs the crane’s overall service life.

• Q3: Can GSQS400-4 telescope stably under full load?

  A3: Yes. Equipped with an upgraded reinforced synchronous telescopic mechanism, the boom extends and retracts smoothly and jitter-free under full load, greatly improving working efficiency and construction safety in heavy-duty scenarios.

• Q4: How is the hydraulic control performance?

  A4: It adopts XCMG professional flow-sharing proportional hydraulic system with precise oil circuit regulation. Lifting, luffing and slewing compound actions are smooth, sensitive and accurate, supporting high-precision micro-operation for complex heavy construction demands.

• Q5: What chassis is compatible with GSQS400-4?

  A5: It is specially designed for mainstream 8×4 heavy-duty truck chassis. The optimized compact layout does not occupy cargo space, realizing integrated functions of super heavy lifting and cargo transportation.

• Q6: Can the crane adapt to harsh working environments?

  A6: Yes. Upgraded wear-resistant, high and low temperature resistant hydraulic components and fully sealed structure provide excellent dustproof, anti-corrosion and anti-fatigue performance, adapting to long-term high-intensity outdoor construction in various harsh climates.

• Q7: What optional configurations are available?

  A7: It can be equipped with wireless remote control for convenient operation, auxiliary hook for auxiliary lifting, aerial working bucket for high-altitude operation and intelligent torque limiter f
