XGC40T
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

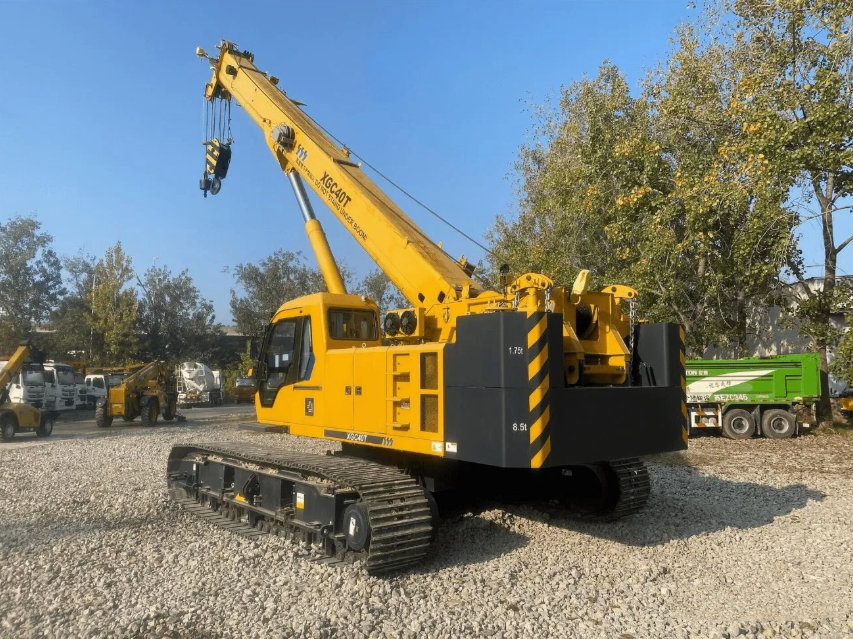

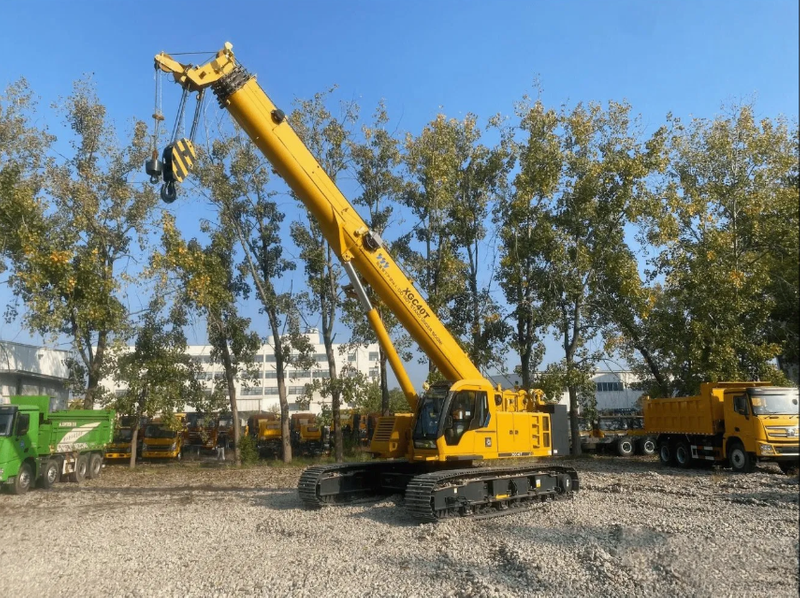

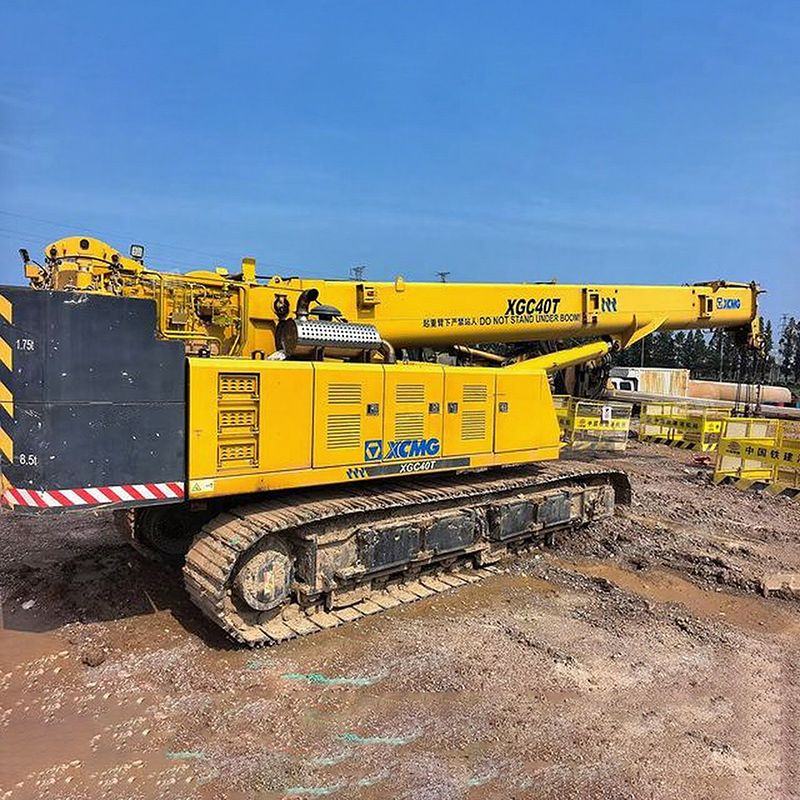

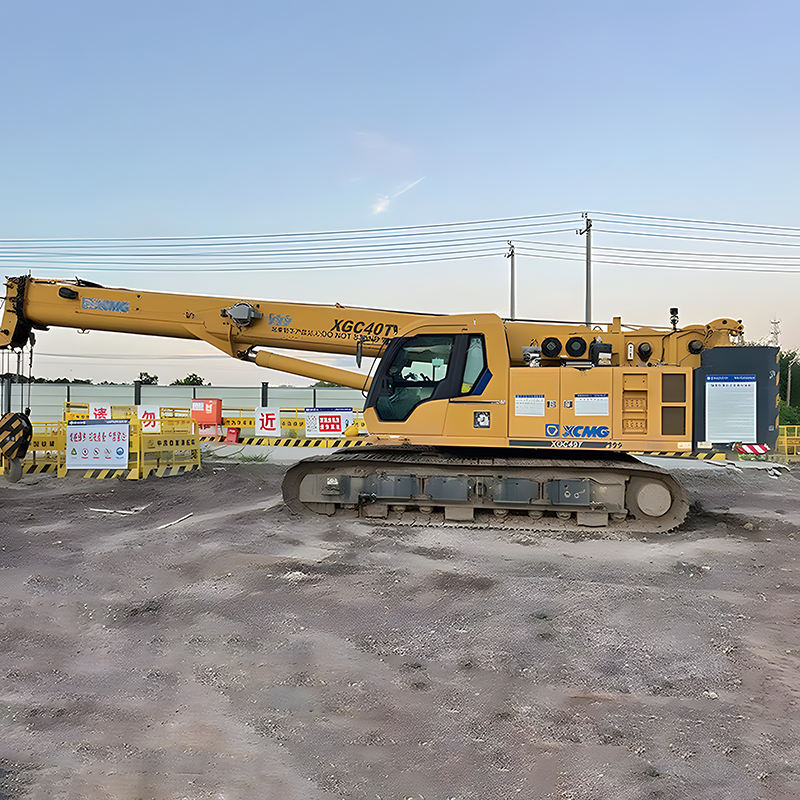

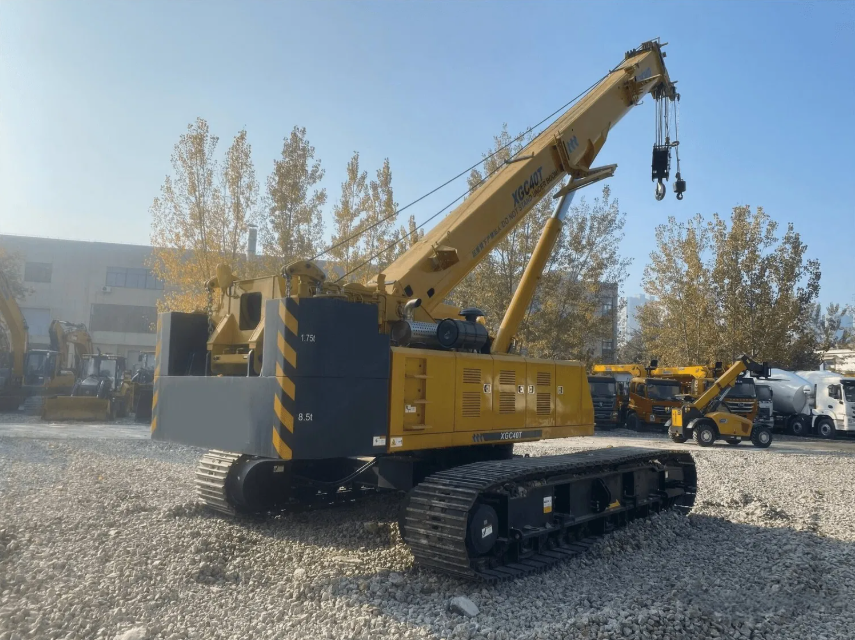

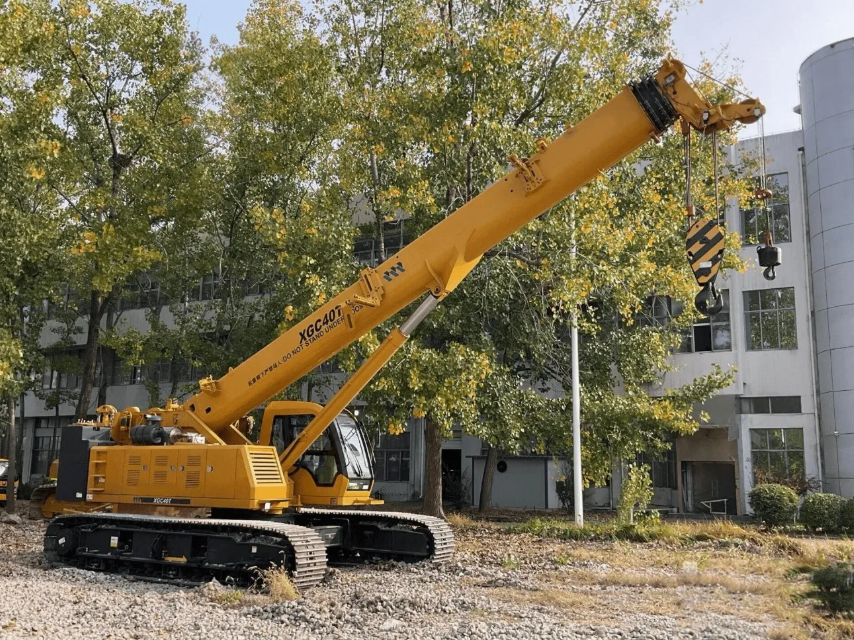

XGC40T crawler crane lifting capacity is strong, can easily lift several tons of heavy objects; The chassis is stable and can work in difficult terrain. The lifting arm is flexible and the working range is wide. Easy to operate, high efficiency, is the right hand of engineering lifting, can greatly improve your engineering benefits.
Product Advantage
XGC40T is of integrated transport design without disassembly, greatly save transport costs. (transport width 2.98m, transport weight ≤ 34.5t). XGC40T is of integrated transport design without disassembly, greatly save transport costs.
* Equipped with two modes of no-load in high-speed and with-load in low-speed to achieve automatic switch-over for travel with-load in high-speed, overload travel protection function, to ensure the safety for travel with-load.
* Automatic direction change function of forward/backward travel, without changing steering direction, so as to make operation more humanization. * Use of mixed luffing down technology, to ensure not only smooth gravity falling but also fast dynamic falling, for energy-saving, stable, fast and efficient operation.
Technical Parameters
| Items | Unit | Parameter value |
| Parameters | - | XGC40T |
| Size | * | |
| Crane full length | (mm) | 13439 |
| Crane full width | (mm) | 4600/2980 |
| Crane full height | (mm) | 3112 |
| Central distance between active and passive roller | (mm) | 4882 |
| Width of track shoe | (mm) | 700 |
| Weight | * | |
| Total mass in travel state | (kg) | 48000 |
| Travel | * | |
| Travel speed | (km/h) | 3 |
| Min. clearance from the ground | (mm) | 395 |
| Max. gradeability | (%) | 45 |
| Ground pressure | (MPa) | 0.069 |
| Power | * | |
| Ear noise | (A) | 80 |
| Engine model | - | SC7H220.1G3 |
| Rated power of engine | (kw) | 162 |
| Rated revoution speed of engine | (r/min) | 2000 |
| Capacity | * | |
| Hydraulic tank capacity | (L) | 950 |
| Fuel oil tank capacity | (L) | 540 |
| Main performance parameters | * | |
| Max. rated total lifting weight | (t) | 40 |
| Min. rated radius | (m) | 3 |
| Max. lifting load moment | (kN·m) | 1423 |
| Hoisting height --basic boom | (m) | 11.8 |
| Hoisting height--max. main boom | (m) | 42.6 |
| hoisting height--max. main boom +jib | (m) | 58.5 |
| Lifting boom length--main boom | (m) | 10.9-42 |
| Lifting boom length--jib | (m) | 9.3/16 |
| Jib installation angle | (°) | 0,15,30 |
| Working speed | * | |
| Main boom hoisting time | (s) | 40 |
| Main boom fully extending time | (s) | 80 |
| Max. slewing speed | (r/min) | 2.1 |
| Hoisting speed (empty load, the 4th layer) main hoist system | (m/min) | 140 |
Product Uses
1. Steel Structure Installation in Confined Spaces
The XGC40T excels at lifting steel structures within space-constrained industrial facilities. With a minimum working radius of just 3 meters, it operates with exceptional agility within narrow 8m×5m grid-like work areas, efficiently lifting, positioning, and installing steel beams and columns—far surpassing conventional truck cranes.
2. Municipal and Transportation Infrastructure Construction
This equipment excels in foundation work for municipal roads and highway sections. For instance, at the Xiong'an New Area Jingxiong Highway project, it efficiently completed the hoisting and lowering of pile foundation reinforcement cages, ensuring project progress.
3. Operation in Challenging Terrain and Environments
The XGC40T boasts a 45% gradeability and a robust crawler chassis, delivering strong traction and stable movement. It effortlessly navigates challenging terrains like mud, marshes, sandy beaches, and steep slopes, offering unmatched environmental adaptability.
Product Operate Guide
Before operation, thoroughly inspect the stability of the outriggers and the integrity of the lifting slings. During operation, the crane must remain level at all times; overloading is strictly prohibited. Operate the telescopic boom steadily and slowly, maintaining a safe distance from surrounding obstacles. When traveling under load, proceed at low speed and smoothly, avoiding sharp turns and sudden braking. After completing the task, retract the boom and secure the hook. Regularly inspect wire rope wear and the condition of structural connections.
FAQ
1. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
2. NO FAULT CODES DETECTED BY ENGINE DIAGNOSTIC TOOL, YET POOR ENGINE OPERATION?
Possible mechanical issues (e.g., insufficient cylinder pressure) or sensor signal drift (within self-diagnostic tolerance).
3. ENGINE FAN AIRFLOW FEELS WEAK?
Check if the fan clutch (silicone oil type) has failed, or if the motor/pump for the hydraulically driven fan is malfunctioning.
4. EXHAUST BRAKE (IF EQUIPPED) EFFECTIVENESS REDUCED?
Carbon deposits on the butterfly valve shaft causing sticking and incomplete closure, or failure of the control cylinder/vacuum valve.
5. ENGINE DIAGNOSTIC TOOL FAILS TO READ FAULT CODES DESPITE POOR PERFORMANCE?
Possible mechanical issues (e.g., insufficient cylinder pressure) or sensor signal drift (within self-diagnostic tolerance).
6. HEAVY WHITE SMOKE FROM EXHAUST PIPE AFTER WINTER START-UP, LINGERING FOR EXTENDED PERIODS?
Potentially caused by minor cylinder head gasket damage, allowing coolant to seep into combustion chamber where it evaporates and is expelled.
