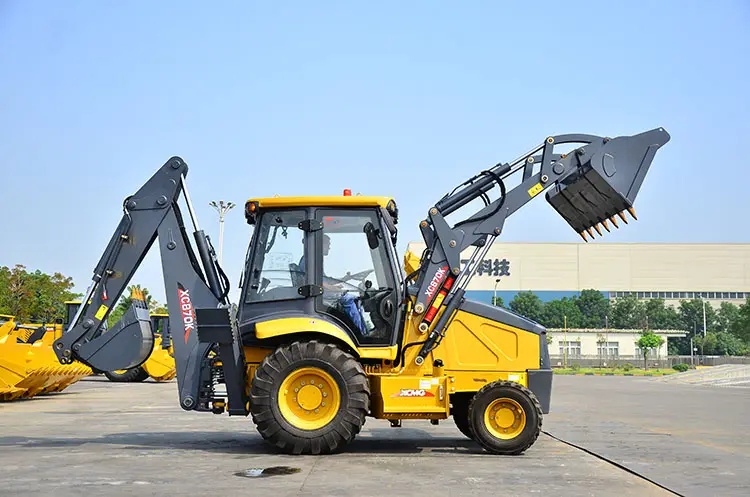

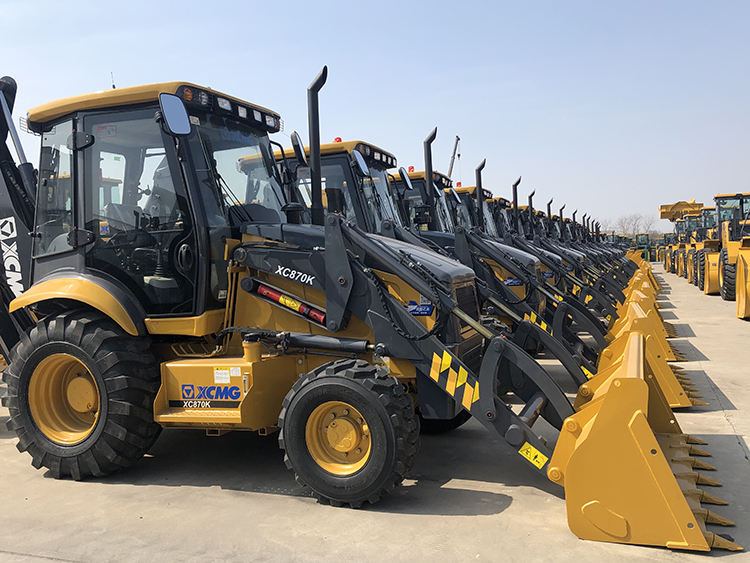

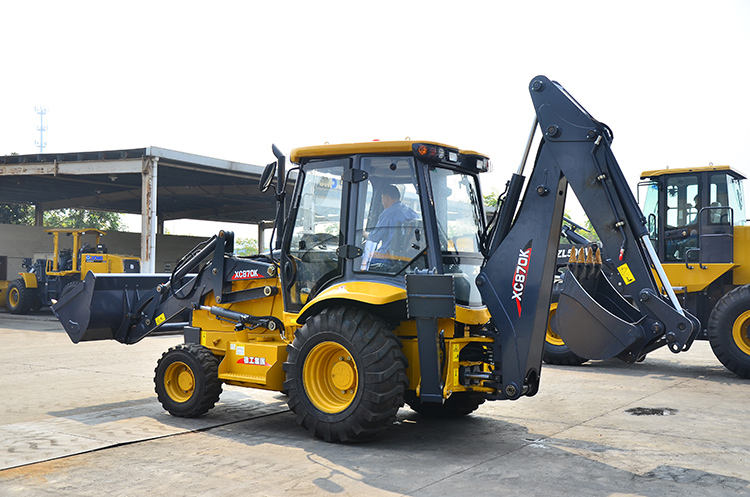

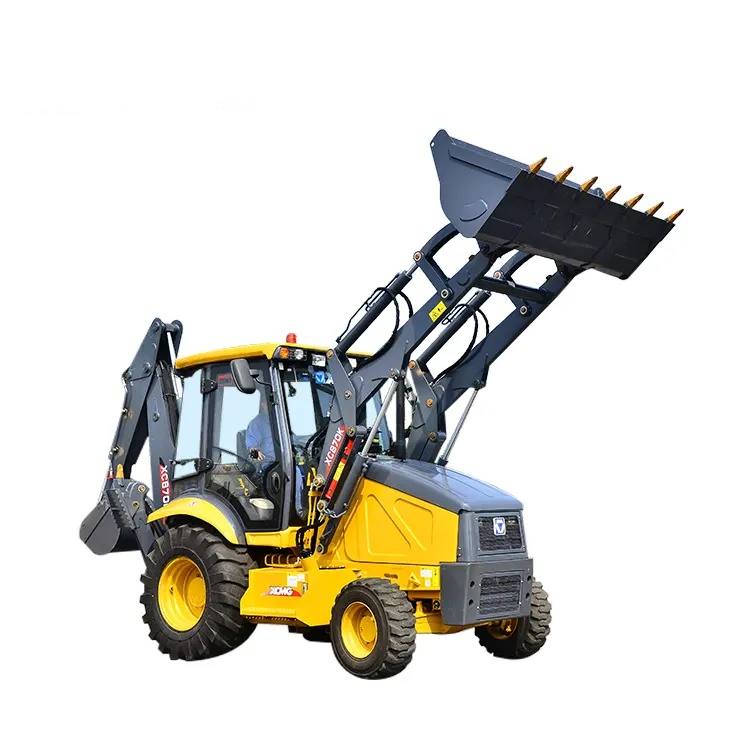

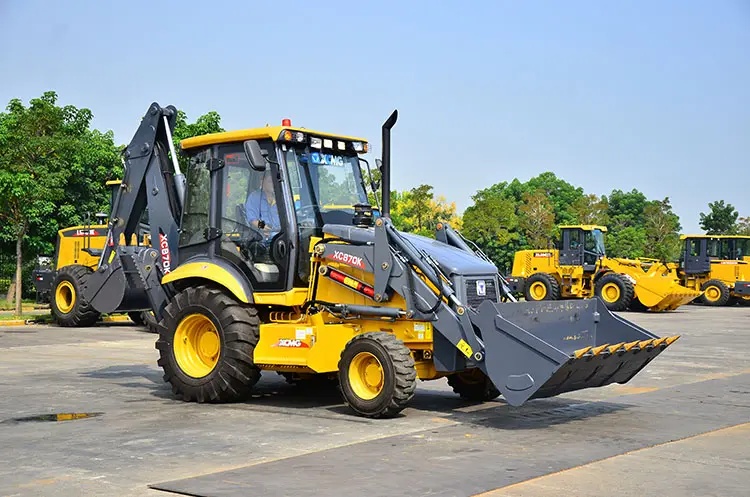

XC870K
| Quantity: | |
|---|---|
| Description | Parameter Value | Unit | |
| Outline dimensions(L×W×H) | 7440×2350×3450 | mm | |
| Total weight | 7600 | kg | |
| Max. travel speed | ≥40 | km/h | |
| Wheelbase | 2180 | mm | |
| Engine | Power | 70-82 | kw |
| Loading device | Bucket capacity | 1 | m3 |
| Rated load | 2500 | kg | |
| Max. breakout | 66 | kN | |
| Max. discharge height | 2770 | mm | |
| Max. discharge distance | 755 | mm | |
| System pressure | 24 | Mpa | |
| Digging device | Bucket capacity | 0.3 | m3 |
| Max. digging radius | 5460 | mm | |
| Max. digging depth | 4425 | mm | |
| Max. digging force | 63 | kN | |
| System pressure | 24 | Mpa | |
The 2.5-Ton Mini Loader is a multi-functional machine that combines loading and excavation functions, designed for small-scale projects where space is limited. With a 2,500kg rated load and 1.2m³ bucket capacity, it can efficiently handle soil, gravel, and construction waste. Powered by a 76kW Yunnei 4102 engine (with a maximum torque of 280N·m), it delivers sufficient power for both loading and excavation operations. The machine’s compact size (length: 5.2m, width: 1.8m, height: 2.2m) allows it to operate in narrow spaces like urban alleyways, basement construction sites, and greenhouses, where large loaders cannot access.
Compact Size: 5.5m turning radius and 2,000mm bucket width—enabling the machine to turn around in a 6m-wide alleyway; the overall height of 2.2m allows it to enter basements with a minimum ceiling height of 2.4m.
Multi-Functional: Compatible with a variety of attachments, including augers (for drilling holes in soil), grapples (for handling logs or waste), and breakers (for breaking small concrete blocks); the quick-change attachment system allows switching between tools within 5 minutes, improving versatility.
Efficient Operation: 3,500mm dumping height (suitable for loading into small trucks with a height of 2.8m) and 3.4km/h working speed—reducing the time needed to load a 5-ton truck to 8-10 minutes.
Durability: Reinforced bucket with wear-resistant steel (thickness: 12mm at the bucket edge) and a reinforced frame (adopting 10mm thick steel plates); the loader’s hydraulic cylinders are equipped with dust covers to prevent dust from damaging the piston rods.
Ideal for residential excavation (digging foundations for small houses or garages), garden landscaping (moving soil and planting trees), and indoor demolition (removing walls or floors in renovated buildings). It is suitable for narrow spaces like urban alleyways (cleaning construction waste), basement construction (excavating soil and loading it into trucks), and greenhouses (turning soil and transporting fertilizers). Additionally, it is used in municipal waste handling (collecting waste in narrow residential lanes) and small-scale road repair (transporting asphalt and gravel).
Q: What's the maximum digging depth?
A: 3,000mm with the excavator attachment—sufficient for digging shallow foundations (1.5-2.5m deep) for small residential buildings; the excavator attachment’s bucket can be rotated 180° for flexible operation.
Q: How often to service the engine?
A: Change the engine oil every 200 hours (use API CF-4 15W-40 oil); clean the air filter every 50 hours (replace it every 200 hours if working in dusty environments); check the coolant level monthly to prevent engine overheating.
Q: What's the maximum lifting height?
A: 3,800mm, meeting the loading requirements of small trucks (with a cargo bed height of 2.8-3.2m); the lifting speed is 0.8m/s, ensuring efficient loading operations.
