Product Introduction

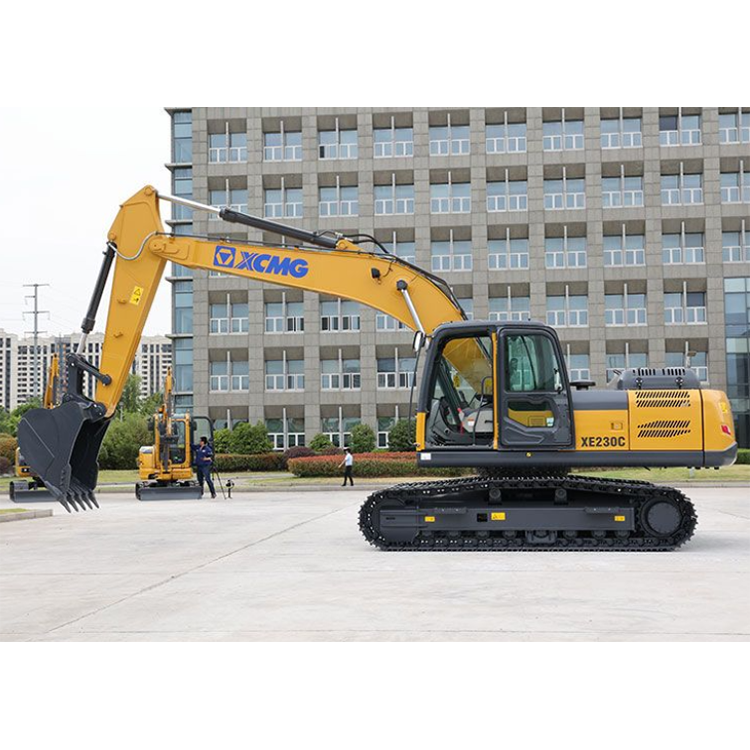

XE230C hydraulic excavator has more power, lower fuel consumption and stronger working performance. It can be widely used in farmland water conservancy, river dredging, municipal construction and small mine construction, and can realize different operation requirements such as excavation, crushing and dismantling. The adaptability of working conditions has been further strengthened.
Product Advantage
1. Ecological and economical
Efficiency main valve increases overflow pressure and reduces pressure loss.
Smart matching technology ensures higher operating efficiency and lower fuel consumption.
2. Multiple applications

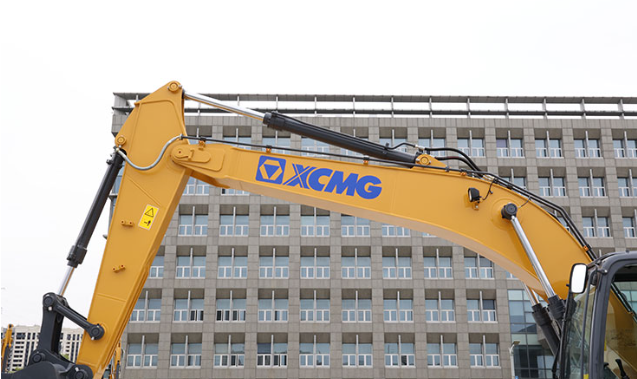

Different boom, arm and bucket combinations can adapt to as many working conditions as possible.
Multi-functional intelligent work tool control system can meet different operating requirements such as digging, breaking and dismantling.
Instantaneous pressurization function copes with complex working conditions.
3. Comfortable operational experience
Air Conditioner and Heator with Double stage air filter ensure the appropriate temperature.
Silicone rubber shock absorber is adopted in the cab.
Air-suspending seat equipped with electric heating function.
Integrated control panel and large display screen provide multiple information.
ROPS and FOPS Cab can improve cab safety.
Technical Parameters
| Items | Unit | Value |
| Bucket capacity | m3 | 1 |
| Fuel tank volume | L | 400 |
| Travel motor |
| Hydraulic piston motor |
| Slewing motor |
| Hydraulic piston motor |
| Hydraulic pump |
| Variable displacement pump ×2+Gear pump×1 |
| Slewing speed | r/min | 11.9 |

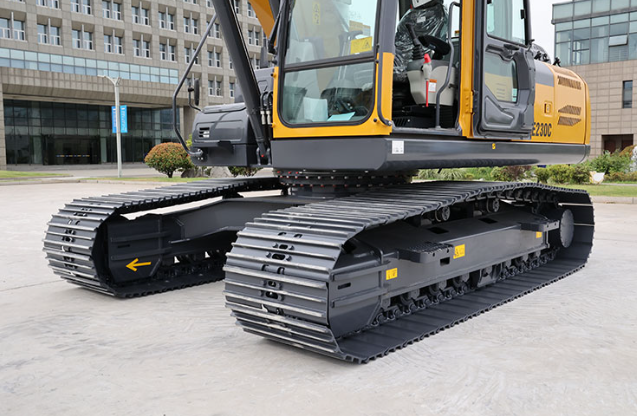

| Track width | mm | 600 |
| Track type |
| steel |
| Operating weight | kg | 23520 |

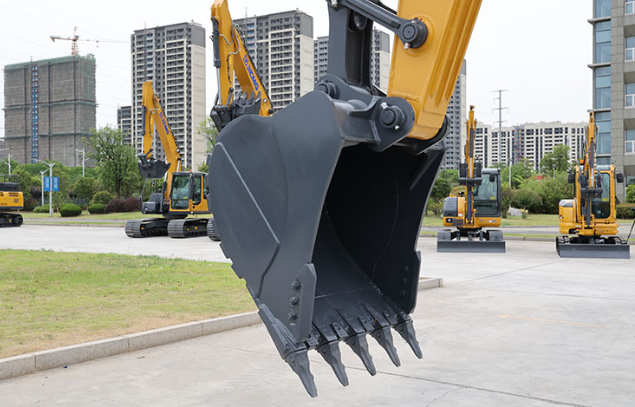

| Standard bucket width(with/without cutting blade) | mm | 1206 |
| Digging Capacity |
| Max. digging height | mm | 9670 |
| Max. digging force (bucket) | KN (kgf) | 163 |
| Min. slewing radius of rear part | mm | 2940 |
| Min. slewing radius of front part (swing) | mm | 3870 |
| Max. digging radius | mm | 10300 |
| Max. vertical digging depth | mm | 6165 |
| Max. digging depth | mm | 6920 |
| Max. discharge height | mm | 6795 |
| Engine |
| Model |
| CC-6BG1TRP |
| Rated output | kw (hp) | 125/2100r/min |
| Overall exhaust | L (ML) | 6.494 |
| Machine Size (During transportation) |
| Overall length | mm | 10160 |
| Min. ground clearance | mm | 485 |
| Overall width | mm | 2990 |
| Overall height | mm | 3050 |
Product Uses
1. Road and Infrastructure Construction
The XE230C is ideal for highway upgrades (such as the high-speed upgrade project from Accra to Tema Port in West Africa), large-scale earthmoving projects, and foundation excavation. Its large bucket capacity (0.9–1.1 m³) and powerful digging force (bucket digging force of 163 kN) enable efficient handling of various soils and materials, enhancing construction efficiency.

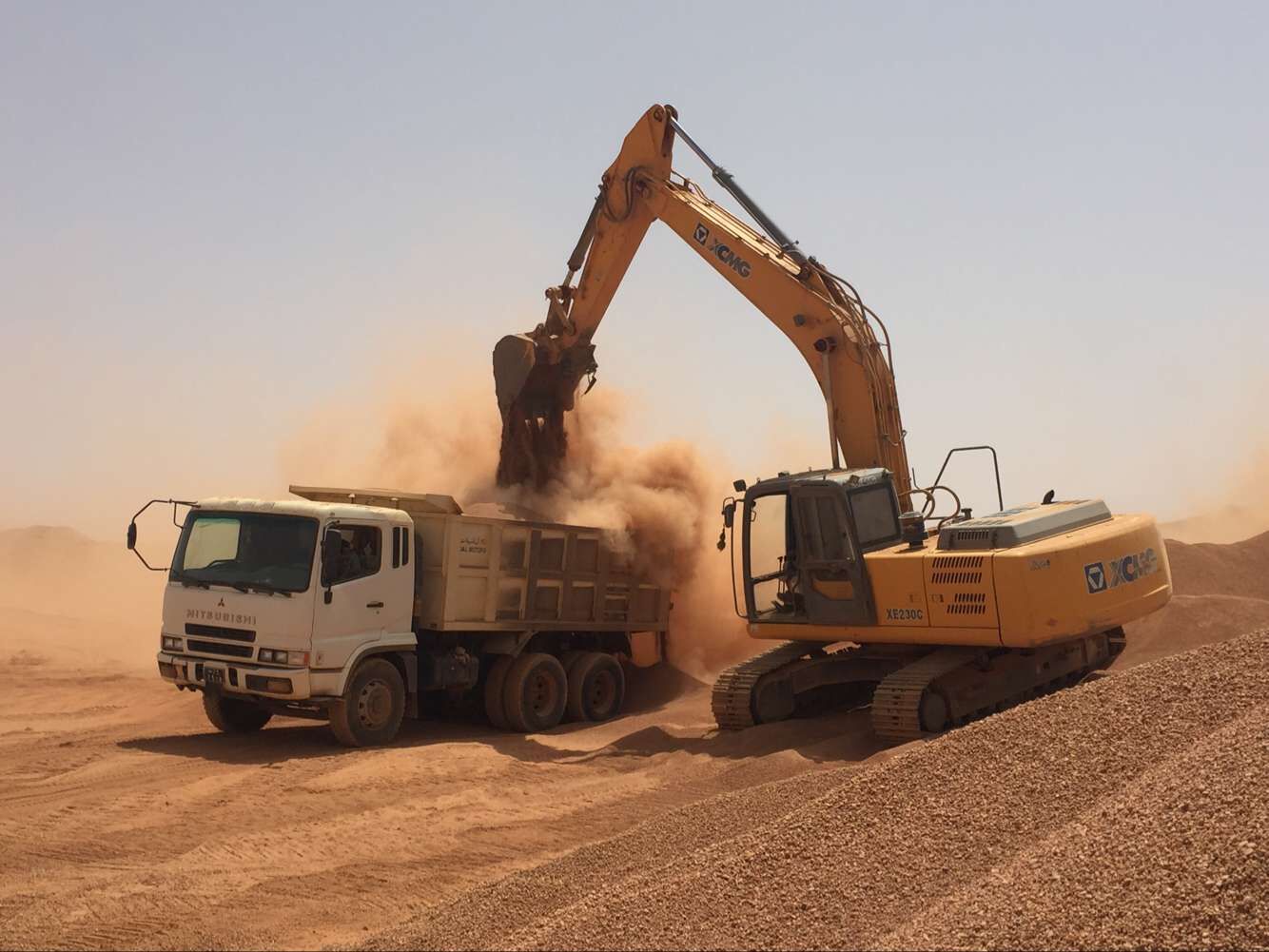

2. Mining and Hard-Conditions Operations
With its robust digging force and operational stability (such as reinforced chassis frame strength, standard-equipped reinforced boom, stick, and enhanced upper rotating platform design), the XE230C can handle mining quarrying, hard soil, and rock layers. Its structural components are optimized for durability, but when facing extremely hard rock, it is recommended to use a hydraulic breaker (the hydraulic breaker piping is not standard equipment, so please note the configuration) or select specialized mining equipment, and pay attention to regular inspections of wear parts.
3. Water Conservancy Projects and River Management
The XE230C can be used for river dredging, embankment reinforcement, and channel excavation in water conservancy projects. With a maximum digging depth of 6,960 mm, it can handle deep excavation requirements, supporting the construction and maintenance of water conservancy infrastructure.
4. Large-Scale Municipal and Industrial Construction Projects
In industrial park development, large-scale municipal facilities (such as wastewater treatment plants), and port terminal projects, the XE230C can be used for site leveling, trench excavation, and foundation construction. Its comfortable cab (equipped with air-suspension seats and a high-capacity air conditioning system) and excellent maneuverability help operators maintain efficiency during prolonged operations.
Product Operate Guide
Before operating the XE230C, be sure to perform a pre-operation inspection to ensure that the equipment is in good working condition. After startup, utilize its intelligent power control system to select the appropriate operating mode based on actual working conditions (e.g., earthmoving or rock modes) to optimize efficiency and fuel economy. Maintain smooth and continuous movements during operation to fully leverage its powerful digging force and operational stability. Regularly maintain critical structural components and the hydraulic system as part of daily maintenance, which will significantly enhance the equipment's reliability and service life under heavy-duty conditions.
FAQ
1. WHAT PRECAUTIONS SHOULD BE TAKEN FOR LONG-TERM EQUIPMENT STORAGE?
Clean the equipment, drain all coolant (or fill with antifreeze), disconnect the battery negative terminal, fully retract all hydraulic cylinder piston rods and apply rust-preventive oil, and elevate tires to prevent contact with the ground.
2. WHAT SHOULD BE NOTED DURING THE BREAK-IN PERIOD FOR NEW EQUIPMENT?
Strictly follow break-in specifications: reduce load and speed (typically below 70%-80% load), monitor gauges closely, frequently check fasteners and lubrication, and promptly replace oil and filters during the first maintenance.
3. WHAT CHECKS SHOULD BE PERFORMED BEFORE DAILY STARTUP?
Walk around the machine to inspect for leaks, loose components, or damage; check fluid levels (engine oil, hydraulic oil, coolant); verify tire pressure or track tension; check for any dashboard warning indicators.
