Product Introduction

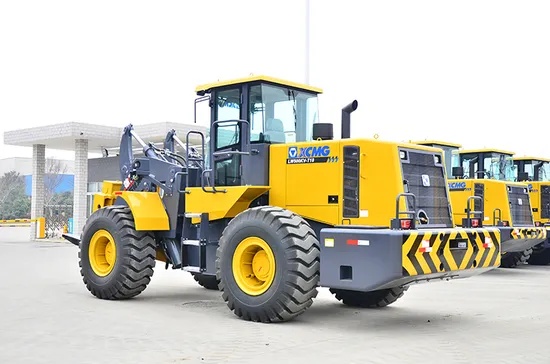

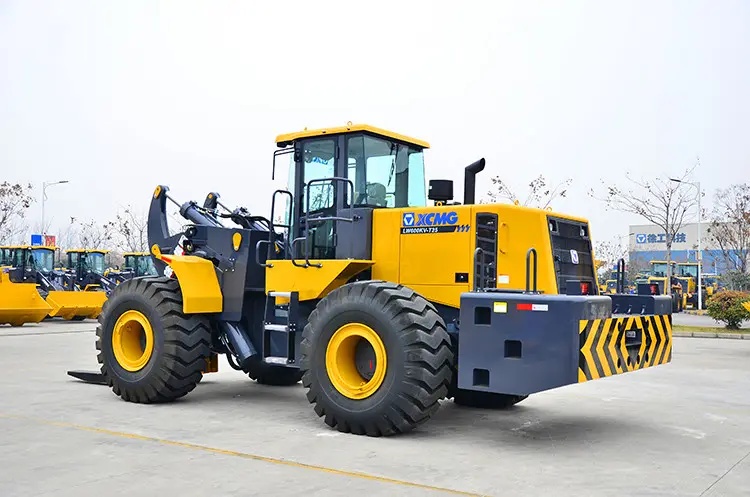

The working device connecting rod mechanism, which is designed for the stone forking working condition and has superior performance optimization, has a lifting capacity of over 25 tons (with a lifting height of less than 1.5 meters), a large digging force and strong adaptability to working conditions. With an ultra-long wheelbase of 3800mm, an extended track of 2617mm, and a total machine weight of 28.5 tons, its operational stability leads the industry.
The lifting height reaches 3450mm and the high-position lifting capacity is up to 21 tons, demonstrating outstanding working performance.
High reliability ensures a long service life
Super heavy-duty design, front and rear frame steel beam structure, thick plates, robot welding, high safety factor and strong overload capacity.
All key structural components are analyzed by finite element method to ensure compliance with various heavy-load working conditions.
The key hinge parts are two-level dust-proof with minimal wear.
The fork teeth made of special alloy materials have better wear resistance.
Product Advantage

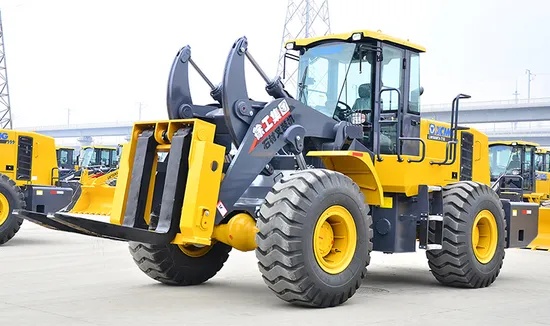

1.The Z-shaped link mechanism designed espeially for stone operating cnditions features high breakout force and loading capacity and the classic double-rocker structure ensures a broad operating view.
2.The extended wheelbase and wheel tread and ultra-high ballast realize good working stability of the machine.
3.The China-lIl engine, high reliability XCMG's electronic control countershaft transmission, and the reinforced dry type drive axle are matched perfectly to save the fuel and reduce the consumption.

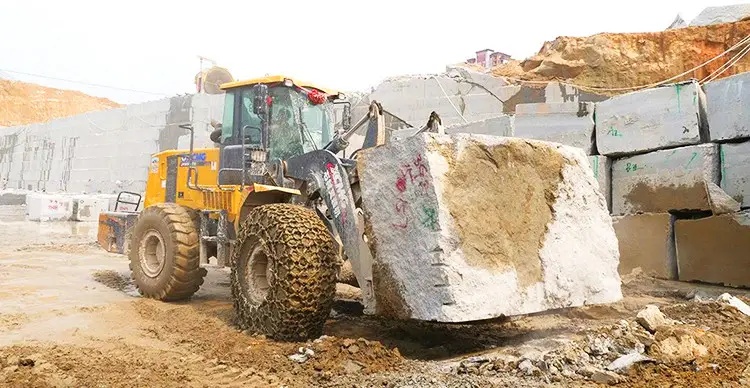

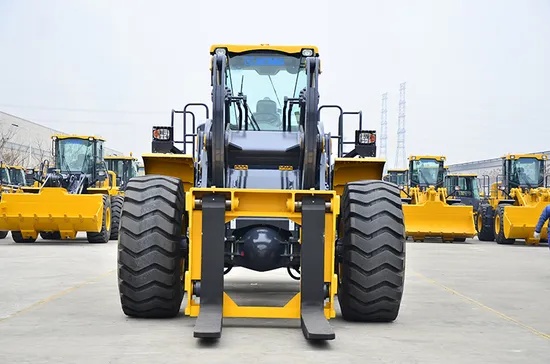

4,The higher dumping height and dumping distance, extensive rotation angle scope of forks, and adjustable fork spacing are suitable to diversified operation needs, induding the forklifting and overturning of stones.
5.The 26.5-25 28PR engneering tires are suitable to diversified severe road conditions, featuring powerful off-road performance. The optional tire chains are at your choice.
6.The high ground clerance,small tuming radius, and high depature angle of the classis can adapt to various complicated operation conditions.
Technical Parameters
| Parameter | Specifications | Unit | |
| Operating weight | 28500 | kg | |
| Rated power | 178 | kw | |
| Rated lifting capacity | 25 | t | |
| Fork size(LxW) | 1500x1515 | mm | |
| Loading capacity at highest position | 20000 | kg | |
| Gradeability | Unloaded | 23 | ° |
| Full-load | 15 | ° | |
| Working device actuation time | Lifting under rated load | ≤10 | s |
| Forward tilting of forks | ≤1 | s | |
| Lowering under no-load | ≤7 | s | |
| Total cycle time | ≤18 | s | |
| Tire specification | Front wheels | 26.5-25-28PR | - |
| Rear wheels | 26.5-25-28PR | - | |
| Overall dimensions(LxWxH) | 8740x3250x3585 | mm | |
| Max. machine height | 4640 | mm | |
| Dumping height(22.5°) | 2650 | mm | |
| Dumping range(22.5°) | 1925 | mm | |
| Max. lifting height | 3200 | mm | |
| Material transport height | 480 | mm | |
| Turning radius | Tire center | 7190 | mm |
| Material transport of forks | 7160 | mm | |
| Wheelbase | 3680 | mm | |
| Wheel tread | 2575 | mm | |
Product Uses
1. Mining operations
Equipped with reinforced buckets and heavy-duty transmission systems, suitable for high-intensity ore loading. High-torque engines + automatic transmission gearboxes, easily handle steep slopes and gravel roads in mining areas.
2. Port Bulk Material Handling
Optimized hydraulic system enables rapid lifting, while spill-proof buckets ensure efficient handling of bulk materials such as coal and sand. A full-view cab enhances safety in complex port environments.
3. Large-Scale Earthmoving Projects
Large-capacity buckets combined with an intelligent power distribution system significantly improve earthmoving efficiency. Reinforced chassis and engineering tires are designed to withstand prolonged operation in harsh conditions.
Product Operate Guide
Efficient Loading Techniques
Use the “V-shaped cycle” method to improve efficiency.
Maintain a 5° angle between the bucket and the ground when loading.
Lubricate the quick-change device regularly to ensure smooth attachment switching.
Safety Operating Procedures
Keep the bucket low when working on slopes.
Lock the differential lock when transporting heavy loads.
Smart Maintenance Tips
Replace the air pre-filter every 250 hours.
Release the hydraulic system pressure when parking for long periods of time.
