Product Brief Introduction

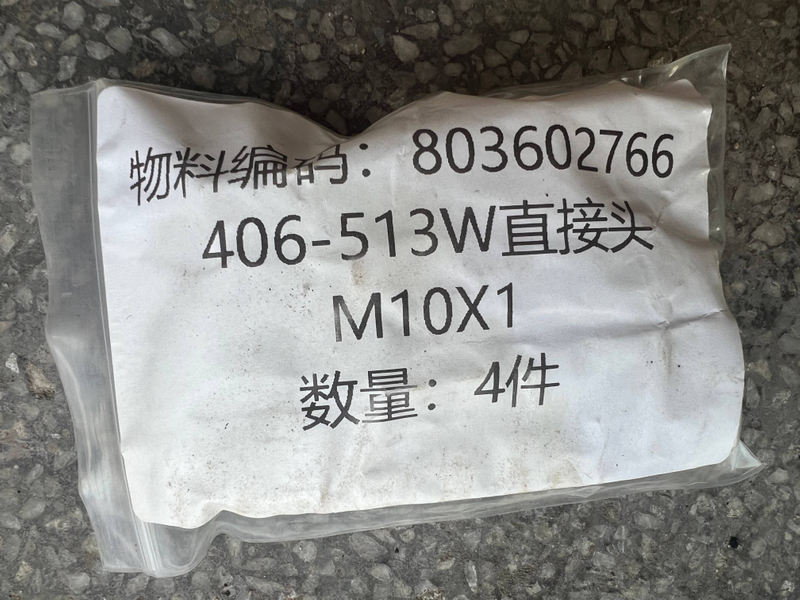

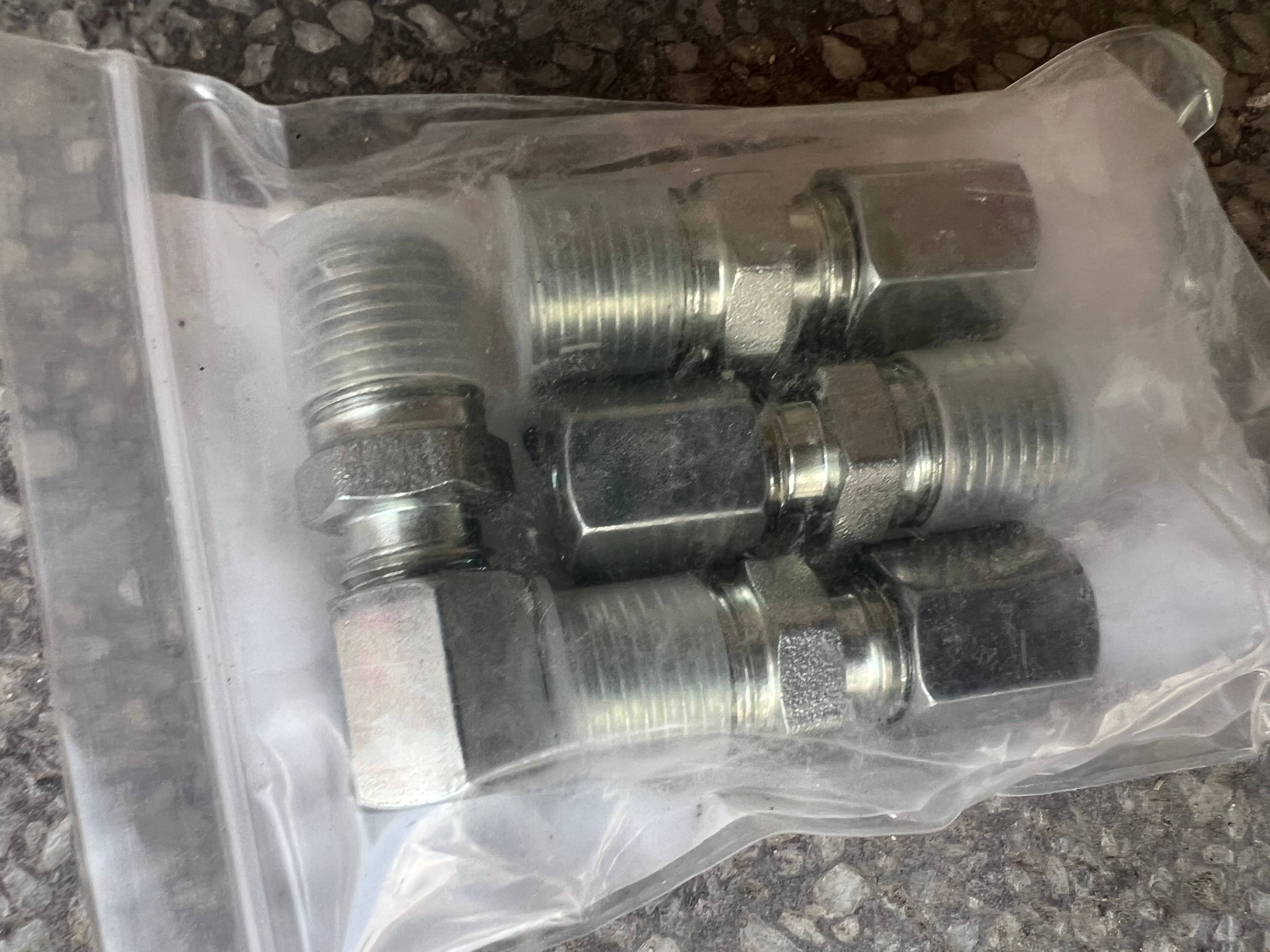

406-513W straight connector, part number 803602766, is a professional hydraulic pipe fitting. It is perfectly matched for XCMG XE2000 mining crawler excavator, used for connecting hydraulic pipelines, ensuring smooth oil circulation, stabilizing pipeline connection and guaranteeing normal hydraulic power transmission of the whole machine.
Product Advantages
Standard size, precise interface, seamless installation
High-strength metal material, compression and impact resistant
Good sealing performance, effectively prevent hydraulic oil leakage
Rust and corrosion resistant, suitable for harsh working conditions
Stable connection, not easy to loosen under long-term vibration
Durable service life, reduce later replacement and maintenance cost
Product Parameters
Item | Specification |
Part No. | 803602766 |
Model | 406-513W Straight Connector |
Type | Hydraulic Straight Joint |
Applicable Machine | XCMG XE2000 Mining Crawler Excavator |
Main Material | High-quality alloy steel |
Pressure Resistance | High hydraulic pressure bearing |
Sealing Performance | High tightness anti-leakage |
Surface Treatment | Anti-rust oxidation treatment |
Connection Method | Thread direct connection |
Application Scenarios
Widely applied to hydraulic pipeline connection parts of XE2000 mining excavator. Suitable for open pit mining, heavy earthmoving, mine site operation, large-scale engineering construction and other heavy-duty working environments.
Usage Guide
Stop the machine and cut off power, release residual hydraulic pressure before installation.
Clean the thread and interface dirt of pipeline joints.
Align the thread position and screw the straight connector evenly.
Fasten properly, avoid excessive force causing thread damage.
Check connection tightness, confirm no oil leakage.
Start equipment and test hydraulic system operation normally.
Regularly check looseness and sealing status in daily use.
FAQ
Q: What is the part number of this straight connector?
A: The part number is 803602766, model 406-513W.
Q: Which excavator does it fit for?
A: Specially suitable for XCMG XE2000 mining crawler excavator.
Q: Can it be used for hydraulic oil pipe connection?
A: Yes, it is specially designed for hydraulic pipeline connection.
Q: Will it leak oil easily after long time use?
A: With excellent sealing design, effectively avoid oil leakage under normal use.
Q: Is it easy to install and replace?
A: Standard general specification, easy to install and directly replace old parts.
Q: Can it adapt to mine harsh working environment?
A: Adopt anti-rust and wear-resistant process, stable performance in mining sites.
