LW300KN
| Quantity: | |
|---|---|
| Description | Unit | Parameter value | |
| Rated operating load | kg | 3000 | |
| Bucket capacity | m³ | 1.5~2.5 | |
| Machine weight | kg | 10900±200 | |
| Dump clearance at maximum lift | mm | 2770~3260 | |
| Reach at maximum lift | mm | 1010~1210 | |
| Wheel base | mm | 2900 | |
| Tread | mm | 1850 | |
| Height of hinge at maximum lift height | mm | 3830 | |
| Working height(fully lifted) | mm | 4870 | |
| Max.breakout force | kN | 130 | |
| Max.horse power | kN | 95 | |
| Hydraulic cycle time-raise | s | 5.4 | |
| Total hydraulic cycle time | s | 9.3 | |
| Min. turning radius over tyres | mm | 5170 | |
| Articulation angle | ° | 38±1 | |
| Gradeability | ° | 28 | |
| Tyre size | 17.5-25-12PR | ||
| Overall machine dimension L×W×H | mm | 7245×2482×3320 | |
| Model | WP6G125E201 | ||
| Emission standards | Emission 2 | ||
| Rated Power/Speed | kW/rpm | 92/2000 | |
| Fuel Tank | L | 170 | |
| Hydraulic Tank | L | 175 | |

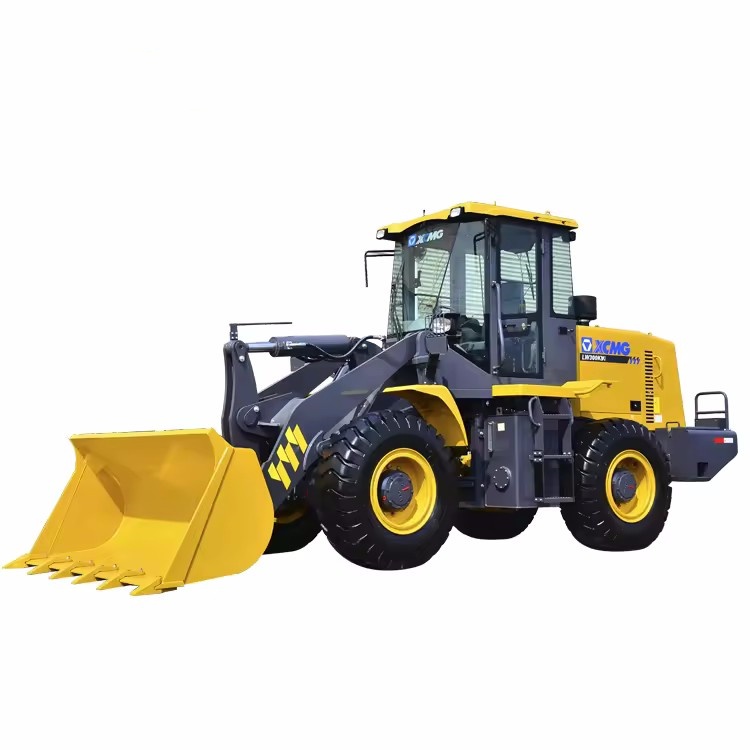

The LW300kN Wheel Loader features a 3,000 kg rated load and 1.8 m³ bucket capacity, powered by a Weichai diesel engine with 92 kw rated power. With an operating weight of 10,700 kg and 120 kn tractive force, it has compact overall dimensions of 7050×2482×3118 mm, ensuring flexibility in narrow workspaces. It is certified to CE, ISO, and ROHS standards, meeting global quality requirements.
Reliability: Equipped with a three-element torque converter and fixed-shaft transmission, it delivers over 10,000 hours of reliable service life with minimal breakdowns.
Durability: The bucket is made of high-strength wear-resistant steel, suitable for frequent use in small mines, aggregate yards, and construction material yards.
Comfort: An optional air conditioning system and noise insulation (interior noise ≤75 dB) create an ergonomic working environment, improving operator focus and efficiency.
This equipment is specifically designed to meet the needs of small - scale mining operations. In the mining sector, it can play a crucial role in efficiently handling various materials during the extraction and processing stages. For construction material handling, it proves to be a valuable asset. It can easily manage the movement of different construction materials, facilitating the smooth progress of construction projects. Moreover, it is well - suited for rural infrastructure projects, which often have unique requirements in terms of equipment size and functionality.
When it comes to material loading, it is highly ideal for loading substances like sand, which is a fundamental component in construction. Gravel, another common construction material, can also be loaded with ease. Coal, whether for industrial use or local heating in rural areas, can be efficiently handled by this equipment. Additionally, it can handle other bulk materials. In addition to material loading, it is capable of performing light earth - moving tasks. This makes it a versatile tool for a wide range of applications in small - scale industries and rural development projects.
Q: What is the maximum dumping height?
A: Its maximum dumping height reaches 2,950 mm with a dumping distance of 1,050 mm, compatible with most standard transport trucks.
Q: How often does it require routine maintenance?
A: Routine checks (oil level, filter condition) are recommended every 200 operating hours; major service (engine and transmission inspection) is required at 2,000 operating hours.
