Product Description

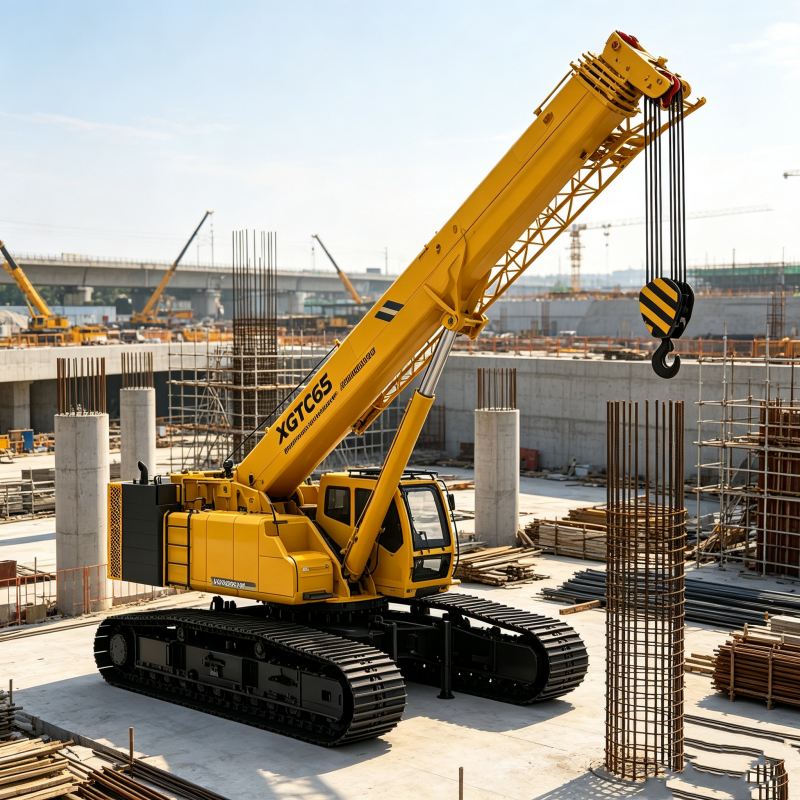

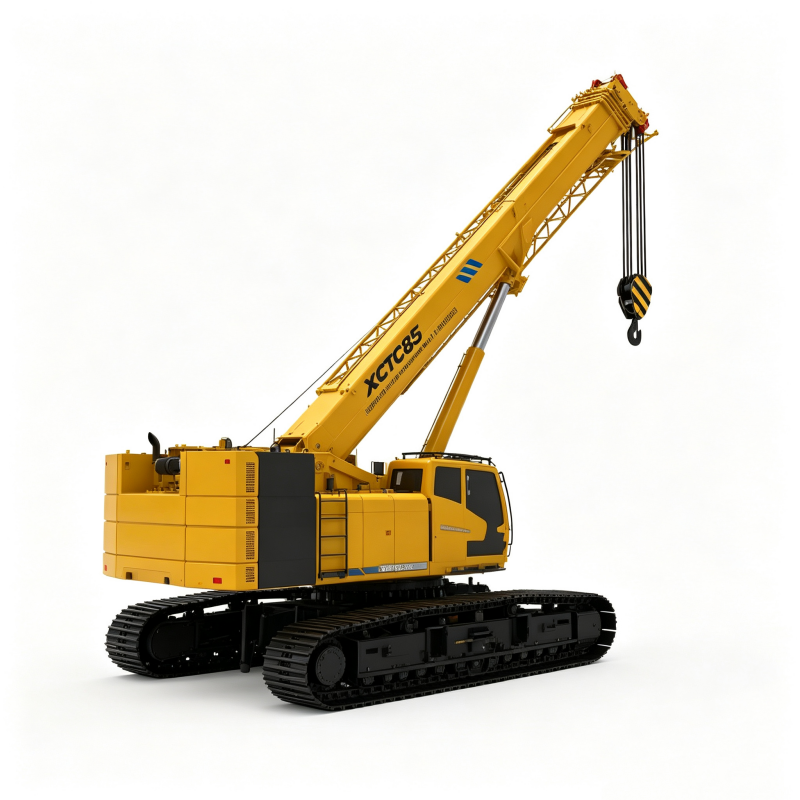

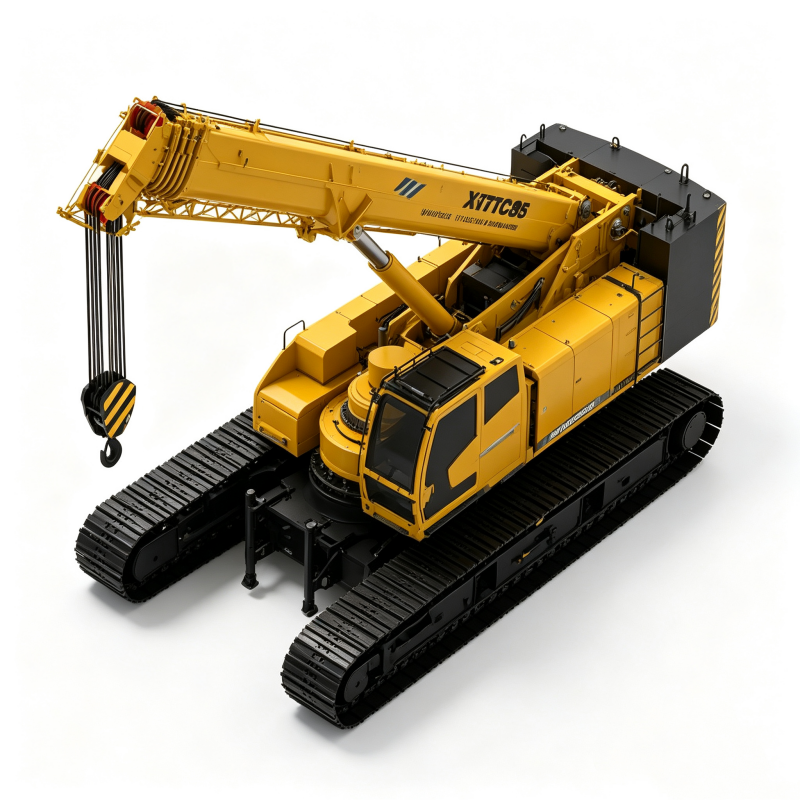

The XGTC65 telescopic crawler crane adopts heavy-duty retractable wide track undercarriage. When tracks extend, the machine gets higher stability for heavy lifting; after retraction, the overall width shrinks to meet highway transportation requirements, performing well on muddy wetlands, soft ground and rugged slopes. The five-section high-strength U-type steel telescopic main boom ranges from 12m to 52m, with optional 10m and17m fixed auxiliary jib, achieving a maximum comprehensive lifting height of 68m, perfectly suitable for heavy rebar cage hoisting in deep foundation pits.
It is fitted with Weichai WP7H 228kW high-power diesel engine, matched with mature load-sensing hydraulic system, enabling smooth compound actions including hoisting, slewing and luffing. The self-dismantling counterweight structure allows counterweight assembly and disassembly without an auxiliary crane, cutting site operation and relocation costs. A large-capacity fuel tank ensures long continuous working hours under heavy load. The panoramic operator cabin delivers wide vision and ergonomic layout to reduce fatigue during long-hour operation. Standard intelligent virtual wall protection plus full-set safety monitoring system tracks load, boom angle and working radius in real time. Modular split design simplifies disassembly and cross-region transportation.
Product Advantages
Strong Heavy Lifting Performance：
Max rated lifting capacity reaches 65 ton with 2756kN·m load moment, excellent for heavy rebar cage hoisting and large foundation construction.
Wide Working Range：
12~52m five-section telescopic main boom, optional 10m/17m jib, max lifting height up to 68m for high-altitude heavy hoisting.
Excellent All-terrain Adaptability：
Retractable wide track chassis with low ground pressure, stable walking and hoisting on muddy, soft, sloped and narrow construction sites.
Efficient Telescopic Boom Design：
Hydraulic telescopic boom, no manual assembly of boom sections on site, saves setup time compared with lattice boom crawler cranes.
Self-dismantling Counterweight：
No auxiliary crane needed for counterweight mounting and removal, greatly reduces site transfer time and rental cost.
Reliable Power Output：
Weichai WP7H 228kW diesel engine, stable power reserve, good continuous working performance for heavy-duty frequent operation.
Intelligent Virtual Wall Safety System：
Virtual working limit function to avoid collision in narrow working space, improving operation safety.
Modular Convenient Transport：
Retractable crawler and split counterweight design, convenient flatbed transportation for cross-site relocation.
Comfortable Operation Experience：
Panoramic wide-view cabin and precise hydraulic control, supporting sensitive micro-operation for high-precision component installation.
Technical Parameters
Item | Unit | XGTC65 |
Max Rated Lifting Capacity (Main Boom) | t | 65 |
Rated Load Moment | kN·m | 2756 |
Main Boom Sections / Length | pcs/m | 5 / 12~52 |
Optional Fixed Auxiliary Jib | m | 10 /17 |
Max Comprehensive Lifting Height | m | 68 |
Engine Model | - | Weichai WP7H |
Rated Engine Power | kW | 228 |
Travel Speed | km/h | 0~2.2 |
Slewing Speed | r/min | 0~2.0 |
Warranty Period | - | 1 Year Whole Machine |
Product Applications
Heavy rebar cage hoisting and deep foundation pit construction
Bridge installation, heavy bridge component lifting and auxiliary construction
Foundation piling engineering
Large steel structure factory and venue frame erection
Power transmission tower erection and power engineering hoisting
Muddy wetland and uneven complex terrain heavy lifting tasks
Petrochemical and large municipal infrastructure projects
FAQ
Q1: What is the max lifting capacity and boom configuration of XGTC65?
A: Max rated lifting capacity is 65 ton under main boom working condition. It adopts 5-section 12~52m telescopic main boom, optional 10m or17m auxiliary jib, maximum lifting height reaches 68m, ideal for heavy rebar cage hoisting.
Q2: What are the advantages of telescopic boom crawler crane compared with lattice boom crawler crane?
A: Hydraulic telescopic boom can extend and retract directly on site without manual assembly of boom segments, saving plenty of installation time. It combines truck crane flexibility and crawler crane off-road stability.
Q3: Can XGTC65 work on muddy and soft construction ground?
A: Yes. Retractable wide track shoes provide low ground pressure, ensuring stable walking and hoisting on soft, muddy and uneven terrain.
Q4: What engine does XGTC65 adopt?
A: It uses Weichai WP7H 228kW diesel engine, offering stable and strong power for long-time heavy-duty construction work.
Q5: What is the function of virtual wall system?
A: Virtual wall function limits the crane working range automatically, prevents collision in narrow sites and greatly improves operation safety.
Q6: Does XGTC65 need another auxiliary crane to disassemble counterweight?
A: No. It is equipped with self-dismantling counterweight system, no auxiliary crane required, reducing site cost and transfer cycle.
Q7: What safety protection devices are equipped?
A: Load moment limiter, boom angle real-time monitoring, overload protection, anti-over-winding and multi safety interlock system to prevent operation risks.
Q8: What about warranty and shipping?
A: We provide 1-year whole machine warranty, global spare parts supply and professional overseas technical support. RORO ship, bulk carrier and flat rack container shipping available.
