Product Introduction

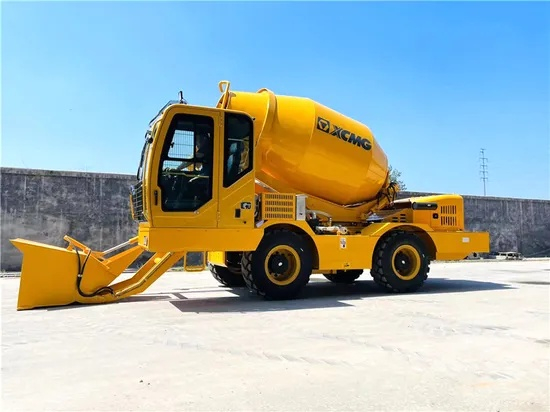

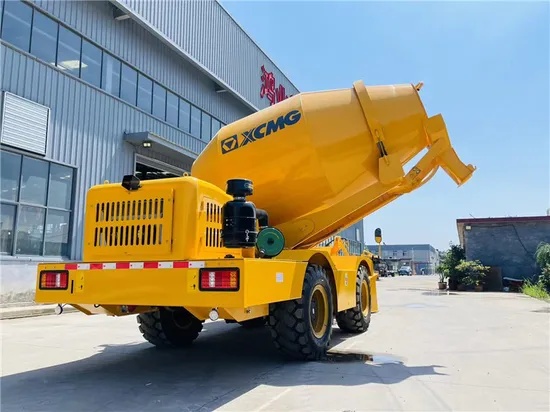

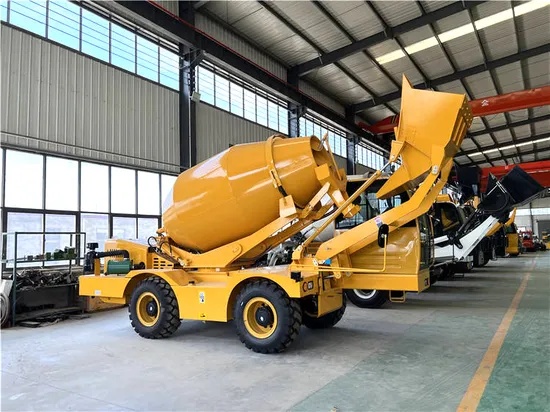

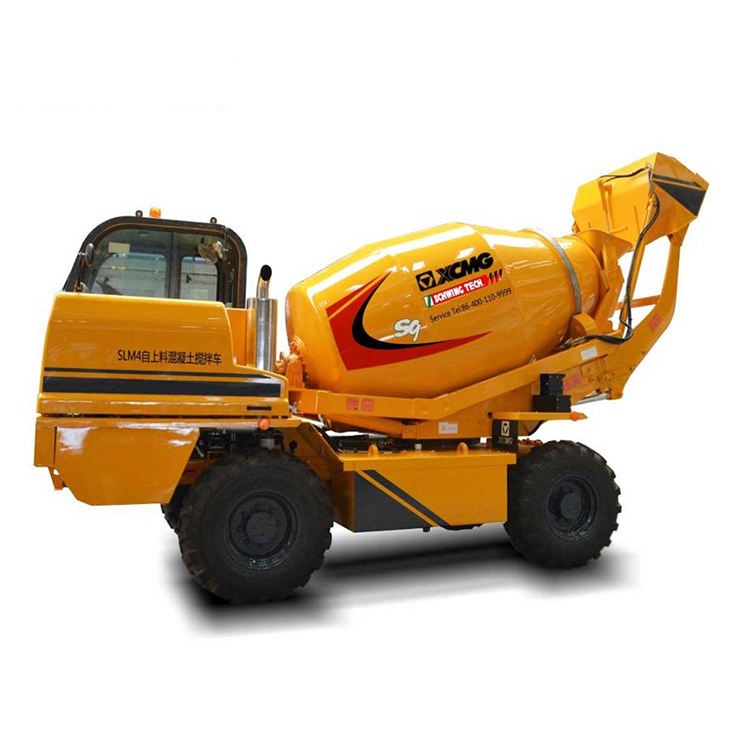

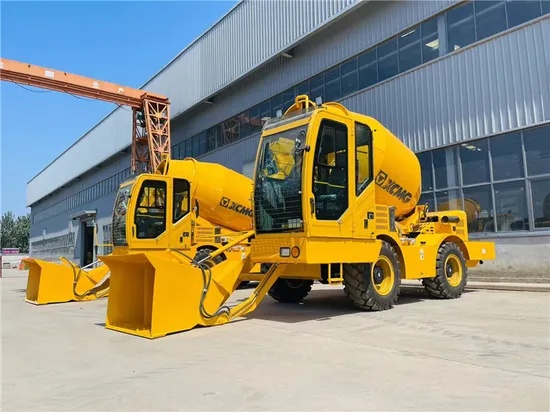

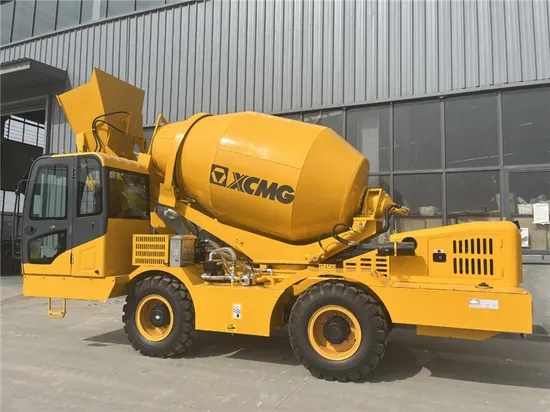

SLM4 self loading concrete mixer is a new 4-cube concrete mixer with a maximum driving speed of 30km/h and a production efficiency of about 12-14m3/ h. All bucket action through the pilot handle to achieve.
Product Advantage
1. Multi-function integration
Self loading concrete mixer is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction.
2. Hydrostatic transmission
The vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency.
3. Weighing system
The aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%.
Technical Parameters
| Item | Unit | SLM4 |
| Engine |
| 82KW@2200rpm (ChinaII) |
| Geometrical capacity of drum | m3 | 5.3 |
| Max.output | m3 | 4 |
| Transmission system |
| Hydrostatic; variable pump wih variable motor; four wheel dive |
| Vehicle speed | Km/h | 0~30 |
| Cab |
| Closed type; bucket movement operated by Joystick |
| Rotation angle of mixing drum |
| 255 |
| Electrical system |
| Generator(28V-55A); Accumulator(24V-180Ah) |
| Max. gradeability | % | 44 |
| Bucket | L | 600 |
| Water/fuel oil/hydraulic oil tank | L | 900/100/140 |
| Wheel base/wheel center distance | mm | 2600/1988 |
| Inner/outer turning radius | mm | 2120/4340 |
| Outline dimension-travelling state | mm | 6100*2425*4008 |
| Curb mass | Kg | 8800 |
Product Uses
Construction projects in the core urban areas such as high-rise buildings, residential communities, and commercial complexes.
Large-scale engineering construction such as expressways, railways, Bridges, tunnels, water conservancy DAMS and airports.
As the main force of the mixing plant fleet, I am responsible for the point-to-point transportation of concrete from the plant to various construction sites.
Product Operate Guide
The operation of the SLM4 concrete mixer truck must comply with safety regulations. Before starting, check the hydraulic oil level, water volume in the water tank and the sealing performance of the system. When loading materials, ensure that the rotational speed of the mixing drum matches that of the mixing plant. Keep the drum rotating constantly during transportation to prevent concrete segregation. After arriving at the construction site, safely position under the guidance of the command personnel, operate the control lever to unload materials, and pay attention to adjusting the unloading speed to ensure the quality of pouring. After the operation, clean the mixing drum and the feeding and discharging troughs in time to prevent the concrete from solidifying. The vehicle is equipped with an intelligent control system that can monitor the operation status in real time. It is recommended that operators be familiar with each function key and participate in regular training to ensure efficient and safe operation.
FAQ
1.How is its fuel consumption performance?
A: The SLM4 is equipped with the industry's mature "golden power chain" (such as Weichai engine + FAST transmission + XCMG axle), with optimized matching and high transmission efficiency. In addition, its outstanding lightweight design effectively reduces the overall vehicle weight, thereby bringing about excellent fuel economy and significantly lowering the long-term operating costs for users.
2.Is it complicated to operate this mixer truck?
A: The operation design is user-friendly and similar to traditional mixer trucks, making it easy for drivers to get started. The key lies in getting familiar with the stirring/unloading control lever and speed adjustment on the center console. XG offers detailed operation training. It is recommended that drivers study it carefully to fully leverage the vehicle's performance and ensure safety.
3.What needs to be done for daily maintenance?Is the maintenance cost lower than that of traditional cars?
A: Daily maintenance mainly includes:
Before departure: Check the hydraulic oil level, cooling water and lubricating oil, and inspect the mixing drum and blades for any residual lumps.
After the vehicle is parked: The mixing drum and the feeding and discharging system must be cleaned in a timely and thorough manner.
• Regular maintenance: Replace the hydraulic oil, filter elements, etc. as required by the manual.
4.What intelligent management functions does the vehicle have?
A: The XG intelligent interconnection system can be optionally installed.
Through this system, fleet managers can achieve the following on a computer or mobile phone:
• Real-time monitoring: View vehicle location, driving trajectory, and operation status.
• Fuel consumption management: Precisely monitor fuel consumption and eliminate abnormal losses.
• Remote management: Perform operations such as fault alarm and remote vehicle locking, significantly enhancing the efficiency of fleet management.
5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
