Product Description

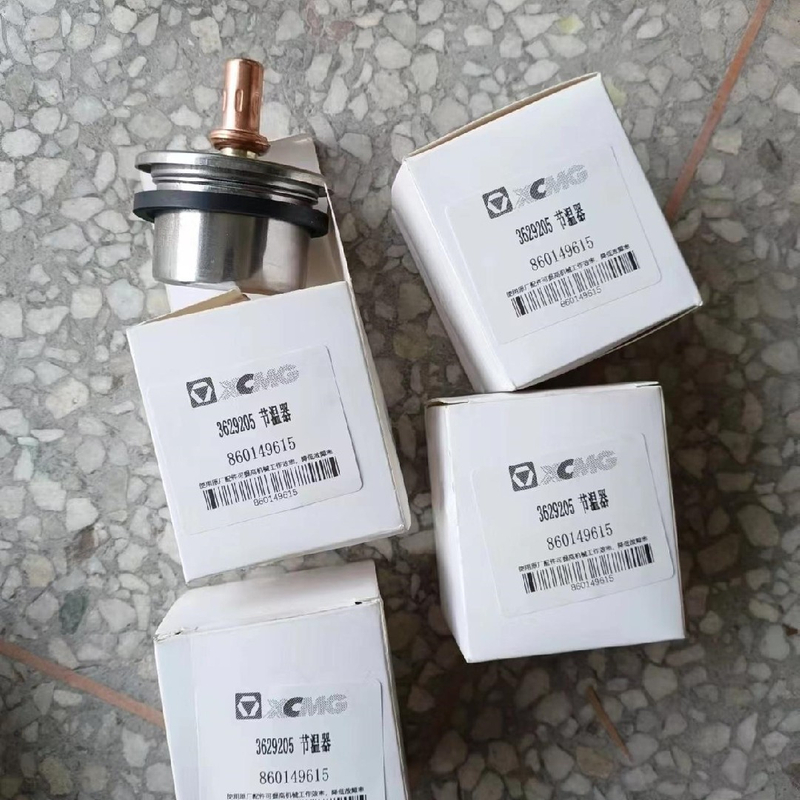

The thermostat with part numbers 3629205 and 860149615 is a critical temperature control component specifically engineered for the XE2000 excavator. Crafted with high-precision machining and premium heat-resistant materials, it integrates temperature sensing, automatic regulation, and reliable sealing capabilities. This thermostat is designed to regulate the flow of coolant in the excavator’s engine cooling system, automatically adjusting according to the engine’s operating temperature to maintain it within the optimal range (80-95℃). By preventing engine overheating or overcooling, it enhances engine efficiency, reduces fuel consumption, and extends the service life of the engine and related cooling system components. It features perfect compatibility with the XE2000 excavator, ensuring stable performance, high temperature control accuracy, and strong adaptability to harsh construction environments such as mining and earthwork sites.
Product Advantages
Precise Temperature Regulation: Equipped with a high-sensitivity temperature sensing element, it offers accurate temperature control with a tolerance of ±1℃, ensuring the engine operates at its optimal working temperature for maximum efficiency.
Superior Heat Resistance: Made of high-temperature resistant alloy and high-performance sealing materials, it can withstand long-term operation under high-temperature conditions without deformation, leakage, or failure.
Rapid Response: The temperature sensing component responds quickly to changes in engine temperature, adjusting coolant flow in real time to effectively prevent overheating and ensure stable engine operation.
Excellent Sealing Performance: Adopts a strict sealing structure design to prevent coolant leakage, ensuring the integrity and stability of the cooling system and avoiding engine damage caused by fluid loss.
Perfect Compatibility: Precision dimensional machining ensures a seamless fit with the XE2000 excavator’s installation position, allowing for direct replacement without modification, saving time and labor during maintenance.
Durable & Low Maintenance: Boasts stable performance and a long service life, reducing the frequency of replacement and overall maintenance costs for equipment operators.
Product Parameter Table
Item | Specification |
Part Numbers | 3629205, 860149615 |
Applicable Model | XE2000 Excavator |
Product Name | Thermostat / Engine Cooling Temperature Control Valve |
Main Material | High-Temperature Resistant Alloy + Heat-Resistant Sealing Rubber |
Optimal Temperature Range | 80℃ - 95℃ |
Opening Temperature | 80℃ ±1℃ |
Closing Temperature | 75℃ ±1℃ |
Working Pressure | ≤1.2MPa |
Installation Type | Flange Connection |
Working Temperature Range | -20℃ ~ 120℃ |
Application Scenarios
Temperature control of the XE2000 excavator’s engine cooling system during daily operation in mining, earthwork, and road construction sites.
Replacement of old, damaged, or faulty thermostats during routine maintenance of the XE2000 excavator.
Temperature regulation for the excavator engine in extreme working conditions, including high-temperature and low-temperature environments.
Maintenance and overhaul of the XE2000 excavator’s cooling system to ensure consistent engine performance.
Auxiliary temperature control for the excavator during long-term continuous operation, preventing overheating and extending engine life.
Resolution of engine overheating or overcooling issues caused by thermostat failure in the XE2000 excavator.
Operation Guide
Before installation, confirm that the part numbers (3629205, 860149615) and specifications of the thermostat are compatible with the XE2000 excavator to avoid installation mismatch.
Shut down the excavator engine and wait for it to cool down completely. Drain the coolant from the cooling system to prevent scalding and coolant leakage during installation.
Remove the old thermostat by loosening the connecting bolts. Clean the installation flange and sealing surface thoroughly to remove dirt, rust, and residual coolant, ensuring a tight seal.
Install the new thermostat correctly, ensuring the temperature sensing element faces the engine side. Place the sealing gasket properly to prevent coolant leakage.
Tighten the connecting bolts evenly according to the specified torque. Do not over-tighten, as this may damage the flange or the thermostat itself.
Refill the cooling system with the specified type of coolant to the standard level. Start the engine, check for coolant leakage, and observe the temperature gauge to confirm the thermostat operates normally (temperature should stabilize within 80-95℃).
FQA
Q: Which equipment is the thermostat 3629205 860149615 suitable for?
A: It is specifically designed and calibrated for the XE2000 series excavators, ensuring perfect compatibility with the engine cooling system and reliable temperature control.
Q: What is the core function of this thermostat?
A: Its main function is to regulate the flow of coolant in the engine cooling system, maintaining the engine within the optimal operating temperature range to prevent overheating or overcooling.
Q: What are the signs that the thermostat needs to be replaced?
A: Common signs include frequent engine overheating, abnormally low or high temperature gauge readings, coolant leakage around the thermostat, or failure of the engine to reach the normal operating temperature.
Q: Can this thermostat withstand high-temperature working environments?
A: Yes, it is made of heat-resistant materials and can operate stably in high-temperature environments up to 120℃, fully adapting to the harsh working conditions of excavators.
Q: Is professional installation required for this thermostat?
A: While professional maintenance personnel are recommended, individuals familiar with the XE2000 excavator’s structure can install it independently by following the operation guide.
Q: What happens if the thermostat is installed incorrectly?
A: Incorrect installation will lead to ineffective temperature control, resulting in engine overheating or overcooling, reduced engine efficiency, and potential long-term damage to the engine and cooling system components.
