Product Introduction

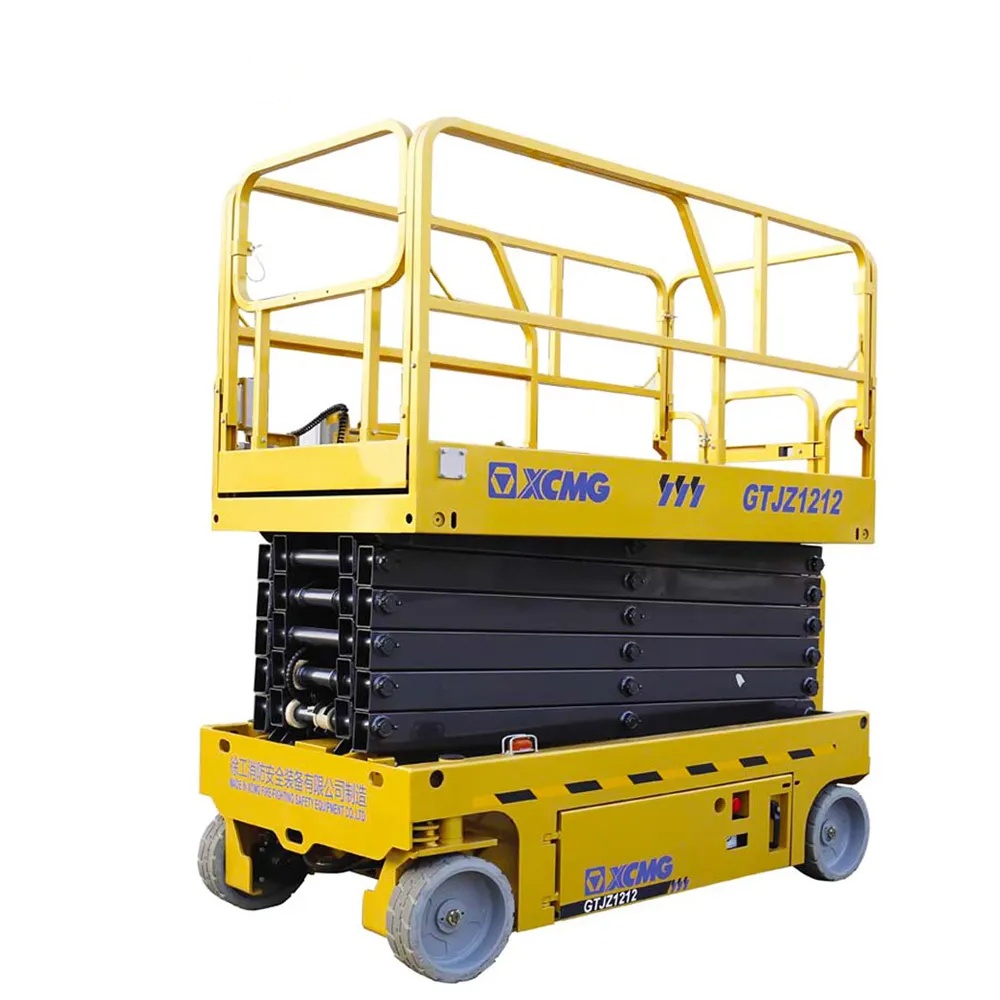

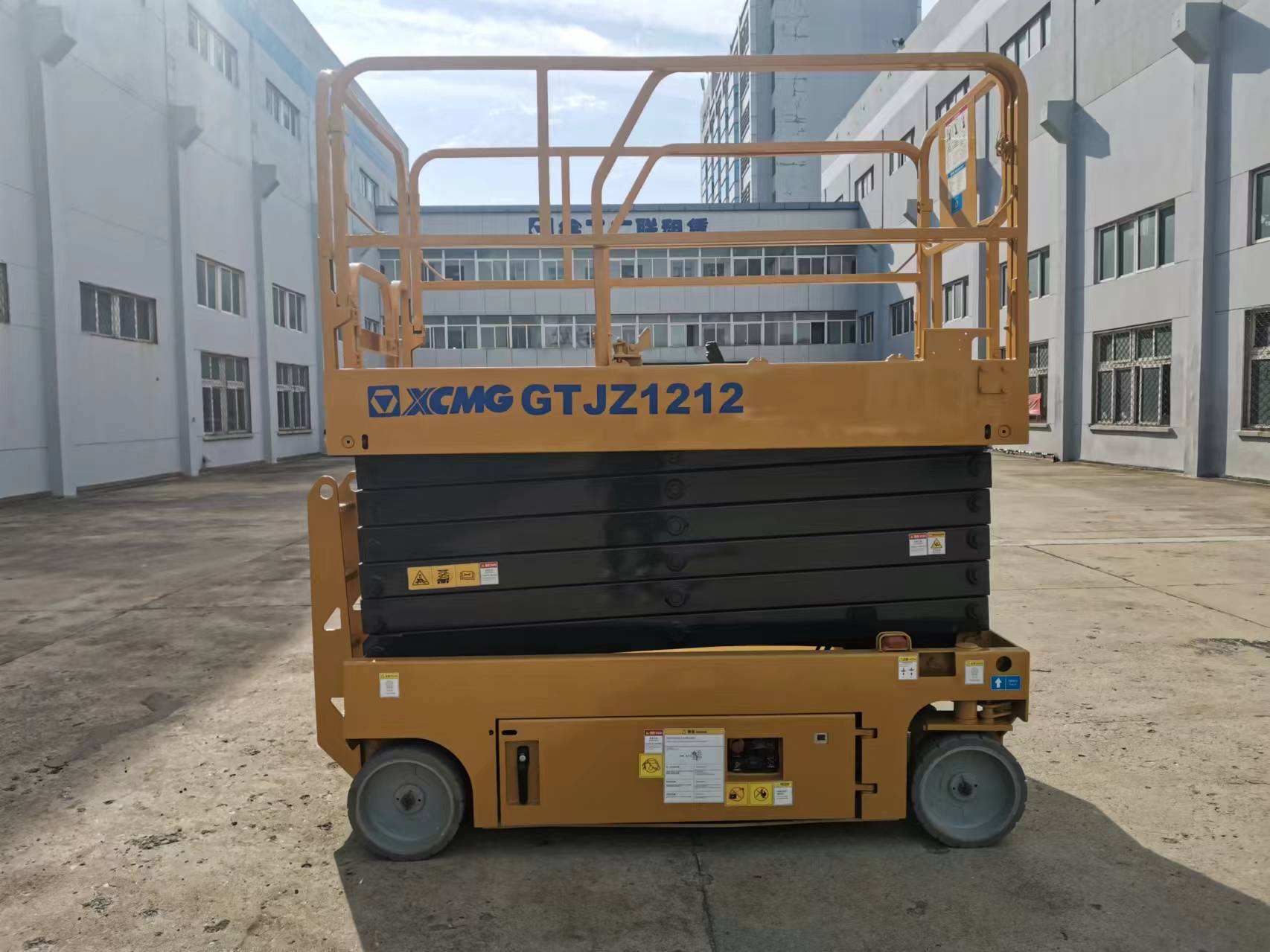

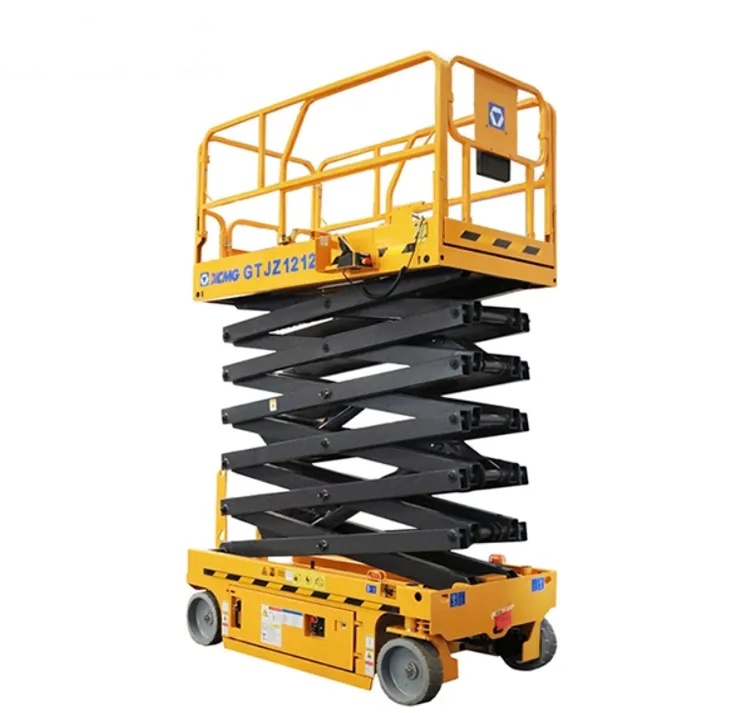

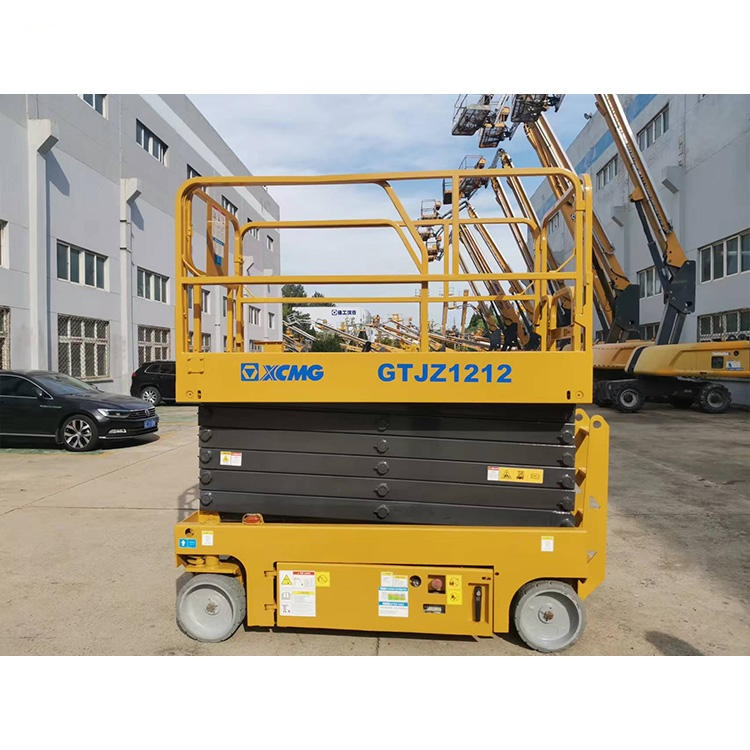

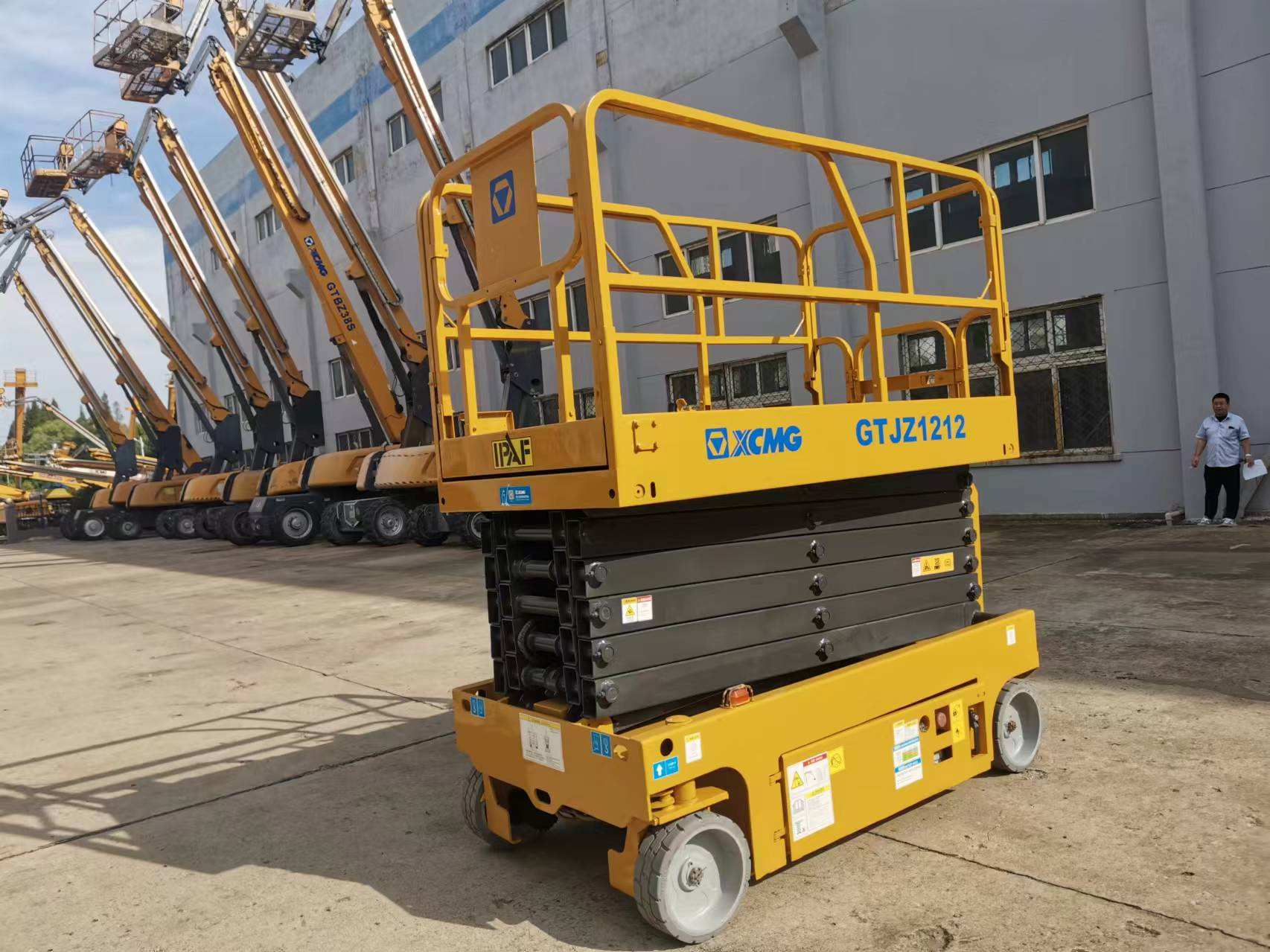

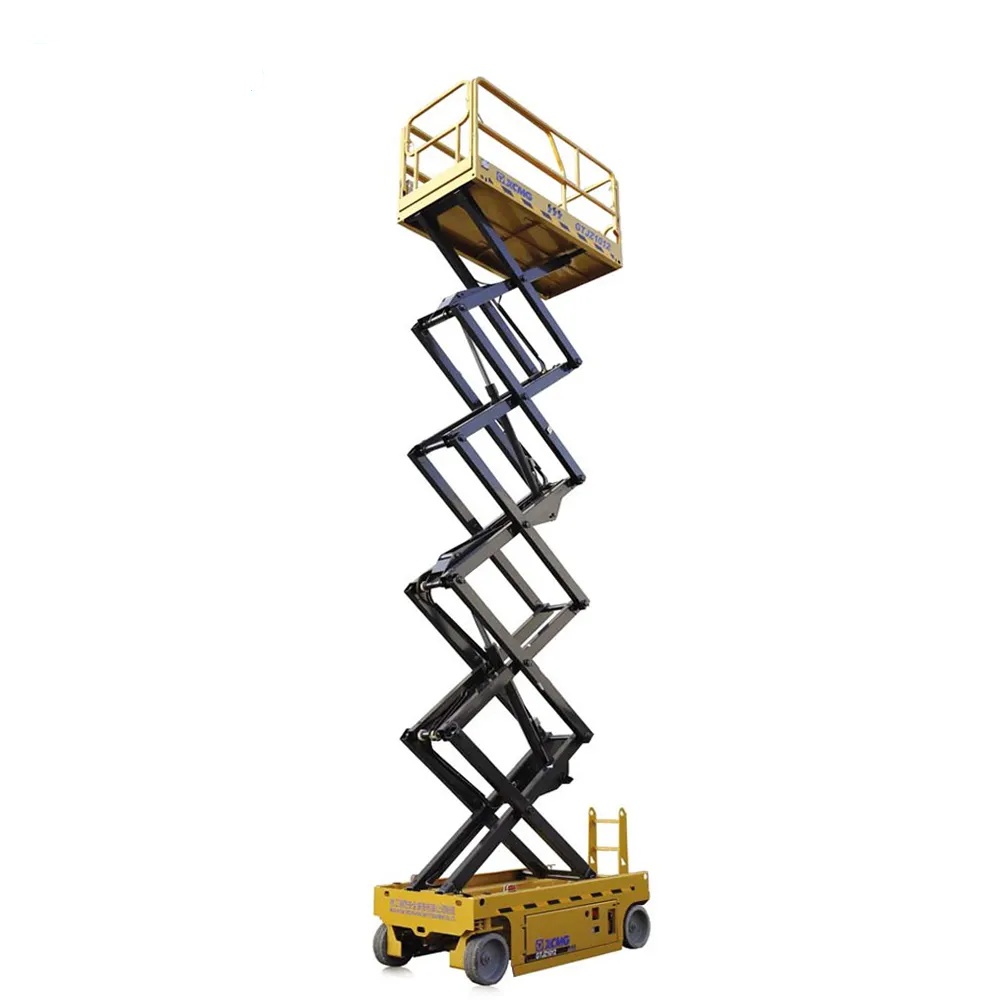

The GTJZ1212 scissor lift aerial work platform integrates high safety, high efficiency and high comfort, fully demonstrating the technical strength of XG as a leading global brand in construction machinery.
Product Advantage
1. Convenient Transportation And Stable Operation
The telescoping sub-platform achieves large working space and works with folding platform to realize easier transportation and translocation.The industry-leading automatic pit protection system and the widened wheel tread design enable your free operations even on rough ground.
2. Environmental Cons Truction And Convenient Service
Pure electric drive, zero release, low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.
3. General And Modular Design
The modular design for the machine guarantees the universality of parts, makes the customers’ repairs and maintenances easier, and achieves more competitive cost.
Technical Parameters
| Item | Unit | Parameters |
| Overall length | mm | 2485 |
| Overall width | mm | 1190 |
| Overall height | mm | 2600 |
| Maximum platform height | m | 11.8 |
| Size of platform | mm | 2276×1120×1254 |
| Platform extension length | mm | 900 |
| Minimum turning radius | m | 0 |
| Wheel base | mm | 1871 |
| Minimum ground clearance
(pot hole protector rising/falling) | mm | 101/20 |
| The total mass in driving state | kg | 3150 |
| Rated load | kg | 320 |
| Load of extension platform | kg | 115 |
| Lifting speed of working platform | s | 61~71 |
| Falling speed of working platform | s | 43~58 |
| Driving speed (high) | km/h | 3.2 |
| Driving speed (low) | km/h | 0.8 |
| Maximum driving platform height | m | 11.8 |
| Maximum gradeability |
| 25% |
| Battery | V/(Ah) | 4×12(300) |
| Charger | A | 30 |
| Tyre specification |
| Traceless solid core 38.1cm×12.7cm |
| Incline alarming angle |
| 1.5° (both sides) |
| 3° (front and back) |
Product Uses
• Industrial plants: Equipment installation, maintenance, pipeline construction, and lighting system replacement.
• Construction: Interior decoration, steel structure installation, ceiling work.
• Warehousing and logistics: Storage and retrieval of goods on high shelves, warehouse maintenance, and replacement of lighting fixtures.
• Maintenance and cleaning of large venues: stadiums, exhibition centers, airports, and stations.
• Municipal engineering: Bridge inspection, street lamp maintenance, garden pruning.
Product Operate Guide
As the GTJZ1212 adopts frequency conversion control, when operating, the control lever should be gently pushed to achieve a smooth transition from start to acceleration, deceleration to stop. Sudden stops and starts should be avoided to prevent the heavy object from shaking.
Operators must maintain close communication with ground command personnel (signalmen) and only accept signals from the designated command personnel (walkie-talkies or semaphones, gestures). When the command signal is unclear, the operation should be suspended and confirmed through inquiry.
Keep a close eye on the display screen in the driver's cabin at all times to monitor the current load, torque percentage, amplitude, wind speed and other data, ensuring that everything is within a safe range.
FAQ
1.What drives it?How long is the battery life?
• A: The GTJZ1212 is driven by pure electricity and powered by a large-capacity maintenance-free battery. The battery life depends on the actual usage conditions (such as lifting frequency, driving distance, load, etc.), and it usually can work continuously for a full shift (about 6 to 8 hours). Supports two charging modes: AC slow charging and DC fast charging.
2.How is its climbing ability?Can it be used indoors?
• A: Its climbing ability is usually ≥20% (about 11.3°), and it can easily handle the common slopes in workshops and construction sites. Because it uses polyurethane solid seamless tires, it will not leave marks or damage the ground like rubber tires. Therefore, it is particularly suitable for use in indoor floors, clean workshops, shopping malls and other environments.
3.What are the core safety protection devices of the equipment?
• A: The equipment is equipped with multiple safety protections, mainly including
Emergency descent system: Manually lower the platform in case of power failure.
Tilt protection system: Alarms and actions are restricted when the vehicle body tilts beyond the limit.
◦ Pothole protection system: Automatically limits the speed after the platform is raised to ensure smooth movement.
Dual descent control system: Both hands need to be operated simultaneously to prevent accidental contact.
◦ Guardrails and skirting boards: Prevent people and items from falling.
Safety warning devices: such as horns and warning lights.
4.Can it be used on uneven ground?
• A: Although scissor lift platforms have relatively high requirements for ground flatness, GTJZ1212 usually has a certain leveling ability. It is strictly prohibited to work on ground that exceeds the specified slope (please refer to the manual) or on soft and uneven ground, otherwise there is a risk of overturning. Before use, the site must be surveyed. If necessary, the ground should be compacted with a pad.
5.What should I do if the equipment shows a fault code?
A: The display screen of the control panel will prompt a fault code. First, the operation should be stopped immediately. Then, refer to the fault code table in the randomly attached "Operation and Maintenance Manual" to make a preliminary judgment on the problem. For faults that cannot be simply reset, it is necessary to contact the after-sales service engineer authorized by XG for inspection and repair. Do not disassemble the key components by yourself.
6.Besides the standard configuration, what other optional configurations are there?
• A: Common optional configurations include
Four-wheel drive (4WD) : It offers stronger driving force and climbing ability, making it suitable for rough outdoor ground.
◦ Different tire options: solid rubber tires, pneumatic tires (more suitable for rough outdoor ground).
◦ Platform extension plate: Temporarily expand the area of the working platform.
220V power output port: Convenient for power tools on the platform to obtain electricity.
Advanced anti-rust treatment: Suitable for coastal or corrosive environments.
