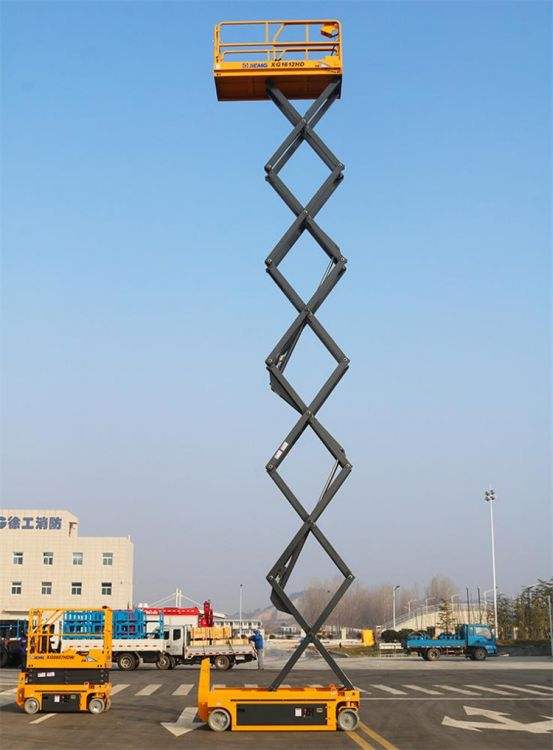

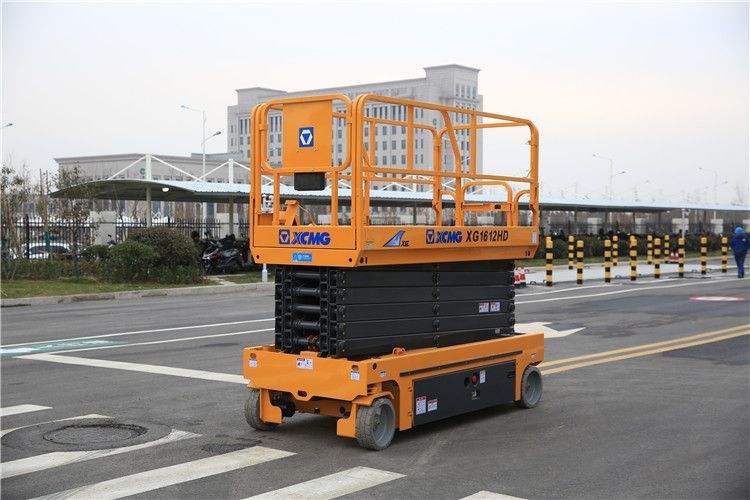

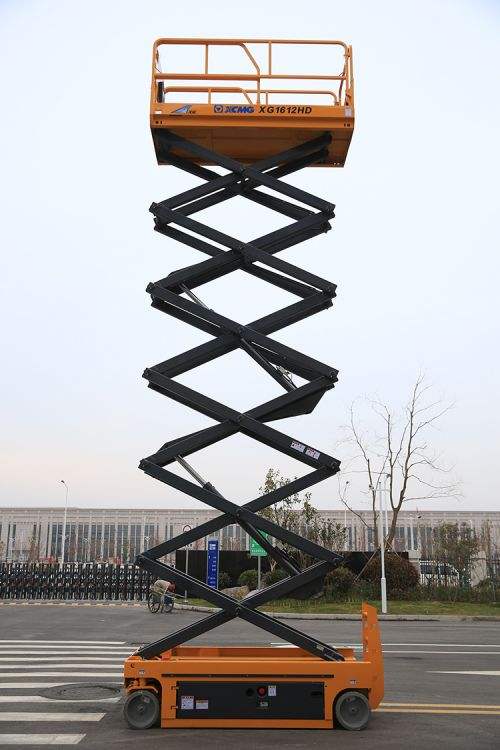

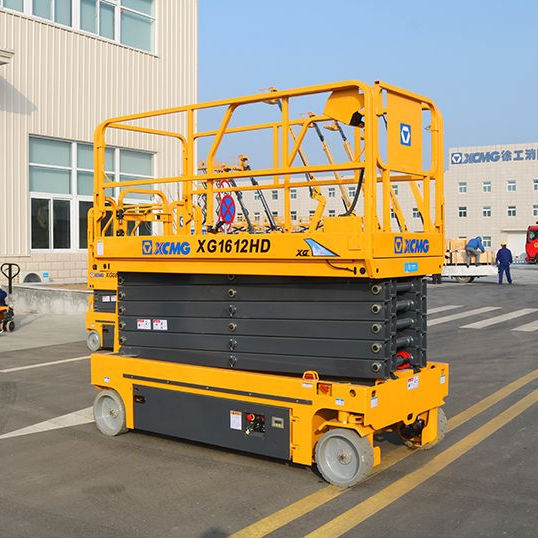

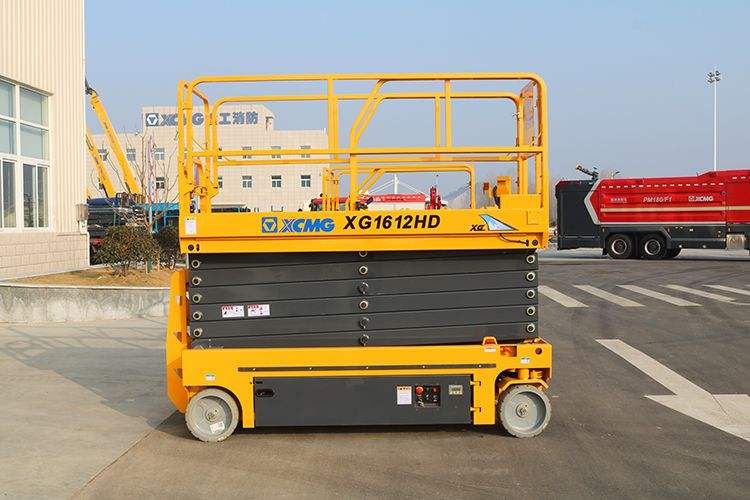

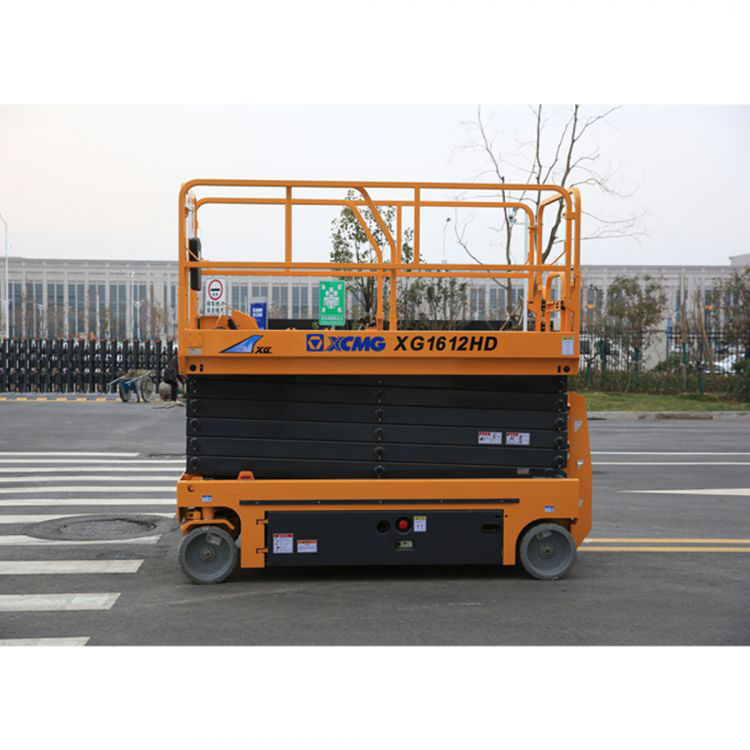

Xg1612HD 16m Hydraulic Mobile Scissor Lift Tables for Sale

Product Introduction

In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations.

Product Advantage

* Effective and energy-saving electric-drive system features zero emission and low noise, together with the traceless tires, enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.

* Active protective mechanism such as pothole protective mechanism and the self-developed safety control system feature the humanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.

* Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier.

* "Zero Turning Radius "is unique and enable machine to corner in narrow room.

* Max. payload at 230kg, leading the industry. Maximum traveling speed 3.2km/h and 25% gradeability make the driving easier.

Technical Parameters

Product Uses

• Industrial field: Equipment installation, maintenance, lamp replacement, and pipeline construction in large factories and warehouses.

• Construction: Interior decoration, ceiling installation, fire protection facility installation, and exterior wall construction assistance.

• Business field: Installation, cleaning and maintenance of billboards in shopping centers, airports, railway stations and exhibition centers.

• Others: Film and television drama shooting, stadium maintenance, and any other occasions where safe and efficient high-altitude operations are required.

Product Operate Guide

1. Power-on and startup

Make sure the equipment is on a flat ground and the control switch on the platform has been switched to the "platform" position.

Insert and tighten the key switch to the "ON" position. At this point, the instrument panel will power on and perform a self-check.

After self-checking for no abnormalities, sound the horn as a warning and get ready for operation.

2. Chassis driving (ground drive)

• Select Mode: On the chassis control box, select the "Drive" mode.

• Steering selection: According to the traffic requirements, choose the "Two-wheel steering", "crab travel" or "diagonal travel" mode.

• Operation: Press the "Turtle/Rabbit" switch key to select the driving speed (low speed is used for precise positioning, and high speed is used for long-distance movement). Then simply push the drive control handle to move in the corresponding direction. It stops as soon as you let go.

FAQ

1.What could be the reasons if the device fails to start?

A: Please follow the steps below to troubleshoot

1. Power supply issue: Check if the emergency stop button has been pressed and turned up; Check if the battery power is sufficient (battery gauge);

If using mains power, check whether the power cord is securely connected and whether there is electricity from the external power source.

2. Safety devices: Confirm whether the platform guardrail is fully lowered into place (the safety lock device is triggered);

Confirm that the equipment is in a horizontal position (whether the tilt alarm is lifted).

3. Key switch: Confirm whether the key switch is in the "ON" position.

2.What should I do if the equipment moves or ascends very slowly and lacks power?

A: Possible causes:

• Insufficient battery power: Low battery power can lead to a decrease in power. Please charge it in time.

• Improper setting of the relief valve pressure: The hydraulic system pressure should be inspected and adjusted by professional service personnel.

• Hydraulic oil issues: Insufficient hydraulic oil or oil temperature being too high or too low. Check the oil level and oil temperature.

• Motor or pump failure: Professional inspection and repair are required.

3.What should I do if an abnormal alarm occurs?

A: Immediately stop the operation, observe the alarm code or icon on the control panel, and refer to the fault code table in the product manual to make a preliminary judgment on the problem. Common alarms include tilt alarm, overload alarm, low battery alarm, etc. If you are unable to solve it by yourself, please contact the after-sales service personnel immediately.

4.What checks need to be done before daily use?

A: Daily Pre-Delivery Inspection must be carried out, including:

• Visual inspection: Check for any deformation or cracks in the structure and the wear of the tires.

• Function check: Whether the horn, emergency descent device and emergency stop button are functioning properly.

• Liquid level check: Whether the hydraulic oil level is within the standard range.

• Battery power check: Whether the battery power is sufficient.

• Cleaning: There should be no debris or oil stains on the platform and chassis.

5.What is the regular maintenance cycle for the equipment?

A: Please strictly follow the maintenance plan in the operation manual. It is usually divided into:

• 50-hour (or monthly) maintenance: Tighten screws, check chain tension, etc.

• 200-hour (or quarterly) maintenance: Replace the hydraulic oil filter element, inspect the motor carbon brushes, etc.

• 1000-hour (or annual) maintenance: replace hydraulic oil, conduct a comprehensive inspection of system performance, etc.

(Note: The specific cycle and items are subject to the official manual. The maintenance cycle should be shortened under harsh working conditions.)"

6.How should batteries be maintained and charged?

• Daily use: Charge the battery promptly after each use to prevent it from running out completely.

• Charging: Use the original charger and charge in a well-ventilated environment.

When charging, first connect the battery end and then turn on the power supply.

• Long-term storage: It should be fully charged before storage and recharged every 1-2 months.

• Maintenance: Keep the battery surface clean and dry, and check if the terminal blocks are loose or corroded.
