Product Description

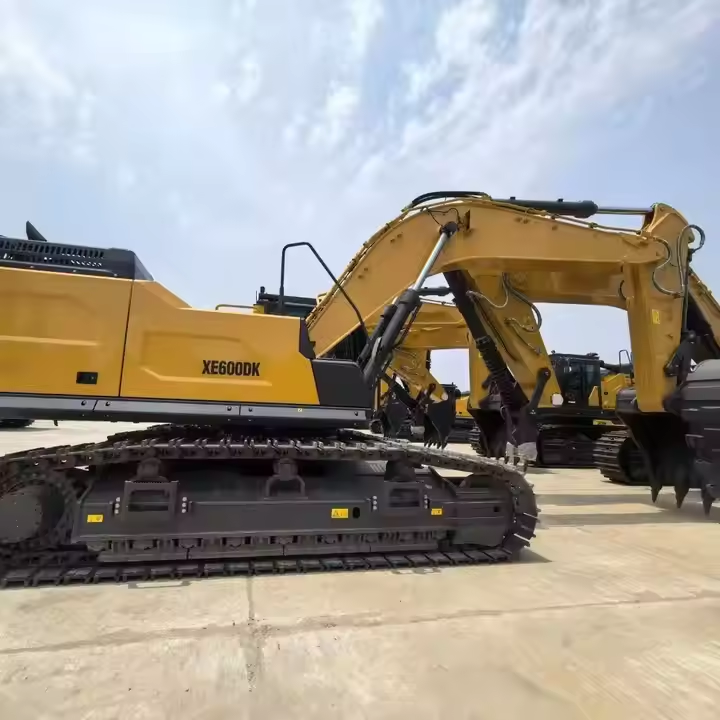

The XE600DK is a 57-ton heavy-duty crawler excavator designed for high-intensity mining, quarrying, and large infrastructure projects. It integrates a high-power diesel engine, large-displacement hydraulic system, and reinforced structural components to deliver strong digging performance, high efficiency, and long service life. The machine is optimized for harsh environments such as high altitude, high temperature, and heavy dust, supporting long-hour continuous heavy-load operation. With a comfortable FOPS/ROPS cab, intelligent monitoring system, and easy-maintenance layout, it ensures operator safety and convenience while reducing downtime and operating costs.
Product Advantages
Superior Power & Efficiency
Equipped with a 309.5 kW / 2100 rpm high-torque diesel engine, providing ample power reserve and fast response. Matched with a 240cc large-displacement main pump, it delivers high torque at low speed, ensuring efficient loading and crushing performance. Fuel consumption is optimized for mining cycles, lowering operational costs.
Heavy-Duty & Durable Structure
Boom, arm, and bucket adopt high-strength alloy steel with integral quenching. Reinforced undercarriage (65-ton class frame), thickened track shoes, and heavy-duty rollers extend service life to 12,000+ hours, ideal for harsh mining conditions.
Strong Digging & Breaking Capacity
Bucket digging force: 330 kN; arm digging force: 255 kN. Compatible with 205/210 hydraulic breakers, increasing impact force by 15% for efficient rock breaking.
Intelligent & Smooth Control
PIC feed-forward intelligent control ensures precise engine-hydraulic matching. 12-inch touchscreen monitor provides real-time data, fault diagnosis, and mode selection (Standard/Heavy/Eco). Load-sensing hydraulics enable smooth compound actions and accurate fine control.
Safety & Comfort
Fully enclosed pressurized cab meets FOPS/ROPS standards. Air-suspension seat with 150° recline, automatic HVAC, and 360° visibility (rear camera included). Ground-level service points simplify daily inspection and maintenance.
Wide Environmental Adaptability
Three-stage fuel filtration and large cooling radiator support -25°C to 55°C operation. Altitude compensation ensures stable power up to 5,500 m. Suitable for mines, quarries, plateaus, and deserts.
Product Parameters (Specification Table)
Item | Specification |
Model | XE600DK |
Operating Weight | 57,000 kg |
Rated Engine Power | 309.5 kW / 2100 rpm |
Standard Bucket Capacity | 3.2–3.6 m³ (Heavy‑duty rock bucket) |
Max. Digging Depth | 7,830 mm |
Max. Digging Radius | 11,500 mm |
Max. Cutting Height | 10,800 mm |
Bucket Digging Force | 330 kN |
Arm Digging Force | 255 kN |
Hydraulic System Pressure | 36 MPa |
Track Shoe Width | 650 mm |
Travel Speed (Low/High) | 3.0 / 5.6 km/h |
Gradeability | 70% (35°) |
Fuel Tank Capacity | 800 L |
Engine Type | Turbocharged, direct‑injection diesel |
Product Applications
Open‑pit Mining: Rock excavation, stripping, loading in coal, iron ore, and non‑ferrous mines.
Quarry & Aggregate: Large‑scale stone digging, crushing, and loading for aggregate production.
Heavy Infrastructure: Massive earthmoving, foundation excavation, trenching, and slope trimming for highways, dams, and high‑rise buildings.
Port & Airport Construction: Site leveling, dredging, and heavy material handling.
Special Environments: Plateau, high‑temperature, and cold‑region projects with reliable performance.
Operation Guidelines
1 Pre‑operation Inspection
Check engine oil, coolant, hydraulic oil, and fuel levels; top up if low.
Inspect tracks, rollers, idlers, and sprockets for wear or looseness; adjust tension as needed.
Check bucket teeth, cutting edges, and pins; replace worn or damaged parts.
Verify cab safety devices (seatbelt, emergency stop), lights, horn, and rear camera.
Inspect hydraulic hoses and joints for leaks; tighten or replace if necessary.
2 Starting & Operation
Enter the cab, fasten seatbelt, adjust seat and mirrors.
Turn key to “ON”, wait 20 seconds for self‑check; confirm no fault alarms.
Press start button; idle 3–5 minutes to warm engine and hydraulics.
Select work mode (Standard/Heavy/Eco) via monitor.
Left joystick: swing upper structure / boom lift/lower.
Right joystick: arm extend/retract / bucket open/close.
Foot pedals control travel direction and speed; avoid sudden acceleration/deceleration.
After work: lower bucket to ground, idle 2 minutes, shut down, remove key, and clean the machine.
3 Safety Notes
Do not exceed rated bucket capacity (3.6 m³) to avoid overload and structural damage.
Do not operate on slopes >35°; avoid turning on slopes.
Keep ≥6 m distance from personnel, vehicles, and obstacles; no one under boom/bucket.
Stop engine and disconnect power before maintenance; hang warning signs.
Avoid operation in heavy rain, strong wind, fog, or thunderstorms.
FAQ
Q1: What is the typical fuel consumption?
A1: Under standard mining conditions, 28–34 L/h (Eco mode: 26–30 L/h). Actual consumption varies with load, environment, and operator habits.
Q2: Can it operate at high altitude?
A2: Yes. Equipped with altitude compensation; stable power up to 5,500 m. Operating temperature range: -25°C to 55°C.
Q3: What is the standard warranty?
A3: 1 year or 2,000 working hours (whichever comes first). Extended warranty (1–3 years) available on request.
Q4: What attachments are compatible?
A4: Standard: 3.2–3.6 m³ rock bucket. Optional: 3.8 m³ general bucket, hydraulic breaker (205/210), grapple, ripper, quick coupler.
Q5: How often is routine maintenance required?
A5:Every 250 hours: Oil & filter change.
Every 500 hours: Hydraulic inspection, track adjustment, lubrication.
Every 2,000 hours: Major service (engine check, hydraulic pump inspection, undercarriage replacement).
Q6: What if hydraulic failure occurs during operation?
A6:Stop engine immediately to prevent further damage.
Check hydraulic oil level and hoses for leaks.
If low oil, refill; if leaking or abnormal noise, do not restart.
Contact professional service for diagnosis and repair.
