Product Introduction

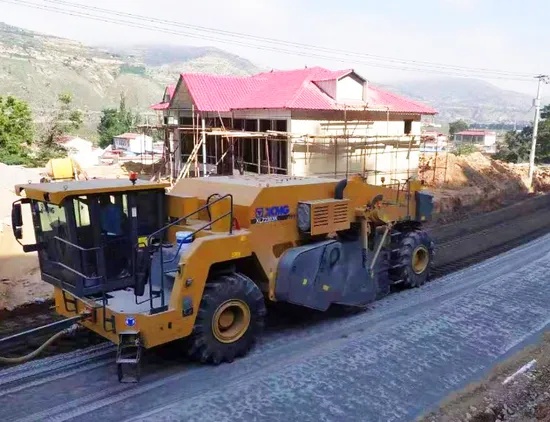

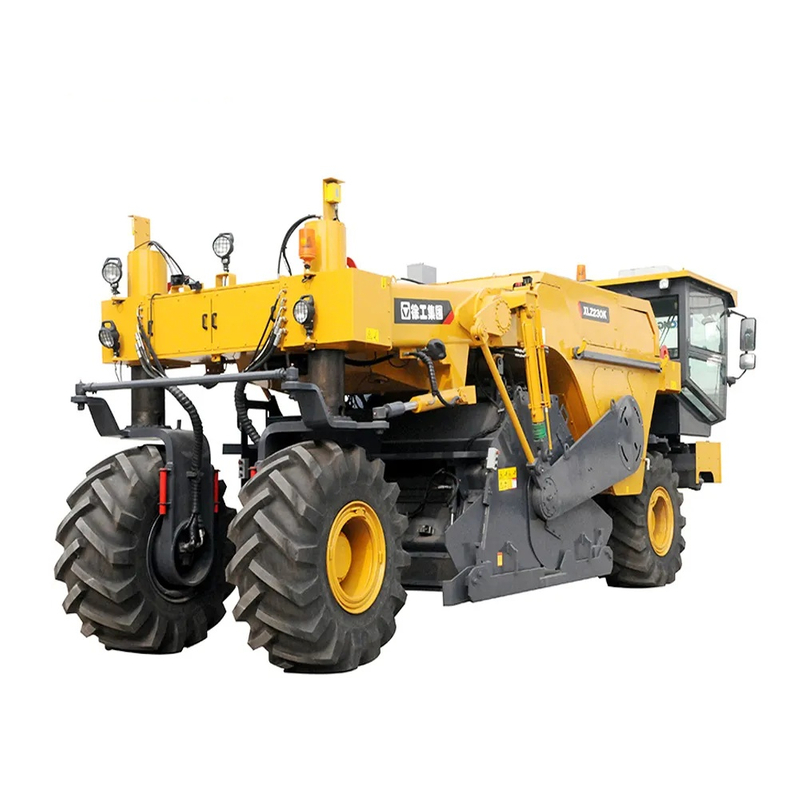

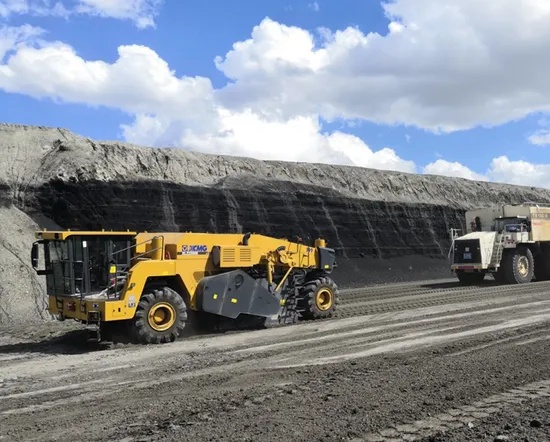

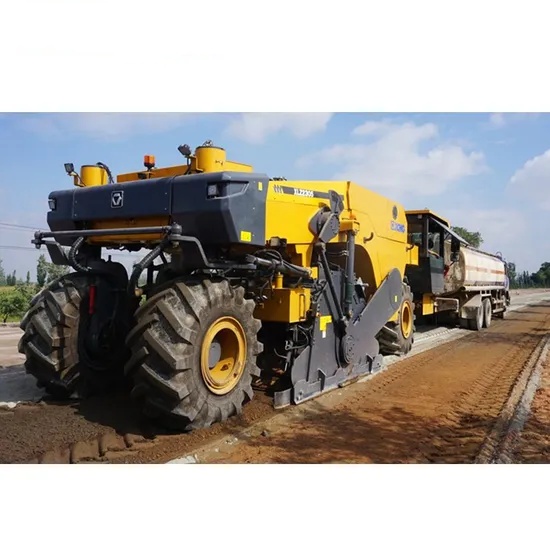

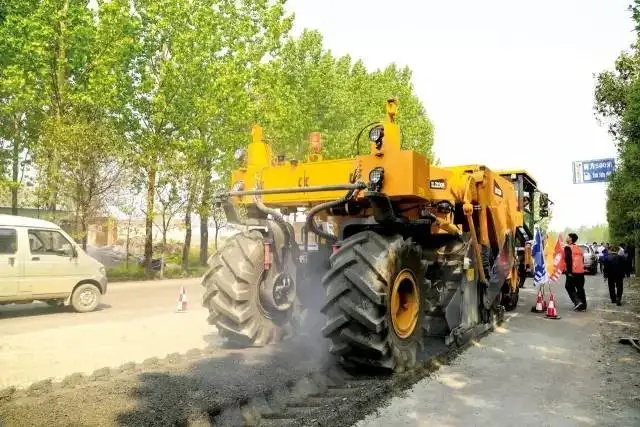

The XLZ2303K is a large-scale, efficient and intelligent complete set of cold recycling equipment for asphalt pavement. The "230" in its model usually indicates that its theoretical working width is 2300mm (i.e., 2.3 meters), and "3K" represents its series and configuration grade. This product is a key piece of equipment in road maintenance and upgrading, mainly used for on-site recycling of old asphalt pavements.
Product Advantage
1. Milling rotor will be driven by two groups of (13) belts of automatic tightening devices, quick-change tool apron rotor getting Xugong patent technology guarantee cutter can be installed and disassembled conveniently, so a worn cutter can be quickly changed, thereby greatly lowering the cutter changing labor intensity, extending the effective working time of the machine and improving working efficiency.
2. Running system has 4 speed governing gears. It has four wheels for running and steering; their low-pressure wide-base big pattern tyres can run stably, with big adhesive force.
3. Sprinkling system has water spraying function; and it can manually and intelligently control the medium spraying volume.
4. Automatic depth control: built-in sensor of hydraulic cylinder is used for detection, and milling depth can be displayed on display.
Technical Parameters
| Item | Unit | XLZ2303K |
| Milling width | mm | 2300 |
| Maximum milling depth | mm | 430 |
| Cutter spacing | mm | 18 |
| Diameter of milling wheel (with cutter) | mm | 1480 |
| Manufacturer |
| Weichai |
| Cooling type |
| Water-cooling |
| Model |
| WP17G700E302 |
| The quantity of cylinder stator |
| 8 |
| Rated power | kW | 515 |
| Engine speed | rpm | 2100 |
| Oil consumption: Full load | kg/h | 111.4 |
| Working speed | km/h | 0-3 |
| Traveling speed | km/h | 0-12 |
| Theoretical gradeability (working gear) | % | 50 |
| Ground clearance | mm | 350 |
| Front axle load | kg | 19500 |
| Rear axle load | kg | 14000 |
| Shipping weight | kg | 33500 |
| Fuel tank | L | 1500 |
| Hydraulic oil tank | L | 320 |
| Water tank | L | 200 |
| Voltage of electric system | V | 24 |
| Machinery(length*width*height) | mm | 9340x3218x3197 |
Product Uses
1. Highway Subgrade Regeneration
The XLZ2303K is equipped with a high-horsepower engine, enabling it to complete subgrade crushing and mixing in a single pass.
2. Urban Road Renovation
The working width is precisely adapted to the lane width of urban roads. The enclosed mixing chamber design effectively controls dust, meeting urban environmental protection requirements.
3. Municipal Square Renovation
The four-wheel steering system flexibly completes square subgrade regeneration, ensuring subgrade quality.
4. Port Road Maintenance
Special corrosion-resistant treatment adapts to coastal high-salt environments, extending equipment lifespan.
5. Parking Lot Reconstruction
Equipped with an intelligent leveling system, it can directly serve as the base for asphalt pavement layers.
Product Operate Guide
1. Check equipment status
Before starting operation, thoroughly check that all functions of the cold recycling machine are working properly, including the engine, transmission system, hydraulic
system, etc.
2. Work environment assessment
Assess the work environment to ensure there are no obstacles or safety hazards.
3. Safety precautions
Ensure that all safety devices (such as safety nets, protective covers, etc.) are installed and in good working order.
4. Personnel Training and Qualifications
Operators must undergo professional training and obtain the necessary qualifications, and be familiar with operating procedures and emergency response measures.
