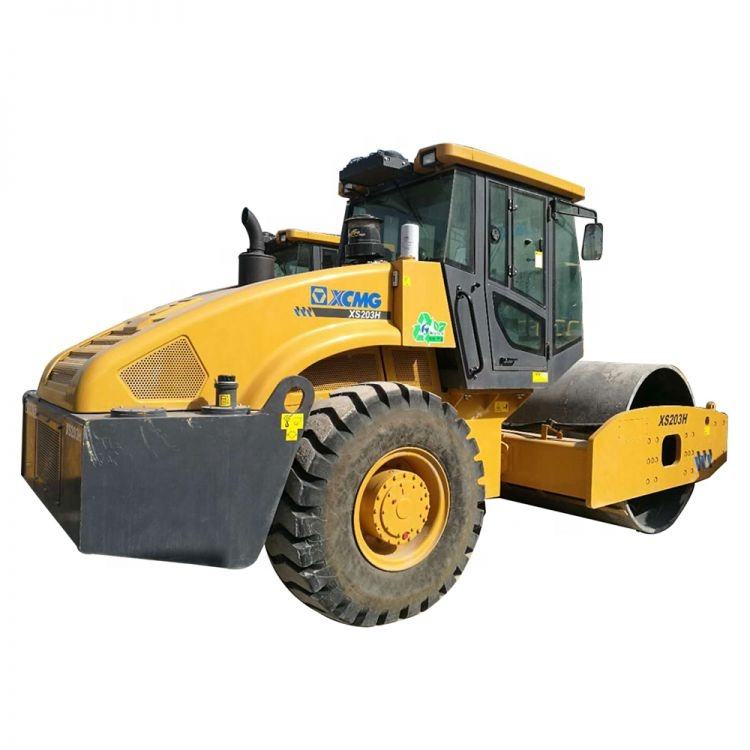

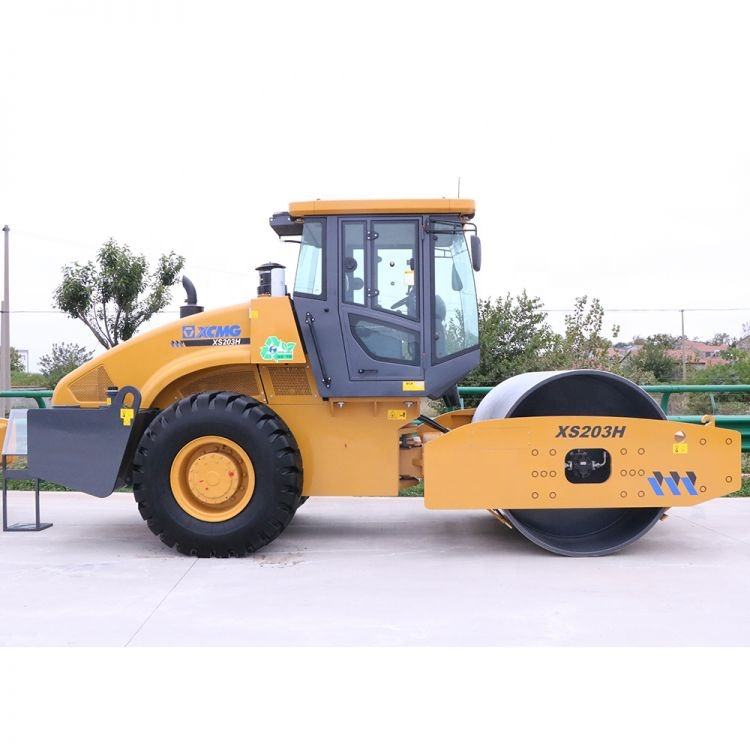

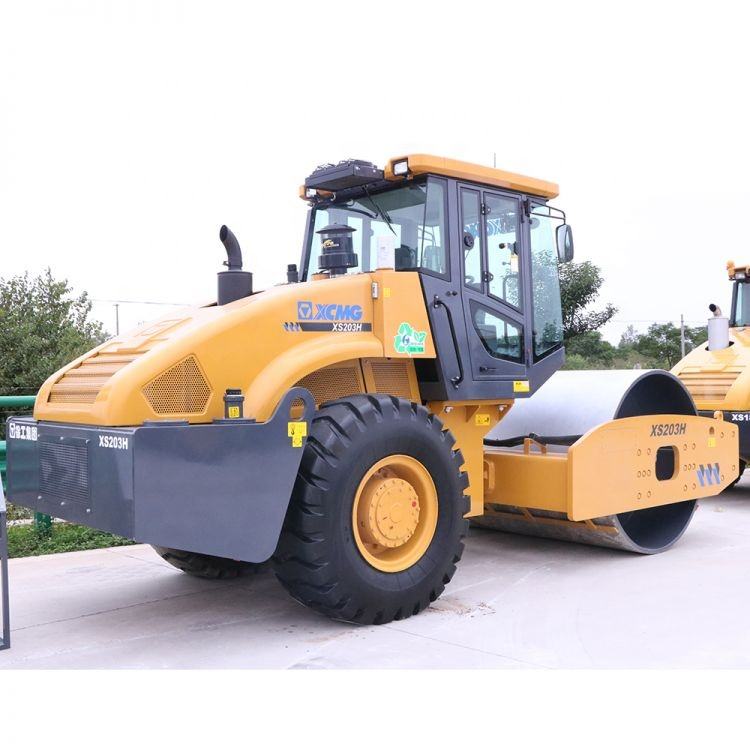

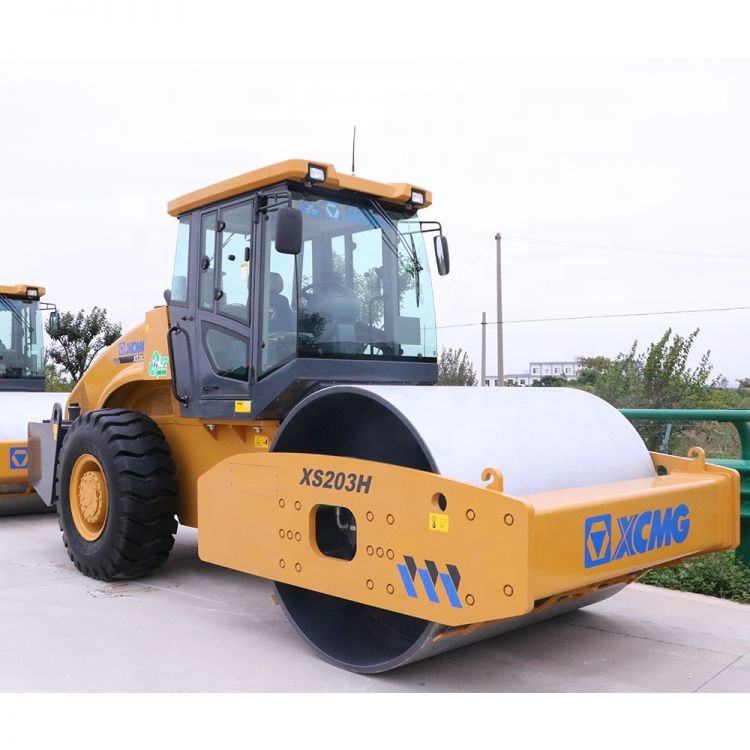

XS203H
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
The overall parameters of the product are reasonably matched. The applied China-III Shangchai 7H electrically controlled high pressure common rail engine, hydraulic damping control technology and hydrostatic transmission technology are used to improve the operating comfort. The "three-in-one" combination technology, optimized transmission system, so that the compaction performance and efficiency can be effectively improved; Three stage braking is adopted to ensure the safety and reliability of the whole machine.
Product Advantage
1. Reasonable matched transmission system achieves the best compaction speed, the operating efficiency is thus increased by 8%.
2. The whole machine adopts three-level braking, service braking, parking braking and emergency braking. After emergency braking, the engine will be flame out and the whole machine is power off, safe and reliable.
3. The vibration damping device with combined stiffness is adopted in the cab and frame, which significantly improves the working comfort of the operator.
4. Scientific and reasonable air duct design, the air conditioning system radiates heat independently to ensure sufficient air intake and improve the heat dissipation ability comprehensively.
Technical Parameters
| Item | Unit | XS203H | |
| Service mass | kg | 20000 | |
| Distributed mass of driving wheel | kg | 10000 | |
| Distributed mass of vibration wheel | kg | 10000 | |
| Static line load | N/cm | 470 | |
| Vibration frequency | Hz | 28/33 | |
| Theoretical amplitude | mm | 1.9/0.95 | |
| Exciting force | kN | 353/245 | |
| Speed range | I | km/h | 0-5.5 |
| II | km/h | 0-8.5 | |
| Wheel base | mm | 3180 | |
| Compaction width | mm | 2130 | |
| Theoretical gradeability | % | 39 | |
| Minimum turn radius | mm | 6500 | |
| Drum diameter | mm | 1600 | |
| Minimum ground clearance | mm | 440 | |
| Engine | Rated speed | r/min | 2200 |
| Rated power | kW | 140 | |
| Overall dimension (length x width x height) | mm | 6220*2430*3200 | |
Product Uses
1. Layered compaction of cement-stabilized layers during highway and municipal maintenance and replacement construction; compaction of asphalt concrete at the edges and corners of ditches and wells.
2. Compaction operations in areas where large rollers cannot operate during the backfilling of structures such as culverts, passages, and bridge abutments in highway construction.
3. Compaction of access roads and pedestrian pathways in municipal landscaping, residential community landscaping, and golf course construction.
4. Other construction sites with narrow access and sensitivity to the weight of compaction equipment, where flexible and efficient compaction work can be completed.
Product Operate Guide
Pre-operation Preparation
1. Inspect all working mechanisms and fastening components to ensure they are in good condition.
2. Start the engine and conduct a test run to confirm normal operation, ensuring that braking, steering, and other working mechanisms function properly.
The roller may then proceed with operations.
3. For tire rollers, adjust the tire pressure to the specified operating pressure range, and ensure that the tire pressure of all tires on the roller is consistent.
4. Adjust the operating line pressure of the roller to the specified value by adding or removing counterweights.
5. For initial compaction of soft subgrades and mountainous sections, the construction site must be inspected before operation to confirm safety before the roller can enter the work area.
