XCT80L5
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

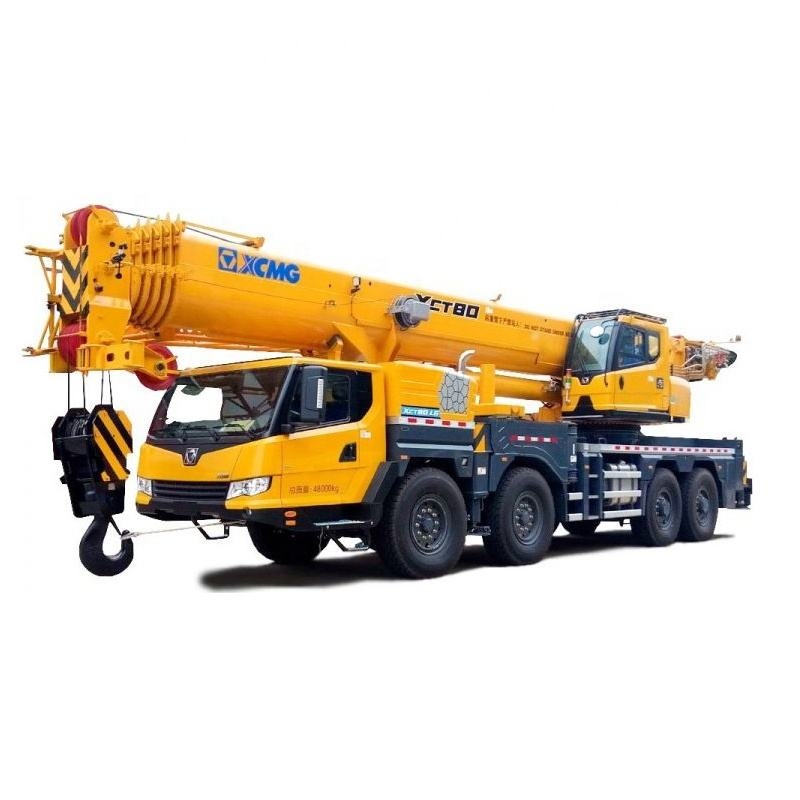

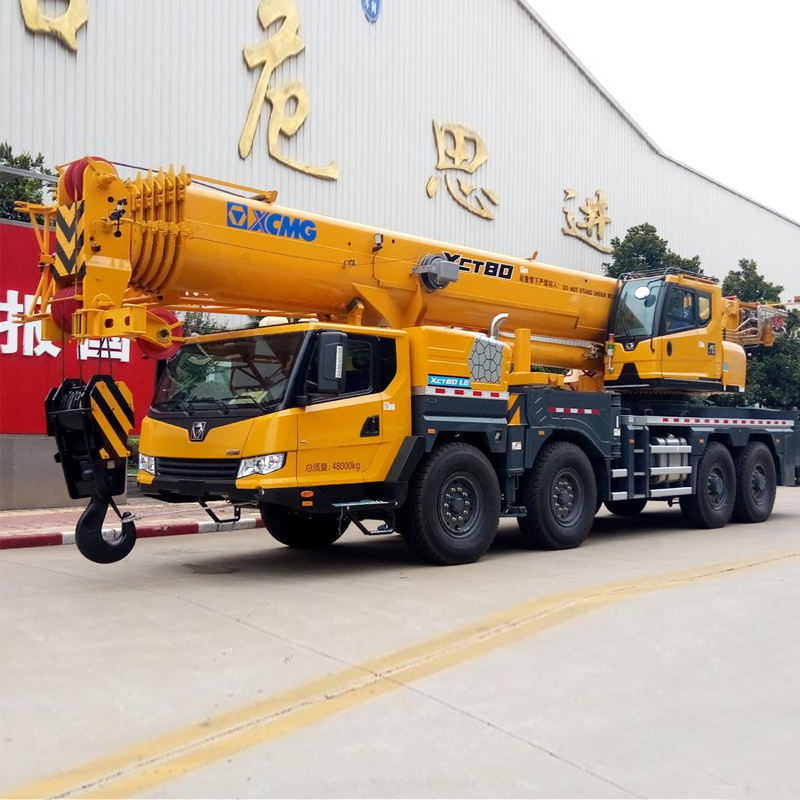

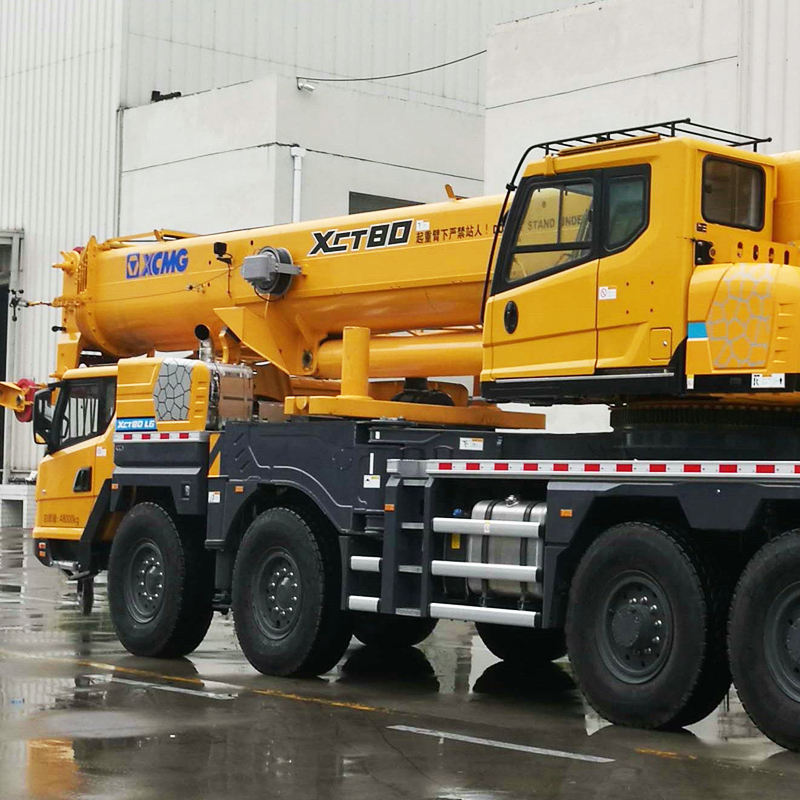

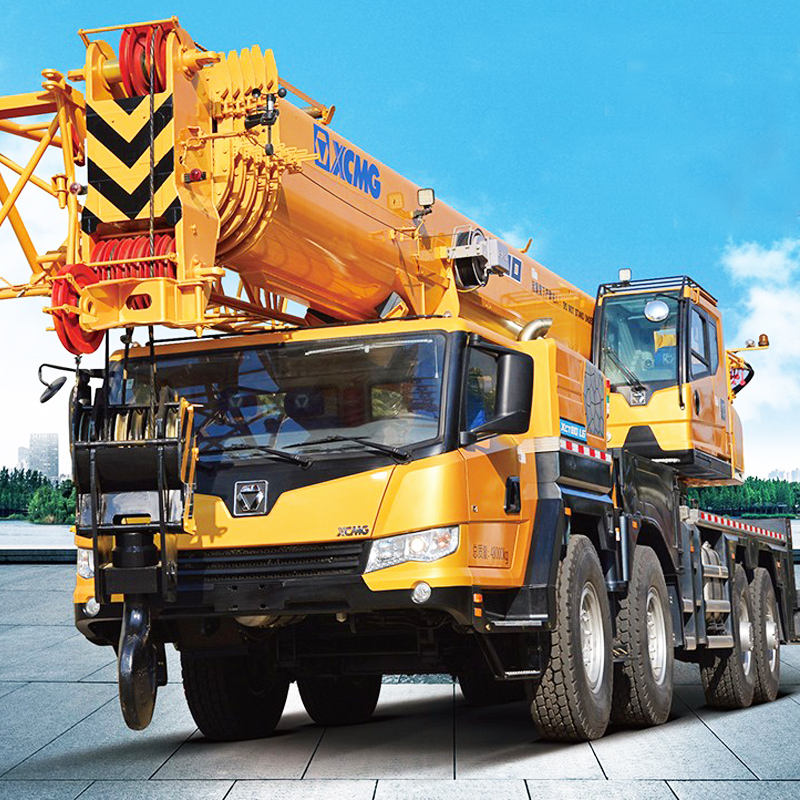

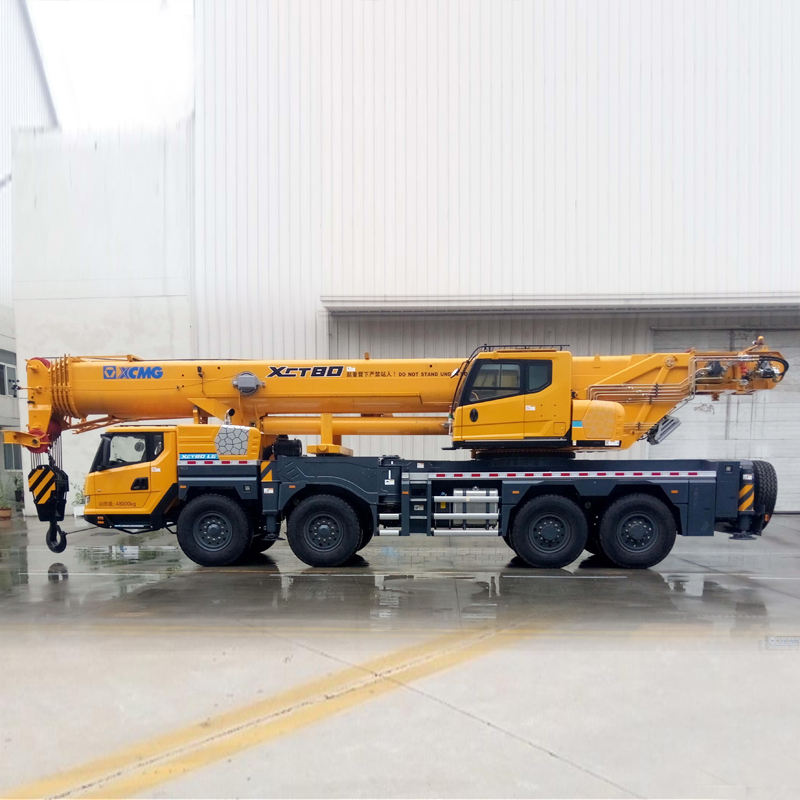

The machine we are selling is XCT80L5 80TONS, the machine is an original machine, the condition of the machine is very good, the machine is in stock, can be traded directly.It has high lifting height, powerful lifting capacity and high working efficiency. It is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
Product Advantage
1. Powerful lifting performance and excellent travelling performance
2. High working efficiency and convenient switchover in different working modes
3. Brand new motive power platform provides powerful motive force and fuel economy
4. K-shape outrigger layout contributes to good operation stability
5. Stable operation and fine inching control
6. All-around safety and protection design guarantees safety
7. Brand new exterior and overall humanized design
Technical Parameters
| Description | Unit | Parameter value | |
| Overall length | mm | 15000 | |
| Overall width | mm | 2750 | |
| Overall Height | mm | 3990 | |
| Wheel Base | mm | 2000+4000+1350 | |
| Track | mm | 2353/2353/2063/2063 | |
| Total vehicle mass in travel configuration | kg | 50000 | |
| Axle load | kg | 12000/12000/13000/13000 | |
| Engine rated power | kw/(r/min) | 297/1900,297/1900 | |
| Engine rated torque | N.m/(r/min) | 1900/1000-1400,1907/1000-1400 | |
| Max. travel speed | km/h | ≥90 | |
| Min. travel speed | km/h | 2.5~3 | |
| Min. turning diameter | m | ≤24 | |
| Min. ground clearance | mm | 303 | |
| Max. grade ability | % | 47 | |
| Approach angle | ° | 20 | |
| Departure angle | ° | 14 | |
Product Uses
1. Material Lifting in Mining Quarries
The XCT80L5, with its 80-ton load capacity and durable construction, handles diverse heavy-duty lifting tasks in mining quarries, such as transporting and hoisting large stone blocks. Its stable chassis and structural design, coupled with multiple safety features (including overload protection and rollover protection), ensure safe operation in complex and variable environments.
2. Wind Turbine Installation Support Operations
This equipment is a common auxiliary hoisting solution for wind turbine installations under 3MW in China, earning it the reputation as the “standard configuration for wind power support.” It features rapid boom extension and is the only truck crane in its class utilizing an off-road chassis, offering exceptional adaptability in mountainous terrain. It efficiently handles tasks including tower section lifting, rotor tail handling, main crane boom and counterweight transportation for wind turbines.
3. Bridge Construction and Factory Equipment Installation

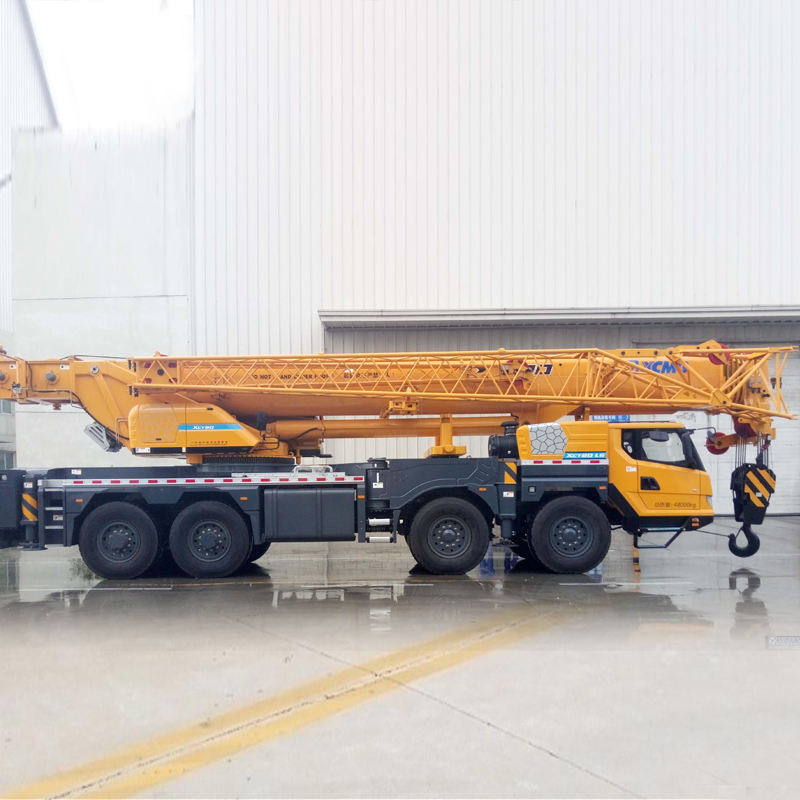

The XCT80L5 features a fully extended main boom length of 50.5 meters and comes standard with a 17.5-meter fixed jib. Its 5-section single-plate jib head design and dual-cylinder rope-row telescoping mechanism deliver industry-leading operational efficiency in high-frequency applications such as bridge construction over 30 meters and factory equipment installation.
4. Municipal Transportation and Urban Renewal Projects
This crane is widely deployed in construction sites, urban renewal, telecommunications, transportation, and other general engineering projects across complex environments. Its fully hydraulic telescopic multi-section boom provides an extended working radius range, adapting to diverse challenging conditions. The K-type outrigger design enhances load-lifting capabilities at the front and front-side positions.
5. Ports, Oilfields, and Other Complex Environments
The XCT80L5 is suitable for diverse applications including ports and oilfields. Its design withstands rainy, high-temperature, and humid conditions, enabling continuous operation without shutdowns. Flexible operation modes and boom configurations meet diverse customer requirements.
Product Operate Guide
Before operation, check that the outriggers are fully extended and ensure the ground is solid. Keep the crane level during operation and never overload it. Extend and retract the boom smoothly, maintaining a safe distance from surrounding obstacles. Rotate slowly and steadily, avoiding abrupt stops or turns. Regularly inspect the wire rope for wear. After completing work, retract the boom, secure the hook, and maintain daily equipment maintenance records.
FAQ
1. ENGINE FAN AIRFLOW FEELS WEAK?
Check if the fan clutch has failed, or if the motor/pump for the hydraulically driven fan is malfunctioning.
2. BROKEN TIRE BOLTS?
Improper tightening sequence or torque settings caused uneven stress distribution, or loose wheel bearings leading to wheel vibration.
3. WINDSHIELD WIPERS ONLY OPERATE AT HIGH SPEED?
Damaged low-speed contacts in the wiper switch assembly or related wiring faults.
4. PUMP NOISE SIGNIFICANTLY INCREASES WHEN THE EXCAVATOR BUCKET CYLINDER REACHES ITS LIMIT POSITION?
Normal. At this point, system pressure reaches the relief valve set point, causing the pump to operate in high-pressure bypass mode with maximum load.
5. BLACK GUMMY SUBSTANCE AT THE BOTTOM OF THE DIESEL FILTER?
Poor diesel quality containing gum, or corrosion coating peeling off the fuel tank interior.
6. HOW TO DETERMINE IF HYDRAULIC OIL NEEDS REPLACEMENT?
Simple method: Place a drop of old oil on filter paper. If the black spot at the center has a clearly defined boundary with the outer diffusion ring, it indicates high impurity levels and requires replacement.
