Product Introduction

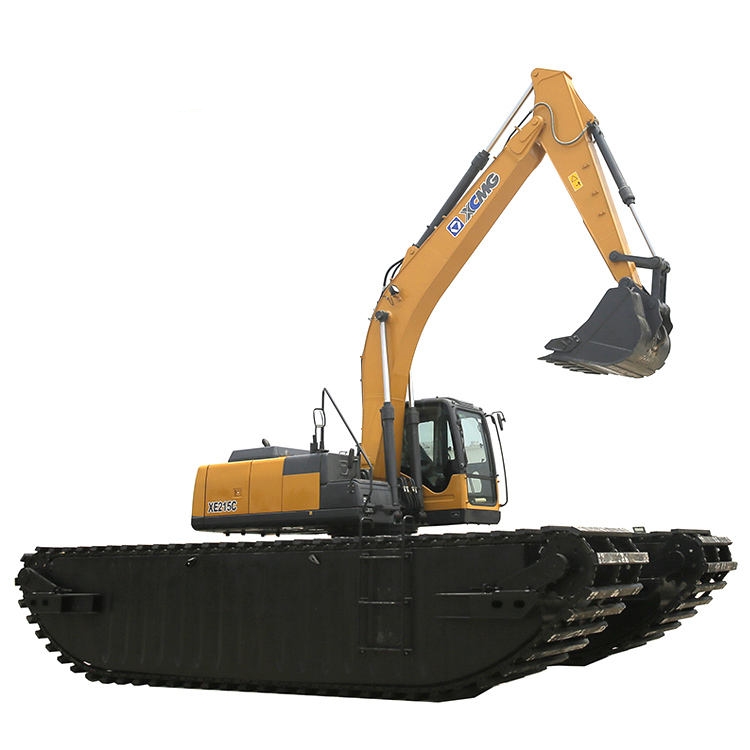

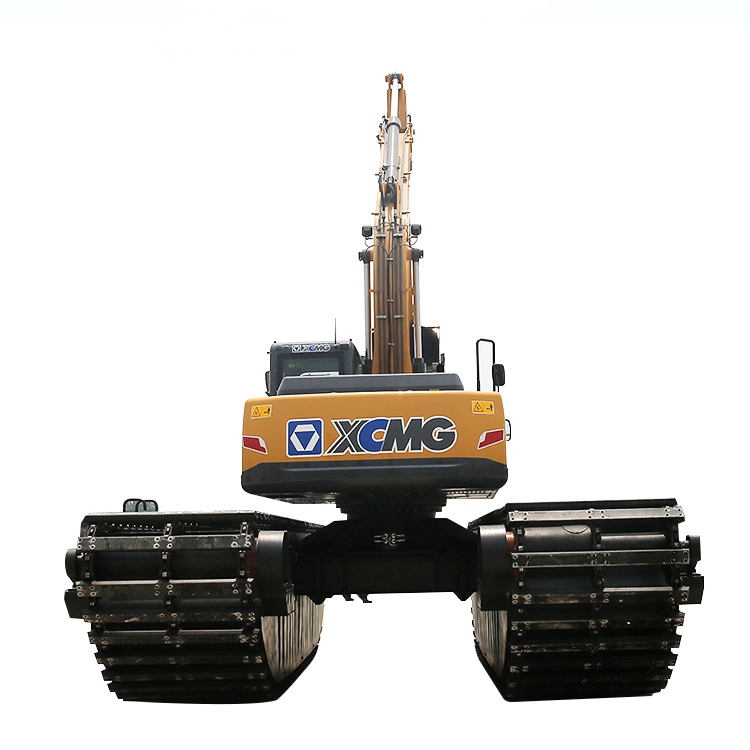

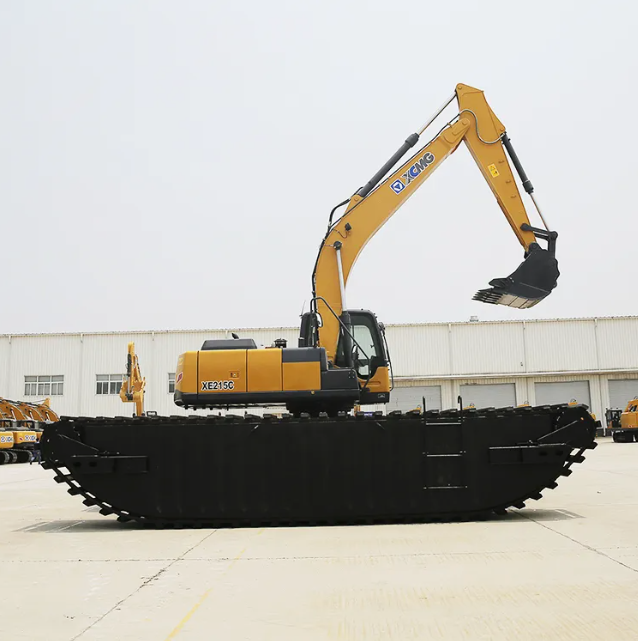

The XE215S is an amphibious excavator designed for special operating conditions, with a total operating weight of 46.5 tons, a rated bucket capacity of 0.98 m³, and a rated power output of 106.5 kW at 1,950 rpm. It is widely used in river dredging, waterway management, wetland embankment construction, and other projects, and is particularly suitable for playing a crucial role in resource development and environmental remediation operations in rivers, lakes, seas, and tidal flats.
Product Advantage

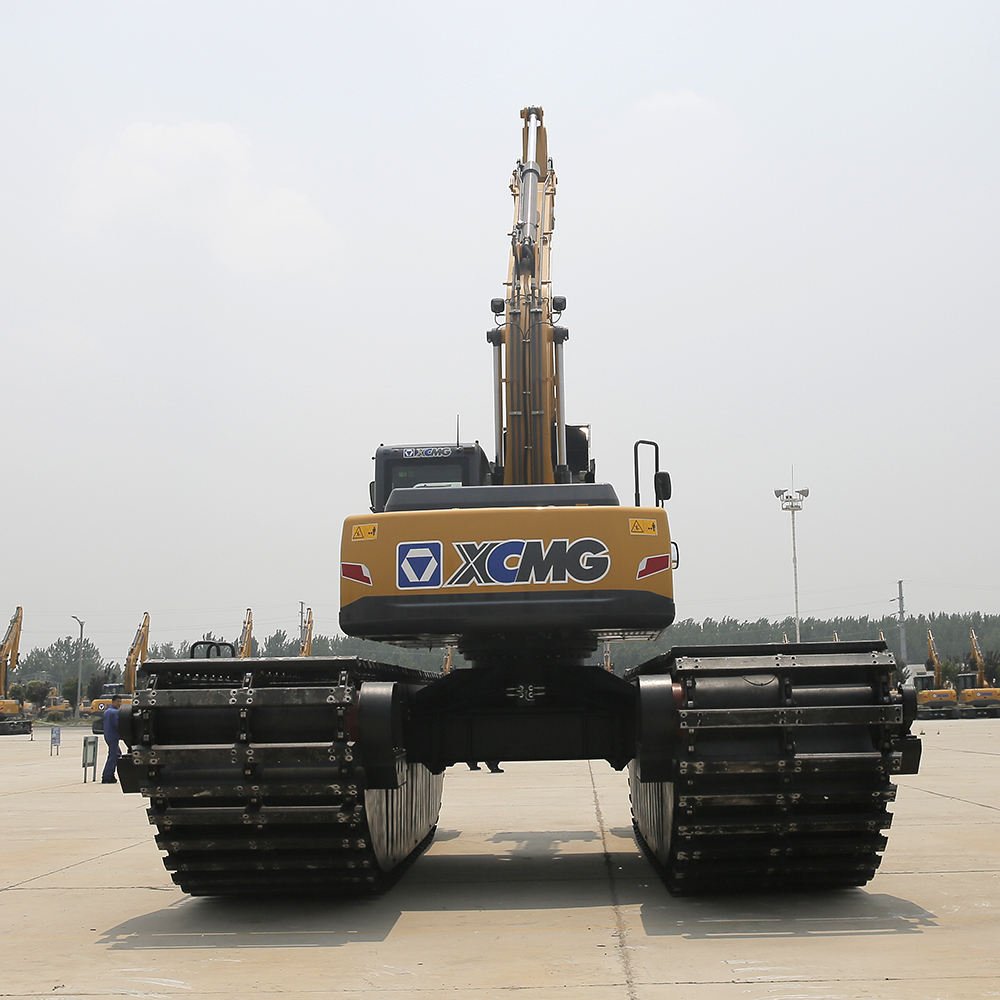

The XE215S's original imported engine and hydraulic system ensure high work efficiency and reliability. The sealed box-type walking device provides approximately five times the ground contact area of a conventional excavator, enabling it to adapt to extremely soft ground, wetlands, and marshes. Three rows of walking chains ensure safe and stable movement in water.
Technical Parameters
| Operating weight |
34260kg |
| Bucket capacity |
0.93m³ |
| Engine |
Model |
CC-6BG1TRP-08 |
| Max.Rated power |
128.5kw/2100rpm |
| Max.Torque |
551N.m/1600rpm |
| Displacement |
6.494L |
Main
technical
parameter |
Speed |
3.2km/h |
| Slewing speed |
13.3r/min |
| Gradeability |
49%(26°) |
| Ground pressure |
13.7KPa |
| Buet digging force |
149KN |
| Arm digging force |
111KN |
| Max.Traction force |
189KN |
| Hydraulic system |
Main pump flow |
2×206L/min |
| Main safety valve pressure |
34.3/37.0MPa |
| Walking system pressure |
34.3MPa |
| Slewing system pressure |
28MPa |
| Pilot system pressure |
3.9MPa |
Tank
capacity |
Fuel tank |
360L |
| Hydraulic tank |
220L |
| Engine tank |
25L |
| Dimension |
Overall length |
11335mm |
| Overall width |
5768mm |
| Overall height |
3925mm |
| Turntable width |
2710mm |
| Track shoe length |
9425mm |
| Carrier ovarall width |
5768mm |
| Tumblers distance |
8528mm |
| Track gauge |
3640mm |
| Pontoon width |
1500mm |
| Pontoon height |
1800mm |
| Pontoon length |
9425mm |
| Counterweight ground clearance |
1990mm |
| Min.Ground clearance |
1030mm |
| Rear slewing radius |
2728mm |
Operating
range |
Max.Digging reach |
10595mm |
| Max.Dumping reach |
7710mm |
| Max.Digging depth |
5745mm |
| 8-inch horizontalplane digging depth |
5560mm |
| Max.Vertical diggingdepth |
4790mm |
| Max.Digging radius |
9950mm |
| Min.Slewing radius |
3530mm |
Product Uses

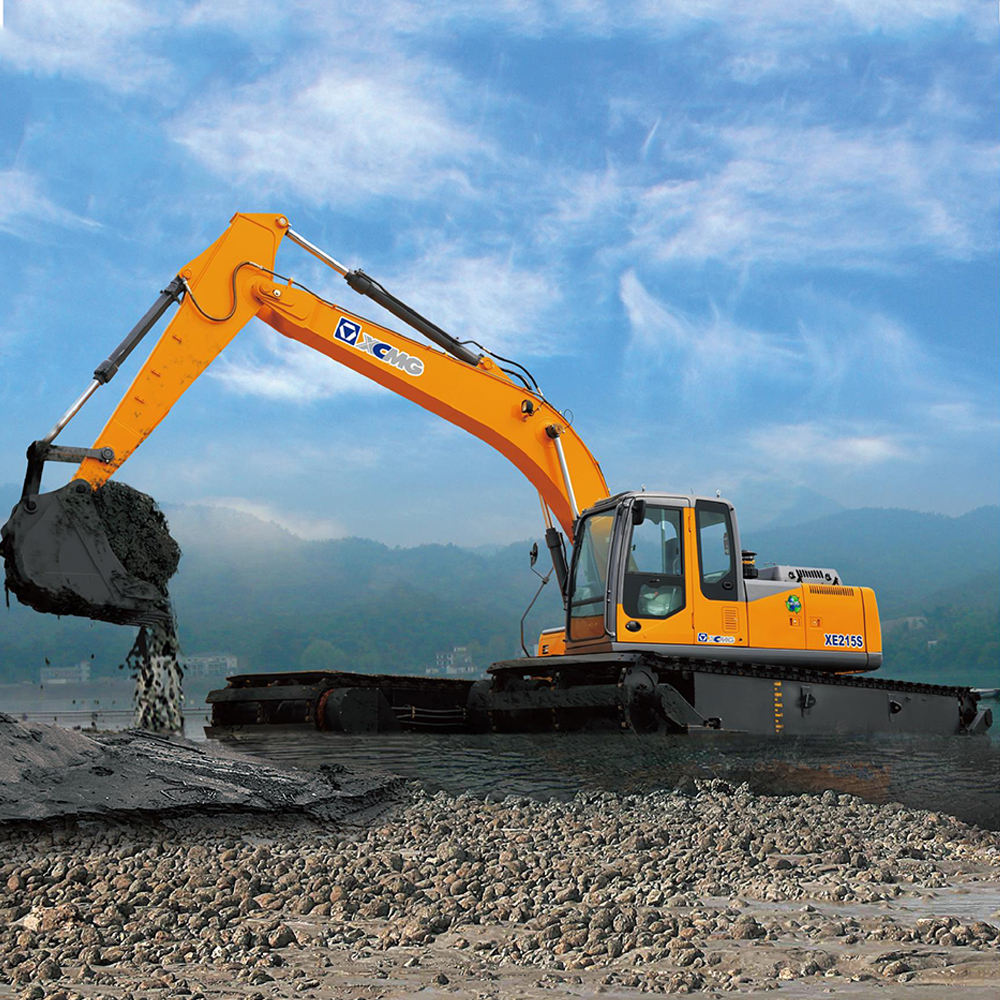

1. River Dredging and Waterway Management
The XE215S is ideal for river dredging, channel widening, and embankment reinforcement operations. Its waterborne floating capability (thanks to its sealed float box design) and three-row walking chains ensure safe movement and stable operation in deep water areas or muddy conditions, effectively removing sediment, improving water quality, and preventing floods.
2. Wetland and Marshland Construction
In extremely soft ground conditions such as wetlands and marshes, the XE215S performs exceptionally well. Its sealed box-type walking mechanism provides approximately five times the ground contact area of conventional excavators, resulting in extremely low ground pressure. This effectively prevents machine sinking, ensuring safe operation in fragile ecosystems for tasks such as wetland embankment construction and ecological restoration.
3. Tidal Flat Resource Development and Environmental Remediation
The XE215S is widely used in resource development and environmental remediation projects along rivers, lakes, and coastal areas. It can handle the complex mud and tidal conditions of tidal flats, performing resource excavation, site leveling, and environmental cleanup work to support sustainable development.
4. Emergency Rescue and Disaster Relief
In emergency situations such as floods, the XE215S's amphibious capabilities enable it to swiftly engage in rescue and disaster relief operations, such as plugging breaches, clearing river obstructions, and constructing temporary embankments, providing critical support to safeguard public safety and property.
Product Operate Guide
Before operation, thoroughly inspect the overall machine for leaks and check the condition of the float tank. After startup, idle the engine for preheating. Special Note: Before underwater operations, ensure the water depth is below the warning line and activate “Water Operation Mode.” The left/right control levers control movement and working equipment, respectively. When operating in mud or water, move slowly and smoothly. After exiting the water, immediately rinse the equipment with clean water to prevent corrosion. Regularly inspect the float tank seals and chain tension. Always monitor the water surface environment to avoid potential obstacles.
FAQ
1. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the price from manufacturers/factories.
2. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
3. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
4. SENSOR READINGS INACCURATE OR NO SIGNAL?
First check the sensor's power supply, grounding, and signal wire connections for integrity; only then inspect the sensor itself.
5. DIM OR NO LIGHTING?
Inspect the bulb, socket, relevant fuses, relays, wiring connections, and grounding.
6. HORN NOT SOUNDING OR PRODUCING A MUFFLED SOUND?
Check the horn itself, horn relay, pushbutton switch, and wiring.
