What Is an Electric Mining Dump Truck and How It Works

An electric mining dump truck is a heavy-duty open-pit haulage vehicle that utilizes electric traction motors—powered either by onboard high-energy battery banks, dynamic trolley lines, or a high-output diesel-generator set—to drive wheel-side planetary gearboxes, delivering instant torque, high thermal efficiency, and dynamic regenerative braking during heavy payload transport.

At a Glance

What Is an Electric Mining Dump Truck?

An electric mining dump truck is an ultra-class heavy haulage machine engineered with an electric powertrain, where electrical energy drives wheel-side traction motors directly or via planetary reduction assemblies, replacing multi-speed mechanical transmissions and drive shafts.

Unlike standard highway trucks or small construction tippers, an electric dump truck engineered for mining operates under extreme gross vehicle weight (GVW) parameters, often exceeding 500 metric tons. The core architecture relies on an integrated power loop. In hybrid diesel-electric variants, a large-displacement industrial engine drives a high-efficiency AC synchronous alternator. In battery-electric haulers, high-voltage lithium iron phosphate (LFP) or nickel manganese cobalt (NMC) packs supply direct current (DC) to power electronics. In both configurations, the mechanical transmission, torque converter, and driveshaft are completely eliminated. This structural design reduces mechanical friction losses, eliminates high-wear clutch assemblies, and allows precise software-controlled torque distribution across individual wheels.

From an operational standpoint, these haulers are tailored for high-intensity, continuous mining operations in hard-rock open pits, iron mines, and coal basins. Eliminating traditional gear shifts enables smooth, step-less acceleration from rest under full payload conditions. The structural frame is fabricated from high-strength alloy steel box-sections designed to absorb intense torsional loads imposed by loading shovels and rough pit haul roads. High-capacity hydraulic hoist cylinders elevate the heavy-duty steel dump body to discharge material quickly, maintaining rapid cycle times across multi-shift production days.

Operational Maintenance Tip: When managing an electric haulage fleet, always inspect the liquid-cooling heat exchangers and deionized coolant loops for the power electronics monthly; maintaining dielectric fluid purity prevents insulated-gate bipolar transistor (IGBT) thermal throttling during continuous ramp climbs under full payload.

How Do Electric Mining Dump Trucks Work?

An electric mining dump truck works by taking high-voltage electrical energy from an onboard battery, fuel cell, or diesel-generator set, converting it through variable frequency inverters, and feeding precise three-phase alternating current to wheel-mounted electric motors.

The working principle centers on electromagnetic torque generation rather than mechanical gear ratios. When the operator depresses the accelerator pedal, the master control unit (MCU) interprets the signal and commands the variable frequency drive (VFD) to adjust output frequency and voltage. The inverter converts direct current from the DC bus into precise three-phase alternating current. This current flows into the stator windings of the AC traction motors, creating a rotating magnetic field. The rotor responds instantly to this field, producing high starting torque without the lag associated with hydraulic torque converters.

During downhill haulage or slowing phases, the control system reverses the torque loop. The vehicle's momentum drives the wheel motors, transforming them into electrical generators. This process creates retard force that slows the vehicle while producing electrical power. Depending on the machine configuration, this energy is routed back into the onboard battery bank or dissipated across blown grid resistors. The entire drive cycle is governed by CAN-bus microcontrollers that monitor wheel speed, throttle position, steering angle, and payload mass thousands of times per second.

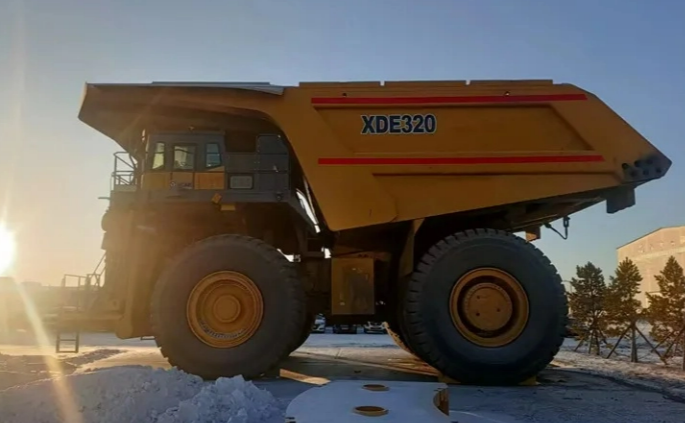

In extreme payload applications, such as the 320 Ton AC Drive Rigid Mining Dump Truck XDE320, this work cycle handles a gross vehicle weight exceeding 510,000 kg with dynamic efficiency.

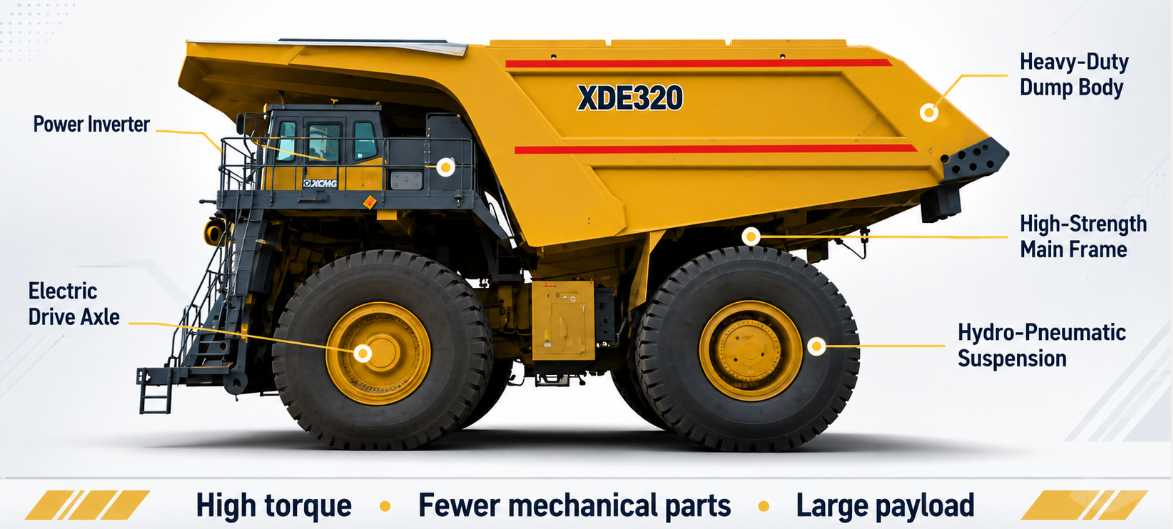

Electric Motors and Power Delivery

The power delivery system in an electric dump truck relies on dual AC induction or permanent magnet synchronous motors directly mounted inside or adjacent to the rear drive wheels. AC drive technology offers distinct advantages over older DC systems, including higher power density, brush-free operation, and lower thermal degradation.

Power output from the traction motors passes through a heavy-duty two-stage or single-stage planetary gear reduction inside the wheel hub. This gear multiplication converts high motor RPM into massive rim-pull torque required to launch fully loaded trucks up steep pit ramps. Because each rear wheel is driven by an independent motor, the central controller acts as an electronic differential. By dynamically modulating torque to the left and right wheels based on real-time traction feedback, the vehicle prevents tire slippage on soft haul roads, drastically reducing tire tread wear and improving directional stability.

Battery Systems and Energy Management

Modern battery-electric mining trucks utilize high-capacity lithium-ion chemistry packaged into heavy-duty, shock-resistant battery enclosures. The Battery Management System (BMS) continuously monitors individual cell voltages, state of charge (SoC), state of health (SoH), and internal temperatures to prevent thermal runaway.

Energy management algorithms balance power distribution between the traction circuit, hydraulic steering pumps, body hoist systems, and auxiliary cooling fans. Liquid thermal management loops run continuously through the battery packs, circulating glycol-water mixtures through chillers to keep cells within an optimal operating window of 25°C to 35°C, even in harsh desert or arctic mine environments.

When integrating an ultra-class machine like the 320 Ton AC Drive Rigid Mining Dump Truck XDE320 into zero-emission mine designs, energy management also includes dynamic trolley-assist connectivity. Connecting to overhead pantograph lines on main haul ramps allows the vehicle to bypass battery draw completely, climbing at higher speeds while simultaneously fast-charging onboard storage systems.

Regenerative Braking Technology

Regenerative braking is a crucial feature of electric haulage architecture. When descending steep mine gradients under full payload, the traction motors are commanded into generator mode, applying negative torque to the rear drive wheels.

This process transforms kinetic energy into high-voltage electrical energy. In full battery-electric trucks, this current passes through the dual-direction inverter to recharge the battery bank, recovering up to 30% of the energy expended during the uphill climb. In diesel-electric haulers, excess energy beyond battery absorption limits is diverted to a blown grid resistor pack mounted above the deck, where high-capacity electric blowers dissipate the energy thermally. This dynamic electric retarding handles up to 90% of all braking requirements, keeping mechanical wet-disc brakes cool and reserving them strictly for emergency stops and park holding.

Automation and Control Integration

The digital control unit of a modern electric dump truck acts as the central brain, seamlessly interfacing propulsion, steering, braking, and telemetry. Built-in drive-by-wire capability allows direct integration with Autonomous Haulage Systems (AHS).

Using high-precision RTK-GPS, millimeter-wave radar, and 360-degree LiDAR arrays, the automated control system executes pre-programmed haul routes, spot loading at the shovel, and precise backing at the crusher or waste dump. Because electric drive systems respond instantly to digital CAN-bus commands without gear-shift delays, autonomous software can control vehicle speed and path alignment within millimeter accuracy, maximizing cycle consistency and preventing mechanical stress from driver error.

Benefits of Using Electric Mining Dump Trucks in Your Fleet

Using electric mining dump trucks yields significant benefits, including up to 100% reduction in direct tailpipe emissions, 30% to 50% lower fuel and energy costs, simplified drivetrain maintenance, and improved operator safety through lower cab noise and vibration.

Mine operators evaluating fleet upgrades analyze performance through total cost of ownership (TCO) and tons-moved-per-hour metrics. Upgrading from conventional diesel-mechanical haulers to advanced electric-drive platforms addresses environmental regulations and core site productivity.

Environmental and Regulatory Advantages

The mining sector faces tightening regulatory frameworks regarding carbon footprints and particulate matter emissions. Traditional multi-thousand-horsepower diesel engines consume hundreds of liters of fuel per hour, releasing massive quantities of carbon dioxide, nitrogen oxides (NOx), and diesel particulate matter (DPM).

1. Zero Direct Tailpipe Emissions: Full battery-electric haulers generate zero local emissions, aiding compliance with regional environmental mandates and corporate net-zero targets.

2. Reduced Ventilation Costs in Deep Underground Pits: In semi-enclosed or deep pit operations, removing diesel exhaust reduces the power demand placed on surface ventilation fans.

3. Decibel and Noise Reduction: Electric powertrains operate significantly quieter than high-displacement diesel engines, lowering environmental noise impacts on surrounding communities.

Operational Efficiency and Cost Savings

From a financial perspective, the higher initial capital expenditure (CapEx) of an electric dump truck is typically offset by operational expenditure (OpEx) savings over its working lifecycle.

1. Energy Cost Optimization: Electricity sourced from grid connections or site solar installations costs significantly less per kilowatt-hour equivalent than refined diesel fuel delivered to remote mine sites.

2. Superior Ramp Speed under Payload: Electric motors deliver constant horsepower across a wider speed range. When loaded trucks ascend steep 10% to 12% ramp gradients, electric platforms maintain higher continuous haul speeds than mechanical trucks bound by gear ratios.

3. Reduced Maintenance Overhead: By eliminating torque converters, multi-speed transmissions, drive shafts, and mechanical differentials, technicians spend fewer hours performing fluid changes, filter replacements, and transmission overhauls.

Safety and Operator Comfort

Operator fatigue directly correlates with site safety incidents. Electric drive haulage provides a smoother, quieter operating environment inside the cab.

1. Reduced Cabin Noise and Vibration: The absence of a high-RPM combustion engine lowers sound pressure levels inside the cab to below 75 dB(A), minimizing operator stress over 12-hour shifts.

2. Precise Low-Speed Maneuvering: Stepless electric drive control allows fine movements when positioning under shovels, reversing into dump pockets, or navigating tight pit turns.

3. Advanced Active Safety Integration: Systems like the safety architecture on the 320 Ton AC Drive Rigid Mining Dump Truck XDE320 feature integrated ROPS/FOPS certified cabs alongside 360-degree camera arrays, millimeter-wave radar, and multi-redundant braking logic to maximize site safety.

Operational Design Insight: Why do our mining engineers favor rigid-frame AC electric drive architectures over mechanical drive trains for high-tonnage applications? European and global Tier-1 mining clients prioritize continuous ramp speed under load and extended component life. Removing mechanical gears eliminates shock loads transferred through the chassis during shifts, extending frame fatigue life beyond 60,000 operational hours.

Electric Mining Dump Trucks vs. Diesel: A Comparative Analysis

Compared to diesel haulers, electric mining dump trucks deliver higher energy conversion efficiency (up to 85% vs. 35%), faster continuous speed on steep grade climbs, lower maintenance requirements, and lower overall cost-per-ton haulage.

To assist fleet managers in technical evaluation, the following comparison highlights key operational metrics between conventional diesel-mechanical trucks and electric-drive mining haulers.

Performance Metrics

Electric powertrains outperform mechanical systems in energy efficiency and power application. Internal combustion engines waste roughly 65% of input fuel energy as heat, whereas battery-electric systems convert 80% to 90% of stored electrical energy directly into rim-pull force at the wheels.

1. Continuous Ramp Climb Performance: Diesel engines must operate within specific RPM power bands, requiring transmission gear shifts that break momentum on incline ramps. An electric dump truck delivers continuous, smooth torque, maintaining higher average ramp speeds.

2. Thermal Dissipation: Electric drive haulers handle braking thermally via blown resistor grids or energy storage, protecting mechanical braking systems from heat fading during long downhill runs.

Cost Considerations

While initial procurement costs for an electric dump truck platform and supporting charging infrastructure are higher, long-term operational savings alter the financial calculus.

1. Fuel/Power Expenditures: Electricity costs per ton-kilometer moved are typically 40% to 60% lower than diesel costs, protecting mine operations from oil price volatility.

2. Component Lifecycle Extension: Electric traction motors routinely achieve 20,000 to 30,000 operating hours between major overhauls, whereas diesel engines require costly rebuilds every 12,000 to 15,000 hours.

Operational Suitability

Choosing between battery-electric, diesel-electric hybrid, or pure mechanical haulage depends on site infrastructure, haul road geometry, and local power grid availability.

1. Haul Route Profiles: Sites with long downhill loaded runs favor full battery-electric trucks equipped with regenerative braking, as generated power recharges onboard batteries for the return trip.

2. Extreme Climate Resilience: Both platforms require specialized thermal packages, but battery-electric haulers rely on active liquid heating loops to maintain power output in severe freezing conditions.

Conclusion

The mining industry's transition toward an electric dump truck architecture represents a permanent shift in heavy surface haulage engineering. By replacing complex mechanical gearboxes with high-efficiency AC drive technology, liquid-cooled power electronics, and intelligent energy management, these haulers deliver higher ramp speeds, lower maintenance overhead, and reduced cost-per-ton transportation. Whether operating as diesel-electric hybrids, trolley-assist configurations, or fully autonomous battery-electric units, modern electric haul trucks provide open-pit operations with a scalable path toward lower operating costs and improved haulage productivity.
