What is a hydraulic excavator? understanding its working and benefits

A hydraulic crawler excavator is a heavy-duty industrial construction vehicle engineered with a continuous tracked undercarriage, a 360-degree rotating upper structure, and an articulated hydraulic arm designed for high-capacity digging, material handling, and demolition. By utilizing a high-pressure hydraulic crawler excavator, industrial operators achieve optimal tractive effort, superior terrain adaptability, and massive breakout forces necessary for large-scale infrastructure and mining operations. This highly advanced hydraulic crawler excavator integrates sophisticated hydraulic circuitry with powerful diesel engines to maximize site productivity while minimizing operating overhead.

At a Glance

What is a Hydraulic Excavator?

A hydraulic crawler excavator is a heavy-duty tracked machine that utilizes pressurized hydraulic fluid to actuate its boom, arm, bucket, and travel motors. This specialized hydraulic crawler excavator relies on a closed-loop or open-loop hydraulic system driven by a combustion engine to generate the massive mechanical forces required for digging, lifting, and grading. As a staple in global civil engineering, the hydraulic crawler excavator provides the stable structural foundation and power transmission necessary to tackle the most demanding geological formations.

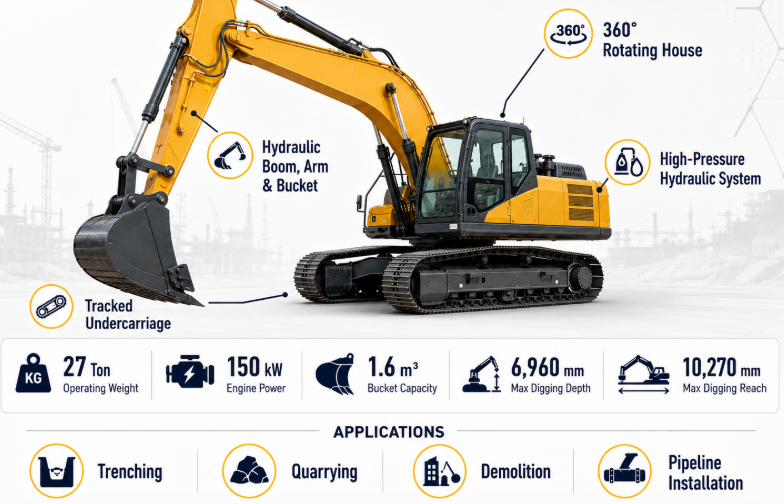

To understand the core architecture of a modern hydraulic crawler excavator, one must look at its mechanical division into three primary assemblies: the undercarriage, the revolving superstructure (the house), and the front work attachment. The undercarriage of a hydraulic crawler excavator features continuous steel or rubber tracks, track frames, and final drive motors. This tracked design ensures that the weight of the hydraulic crawler excavator is distributed over a very large surface area, resulting in incredibly low ground bearing pressure. This allows a heavy hydraulic crawler excavator to navigate muddy, sandy, or steep terrains where wheeled machines would lose traction or sink.

The superstructure of the hydraulic crawler excavator is connected to the undercarriage via a heavy-duty slew bearing (or swing circle). This design permits continuous 360-degree rotation of the cabin, engine, and main hydraulic pumps. By positioning the engine and hydraulic oil reservoirs at the rear of the superstructure, the hydraulic crawler excavator gains a natural counterweight, which balances the severe physical moments experienced during deep digging operations. Inside this superstructure, a high-power diesel engine drives the main hydraulic axial piston pumps, sending pressurized fluid through a complex network of control valves to the cylinders.

For highly intensive infrastructure projects, European and Asian municipal contractors often specify a heavy-duty 27-ton hydraulic crawler excavator to handle both heavy excavations and precise urban utility placements. At this weight class, the hydraulic crawler excavator provides the exact structural rigidity and hydraulic power required to break through compacted rocky clay without requiring excessive clearance space. The engineered balance of the 27-ton chassis ensures that the hydraulic crawler excavator remains perfectly anchored, even when operating at its maximum reach and digging depth.

Technical Specifications of a Standard Hydraulic Crawler Excavator

Structural Design Philosophy of the Hydraulic Crawler Excavator

Why is the modern hydraulic crawler excavator designed with these specific parameters? In the heavy equipment market, operators focus heavily on cycle times, fuel consumption, and hydraulic reliability. A highly efficient 150kW hydraulic crawler excavator is engineered to optimize the thermal efficiency of the engine by matching engine torque curves precisely with the displacement curves of the main hydraulic pumps. This synergy prevents engine bogging under high-load conditions and reduces fuel consumption by up to 15% compared to older, non-optimized machinery. Furthermore, European buyers highly favor hydraulic crawler excavator models equipped with intelligent positive flow control (OLSS or mechanical-electronic systems) because they offer unparalleled precision during fine grading and multi-functioning tasks.

Hydraulic Crawler Excavator Working Principle: The engine drives the main hydraulic pumps to draw hydraulic oil from the reservoir and pressurize it up to 35 MPa. When the operator moves the joysticks, electrical or pilot-hydraulic signals shift the spools within the main control valve. This directs high-pressure oil to either side of the double-acting hydraulic cylinders on the boom, arm, or bucket. The hydraulic energy is converted into linear mechanical force, allowing the hydraulic crawler excavator to slice through dense soils and lift heavy loads with precision.

Main Advantages of Hydraulic Excavators

The main advantages of a hydraulic crawler excavator are its exceptional tractive stability on soft terrain, its unmatched digging and breakout forces, and its superior versatility when paired with specialized hydraulic attachments. By operating a robust hydraulic crawler excavator, industrial companies can maintain continuous operational uptime in extreme weather conditions and challenging environments that would halt wheeled earthmovers. Additionally, the advanced hydraulic systems of a hydraulic crawler excavator allow for simultaneous movements of the boom, arm, and cab rotation, which vastly improves operational efficiency and shortens project timelines.

The primary advantages of integrating a hydraulic crawler excavator into an industrial fleet can be categorized into four distinct areas:

1. Unrivaled Terrain Navigation and Stability: The continuous steel tracks of the hydraulic crawler excavator provide a broad footprint. This low ground pressure prevents the machine from slipping or tipping on wet clay, loose shale, or swampy terrain. The structural weight of the crawler frame acts as a solid anchor, allowing the hydraulic crawler excavator to lift heavy materials over the side of the tracks without compromising safety.

2. High Hydraulic Efficiency and Breakout Force: Modern hydraulic crawler excavator units employ dual-pump flow-combining technology. When the arm or bucket encounters high resistance, the control system automatically directs the output of both hydraulic pumps to a single cylinder, generating the massive breakout force needed to shatter compacted soil or concrete.

3. Multi-Functional Adaptability: A hydraulic crawler excavator is not merely a digging tool; it serves as a versatile tool carrier. Thanks to auxiliary hydraulic piping systems and quick-coupler attachments, a hydraulic crawler excavator can transition from a digging bucket to a hydraulic breaker, log grapple, or plate compactor within minutes, drastically reducing the number of machines required on a single job site.

4. Enhanced Operator Ergonomics and Safety: Modern cabins on a hydraulic crawler excavator feature Roll-Over Protective Structures (ROPS) and Falling Object Protective Structures (FOPS). Coupled with advanced climate control, air-suspension seats, and low-noise hydraulic dampening mounts, these features minimize operator fatigue and maximize safety during extended working shifts.

Hydraulic System Comparison in Modern Excavators

To achieve maximum productivity on highly demanding civil construction sites, utilizing a 1.6m³ bucket hydraulic crawler excavator offers a major logistical advantage. The 1.6m³ bucket capacity is mathematically optimized to fill standard 15-ton dump trucks in exactly four cycles, matching the standard material hauling speed of high-production logistics chains. This specific bucket size, paired with an advanced hydraulic crawler excavator, ensures that excavating and loading phases are synchronized, preventing downstream bottlenecks on the job site.

Engineering Design Adjustments for International Markets

Industrial research indicates that European customers prioritize environmental compliance (Stage V emission standards), low cabin noise levels, and precise control for delicate urban excavations. In contrast, clients in developing markets often demand a hydraulic crawler excavator with simplified mechanical components, robust fuel filtration systems to handle variable fuel quality, and reinforced structural frames for quarrying work. Engineers address these varied requirements by offering modular hydraulic crawler excavator configurations, where the base frame remains highly standardized, but the engine, hydraulic control valves, and filtration arrays are customized to suit regional operational realities.

Hydraulic Crawler Excavator Maintenance Tip: Daily inspection of the track tension is crucial. If the crawler tracks of the hydraulic crawler excavator are too tight, it will cause rapid wear on the track pins, bushings, and sprockets, increasing parasitic power loss. If they are too loose, the tracks may derail during sharp turns on rocky terrain, leading to costly downtime and potential damage to the final drive assembly.

Uses of Hydraulic Excavators

The primary uses of a hydraulic crawler excavator encompass high-volume earthmoving, deep trenching for utility pipelines, commercial demolition, forestry land clearing, and bulk material handling in mining operations. Due to its rugged undercarriage and high-pressure hydraulic actuators, the hydraulic crawler excavator remains the premier choice for clearing terrain and preparing solid structural foundations in major industrial zones. Additionally, when fitted with specialized tools, the hydraulic crawler excavator excels in marine dredging, scrap metal sorting, and rock breaking in quarry environments.

The practical applications of a hydraulic crawler excavator are highly diverse and can be classified across the following core industries:

1. Heavy Infrastructure and Highway Construction: The hydraulic crawler excavator is the primary machine used to cut highway slopes, excavate deep bridge abutments, and clear mass quantities of topsoil. Its ability to dig below its own track level makes the hydraulic crawler excavator indispensable for creating stable highway subgrades.

2. Municipal Utility and Pipeline Installation: Laying water, gas, and sewer mains requires highly precise depth control and stable trench walls. Using a reliable hydraulic crawler excavator with a 150kW engine allows utility contractors to dig deep trenches through hard asphalt and underlying rock layer formations quickly, while safely placing heavy concrete pipe sections using the excavator's integrated lifting eye.

3. Demolition and Urban Renewal: Equipped with hydraulic shears, pulverizers, or heavy-duty breakers, a hydraulic crawler excavator can safely dismantle multi-story concrete structures. The long reach of the boom allows the operator to maintain a safe distance from falling debris while selectively sorting materials like rebar and concrete for recycling.

4. Open-Pit Mining and Quarrying: In quarries, a hydraulic crawler excavator is utilized to load blasted rock into primary crushers or heavy haul trucks. The continuous shock loads experienced during quarry work demand high-tensile steel boom structures and heavy-duty bucket teeth to prevent structural fatigue.

Operational Performance Across Different Sectors

In highly competitive construction environments, selecting a hydraulic crawler excavator with the correct engine output and bucket configuration is critical to maintaining high profit margins. A well-engineered hydraulic crawler excavator utilizes heavy-duty structural steel plates with casting sections at high-stress points, such as the boom foot and the arm tip. This advanced structural design ensures that the intense torsional stresses generated when twisting out large boulders do not lead to micro-fractures in the steel welding seams.

Focus on Fuel Efficiency and Lowering Emissions

With rising global fuel costs, modern fleet managers are heavily focused on the fuel efficiency metrics of their machinery. A high-performance hydraulic crawler excavator addresses this by utilizing auto-idle and auto-shutdown features. If the operator does not touch the joysticks for more than five seconds, the electronic control unit (ECU) automatically reduces engine speed to idle, saving valuable fuel. Once a control lever is touched, the engine instantly returns to the preset working speed, ensuring seamless power availability without slowing down the excavation cycle.

Hydraulic Crawler Excavator Safety Guideline: Always ensure that the area within the maximum swing radius of the hydraulic crawler excavator is completely clear of personnel before operating. When working on slopes, the tracks must always point uphill to provide maximum stability, and the bucket should be kept low to the ground to maintain a low center of gravity in case of unexpected soil slippage.

Conclusion

The hydraulic crawler excavator represents the pinnacle of modern heavy engineering, combining robust structural design with high-pressure fluid dynamics to deliver unmatched earthmoving power. Whether configured as a standard utility excavator or a heavy-duty mining machine, its tracked undercarriage guarantees maximum traction on unstable soils, while its advanced hydraulic systems ensure rapid cycle times and high fuel economy. By understanding the mechanical principles, key advantages, and diverse industrial applications of the hydraulic crawler excavator, project managers and fleet operators can select the ideal machinery configurations to optimize their job site efficiency, ensure operator safety, and achieve a highly favorable return on investment.
