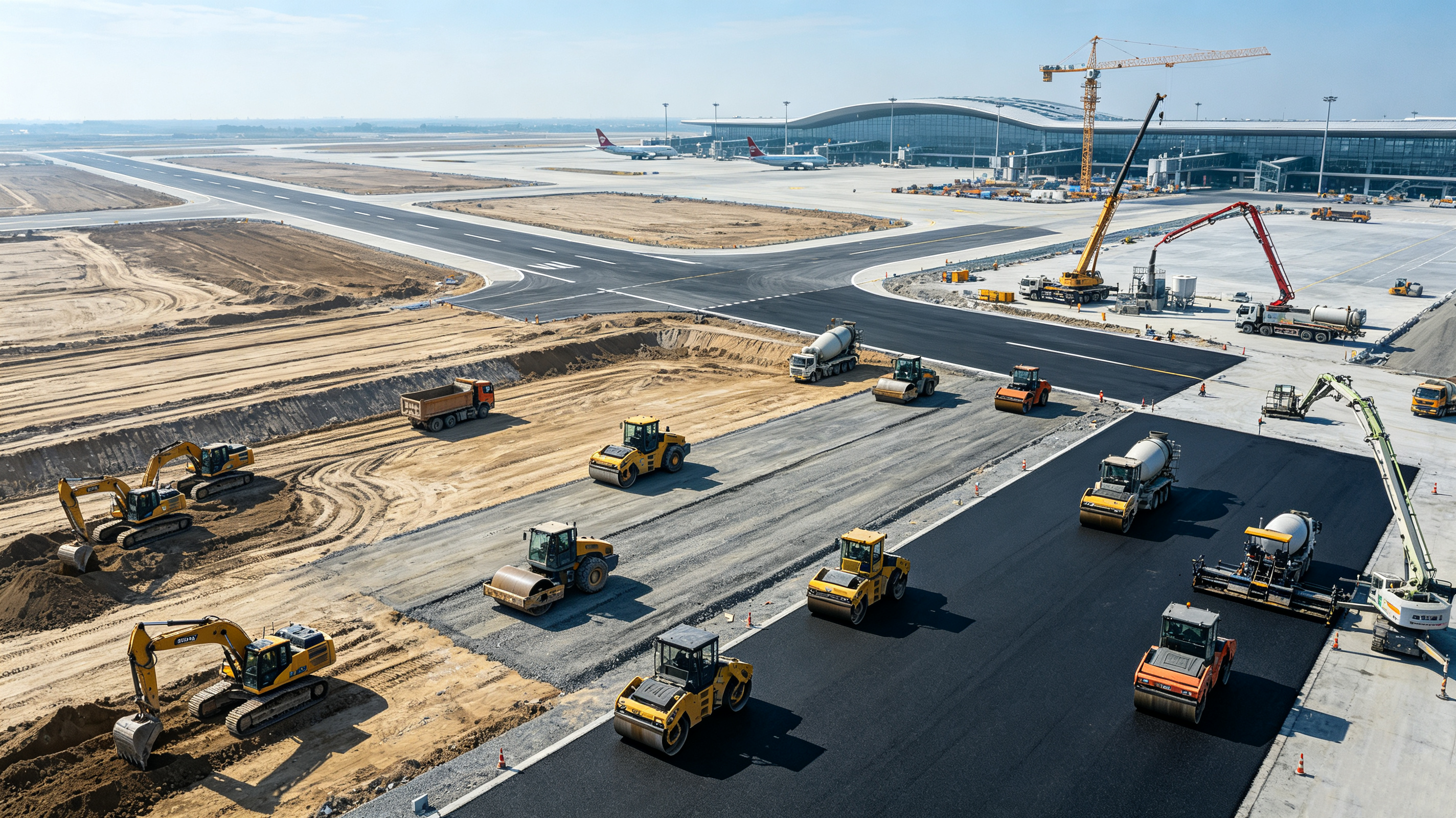

Airport infrastructure construction relies on professional airport construction machinery and standardized operational processes to meet strict aviation safety, load-bearing, and durability standards. Full-scale airfield development covers ground earthmoving, road base compaction, asphalt paving, concrete runway construction, and routine airfield maintenance, all requiring high-precision airport runway construction equipment and scientific technical parameters. This comprehensive guide shares core equipment specifications, standardized operational procedures, industry best practices, and intelligent technology innovations for modern airfield projects, serving as a professional reference for airport contractors, civil engineering teams, and aviation infrastructure project managers worldwide.
High-quality ground foundation preparation is the core prerequisite for stable airport runways, taxiways, and apron structures. Modern airport foundation projects adopt intelligent machinery fleet operation modes, integrating high-power airport earthmoving equipment with GPS digital precision control to deliver efficient, uniform, and high-standard subgrade construction for large-scale airfield infrastructure.
The mainstream earthmoving machinery used in large-scale airport projects features stable power output, precise construction parameters, and adaptive terrain performance. The key technical indicators of core equipment are as follows:
Machine Type | Model Example | Power | Operating Weight | Key Performance Parameters |
|---|---|---|---|---|
Crawler Excavator | XCMG XE490DK | 522 HP | 49.8 tons | 2.5m³ standard bucket capacity; GPS intelligent positioning accuracy up to ±2mm, realizing millimeter-level precise excavation |
Bulldozer | XCMG SD90-C5 | 858 HP | 80.5 tons | 7.3m super-wide working blade; low ground pressure of 0.7 kg/cm², effectively protecting subgrade structure |
Vibratory Compactor | XCMG XS265J | 300 HP | 16.2 tons | 28Hz stable vibration frequency; 1.8mm adjustable amplitude, adapting to various foundation compaction materials |
Intelligent technological upgrades have completely revolutionized traditional airport earthmoving workflows, greatly improving the construction accuracy, consistency, and overall efficiency of airfield ground preparation machinery for commercial airport projects:
XCMG XE490DK Intelligent Excavation System: Equipped with an automatic grading control system, it breaks the limitation of manual operation accuracy. The millimeter-level construction precision ensures the flatness and elevation of the airport foundation, avoiding secondary trimming and rework.
XCMG SD90-C5 Hydraulic Bulldozer: Optimized hydraulic power distribution technology evenly disperses the heavy body weight. Its low ground pressure effectively protects the delicate airport subgrade and prevents foundation deformation.
XCMG XS265J Intelligent Compaction Monitoring: Built-in real-time density detection sensors feed back compaction data synchronously. Operators can adjust vibration frequency and amplitude in real time, eliminating the waiting cycle of laboratory testing and improving construction progress.
Istanbul Airport’s large-scale earthmoving project sets a global benchmark for intelligentairport foundation construction. The project deployed a full GPS-guided intelligent machinery fleet, synchronizing over 300 sets of heavy-duty airport construction machinery via advanced telematics systems. Through 24/7 uninterrupted intelligent operation, the construction team achieved a 98% full-site compaction density across the 76 million square meter airfield, establishing a standard for high-efficiency, high-quality large-scale airport subgrade development.
Road base compaction is the critical intermediate stage connecting earthmoving subgrade and surface pavement construction. Compaction quality directly determines the bearing capacity, anti-deformation performance, and service life of airport runways and aprons. Modern airfield base construction adopts intelligent airport compaction equipment and standardized process specifications to meet the extreme load requirements of large commercial aircraft such as the Airbus A380.
Different types of compactors are applied to different base layers of airport pavements. The standardized construction parameters and density standards are as follows:
Compaction Equipment | Compaction Width | Impact Force | Standard Passes | Compaction Density Standard |
|---|---|---|---|---|
Single Drum Roller | 2.4m | 42 kN/m | 6-8 passes | 95% Proctor Density |
Pneumatic Roller | 2.8m | 450 kPa | 4-6 passes | 98% Modified Proctor Density |
Impact Compactor | 2.0m | 20 kJ | 3-5 passes | 100% Relative Density |
Modern airport base compaction construction no longer depends on manual rolling count control. Intelligent compaction systems empower airport road base machinery with full-process digital quality monitoring, eliminating construction errors and ensuring aviation-grade pavement foundation quality:
Generate real-time full-area compaction density maps to visually display the construction progress and weak compaction areas;
Automatically adjust vibration frequency and amplitude according to the feedback of base material compression response;
Automatically generate standardized quality inspection documents to meet aviation engineering quality acceptance specifications.
Supported by decades of airport pavement engineering research, the latest base material specifications and construction processes are optimized for heavy aircraft loads, perfectly matching the performance requirements of modernairport pavement construction machinery and improving overall airfield structural stability:
350mm optimized base layer thickness, balancing structural bearing strength and construction economy;
Strict aggregate gradation control (100% passing 50mm sieve) to ensure tight interlocking between materials and improve overall stability;
Upgrade CBR bearing value standards to adapt to heavy-duty aircraft takeoff and landing loads.
Airport asphalt pavement requires ultra-high flatness, temperature stability, and wear resistance to withstand frequent high-speed aircraft takeoffs and landings. The entire workflow, from asphalt mixing and transportation to paving and rolling, relies on high-precision airport asphalt paving equipment. Strict temperature control and precise mechanical operation are the core factors that determine the long-term service life of airfield asphalt pavements.
The XCMG AMP4000 asphalt mixing plant is the mainstream core airport asphalt construction machinery for modern large-scale airfield projects, featuring outstanding continuous production capacity and constant temperature precision control:
Adopts parallel drum technology, realizing stable output of 400t/h, and accurately controlling the mixing temperature at 165°C ±3°C to ensure asphalt mixture uniformity;
Supports high proportion RAP recycled asphalt mixing (up to 50% content), meeting environmental protection and cost-saving requirements without reducing pavement quality;
Equipped with advanced flue gas capture and purification systems, reducing construction environmental pollution while ensuring continuous high-efficiency production.
Professional specialized paving and rolling machinery ensures the flatness, compactness, and uniformity of airport asphalt surfaces. These airfield paving machines feature strict tolerance control indicators to fully comply with aviation pavement construction standards:
Equipment Component | Model Example | Core Specification | Construction Tolerance |
|---|---|---|---|
Asphalt Paver | XCMG RP1255 | Maximum paving width 12m, one-time forming for wide runway construction | Flatness tolerance ±3mm/m |
Paving Screed | Custom Intelligent Screed | Constant temperature heating design | Working temperature 150°C ±5°C |
Asphalt Roller | XCMG XS303S | 25Hz adjustable vibration frequency | Standard 8 rolling passes for uniform compaction |
Modern airport asphalt pavement quality control has upgraded from traditional single density detection to full-dimensional intelligent monitoring, maximizing the working performance of airport paving machinery and eliminating hidden pavement quality risks:
Infrared thermal imaging technology detects real-time temperature differences of the paving layer to avoid pavement cracking and loose materials caused by temperature unevenness;
Ground Penetrating Radar (GPR) conducts non-destructive detection of substructure compaction and hidden defects;
Automatic profile scanning equipment verifies pavement flatness to meet aviation runway operation standards.
In the runway expansion project of Singapore Changi Airport, the construction team adopted real-time thermal monitoring technology and dynamically adjusted the operation speed of airport asphalt paving equipment according to ambient temperature and humidity. After standardized rolling and strict quality control, the average Marshall density of 18 new runway lanes reached 93.5%, far exceeding global industry standards, creating a high-quality construction benchmark for airport asphalt pavements in high-temperature and high-humidity tropical environments.
Concrete runways are the core load-bearing structure of airport infrastructure, enduring frequent impact loads from large civil aircraft. The high-standard construction of airfield concrete pavements requires precise coordination of intelligent airport concrete paving machinery, FAA-certified concrete mix designs, and standardized construction processes, representing the highest technical level of civil aviation infrastructure engineering.
The XCMG CP1800 intelligent slipform paver is professional dedicated airport runway paving equipment, designed for high-precision concrete construction of runways, taxiways, and aprons with multi-scenario adaptive working capabilities:
Hydraulic automatic width adjustment, covering 4m-18m paving range, adapting to runways, taxiways and apron construction;
Laser-guided dowel bar automatic insertion system, with an efficiency of 8 bars per minute, ensuring accurate lap joint force transmission of concrete panels;
Automatic texture finishing system, which intelligently adjusts the surface treatment process according to weather and curing conditions to ensure runway anti-slip performance.
Airport runway concrete construction strictly complies with FAA P-501 international aviation specifications. All mix ratio parameters and testing indicators are formulated to match the operating characteristics of professional airport concrete construction machinery, ensuring pavement durability and stability:
Technical Parameter | Standard Specification | Detection Test Method |
|---|---|---|
28-day Compressive Strength | 35 MPa | ASTM C39 Standard Test |
Air Content | 6% ±1% | ASTM C231 Standard Test |
Concrete Slump | 50mm ±25mm | ASTM C143 Standard Test |
Innovative concrete material formulas and precision jointing processes cooperate with high-performance airfield concrete machinery to effectively enhance the durability, crack resistance, and load-bearing performance of airport concrete runways, adapting to long-term high-intensity aviation operation:
Material Innovation: Micro-silica additives fill concrete micro-pores to improve structural compactness; corrosion inhibitors are added for coastal airport projects to resist salt fog erosion; shrinkage-reducing admixtures effectively reduce concrete drying shrinkage and cracking risks.
Precision Jointing System: Automatic sawing equipment cuts joints at the optimal concrete curing time; epoxy-coated dowel bars enhance the durability of panel joints; non-destructive testing technology verifies joint load transfer performance to ensure overall runway structural integrity.
Long-term safe and stable operation of airport infrastructure depends on professional airport maintenance machinery and data-driven predictive asset management systems. Modern airfield maintenance has upgraded from traditional passive repair to active intelligent maintenance, with all equipment and processes fully compliant with ICAO and SAE international aviation safety standards.
Maintenance Equipment | Model Example | Core Specification | Industry Compliance Standard |
|---|---|---|---|
Runway Sweeper | XCMG S1800 Airport Runway Sweeper | Maximum working speed 80 km/h, efficient cleaning of runway debris | ICAO Level C Standard |
Airport De-Icing Truck | XCMG De-Icing 15000 | 15,000L large-capacity liquid storage, rapid de-icing operation | SAE AMS1424 Aviation Standard |
Runway Friction Tester | XCMG Friction Tester XF800 | Friction detection range 0.50-0.80 μ | ICAO Doc 9137 Safety Specification |
Predictive Failure Analytics: Monitor equipment vibration frequency and operating data in real time to predict bearing and mechanical component failures, realizing pre-maintenance and reducing equipment downtime.
Thermal Drone Scanning: Quickly complete full-coverage scanning of runways and aprons, accurately identifying hidden cracks, hollow layers and pavement abnormal temperature areas.
Automatic Patching System: Intelligent robotic equipment realizes rapid repair of pavement micro-cracks and local damage, greatly improving maintenance efficiency.
Modern airports deploy full-process intelligent safety monitoring systems and specialized airfield safety maintenance equipment to guarantee all-weather safe operation of pavement structures and navigation facilities under complex weather conditions:
Real-time pavement friction monitoring system, dynamically feeding back road surface conditions in rainy, snowy and icy weather;
Built-in structural strain gauges in pavement layers to monitor runway stress and deformation in real time;
Automatic lighting diagnosis system to predict navigation light failure risks and ensure flight takeoff and landing safety.
The global airport construction industry is undergoing a dual transformation of mechanical intelligence and new material innovation. The deep integration of traditional heavy-duty airport construction machinery and digital intelligent technology has become the core development trend, continuously optimizing the construction efficiency, engineering quality, and environmental sustainability of aviation infrastructure projects.
Full Equipment Electrification: Electric compactors, loaders and small construction equipment are widely promoted, reducing carbon emissions and construction costs.
Autonomous Milling & Paving: Driverless intelligent construction machines realize centimeter-level automatic operation, reducing manual errors.
Digital Twin Lifecycle Management: Build 3D digital models of airport infrastructure to realize full-process monitoring from construction, operation to maintenance.
Self-Healing Construction Materials: Microcapsule polymer materials automatically repair pavement micro-cracks, extending the service life of airport infrastructure.
AI Robotic Inspection Systems: Intelligent robots equipped with AI defect recognition technology realize automatic detection and analysis of pavement and facility defects.
4D Intelligent Printing Technology: Realize rapid integrated forming of complex airport auxiliary structures, breaking the limitations of traditional construction processes.
If you need customized technical solutions, airport construction machinery selection, and equipment parameter matching for your airfield projects, contact our professional infrastructure team for one-stop technical consultation and personalized aviation construction project guidance.
