How diesel-electric mining trucks work and why they are turbocharged

A diesel-electric mining truck operates as an autonomous mobile power generator and electric drive unit. A high-horsepower diesel engine drives an AC main alternator, converting mechanical energy into high-voltage electrical energy. This electrical power is regulated by IGBT power inverters and routed to heavy-duty AC traction motors inside the rear wheel hubs, driving the vehicle without a mechanical transmission or driveshaft. Turbocharging is mandatory in these haulage platforms to boost intake air density, ensuring complete fuel combustion, thermal efficiency, and sustained rated torque outputs at extreme mining elevations where ambient atmospheric pressure drops significantly.

Table of Contents

• The Core Architecture of a Diesel-Electric Mining Truck

• How the Diesel-Electric Powertrain Transmits Energy

• Why Turbocharging is Essential for High-Altitude and Heavy-Duty Mining

• Energy Efficiency and Dynamic Retarding in AC Drive Systems

• Key Mechanical and Electrical Components of Ultra-Class Electric Dump Trucks

• Maintenance Protocols and Thermal Management Strategies

• Comparative Analysis: AC Electric Drive vs Mechanical Drive Powertrains

• Summary and Future Outlook

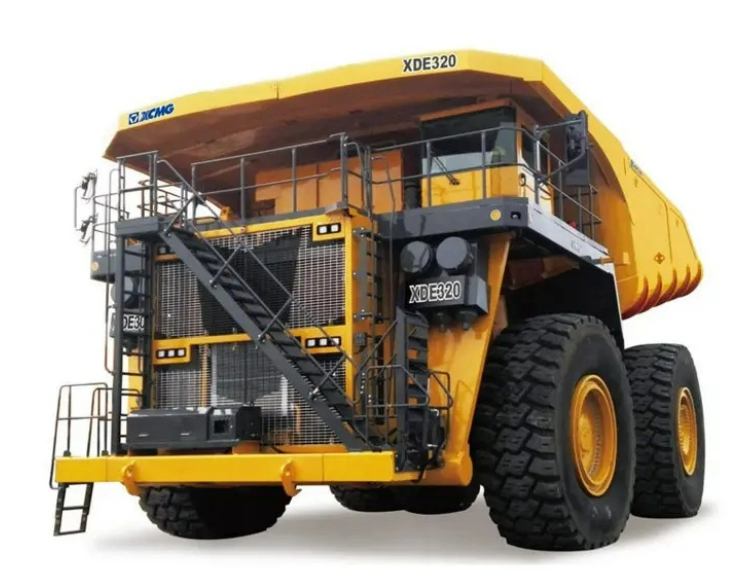

The Core Architecture of a Diesel-Electric Mining Truck

The underlying architecture of an electric dump truck replaces traditional mechanical clutches, torque converters, and gearboxes with an integrated electro-mechanical generator-motor transmission topology.

In a standard heavy-duty vehicle, engine power reaches the drive wheels through a series of rotating shafts, fluid couplings, and multi-speed gear sets. However, in heavy surface mining, moving hundreds of tons up 8% to 10% gradients induces massive mechanical friction, high thermal stresses, and premature drivetrain fatigue. The diesel-electric system solves this by utilizing a diesel engine solely as a prime mover to turn a high-output AC generator. The generated electrical current is rectified, controlled via modern solid-state electronics, and sent directly to wheel-mounted traction motors.

By eliminating mechanical driveshafts, universal joints, differential gearboxes, and multi-ratio transmissions, the structural complexity of the drivetrain is dramatically simplified. The engine runs closer to its optimal fuel-efficiency curve, operating at steady speeds rather than experiencing frequent cyclic torque shocks caused by shifting gears. This continuous electrical torque delivery allows an electric dump truck to accelerate smoothly from a dead stop under maximum payload, eliminating shift delays and minimizing wheel slip on unpaved haul roads.

From a structural engineering perspective, this layout allows for optimized chassis weight distribution. The heavy engine module, alternator, and control cabinets are mounted low on the front frame, balancing the immense payload centered over the rear axle housing. In high-tonnage fleets, such as those utilizing a 320-Ton AC Drive Rigid Mining Dump Truck, this mechanical layout reduces chassis twisting moments, improves structural fatigue resistance, and ensures operational stability under severe loading conditions.

How the Diesel-Electric Powertrain Transmits Energy

Energy transmission in a modern electric dump truck follows a strict multi-stage conversion path from chemical combustion to electrical power regulation and final planetary mechanical torque multiplication.

The energy conversion workflow begins inside the diesel engine cylinders, where atomized diesel fuel mixes with compressed air to produce combustion expansion. The rotational force of the crankshaft drives the main AC generator rotor. The output voltage from this primary generator is immediately routed to a high-capacity solid-state rectifier bridge, converting variable three-phase AC electricity into a unified direct current (DC) intermediate link, commonly referred to as the DC bus.

Once power enters the DC bus, dynamic control systems take over. Microprocessor-driven control units monitor throttle position, payload weight, wheel speed sensors, and ground incline. The power electronics enclosure utilizes Insulated Gate Bipolar Transistors (IGBT) to convert the DC bus voltage back into variable-frequency, variable-voltage three-phase AC electricity. By controlling the frequency and amplitude of the output AC waveform, the vehicle's control software delivers precise torque and speed management independently to each rear drive wheel.

1. Mechanical Power Generation: The diesel engine operates within its sweet spot for fuel consumption, outputting stable rotational horsepower directly to the alternator shaft.

2. Rectification and DC Bus Control: The primary AC generation is converted into stable DC power, acting as an energy reservoir for both propulsive drive systems and auxiliary braking circuits.

3. Inversion and Motor Control: Dual variable-frequency inverters slice the DC voltage into precise sinusoidal AC signals, tailoring power output to meet instantaneous haul-road resistance.

4. Final Planetary Reduction: The traction motor outputs high-speed, medium-torque rotation directly into an internal planetary gear set inside the wheel hub, converting speed into final rim pull force.

This multi-stage energy conversion path eliminates mechanical shock loads. When a wheel encounters mud or loose gravel, the drive controller instantly adjusts electrical frequency to prevent wheel spin, protecting both tire treads and structural frame members. Deploying an advanced 320-ton electric drive dump truck allows mine operators to achieve consistent climb speeds on steep ramps while keeping engine thermal stress within safe limits.

Why Turbocharging is Essential for High-Altitude and Heavy-Duty Mining

Turbocharging is mechanically required in heavy mining trucks to overcome atmospheric air rarefaction at high altitudes and supply the extreme stoichiometric air mass required to combust large volumes of diesel fuel efficiently.

In open-pit mining operations, ambient environments range from sea-level coastal sites to high-altitude mountain plateaus exceeding 3,000 to 4,000 meters above sea level. As elevation increases, atmospheric pressure drops, leading to lower air density. Naturally aspirated engines in high-altitude environments suffer severe power derating because the intake stroke draws in significantly fewer oxygen molecules per volume unit. Without compensation, fuel cannot burn completely, resulting in elevated exhaust gas temperatures, excessive black smoke, reduced torque, and catastrophic thermal stress on engine valves and pistons.

A turbocharger addresses this issue by using the pressure and thermal energy of engine exhaust gases to spin a turbine wheel. This turbine turns a coaxial compressor wheel that forces ambient air into the engine intake manifold under positive pressure. By packing dense air into the combustion chambers, the turbocharger restores the oxygen mass balance, allowing the engine to burn the precise amount of fuel needed to maintain rated horsepower regardless of altitude.

Furthermore, heavy-duty mining diesel engines rely on multi-stage or twin-turbocharging configurations coupled with heavy-duty air-to-air charge air coolers (aftercoolers). Compressing air naturally increases its temperature; high intake temperatures lower air density and increase the risk of premature detonation. Passing compressed air through a charge air cooler drops intake temperatures significantly, maximizing oxygen mass per cylinder filling and enabling efficient, clean combustion.

1. Altitude Compensation: Turbochargers automatically compensate for thinner air by spinning faster under reduced atmospheric backpressure, forcing ambient air to sea-level equivalent densities.

2. Thermal Efficiency Optimization: Peak combustion temperatures are controlled by correct air-to-fuel ratios, preventing exhaust valves, cylinder heads, and piston crowns from overheating.

3. Emissions and Fuel Economy: Complete combustion driven by high boost pressures reduces unburned hydrocarbons and particulate matter while lowering specific fuel consumption per ton-kilometer moved.

Engine Design Rationale: Why use two-stage turbocharging instead of a single large turbocharger? Modern ultra-class mining engines use two-stage turbocharger layouts with intermediate cooling because a single turbocharger attempting to achieve high pressure ratios at high altitudes operates outside its efficient compressor map. Two smaller or staged turbochargers distribute the pressure ratio work, providing immediate low-RPM boost response while preventing compressor surge at peak engine speeds.

Energy Efficiency and Dynamic Retarding in AC Drive Systems

Dynamic retarding turns the AC traction motors into electrical generators during downhill haulage, providing tremendous braking force while capturing and dissipating kinetic energy safely without mechanical brake wear.

One of the greatest operational hazards in deep pit haulage is controlling a loaded 500-ton gross vehicle weight haul truck descending continuous 10% grades. Conventional mechanical friction brakes would quickly overheat, experience thermal fade, and fail under such continuous friction loads. The diesel-electric platform solves this through dynamic electric retarding.

When descending an incline, the operator eases off the throttle and engages the retarding pedal or automatic speed control. The vehicle control system switches the AC traction motors from drive mode to generator mode. The kinetic energy of the rolling truck turns the wheel hub planetary gears, which spin the traction motor rotors. The motors generate high-voltage alternating current, creating strong magnetic resistance that slows the vehicle down smoothly without using the service brakes.

The electrical energy generated during retarding flows back into the DC bus link. Since this energy cannot always be stored in battery systems on standard haul trucks, dynamic chopper circuits route the excess electricity into heavy-duty resistor grid banks mounted on the vehicle canopy. Massive motor-driven blowers force ambient air through these grid elements, dissipating thousands of kilowatts of heat safely into the atmosphere.

This non-mechanical braking capability allows an electric dump truck to descend long grades at higher safe speeds than mechanically driven equivalents, boosting cycle times while cutting maintenance costs. Service brakes remain cool and unused, reserved primarily for parking and complete stops at low speeds.

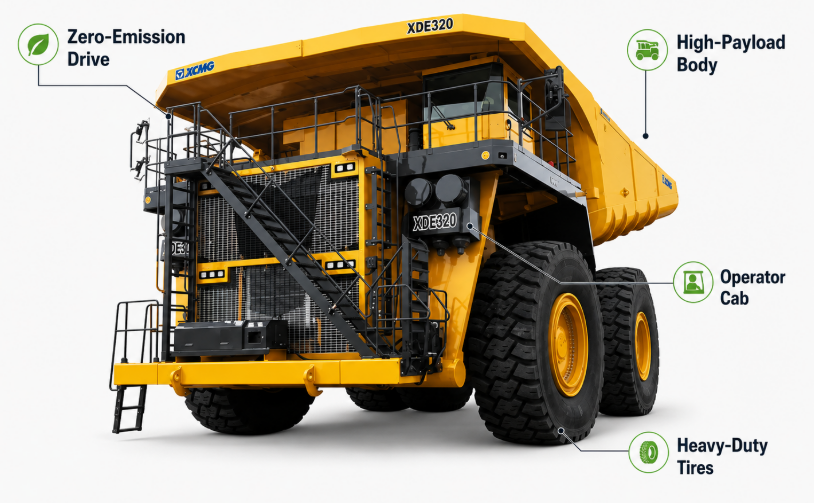

Key Mechanical and Electrical Components of Ultra-Class Electric Dump Trucks

An ultra-class haul truck relies on heavy-duty structural, mechanical, and electrical components designed to handle extreme payload distribution and relentless operational vibration.

The chassis forms the structural backbone of the vehicle, constructed from high-strength low-alloy steel castings welded to rolled box sections. Castings are strategically placed at high-stress junction points—such as hoist cylinder mounts, cross-member intersections, and suspension pivots—to absorb torsional flexing caused by uneven haul road terrain.

Behind the cab sits the main power module, housing the turbocharged prime mover, main alternator, cooling packages, and control cabinets. Power cables carry high-voltage current along protected frame channels to the rear axle housing. The rear axle structure houses the two AC traction motors, which are integrated directly with double-reduction planetary final drives inside the wheel hubs.

1. Welded Box-Section Frame: Utilizes deep-penetration welds and integrated steel castings to resist cyclic bending and loading fatigue from 300+ ton dump cycles.

2. High-Voltage Power Inverter Module: Contains water-cooled IGBT modules sealed inside dust- and vibration-isolated enclosures to prevent environmental contamination.

3. Nitrogen-Over-Oil Suspensions: Four independent hydro-pneumatic suspension cylinders isolate frame structures from road impacts, preserving frame life and stabilizing machine handling.

4. Heavy-Duty Dump Body: Constructed with high-abrasion-resistant wear plates and structural ribs engineered to absorb impact energy during loading by high-capacity shovels.

Integrating these components into a unified system requires precise engineering. Utilizing a heavy haulage machine like an AC drive rigid mining dump truck ensures that frame elasticity, electric drive software, and hydraulic cooling systems operate harmoniously under full load conditions.

Maintenance Protocols and Thermal Management Strategies

Comprehensive maintenance of diesel-electric trucks focuses on thermal dissipation monitoring, electrical insulation testing, air filtration integrity, and oil cleanliness inside planetary hubs.

Thermal management is a critical factor determining component lifespan in ultra-class haulage. High electrical currents generate resistive heat inside alternating current windings, power electronics, and dynamic resistor grids. Forced-air blowers and dedicated liquid cooling loops circulate coolant through IGBT cold plates and motor stators to maintain optimal operating temperatures.

Engine intake air filtration requires continuous monitoring. In open-pit mines, silica dust particles can rapidly clog air filters or score turbocharger compressor blades. Multi-stage air filtration systems using centrifugal pre-cleaners remove coarse dust before air enters primary filter elements.

Preventive Maintenance Guidance: Insulation Resistance Management: Electric drive systems operate at high voltage DC/AC levels. Routine insulation testing (Megger testing) must be performed on traction motors and power cables every 1,000 hours. Any drop in mega-ohm resistance signals moisture intrusion, thermal insulation decay, or micro-cracking, which must be addressed immediately to avoid field insulation breakdowns and unplanned downtime.

Comparative Analysis: AC Electric Drive vs Mechanical Drive Powertrains

Comparing AC electric drive technology with traditional mechanical drive powertrains reveals clear operational trade-offs across mechanical complexity, retarding power, fuel consumption, and long-term operating costs.

Mechanical drive haul trucks use planetary multi-speed transmissions, torque converters, and heavy driveshaft assemblies to move power from engine to wheels. While highly efficient on flat haul roads where lock-up clutches engage fully, mechanical drives face higher wear, lower mechanical efficiency, and elevated thermal stress on long, steep pit inclines.

By contrast, an electric dump truck maintains high rim pull forces across its entire speed range without gear shift interruptions. On steep inclines, missing a gear shift in a mechanical truck can cause lost momentum or torque interruption, whereas an electric drive smoothly adjusts speed and torque to track the maximum horsepower curve of the prime mover.

From an operational standpoint, global mining operations favor AC drive haulers for high-tonnage pits. The absence of mechanical friction points reduces drivetrain overhauls, allowing electric drive platforms to achieve higher mechanical availability over 60,000 to 80,000 operating frame hours.

Summary and Future Outlook

Understanding how diesel-electric mining trucks function reveals why they remain the preferred workhorse of modern open-pit surface mining. Combining high-displacement diesel prime movers, forced induction turbocharging systems, solid-state IGBT power electronics, and robust AC traction motors delivers exceptional productivity, continuous downhill retarding, and high gradeability. Turbocharging restores oxygen mass in thin high-altitude air, enabling complete combustion, thermal efficiency, and sustained horsepower outputs under demanding conditions.

As mining moves toward carbon reduction and operational automation, the diesel-electric platform serves as the perfect foundation for future innovations. The modular electrical backbone easily adapts to trolley-assist overhead power lines, hybrid energy storage systems, and fully electric battery conversions. Mine operators investing in advanced electric drive technology secure an adaptable, highly efficient haulage platform built to meet demanding production targets for decades to come.
