The electrification of mining haulage relies on high-capacity energy storage, heavy-duty powertrains, high-voltage distribution networks, and liquid cooling thermal control to replace traditional diesel powertrains in zero-emission heavy-duty mining haulers. An optimal electric dump truck system design balances high-voltage architecture, power density, structural durability, thermal stabilization, and rapid megawatt-level direct current charging to ensure maximum fleet uptime, operational efficiency, and total cost of ownership reduction in harsh open-pit mining environments.

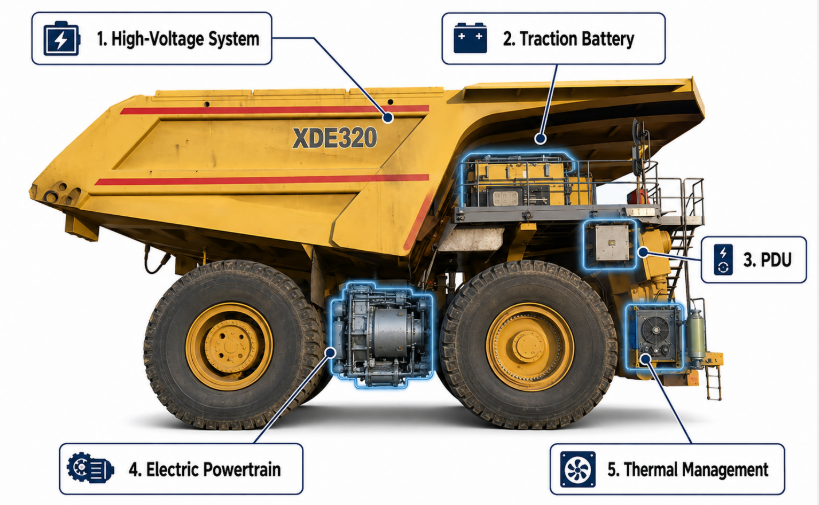

Section | Summary |
1. High-Voltage System Architecture of Electric Dump Truck | Details the foundational high-voltage network topology, integrating traction batteries, PDUs, drive motors, and auxiliary systems to deliver reliable heavy-duty haulage performance. |
2. Traction Battery Selection and Design | Analyzes lithium iron phosphate chemistry selection, module configuration, energy density optimization, and structural battery enclosure design for extreme mining payloads. |
3. High-Voltage Power Distribution Unit (PDU) Design | Outlines circuit safety, solid-state relay protection, fuse coordination, and dual-bus topology to ensure safe megawatt-level power delivery under high shock and vibration. |
4. Electric Powertrain System Design for the Electric Dump Truck | Covers dual-motor drive architectures, high-torque planetary gear reductions, regenerative braking energy recovery, and AC drive inverter integration for haul roads. |
5. Battery Thermal Management System Design | Evaluates liquid cooling plate designs, heat pump heat dissipation, phase-change materials, and cold-weather preheating strategies to maintain battery thermal equilibrium. |
The high-voltage system architecture of an electric dump truck serves as the central electrical backbone that safely channels, converts, and manages megawatt-level power between energy storage units, traction drives, and auxiliary systems.
To achieve continuous power delivery across harsh haulage ramps and varied pit gradients, a modern high-voltage power architecture operates at nominal system voltages ranging from 600V DC to 800V DC or higher. High-voltage power flows from the primary traction energy storage pack directly into a central high-voltage power distribution unit, which selectively feeds the main drive motor controllers, auxiliary inverter units, high-power DC-DC converters, and megawatt fast-charging interfaces. By decoupling primary power paths with solid-state contactors and fast-acting pyro-fuses, the architecture isolates high-power traction circuits from low-power auxiliary loops, minimizing electromagnetic interference and maximizing system safety under extreme dynamic electrical loads.
From an engineering perspective, designing a heavy-duty electric haulage architecture requires balancing maximum current delivery against cable harness weight and thermal dissipation constraints. Ultra-class mining haulers require continuous mechanical power outputs exceeding 1,500 kW, necessitating peak phase currents in excess of 2,000 Amperes during steep uphill haulage under maximum payload conditions. High-voltage busbars, shielded multi-core cabling, and heavy-duty automotive-grade connectors must maintain strict galvanic isolation, continuously monitored by high-precision insulation monitoring devices. In our field deployments, European and global mining clients prioritize redundant isolated communication channels and dual-loop hardware interlocks that prevent high-voltage contactor closure in the event of frame ground insulation degradation or thermal anomalies.

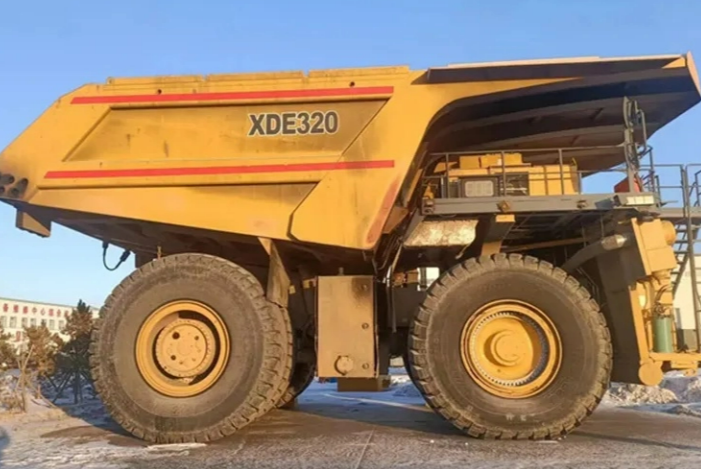

Furthermore, integrating advanced electric drive solutions, such as the 320-Ton AC Drive Rigid Mining Dump Truck, showcases how high-voltage AC electric drive systems provide smooth, gearless torque vectoring, exceptional gradeability, and highly responsive retarding power. Integrating electric motor drives with robust high-voltage architectures allows mining operators to capture substantial kinetic energy during downhill retarding, feeding hundreds of kilowatt-hours back into the energy storage array and reducing total mechanical brake wear.
Subsystem Component | Key Operational Function | Nominal Rating Range | Isolation & Protection Class |
Traction Battery System | Energy storage and high-power discharge | 600V - 850V DC / 500 kWh - 2,000 kWh | IP67 / IP69K, Pyro-Fuse Protection |
Power Distribution Unit (PDU) | High-voltage routing, switching, and fuse protection | Up to 1,000V DC / 2,500A Peak | Active Isolation Monitoring, HVIL |
Main Drive Inverter | DC to AC 3-phase traction power conversion | 600V - 850V DC / 1,200 kW - 2,200 kW | Liquid Cooled, SiC/IGBT Module |
DC-DC Auxiliary Converter | Step-down HV to 24V DC for low-voltage systems | 600V-850V DC to 28V DC / 10 kW - 30 kW | Galvanic Isolation > 2.5 kV DC |
Thermal Heat Pump Unit | Liquid cooling and active temperature control | 400V - 800V DC / 15 kW - 45 kW Cooling | Sealed Hermetic Compressor |
The traction battery functions as the primary energy storage reservoir for the electric dump truck, supplying bulk direct current power to the vehicle traction bus during acceleration and uphill haulage while absorbing high-rate electrical energy during regenerative retarding down pit ramps. High-voltage energy storage systems for heavy mining trucks are engineered using heavy-duty prismatic lithium iron phosphate cells assembled into reinforced sub-modules with integrated compression structures.
The High-Voltage Power Distribution Unit acts as the centralized junction box that safely routes high-current DC power from the traction battery to the drive motor inverters, liquid heating units, air conditioning compressors, and auxiliary power supplies. It incorporates automotive-grade pre-charge contactors, main positive and negative contactors, solid-state current sensors, and high-interrupting-capacity semiconductor fuses designed to clear catastrophic short-circuit currents in under two milliseconds.
The thermal management system maintains the traction battery modules, power electronics inverters, and drive motors within their optimal operating temperature windows regardless of extreme ambient pit conditions ranging from sub-zero winter temperatures to scorching desert summer environments. Utilizing closed-loop liquid glycol coolant circuits paired with high-capacity heat exchangers, electric chillers, and positive temperature coefficient heating elements, the system prevents thermal runaway and prevents low-temperature lithium plating during rapid charge cycles.
The motor controller converts direct current from the high-voltage bus into variable-frequency three-phase alternating current to power the heavy-duty traction motor. Utilizing advanced silicon carbide MOSFET or insulated-gate bipolar transistor power modules combined with vector field-oriented control algorithms, the motor controller delivers instantaneous low-speed torque for gradient climbing and smooth continuous power delivery across the entire speed spectrum.
The DC fast-charging port facilitates high-power energy replenishment directly from off-grid automated charging stations or automated pantograph charging gantries installed along haul roads. Designed to support heavy-duty megawatt charging system standards, the port incorporates liquid-cooled charging cables, high-current connector pins, and automated high-voltage interlock switches capable of safely transferring continuous charging currents up to 1,500 Amperes.
The integrated controller operates as the high-level vehicle domain control unit, continuously gathering sensor data across Controller Area Network bus channels to optimize power split algorithms, torque management, energy recovery ratios, and system safety interlocks. By executing real-time determinism and fault-tolerant state-machine logic, the integrated controller coordinates high-voltage switching sequences and prevents damaging power surges during rapid acceleration and heavy retarding phases.
Auxiliary high-voltage systems encompass all ancillary electrified subsystems required for operational functionality, including high-voltage electric motor driven hydraulic pumps for power steering and bed dumping, motor-driven air compressors for pneumatic braking, and high-capacity cabin climate control compressors. Operating directly off the high-voltage DC bus via specialized auxiliary inverters eliminates parasitic mechanical drag on the main traction system and maximizes overall system energy conversion efficiency.
Maintenance Considerations and System Reliability: High-voltage electrical networks operating in open-pit mining environments require strict quarterly isolation resistance monitoring, manual service disconnect lockout-tagout protocols before servicing, and regular thermal imaging inspections of all primary busbar contact junctions to detect micro-vibration contact degradation before resistive heating occurs.
Traction battery selection and pack design for electric dump trucks demand an optimal balance of high volumetric energy density, exceptional thermal stability, extreme shock resistance, and long calendar cycle life.
Mining haulage operations present a unique severe-duty cycle characterized by continuous high-rate discharge during loaded uphill haulage followed by intense, high-rate regenerative charge during downhill empty returns. Select lithium iron phosphate chemistry offers intrinsic thermal safety, superior structural stability, and an outstanding cycle life exceeding 4,000 to 6,000 full charge-discharge cycles at high depths of discharge. Compared to nickel-manganese-cobalt chemistries, lithium iron phosphate exhibits a significantly higher thermal runaway initiation threshold, making it the preferred chemical composition for heavy-duty open-pit mining environments where mechanical puncture risks and continuous high-current thermal loads are prevalent.
Designing the mechanical enclosure and module matrix for an ultra-class traction battery requires rigorous structural engineering. The external pack enclosure must withstand severe multi-axis vibration loads exceeding 5G and structural mechanical impacts from falling rock debris. Modules are contained within high-strength structural steel or extruded aluminum alloy casings featuring internal structural honeycomb cross-members and integrated liquid cooling cold plates positioned directly beneath cell bases. To prevent thermal propagation between adjacent cells in the event of an isolated internal short circuit, high-grade ceramic insulation barriers, aerogel thermal insulation sheets, and directional pressure relief vent valves are integrated into every battery module assembly.
In actual open-pit customer deployments, total usable energy capacity must be carefully calculated based on shift duration, mine site topography, haul road grade percentage, and charging strategy. For flat or steep uphill-loaded haul roads, heavy battery capacities ranging from 700 kWh to 1,400 kWh are deployed to provide uncompromised multi-hour shift autonomy. Conversely, in deep pit downhill-loaded operations, kinetic energy harvesting allows the electric dump truck to operate in a net-zero or energy-positive state, regenerating sufficient potential energy during descending trips to completely recharge the battery pack for the returning uphill trip.
Battery Design Parameter | Specification Metric | Engineering Significance in Mining |
Cell Chemistry | Lithium Iron Phosphate (LiFePO4 / LFP) | Maximum thermal runaway resistance & extended cycle life |
Nominal Pack Energy | 500 kWh - 1,500 kWh (Scalable) | Matched to haul road length, gradient, and payload profile |
Continuous C-Rate | 1.5C Continuous / 3.0C Peak Discharge | Delivers up to 2 Megawatts of peak drive power |
Structural Enclosure | Cast/Welded Structural Alloy Steel (IP68) | Protects cells against 5G multi-axis vibration and rock impacts |
Safety Features | Aerogel Insulation & Directional Venting | Prevents cell-to-cell thermal propagation during internal failure |
Battery Pack Mechanical Protection Principle: Structural battery enclosures utilize a double-walled floor construction combined with elastomer vibration dampers mounted between the chassis frame rails and pack mounting brackets, isolating sensitive internal battery cell stacks from frame twist and high-frequency shock loads during high-speed travel over unpaved haul roads.
The High-Voltage Power Distribution Unit design provides robust electrical protection, selective branch circuit switching, and uninterrupted continuous current routing across the entire heavy-duty electric dump truck platform.
In an ultra-class zero-emission mining hauler, the High-Voltage Power Distribution Unit functions as the primary electrical routing center, managing power flows between high-capacity energy storage modules, dual-motor traction drives, auxiliary hydraulic systems, and fast-charging interfaces. Operating in severe mining environments requires the PDU to handle continuous current densities exceeding 1,500 Amperes while withstanding significant voltage spikes caused by inductive load switching and sudden traction loss on unpaved haul roads. The internal structural layout utilizes heavy-duty copper busbars coated with nickel or silver plating to minimize contact resistance, housed within an IP67-rated sealed enclosure equipped with internal condensation control elements.
Safety coordination within the PDU relies on a multi-tiered protection matrix incorporating high-speed semiconductor pyro-fuses, automotive-grade vacuum contactors, and solid-state current sensing hall sensors. The main traction circuit is protected by ultrafast pyro-fuses capable of interrupting fault currents up to 30 kA in less than one millisecond, preventing arc-flash incidents and protecting sensitive SiC inverter modules. Additionally, an active High-Voltage Interlock Loop continuously monitors the mechanical integrity of all high-voltage connector covers, instantly de-energizing main contactors if any high-voltage terminal is opened or unseated during operation or maintenance.
European mining clients and global heavy-duty fleets focus heavily on modular PDU designs that facilitate rapid field diagnostics and component replacement. By incorporating intelligent solid-state switching logic and localized CAN bus diagnostics, modern PDUs continuously report contactor cycle counts, contact resistance estimates, temperature rises at busbar joints, and real-time insulation resistance values back to the main vehicle domain controller, enabling predictive maintenance prior to hardware failure.
PDU Component / Subsystem | Technical Specification | Operational Protective Role |
Main Traction Fuse | Semiconductor Pyro-Fuse (30 kA Interrupt) | Sub-millisecond short-circuit fault isolation |
Main Power Contactors | Sealed Vacuum / Inert-Gas Filled 1,000A | High-voltage load switching without open arcing |
Busbar Material | Silver-Plated ETP Copper (C11000) | Low contact resistance and high current density |
Current Sensing | Closed-Loop Hall Effect Transducers | Real-time overcurrent monitoring and telemetry feedback |
Isolation Monitoring | Active AC-Injection Impedance Detector | Continuous early detection of chassis ground faults |
To maximize reliability under heavy payload stresses, exploring heavy haulage designs like the heavy-duty AC Drive mining haul truck highlights the importance of robust high-voltage distribution networks engineered for maximum uptime in demanding off-highway environments.
PDU Maintenance Safety Protocol: Maintenance teams must verify total zero-voltage state across all PDU test terminals using calibrated high-voltage meters and install manual high-voltage service disconnect plugs before opening PDU service covers to prevent accidental contact with stored capacitive energy in inverter DC bus banks.
The electric powertrain system design combines high-torque traction motors, advanced motor controllers, and heavy-duty planetary wheel reduction gearing to deliver smooth, gearless continuous tractive force.
Replaces traditional diesel engines and complex multi-speed automatic transmissions with direct-drive or dual-motor electric traction configurations. Electric traction motors designed for mining trucks typically utilize Permanent Magnet Synchronous Motors or AC Induction Motors characterized by high power density, exceptional efficiency exceeding 95%, and broad constant-power speed ranges. Dual-motor architectures allow independent torque control on each rear wheel assembly, providing electronic differential locking, dynamic traction control, and precise torque vectoring that significantly improves vehicle stability and steering control on muddy or slippery pit roads.
The motor controller utilizes advanced silicon carbide power semiconductor modules operating at high switching frequencies to convert DC battery power into precise three-phase AC output. Silicon carbide technology dramatically reduces switching losses compared to traditional silicon IGBTs, permitting higher power density within compact liquid-cooled housings. The motor controller executes field-oriented control with field-weakening algorithms, delivering maximum torque at zero RPM for starting fully loaded trucks on steep 15% haul road inclines, while smoothly transitioning to constant power output for high-speed flat haulage.
Regenerative braking energy recovery represents a critical operational advantage of the electric powertrain design. During downhill descent or deceleration, the traction motors act as high-output electrical generators, converting kinetic energy into high-voltage direct current that recharges the onboard traction battery. This dynamic braking capability provides precise, contactless retarding speed control, virtually eliminating mechanical service brake wear, reducing friction liner replacement costs, and significantly lowering operational noise levels across the mine site.
Powertrain Component | Engineering Architecture | Key Operational Benefit |
Traction Motor Type | Permanent Magnet Synchronous Motor (PMSM) | Peak efficiency > 96%, high power density |
Power Electronics | Silicon Carbide (SiC) Dual Inverter Module | Minimal switching losses, high thermal tolerance |
Gear Reduction | Heavy-Duty Double-Planetary Wheel Hub | Converts high motor RPM into massive wheel torque |
Braking Subsystem | Integrated Electro-Dynamic Regenerative Retarding | Reduces service brake wear by up to 90% |
Torque Control | Dynamic Torque Vectoring & Electronic Locking | Eliminates wheel slip on low-traction mine roads |
Powertrain Operating Principle: Dynamic electric retarding utilizes field-oriented reverse torque generation, transforming the traction motor into an AC generator during downhill travel. The resulting three-phase electrical power is rectified by the inverter module and channeled back into the traction battery at rates exceeding 1,000 kW, converting potential energy into usable stored power.
The battery thermal management system design regulates energy storage core temperatures through active liquid cooling, heat pump fluid circulation, and cold-weather preheating to ensure safety and performance.
Maintaining traction battery cell temperatures within an optimal operational window between 20°C and 35°C is essential for preserving lithium-ion battery health, maximizing charge/discharge efficiency, and preventing accelerated cell degradation. In heavy-duty mining haulage, continuous high-C-rate discharge during steep uphill climbing generates substantial internal Joule heating within cells and interconnect busbars. Without active thermal management, cell temperatures would rapidly exceed critical safety thresholds, triggering thermal throttling or permanent capacity loss.
Modern thermal management architectures utilize indirect liquid cooling cold plates integrated directly into the structural framework of the battery modules. Micro-channel aluminum cooling plates clad with thermal interface materials contact the large planar surface areas of prismatic cells, ensuring uniform heat extraction across all parallel cell groups. The cooling loop circulates a 50/50 water-glycol heat transfer fluid driven by high-efficiency variable-speed high-voltage coolant pumps. During high-load summer operation, fluid passes through an active refrigerant-to-coolant heat exchanger (chiller) powered by an electric scroll compressor to maintain core module temperatures below 35°C even when ambient air temperatures exceed 45°C.
In sub-zero winter mining operations, the thermal management system automatically transitions into preheating mode. High-voltage positive temperature coefficient liquid heaters or heat pump heat recovery loops warm the circulating fluid before vehicle operation or charging begins. Preheating the battery cells to at least 15°C prevents hazardous lithium plating on graphite anodes during rapid DC fast-charging, ensuring long calendar battery life and safe fast-charging performance in cold climates.
Thermal Management Subsystem | Design Configuration | Primary Thermal Function |
Cold Plate Interface | Micro-channel Extruded Aluminum Plates | High-conduction heat transfer from cell bases |
Circulation Pump | Variable-Speed Brushless 24V/800V DC | Precision coolant flow rate regulation |
Refrigerant Chiller | Brazed Plate Heat Exchanger with R134a/R1234yf | Active cooling under ambient temperature > 35°C |
System Heater | High-Voltage PTC Liquid Heater (10-25 kW) | Fast winter preheating to prevent lithium plating |
Fluid Medium | Inhibited Ethylene Glycol / Water (50/50) | Wide temperature operating range (-40°C to 105°C) |
Engineering robust thermal management and drive control is central to total haulage performance. Advanced mining haulage platforms, such as the ultra-class electric haulage dump truck solutions, demonstrate how high-efficiency liquid thermal loops and AC electric drive integration ensure consistent performance across extreme ambient conditions.
Thermal System Inspection Tip: Maintenance technicians should perform bi-annual refractometer fluid concentration testing on coolant loops and inspect micro-channel plate pressure drops to prevent internal particulate fouling or glycol degradation from compromising heat transfer efficiency.
The successful electrification of heavy mining haulage relies on the seamless integration of high-voltage system architecture, high-density traction battery design, solid-state power distribution protection, efficient electric powertrains, and robust liquid thermal management. By replacing diesel engines with high-efficiency electric motors and high-rate regenerative energy storage systems, mine operators can achieve substantial fuel savings, reduce site greenhouse gas emissions to zero, eliminate diesel particulate matter in open pit cuts, and lower total lifecycle maintenance costs. As battery chemistries advance and megawatt charging networks mature, high-capacity electric dump truck platforms will continue to set new benchmarks for productivity, durability, and operational sustainability in modern open-pit mining operations worldwide.
