Industrial Shim Guide: Types, Materials & Alignment

An industrial shim is a precision-engineered spacing component designed to fill microscopic gaps between mating mechanical surfaces, compensate for manufacturing tolerances, and re-establish precise rotational or axial alignment in machinery. Utilizing a High Precision Adjusting Shim ensures correct load distribution, minimizes vibration, and dramatically extends component service life in severe-duty applications.

Table of Contents

1. What is an Industrial Shim and Why is Precision Alignment Critical?

2. Key Types of Industrial Shims Used in Heavy Engineering

3. Material Selection Matrix for High-Performance Shims

4. The Role of High Precision Adjusting Shims in Heavy Excavator Alignment

5. Best Practices for Shaft and Structural Alignment Procedures

6. Maintenance Insights and Failure Analysis in High-Load Shim Applications

1. What is an Industrial Shim and Why is Precision Alignment Critical?

Industrial shims are thin, high-tolerance mechanical spacers inserted between mounting faces to achieve exact positioning, parallel alignment, and controlled axial endplay in mechanical assemblies.

In high-capacity mechanical systems, perfect coplanar mating between bolted structures is rarely achieved through machining alone. Manufacturing tolerances, welded frame distortions, and thermal gradients create microscopic voids and offset conditions. When uncorrected, these geometric discrepancies introduce localized stress concentrations across mounting bolts, bearing housings, and gear meshes. Utilizing a High Precision Adjusting Shim fills these manufacturing variances, providing a uniform bearing surface that preserves designed load paths. Proper installation eliminates soft foot conditions, where machinery bases distort under bolt torque, preventing internal shaft bending and housing deformation.

Dynamic forces in heavy machinery, such as rotating power take-offs, hydraulic pump mounts, and heavy excavator slewing rings, require precise sub-millimeter positional control. A High Precision Adjusting Shim acts as a static calibration medium, allowing field engineers to adjust shaft centerlines to within micrometers without requiring expensive field re-machining. Correct alignment directly influences bearing life according to L10 fatigue life equations, where even a slight reduction in angular misalignment doubles component operational life by evening out load distribution across rolling elements.

From an operational safety and lifecycle perspective, skipping high precision adjusting shim verification during rebuilds leads to elevated vibration spectrum amplitudes, accelerated seal degradation, and increased power consumption. Integrating high quality High Precision Adjusting Shim sets into initial equipment manufacturing and scheduled maintenance routines ensures structural integrity under continuous load, maintaining operational parameters across demanding service lifecycles.

2. Key Types of Industrial Shims Used in Heavy Engineering

Industrial shims are classified into solid, laminated, slotted, and custom profile configurations, each optimized for specific mechanical adjustability, structural strength, and installation constraints.

Solid shims are single-thickness components manufactured to tight thickness tolerances, offering maximum compressive strength under high clamping forces. These shims are ideal for permanent structural mountings where exact spacing parameters are known and static stability under heavy loads is required. However, fitting solid shims requires maintaining extensive stock inventories of varying thicknesses. In high-stress applications, such as securing heavy boom linkages or main frame assemblies, engineers often rely on a tailored heavy excavator High Precision Adjusting Shim to maintain zero axial play under severe shock loads.

Laminated shims present an efficient solution for variable field adjustments. Built from layers of precision foil bonded together by high-strength resin adhesive, laminated shims can be micro-peeled layer by layer at the installation site. Technicians peel off foil layers, typically 0.05mm to 0.075mm thick, until the exact required dimension is achieved. This eliminates the need for field grinding or carrying large inventories of individual shims. Slotted or horseshoe shims feature an open-ended slot that allows installation directly around existing fastener shanks without completely removing the bolt, significantly speeding up shaft alignment routines on foot-mounted motors and gearbox assemblies.

Custom profile and die-cut shims are engineered for specialized geometry, including circular bolt patterns found on slewing rings, planetary gearboxes, and hydraulic drive flanges. These complex shapes require precise laser cutting or stamping to match internal oil passages, bolt clearances, and pilot shoulders. Utilizing a custom-engineered High Precision Adjusting Shim guarantees that fluid channels remain unobstructed while structural support is maintained across the entire joint interface.

1. Solid Flat Shims

   Provides maximum structural rigidity and continuous surface contact. Designed for static machinery foundations, structural tie-ins, and high clamping force applications where long-term yield resistance is non-negotiable.

2. Laminated Peelable Shims

   Enables quick on-site adjustment by removing individual bonded foil layers. Reduces inventory complexity and speeds up precision clearance setting in variable tolerance assemblies.

3. Slotted Foot Shims

   Features standardized horseshoe profiles engineered to slip directly around motor and pump hold-down bolts. Essential for rapid horizontal and vertical shaft alignment procedures.

4. Precision Ring and Washer Shims

   Circular shims designed to manage axial clearance in bearing packs, thrust washers, and gear hubs. Ensures accurate preloading of tapered roller bearings in heavy drivelines.

3. Material Selection Matrix for High-Performance Shims

Selecting the appropriate material for a high precision adjusting shim requires matching mechanical strength, corrosion resistance, operating temperature, and galvanic compatibility to the application environment.

Carbon steel remains the standard choice for general mechanical applications where high compressive yield strength is required and environmental moisture exposure is minimal. High-carbon cold-rolled steel shims provide excellent resistance to permanent compression under heavy clamping loads. However, in outdoor, marine, or corrosive chemical environments, un-plated carbon steel shims can rust, leading to rust pack-out and thickness expansion that throws off alignment. In such environments, applying a High Precision Adjusting Shim manufactured from austenitic or martensitic stainless steel prevents corrosion and protects surface registration over extended operational cycles.

Stainless steel grades like 304 and 316 offer exceptional corrosion resistance, high tensile strength, and stability at elevated operating temperatures. Grade 316 stainless steel is preferred in marine and acidic environments due to its molybdenum content, which resists pitting corrosion. For applications requiring precise axial positioning alongside electrical or thermal conduction—or where non-magnetic properties are required—brass and copper shims are widely used. Brass shims also provide low friction coefficient properties, making them suitable as sacrificial thrust surfaces in lightly loaded sliding interfaces.

Polymetric and composite shims are increasingly used in weight-critical applications or where electrical isolation is required to prevent galvanic corrosion between dissimilar metals. High-density engineering plastics resist hydrocarbon exposure and damp high-frequency acoustic vibrations. However, for structural mechanical alignment subjected to thermal cycling and high bolt preloads, metallic materials remain essential due to their superior resistance to creep deformation.

4. The Role of High Precision Adjusting Shims in Heavy Excavator Alignment

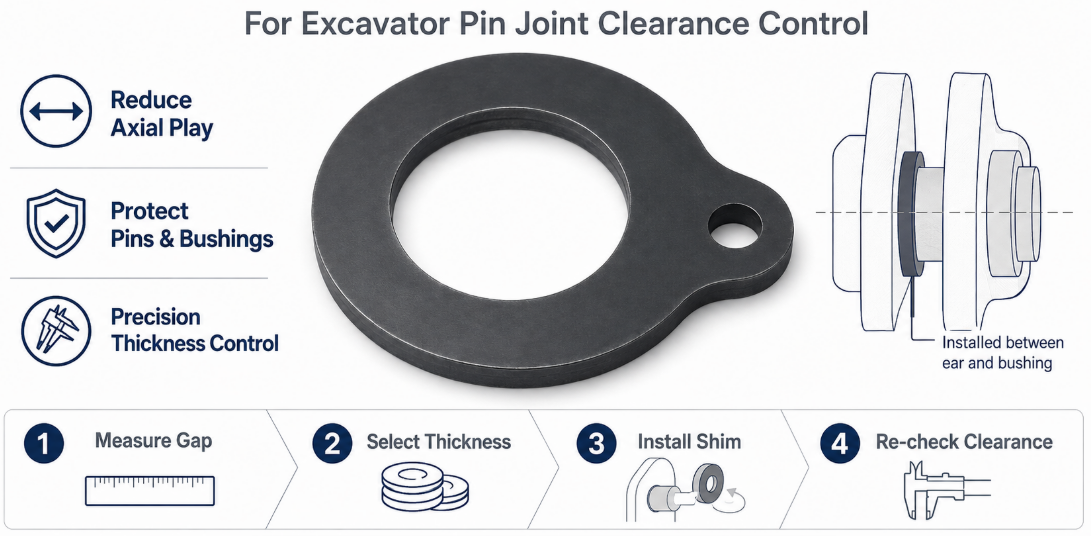

In heavy earthmoving equipment like large excavators, precision adjusting shims are critical components used to set slewing ring mesh clearances, manage track frame geometry, and eliminate pin pivot slop.

Heavy excavators operate under continuous fatigue loading, absorbing intense shock loads from bucket impacts, high-torque slewing operations, and uneven ground travel. The interface between the upper revolving superstructure and the lower crawler frame relies on a large-diameter slewing bearing. To ensure uniform gear tooth engagement between the swing motor pinion and the main slewing ring, technicians install a custom excavator high precision adjusting shim pack. This precise shim stack sets the exact vertical and radial position, preventing tooth edge-loading, localized fatigue pitting, and expensive swing drive failures.

Arm, boom, and bucket pin joints experience severe multi-directional shear forces during digging cycles. Over time, manufacturing tolerances and surface wear create side-play at pin connections, leading to implement chatter, reduced digging accuracy, and accelerated bushing wear. Integrating a High Precision Adjusting Shim on the main boom and bucket pivot shafts takes up axial endplay, distributing side loads evenly across the structural boss faces. Maintaining tight axial tolerances at these pivot points prevents fatigue cracking in boom weldments and ensures precise hydraulic implement control.

In addition, hydraulic pump mounts and main valve control banks rely on precision shimming to isolate hydraulic components from structural frame flexure. Using a precision adjusting shim for heavy equipment maintains true alignment between the diesel engine flywheel housing and main hydraulic pump shaft, protecting pump input splines from premature torsional wear.

5. Best Practices for Shaft and Structural Alignment Procedures

Systematic alignment processes require thorough surface preparation, accurate measurement using dial indicators or laser systems, correct torque application, and careful shim selection.

Precision alignment begins with thorough surface preparation. Before placing any High Precision Adjusting Shim on a mounting pad, both contact surfaces must be scraped clean of rust, paint overspray, burrs, and grease. Even tiny particles measuring a few hundredths of a millimeter can alter height readings and introduce angular soft foot. Individual shims must be inspected for flat placement; bent, dished, or burred shims act like springs under bolt tension, causing dynamic position shifts during equipment operation.

When stacking shims under machinery feet, standard engineering practice limits the total stack to no more than 3 to 4 individual shims per foot. Stacking excessive thin shims introduces an effect known as "shim squish," where combined micro-air gaps between layers compress under load, leading to bolt tension loss and alignment drift. Always select a single thick High Precision Adjusting Shim to make up the bulk of the required dimension, finishing with thinner precision shims to fine-tune the final height measurement.

During final bolting, torque must be applied in a calibrated, crisscross sequence across all hold-down bolts using a verified torque wrench. Measurements should be taken at every step in the tightening process using dial indicators or optical laser alignment heads to monitor thermal growth compensation and dynamic soft-foot displacement. Documenting initial and final alignment numbers creates an essential baseline for future predictive maintenance audits.

1. Surface Decontamination and Burr Removal

   Clean all mounting pads and shim surfaces thoroughly using solvent and precision fine stone files to eliminate burrs, scale, and particulate contamination.

2. Soft Foot Assessment and Correction

   Measure vertical movement at each mounting foot independently while loosening hold-down bolts. Correct any soft foot condition using a targeted High Precision Adjusting Shim before proceeding with final alignment.

3. Minimizing Shim Stack Thickness Count

   Limit stacks to 3 or 4 individual shims max per pad. Combine thicker solid shims with micro-adjusting foils to prevent joint springiness and bolt relaxation under load.

4. Calibrated Torque Pattern Execution

   Tighten fasteners incrementally in a multi-stage, star-pattern sequence using a calibrated torque wrench, verifying final alignment offsets at 100% rated clamping force.

Working Principle of Precision Shimming in Load Path Continuity: A high precision adjusting shim transfers compressive clamping force across 100% of the joint area. This prevents point loading, eliminates localized stress concentrations, and maintains consistent fastener pre-load under dynamic cyclic fatigue.

6. Maintenance Insights and Failure Analysis in High-Load Shim Applications

Failure in shimming systems usually stems from improper surface preparation, incorrect torque specs, selecting the wrong material grade, or using too many thin shims in a single stack.

Fretting corrosion is a primary failure mode observed in high-load structural shim interfaces subjected to continuous micro-vibration. When clamping force is insufficient or the shim stack exhibits elasticity, tiny relative movements occur between individual shims. This relative motion breaks down protective oxide films, generating fine metallic debris that accelerates surface degradation. Utilizing a single, robust High Precision Adjusting Shim manufactured from hardened stainless steel—alongside verifying correct bolt stretch during torqueing—eliminates joint movement and prevents fretting fatigue.

Another common issue is yield deformation under heavy shock loading. If the selected shim material has a yield strength lower than the dynamic peak stress generated by the machinery, the shim will permanently thin out over time. This deformation creates joint looseness, alters shaft alignment, and accelerates bearing wear. Inspecting pulled shims for thickness variations, edge cracking, or localized indentations provides clear clues about severe frame flexure or localized stress concentrations that require engineering attention.

Preventative maintenance routines should incorporate periodic thermal imaging scans and ultrasonic vibration diagnostics. Elevated thermal signatures at bearing housings or abnormal 2X shaft rotational frequency spikes often point to alignment shifts caused by shim migration or fastener tension loss. Addressing these early indicators with high-quality replacement shims prevents unplanned downtime and avoids costly structural rebuilds.

Maintenance Tip for Heavy Duty Machinery Adjustments: Never reuse damaged, crushed, or visibly corroded shims during rebuild routines. Always measure replacement shims with a calibrated micrometer across four quad points before installation to verify uniform parallel thickness.

7. Summary and Technical Conclusions

Achieving structural reliability, quiet power transmission, and optimized machinery operational life requires a disciplined approach to mechanical alignment. A High Precision Adjusting Shim is a critical engineering component that bridges the gap between raw manufacturing tolerances and exact precision assembly requirements. Whether compensating for soft foot conditions on electric motor bases or setting complex backlash parameters on heavy excavator slewing drives, precise shim application protects core power plant components from unneeded stress and premature wear.

By selecting high-grade materials like 316 stainless steel, sticking to strict stack-count limits, and following calibrated torque alignment procedures, plant engineers and field maintenance technicians can dramatically reduce unscheduled equipment downtime. Investing in high quality High Precision Adjusting Shim inventory pays direct dividends through reduced vibration levels, extended bearing life, lower energy consumption, and increased operational availability across demanding heavy industry applications.
