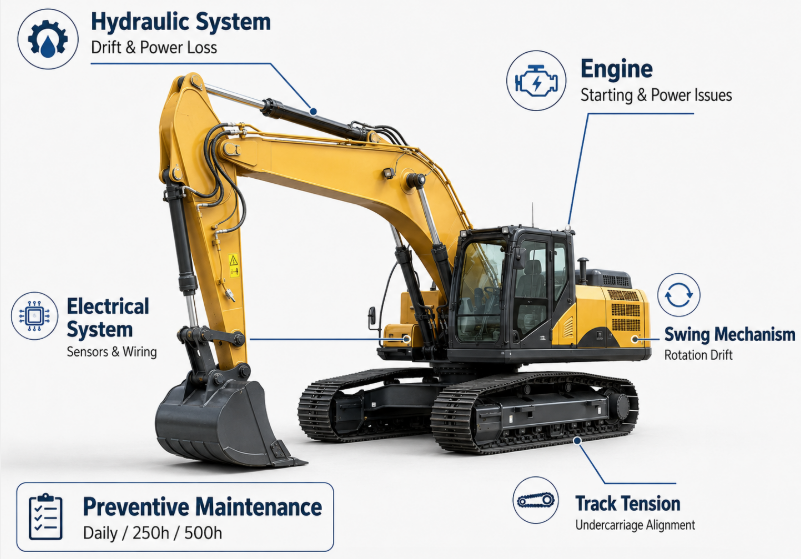

The most common mini excavator problems typically stem from hydraulic system failures, engine starting issues, track tension misalignment, electrical faults, and swing mechanism drift. Resolving these issues requires a systematic approach of pressure testing, electrical diagnostic routing, mechanical adjustment, and strict adherence to professional preventative maintenance protocols.
Section | Summary |
Hydraulic System Drift and Power Loss | An in-depth analysis of hydraulic pressure drops, cylinder seal degradation, and control valve issues within the closed-loop hydraulic circuit, detailing exact diagnostic steps and pressure settings. |
Engine Ignition and Power Delivery Failures | Examination of fuel delivery blockages, air intake restrictions, and electrical starter issues that prevent diesel engines from starting or maintaining steady operational RPMs. |
Undercarriage Alignment and Track Tension Misalignment | A technical guide on the mechanical wear of rubber and steel tracks, detailing the hydraulic tensioning process and the structural impact of sprocket and idler misalignment. |
Electrical System Malfunctions and Error Codes | Troubleshooting sensor failures, battery drain, wiring harness damage, and controller area network (CAN bus) communication faults common in modern compact excavators. |
Swing Mechanism and House Rotation Drift | Investigating hydraulic swing motor wear, backlash in the swing gear bearing, and brake valve leakage that causes unwanted lateral rotation of the upper structure. |
Proactive Preventative Maintenance Best Practices | A systematic outline of daily, weekly, and seasonal service schedules engineered to extend component lifespans, optimize thermal efficiency, and prevent unexpected machine downtime. |
Hydraulic system drift and power loss are primarily caused by internal fluid bypass within the hydraulic cylinders, worn control valve spools, hydraulic pump degradation, or thermal breakdown of the hydraulic fluid.
Hydraulic crawler excavators rely heavily on precise volumetric efficiency within their hydraulic circuits to execute digging, lifting, and grading operations. When operators experience slow cycle times or a gradual droop in the boom, arm, or bucket cylinders under load, the root cause is almost always an interruption in hydraulic pressure or flow. This drift is not merely a mechanical annoyance; it represents a critical bypass of high-pressure fluid across wear surfaces, which converts mechanical energy into destructive thermal energy, rapidly raising the operating temperature of the entire system.
To diagnose hydraulic power loss, technicians must perform a systematic pressure test using high-pressure gauges connected to the main control valve diagnostic ports. If the primary relief valve is set below the manufacturer's specified bar rating, the excavator will stall under nominal loads. Internal leakage across cylinder piston seals can be verified by extending the cylinder to its stroke limit, safely isolating the return line, and checking for continuous oil bypass. For heavy-duty operations, utilizing highly resilient components similar to those found in the high-capacity Hydraulic Crawler Excavator ensures that main control valves and variable displacement pumps maintain volumetric efficiency even under extreme continuous thermal and mechanical stress.
Below is a technical breakdown of the primary hydraulic circuit components, their common failure modes, and their diagnostic pressure parameters:
Hydraulic Component | Common Failure Mode | Diagnostic Indicator | Corrective Action |
Main Hydraulic Pump | Piston shoe wear, swashplate scoring | Decreased flow rate at high operating pressures | Replace rotary group or rebuild pump |
Main Control Valve (MCV) | Spool clearance expansion, o-ring shear | Internal drift of boom or arm under load | Hone valve body and install oversized spools |
Cylinder Piston Seals | High-pressure bypass, thermal hardening | Boom drift exceeding 50mm over 10 minutes | Disassemble cylinder and install polyurethane seals |
Pilot Control Valve | Clogged pilot filter, broken return springs | Spongy joystick feel, delayed actuator response | Flush pilot lines and replace pilot cartridge valves |
Oil Cooler | External fin blockage, internal clogging | Hydraulic oil temperature exceeding 90 degrees | Chemical flush internally, pressure wash fins |
Engine ignition failures and sudden power drops in compact excavators are typically caused by fuel delivery blockages, air intake restriction, glow plug deterioration, or electrical solenoid faults within the injection pump.
Industrial diesel engines require three basic inputs for combustion: high cylinder compression, precise fuel atomization, and unrestricted airflow. In compact crawler machinery, engine starting issues often trace back to the fuel delivery system. Biodiesel blends and low-quality fuel can lead to microbial growth within the steel or polyethylene fuel tanks, resulting in rapid clogging of the primary fuel-water separator and secondary fuel filters. When fuel flow is restricted, the high-pressure injection pump starves, causing cavitation, hard starts, or engine stalling under sudden load increases.
Furthermore, air intake filtration is critical in dusty demolition and earthmoving environments. A clogged primary air filter element alters the stoichiometric air-fuel ratio, leading to incomplete combustion characterized by heavy black smoke from the exhaust and a noticeable drop in engine torque. For operations requiring continuous, high-output power delivery, heavy-duty machines utilize multi-stage centrifugal pre-cleaners. These components, engineered to the standards of a premium Hydraulic Crawler Excavator, ensure clean airflow is consistently maintained to the combustion chamber, significantly reducing cylinder liner wear and preventing sudden power drop-offs.
Engine Component | Primary Function | Failure Symptom | Maintenance Protocol |
Fuel Injection Pump | Pressurizes and meters diesel fuel | Engine hard starting, white smoke on crank | Verify pressure, calibrate injection timing |
Glow Plugs | Preheats combustion chamber | Failed cold starts in low ambient temperatures | Test resistance with multimeter, replace if open |
Fuel-Water Separator | Removes water and coarse particulates | Fuel system corrosion, engine sputtering | Drain water daily, replace element every 250 hours |
Turbocharger | Compresses intake air for high density | Lacks power under load, blue exhaust smoke | Inspect compressor wheel, check axial shaft play |
Solenoid (Shut-off) | Stops fuel flow to shut down engine | Engine cranks but refuses to fire | Verify 12V signal at coil, check linkage travel |
Undercarriage track tension misalignment and excessive component wear are caused by improper grease cylinder adjustment, worn tensioner springs, and accumulation of abrasive soil debris within the track frame.
The undercarriage of a crawler machine accounts for a significant portion of its lifetime maintenance cost. Proper track tension is vital for preventing track derailment (de-tracking) and reducing rolling resistance. If the tracks are adjusted too tightly, they place massive structural loads on the drive sprocket, front idler, and track rollers, leading to rapid bearing failure and high fuel consumption. Conversely, if the tracks are too loose, they will sag, wobble, and easily slip off the guide rollers during counter-rotation or when operating on steep lateral slopes.
In mini excavators equipped with rubber tracks, maintaining proper tension involves injecting chassis grease into a tensioning cylinder, which pushes the front idler forward against a heavy recoil spring. Over time, the internal polyurethane seals of the grease cylinder can fail, allowing grease to bypass and the track to lose tension rapidly during operation. Additionally, working in rocky or muddy conditions packs abrasive material into the track link chain or the drive lugs of rubber tracks, causing accelerated wear on the sprocket teeth. Industrial operators frequently seek robust, undercarriage designs engineered to withstand these harsh conditions. Selecting machinery developed with the structural integrity of a large Hydraulic Crawler Excavator provides an over-engineered undercarriage with heavy-duty track guides and reinforced idler assemblies designed to resist high-impact lateral forces.
Undercarriage Component | Material/Composition | Wear Limit Metric | Direct Impact of Failure |
Rubber Track | Steel cord reinforced elastomer | Lug depth less than 5mm or exposed steel cords | Complete track rupture, loss of traction |
Drive Sprocket | High-strength induction-hardened steel | Pointed, sharp teeth profile | Track skipping, rapid drive lug wear |
Front Idler | Cast steel with lifetime sealed bearings | Shaft play exceeding 1.5mm | Track misalignment, uneven track wear |
Track Rollers | Medium carbon steel, dual-cone sealed | Oil leakage, flat spots on roller face | Increased rolling resistance, track damage |
Grease Tensioner | Steel cylinder with nitrile lip seals | Failure to hold grease pressure | Persistent loose track, high risk of derailment |
Electrical system failures in modern compact excavators typically stem from deteriorated wiring harnesses, corroded ground connections, low battery voltage, or faulty electronic control unit (ECU) sensors.
Modern compact excavation equipment increasingly relies on digital monitoring systems, CAN bus communication networks, and electro-hydraulic proportional valves to optimize fuel efficiency and operator control. While these systems enhance performance, they introduce vulnerabilities to moisture, vibration, and physical abrasion. A single corroded ground strap or a wire chaffed against the structural frame can cause intermittent sensor readings, trigger cryptic error codes on the digital cluster, or activate safety lockouts that completely disable the hydraulic pilot control system.
The most common starting point for electrical diagnostics is the battery and charging system. Low voltage (below 12.4V static) can cause digital controllers to malfunction, producing phantom fault codes that point to non-existent mechanical failures. Furthermore, engine coolant temperature sensors, hydraulic oil temperature senders, and engine speed sensors are highly sensitive to resistance changes caused by moisture entering sealed connectors. Utilizing high-grade Deutsch connectors, IP67-rated wiring harnesses, and robust control architecture ensures long-term electrical reliability under continuous high-frequency vibration.
Diagnostic Tip (Voltage Drop Testing): To locate high resistance in a suspect electrical circuit without dismantling the wiring harness, perform a dynamic voltage drop test. With the circuit turned on and drawing current, measure the voltage across the suspected wire or connector using a digital multimeter set to DC millivolts. Any reading exceeding 200 millivolts indicates localized corrosion or strand breakage that requires immediate terminal replacement.
Swing mechanism and house rotation drift are caused by wear within the swing motor planetary gearbox, internal leakage of the swing brake valve, or excessive backlash in the main swing bearing.
The swing system of a crawler excavator enables the upper structure to rotate 360 degrees relative to the stationary undercarriage. This rotation is driven by a high-torque, low-speed hydraulic swing motor connected to a planetary reduction gearbox, which drives a pinion gear meshing with the main swing bearing ring gear. If the excavator swings past the desired point when the operator centers the joystick, or if the upper house slowly drifts when parked on an incline, there is a failure in the swing braking circuit or mechanical gear train.
The primary mechanical cause of house drift is wear in the planetary gears or excessive backlash between the pinion gear and the outer swing bearing teeth. This backlash allows physical movement even when the swing motor is hydraulically locked. On the hydraulic side, the swing motor features integrated dual shock relief valves designed to cushion the inertial forces of stopping a rotating mass. If these relief valves are set too low or are held open by fine particulate contamination, high-pressure oil will bypass the motor chambers, allowing the house to drift under inertial loads. For heavy duty cycles, selecting a machine designed with robust slewing rings and large-displacement swing motors—features standard on professional models like the Hydraulic Crawler Excavator—guarantees structural stability and eliminates rotational drift during precision grading operations.
Swing System Component | Function | Failure Mode | Repair Action |
Swing Motor | Converts hydraulic flow to rotation | Internal piston shoe wear, seal leakage | Rebuild rotary group, replace seals |
Swing Relief Valves | Absorbs rotational inertia spikes | Weak springs, debris on valve seat | Clean valve cartridges, reset cracking pressure |
Swing Brake | Mechanically locks upper house | Friction disc wear, weak release spring | Replace friction plates, check pilot release pressure |
Planetary Gearbox | Multiplies motor torque | Gear teeth spalling, bearing seizure | Replace worn planetary gears, renew gear oil |
Swing Bearing | Structural interface for rotation | Ball bearing wear, loss of grease sealing | Regrease bearing cavity, replace swing ring assembly |
Implementing a standardized, hours-based preventative maintenance schedule is the single most effective strategy to eliminate mechanical breakdowns, protect critical hydraulic components, and maximize the operational lifespan of crawler machinery.
To ensure the high-pressure hydraulic circuits and precise mechanical tolerances of compact excavators remain within OEM specifications, owners must move away from reactive repair strategies. A proactive maintenance protocol prevents minor issues—such as minor seal weeping or micro-particulate oil contamination—from developing into catastrophic hydraulic pump failures or structural cracks. Cleanliness is paramount; hydraulic fluids must be regularly sampled and analyzed for wear metals, water ingress, and particulate counts according to ISO 4406 standards.
Before starting any operating shift, operators should execute a walk-around inspection focusing on structural weldments, oil levels, and signs of external leakage.
Check Engine Oil and Coolant Levels: Ensure fluids are within cross-hatched marks on dipsticks; never top off a hot cooling system with cold coolant.
Inspect Hydraulic Cylinder Rods: Look for scoring, pitting, or hydraulic oil accumulation on the wiper seals, which indicates internal seal failure.
Drain Fuel-Water Separator: Open the manual drain valve at the base of the separator to purge accumulated water and heavy sediment.
Verify Track Tension: Measure track sag at the middle track roller; adjust via the grease fitting if dimensions exceed manufacturer specifications.
High-friction joints, including the bucket linkage, arm pivot pins, boom cylinder mounts, and the swing bearing, require consistent lubrication to purge abrasive dirt and reduce metal-on-metal wear.
Working Group Pins (Every 10 Hours): Inject heavy-duty lithium complex grease with 3% to 5% molybdenum disulfide until clean grease is visible at the pin joint exits.
Swing Bearing Ring Gear (Every 250 Hours): Apply specialized open-gear lubricant to the internal teeth; rotate the machine 90 degrees progressively during application to ensure complete coverage.
Track Roller Bearings (Every 500 Hours): Inspect for external oil leakage; top off with heavy gear oil if equipped with serviceable dual-cone seals.
Regular filter changes prevent the accumulation of micro-abrasive particles that scratch control valve spools and degrade high-pressure piston pumps.
Engine Oil and Filter (Every 250 Hours): Drain oil while hot to ensure suspended particulates are removed; replace with high-quality API CK-4 diesel engine oil.
Hydraulic Return Filter (Every 500 Hours): Replace the low-micron return element to catch wear debris from cylinders and motors before it enters the hydraulic tank.
Main Hydraulic Fluid Change (Every 2000 Hours): Complete system flush; refill with high-viscosity index anti-wear hydraulic oil to maintain structural fluid film strength under high operating temperatures.
