The construction and heavy industry sectors have undergone a massive transformation in recent decades, shifting toward projects that demand unprecedented lifting capacities and extreme stability. As infrastructure projects grow in scale—from massive wind turbine installations to complex petrochemical plant assemblies—the reliance on specialized machinery has become paramount. Among the diverse fleet of lifting equipment, the Hydraulic Crawler Crane stands out as the ultimate powerhouse, combining massive weight-bearing capabilities with the unique ability to travel while under load.
Crawler cranes excel as heavy lifting solutions because they utilize a wide track system instead of outriggers, providing a massive footprint that distributes weight evenly across soft terrain. This design allows for superior stability, high lifting capacities exceeding 1000 tons, and the unique functional advantage of "pick-and-carry" operations, where the crane can move across a job site while holding a heavy load.
In this comprehensive guide, we will explore the engineering marvels that allow these machines to dominate modern construction sites. We will delve into the technical specifications, the operational advantages of hydraulic systems, and why industries worldwide are increasingly turning to the Hydraulic Crawler Crane to solve their most complex logistical challenges. From the mechanics of the undercarriage to the versatility of lattice booms, the following sections provide a deep dive into the world of crawler-based lifting.
The Engineering Excellence of the Hydraulic Crawler Crane
Core Advantages of Using Crawler Cranes in Heavy Construction
Key Components and Design Features of a Hydraulic Crawler Crane
Pick and Carry Capabilities: Redefining On-Site Logistics
Ground Bearing Pressure and Stability on Challenging Terrains
Comparing Crawler Cranes with Truck-Mounted and Rough Terrain Cranes
The engineering of a Hydraulic Crawler Crane centers on a sophisticated integration of high-pressure fluid power and heavy-duty structural steel to facilitate the movement of massive loads with pinpoint accuracy.
Modern heavy lifting relies heavily on hydraulic power. Unlike older mechanical systems, the Hydraulic Crawler Crane uses a series of pumps and motors to control every movement, from the rotation of the upper-works to the tension in the hoist lines. This hydraulic integration ensures that even when dealing with hundreds of tons, the operator can perform micro-adjustments that are essential for setting bridge girders or wind turbine components.

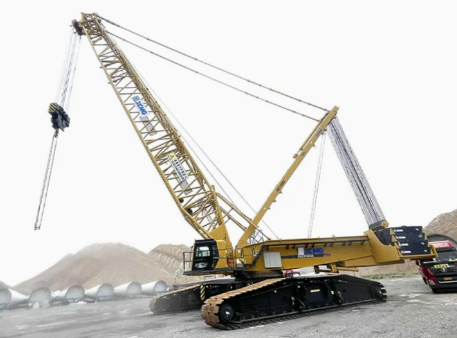

The structure of the crane is built to withstand immense torsional stress. The lattice boom design is a key engineering feat; it provides a high strength-to-weight ratio, allowing the crane to reach incredible heights without becoming top-heavy. This design is particularly evident in high-performance models like the 200 Ton Hydraulic Mobile Crawler Crane, which utilizes advanced metallurgy to ensure long-term durability under heavy duty cycles.
Furthermore, the modularity of these machines is a testament to modern engineering. Because they are too large to travel on public roads fully assembled, they are designed to be broken down into transportable components. The hydraulic systems often include "self-assembly" features, where the crane uses its own cylinders to lift its tracks or counterweights into place, significantly reducing the time and cost associated with site mobilization.
The primary advantages of utilizing a Hydraulic Crawler Crane include unmatched stability, the ability to operate on soft ground, and a higher lifting capacity relative to the machine's overall footprint.
The most obvious benefit of the crawler crane is its sheer power. Because the tracks provide a massive, heavy base, these cranes can support much longer booms and heavier loads than their wheeled counterparts. This makes them indispensable for "megaprojects" where components like nuclear reactor vessels or offshore platform modules must be lifted. The stability of the track base allows for a 360-degree load chart that is often more consistent than cranes relying on outriggers.
While a truck crane is faster on the highway, the crawler crane wins on the job site. Once assembled, the Hydraulic Crawler Crane can navigate the entire work zone. It does not need to be leveled on outriggers every time it moves a few feet. This "all-terrain" mobility ensures that the crane remains at the center of the action, reducing the "dead time" spent reconfiguring the machine between different lifts.
Outriggers on mobile cranes create concentrated pressure points on the ground, which can lead to soil failure if not properly matted. In contrast, the tracks of a crawler distribute the weight over a vast surface area. This allows the crane to work in environments like marshes, sandy coastal areas, or unpaved industrial sites where other cranes would simply sink. For projects requiring a balance of power and site-flexibility, a heavy-duty crawler lifting machine is the most reliable choice for engineers.
A Hydraulic Crawler Crane is composed of three primary sections: the lower undercarriage with tracks, the upper revolving superstructure, and the front-end attachment which typically includes a lattice boom.
The "crawler" element refers to the pair of steel track frames that support the entire machine. These tracks are driven by high-torque hydraulic motors, allowing the crane to turn in place (counter-rotate). The width of the tracks is a critical design feature; many modern cranes feature extendable track frames that can be retracted for transport and widened for maximum stability during lifting operations.
The upper portion of the crane houses the engine, the operator's cab, the winch drums, and the counterweight tray. The heart of the machine is the hydraulic pump group, which converts engine power into fluid pressure. This pressure is then routed through a central swivel joint to the track motors and up to the boom hoists. This allows for smooth, stepless speed control, which is vital for safety when handling delicate loads.
Unlike the telescopic booms found on smaller mobile cranes, the Hydraulic Crawler Crane typically uses a lattice boom. This consists of tubular or angled steel welded into a triangular or square framework. This design is incredibly resistant to bending forces. Operators can add "inserts" to extend the boom length or attach a "luffing jib"—an additional pivoting boom section—to reach over obstacles and place loads in the center of tall buildings.
The "Pick and Carry" capability is the unique functional ability of a Hydraulic Crawler Crane to lift a load and travel with it to a different location without needing to set the load down or use additional transport equipment.
In traditional lifting, a crane is a static object. If a load needs to be moved from a storage yard to its final installation point, it usually requires a crane to load it onto a trailer, a truck to move it, and a second crane to unload it. The Hydraulic Crawler Crane eliminates these steps. By maintaining stability through its tracks, the crane can pick up a massive structural component and "walk" it several hundred meters across the site.
This capability is a massive time-saver in sectors like wind energy. When erecting a wind farm, the crane can pick up a fully assembled blade or nacelle and move from the staging area to the tower base. This reduces the number of machines required on-site and minimizes the risks associated with multiple rigging and unrigging cycles.
Efficiency is further enhanced by the precision of hydraulic drive systems. Modern cranes, such as the versatile hydraulic crawler model, feature fine-inching controls that allow the operator to move the tracks at speeds of just a few centimeters per minute. This level of control is essential when navigating tight corridors in a refinery or moving a load through a narrow gap between existing structures.
Ground Bearing Pressure (GBP) is the measure of how much force the crane exerts on the soil, and crawler cranes excel by keeping this pressure low through large track surface areas.
Stability is the most critical safety factor in heavy lifting. When a crane lifts a load, the center of gravity shifts. If the ground cannot support the concentrated force, the crane will tip. Because a Hydraulic Crawler Crane distributes its weight (plus the load and counterweights) over the entire length and width of its tracks, the pressure per square inch is significantly lower than that of a wheeled crane.
This low GBP allows these cranes to work on "soft" sites. For example, in bridge construction near riverbanks or in mountainous terrain for power line installation, the ground is rarely solid rock. Using a crawler crane reduces the amount of "site prep" required. While a truck crane might require expensive concrete pads or extensive timber matting, a crawler can often operate with minimal ground stabilization, saving the contractor time and money.
To further manage stability, engineers use complex software to calculate the real-time ground pressure under each track. Modern Hydraulic Crawler Crane systems provide the operator with a digital readout of these pressures. If the pressure on one side becomes too high, the system warns the operator, allowing for immediate correction before an accident occurs. This technological oversight is what makes the XGC series crawler cranes a preferred choice for safety-conscious project managers.
While truck-mounted cranes offer speed and rough terrain cranes offer compactness, the Hydraulic Crawler Crane is the superior choice for projects requiring maximum capacity, long-term site presence, and the ability to move while loaded.
Feature | Crawler Crane | Truck-Mounted Crane | Rough Terrain (RT) Crane |
Mobility | Low (requires transport) | High (highway speed) | Moderate (off-road) |
Lifting Capacity | Very High (up to 3000t+) | Moderate (up to 1200t) | Low to Moderate (up to 160t) |
Ground Pressure | Low (distributed) | High (concentrated) | High (concentrated) |
Pick and Carry | Excellent | Not Recommended | Limited |
Setup Time | High (days) | Low (hours) | Very Low (minutes) |
Truck-mounted cranes are "taxi" cranes; they arrive, do a quick lift, and leave. However, they are limited by their tires and outriggers. If a project lasts six months and involves hundreds of heavy lifts, the cost of a truck crane becomes prohibitive. The Hydraulic Crawler Crane is built for the long haul. Once it is on-site, it becomes a permanent fixture of the construction process, handling everything from unloading deliveries to the final heavy assembly.
Rough terrain cranes are great for tight spots, but they lack the reach of a lattice boom crawler. When a project reaches a certain height—such as a skyscraper or a tall bridge pier—the telescopic boom of an RT crane simply cannot compete with the lightweight rigidity of a lattice system. For any project where the "load radius" (the distance from the center of the crane to the load) is significant, the crawler is the only viable engineering solution.
