XE1350
| Availability: | |
|---|---|
| Quantity: | |

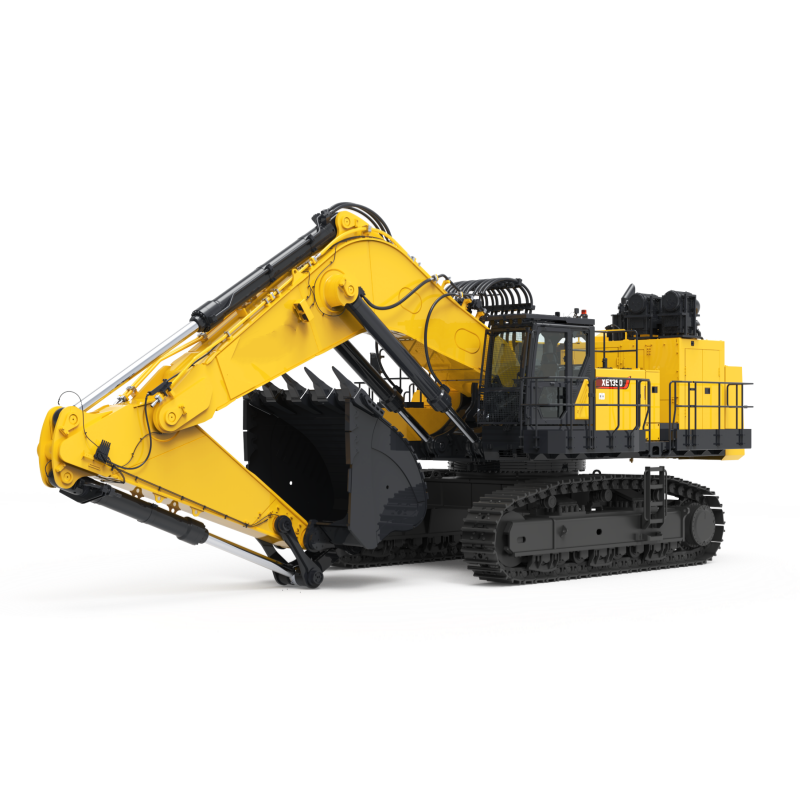

The XE1350 is a 135-ton ultra-large hydraulic crawler excavator designed exclusively for heavy-duty mining and large-scale engineering projects. It integrates advanced power systems, high-strength structural design and intelligent control technology to deliver exceptional digging force, stability and efficiency in the harshest working environments. Specifically engineered for open-pit mining, large quarry operations and bulk earthmoving, the XE1350 excels in continuous heavy-load work, balancing maximum productivity with fuel economy, and meeting the strict requirements of large-scale mining and infrastructure construction for equipment reliability and durability.
Super Powerful Performance: Equipped with a high-output diesel engine that meets international emission standards, delivering a rated power of 680 kW and strong torque. The optimized high-pressure hydraulic system (35 MPa) provides exceptional digging and breakout force, ensuring efficient handling of hard rock, ore and bulk materials, significantly improving construction efficiency.
Ultra-Robust & Durable Structure: The boom, arm and bucket are made of high-strength wear-resistant alloy steel, processed by precision welding and heat treatment to enhance structural toughness and wear resistance. The reinforced undercarriage with extra-wide track shoes and heavy-duty track frame ensures superior load-bearing capacity and stability, adapting to complex and harsh terrains such as rocky slopes and muddy mines.
Energy-Saving & Cost-Effective: Adopts intelligent energy-saving control technology, which automatically adjusts engine speed and hydraulic output according to the working load, reducing fuel consumption by 10-15% compared with similar ultra-large excavators. Extended maintenance cycles and wear-resistant components effectively lower daily operation and maintenance costs.
Intelligent & Comfortable Operation: The ergonomically designed cab is equipped with a fully adjustable suspension seat, air conditioning system and sound insulation structure, reducing operator fatigue during long-hour continuous work. The large-size LCD display real-time shows equipment parameters, fault prompts and operation status, with simple and intuitive operation controls, improving operation efficiency and safety.
Easy Maintenance & High Reliability: Centralized maintenance design, with wide-opening service doors and easily accessible key components (engine, hydraulic pump, filter), greatly reducing maintenance time and labor intensity. The integrated intelligent fault diagnosis system can quickly locate faults, minimize downtime and ensure high equipment availability.
Versatile Adaptability: Compatible with a variety of heavy-duty attachments, including large-capacity rock buckets, hydraulic breakers, grapples and rippers, which can be flexibly replaced to meet different operation needs such as ore excavation, loading, rock breaking and waste handling in large mines and quarries.
Specification Item | Parameter |
|---|---|
Operating Weight | 135,000 kg |
Engine Model | High-Power Diesel Engine (4-stroke, turbocharged, intercooled) |
Rated Power | 680 kW / 1800 rpm |
Bucket Capacity | 6.0 – 8.0 m³ (standard rock bucket) |
Max. Digging Depth | 8,800 mm |
Max. Digging Height | 13,200 mm |
Max. Dumping Height | 9,200 mm |
Max. Digging Radius | 14,500 mm |
Hydraulic System Pressure | 35 MPa |
Travel Speed (High/Low) | 4.2 / 2.8 km/h |
Swing Speed | 6.5 rpm |
Track Width | 800 mm |
Track Gauge | 3,600 mm |
Fuel Tank Capacity | 1200 L |
Cooling System Capacity | 200 L |
Emission Standard | EU Stage III / US Tier 3 |
Large Open-Pit Mining: Specialized for ore extraction, overburden removal and loading operations in large open-pit mines (coal, iron ore, non-ferrous metal mines). It can efficiently handle large volumes of ore and waste rock, adapting to the harsh environment of high dust, heavy load and continuous operation.
Large-Scale Quarrying: Suitable for hard rock excavation, boulder crushing and material loading in large quarries (granite, limestone, marble). Equipped with heavy-duty rock buckets or breakers, it can easily break and handle hard rocks, improving quarrying efficiency.
Bulk Earthmoving Projects: Applied to large-scale earthwork excavation, filling and leveling in industrial parks, ports, airports and other projects. It can quickly complete the excavation of large foundation pits, trenches and site leveling, laying a solid foundation for subsequent construction.
Heavy Infrastructure Construction: Used for roadbed excavation, embankment filling and bridge foundation construction in large-scale highway, railway and bridge projects. It can cooperate with other heavy machinery to complete large-volume construction tasks, ensuring the progress and quality of the project.
Water Conservancy & Hydropower Projects: Suitable for large reservoir excavation, river dredging, dam construction and channel digging. It can efficiently complete large-volume earth and rock work, providing strong support for water conservancy and hydropower construction.
Mine Reconstruction & Environmental Governance: Used for waste sorting, site cleaning and land reclamation in old mine reconstruction projects. It can effectively handle mining waste and help restore the ecological environment of the mining area.
Check the machine appearance: Inspect the boom, arm, bucket and crawler track for cracks, deformation or loose bolts; check the cab for damage and the door and window seals for tightness.
Check the fluid levels: Carefully check the fuel, engine oil, hydraulic oil, coolant and brake fluid levels, and add them in time if they are insufficient; check the hydraulic pipeline, engine and fuel system for oil leaks.
Check the electrical system: Inspect the battery for loose connections and sufficient power; check the lights (headlights, taillights, turn signals), horn and instrument panel for normal operation; ensure the fault diagnosis system is working properly.
Check the attachments: If equipped with a bucket, breaker or other attachments, check the connection bolts, pins and hydraulic hoses for tightness and damage; ensure the attachment is installed correctly.
Start the engine: Turn on the power switch, start the engine, let it idle for 5-8 minutes, and check the engine sound, oil pressure, water temperature and other parameters for normal operation; check the hydraulic system for abnormal noise or vibration.
Starting the machine: After completing the pre-operation check, sit in the cab, fasten the safety belt, adjust the seat and steering wheel to a comfortable position, turn on the power switch, start the engine, and wait for the engine to run stably.
Moving the machine: Push the left joystick forward to move the machine forward, pull it back to move backward; push the joystick to the left or right to turn left or right. When moving on uneven or rocky terrain, slow down to avoid tipping or damage to the undercarriage.
Digging operation: Push the right joystick forward to lower the bucket, pull it back to lift the bucket; push the joystick to the left to curl the bucket, push it to the right to unload the bucket. During digging, keep the bucket level, avoid excessive digging or hitting hard rocks to prevent damage to the machine.
Loading operation: After digging, lift the bucket to the appropriate height, move the machine to the transport vehicle, align the bucket with the vehicle compartment, push the right joystick to the right to unload the materials; after unloading, return the bucket to the original position and prepare for the next digging cycle.
Stopping the machine: Stop the machine on a flat and stable ground, lower the bucket to the ground, let the engine idle for 2-3 minutes, turn off the engine, turn off the power switch, and pull the parking brake. After stopping, clean the machine and check for any abnormalities.
Operators must be professionally trained and certified before operating the machine; do not allow untrained personnel to operate the machine.
Do not operate the machine under the influence of alcohol, drugs or fatigue; keep a clear mind during operation to ensure safety.
When operating near personnel, obstacles or buildings, slow down and sound the horn to remind; do not allow personnel to stand under the boom, arm or bucket, and keep a safe distance from the machine's swing radius.
Do not operate the machine on steep slopes (slope angle should not exceed 25 degrees); avoid sudden acceleration, deceleration or turning to prevent tipping.
When the machine is working, do not touch the hot parts (engine, exhaust pipe) to avoid burns; do not open the fuel tank cap when the engine is running to avoid fuel splashing and ignition.
If the machine fails during operation, stop the machine immediately, turn off the engine, and perform maintenance after troubleshooting; do not continue to operate the faulty machine to avoid further damage.
Q: What is the operating weight and bucket capacity of the XE1350 excavator?
A: The operating weight is 135,000 kg, and the standard rock bucket capacity is 6.0–8.0 m³. Optional larger capacity buckets are available according to different operation needs.
Q: What is the rated power of the engine, and does it meet international emission standards?
A: The rated power of the engine is 680 kW / 1800 rpm, which meets EU Stage III and US Tier 3 emission standards, ensuring low emissions and environmental protection.
Q: Is the XE1350 suitable for hard rock mining?
A: Yes, the XE1350 is specially designed for hard rock mining. It is equipped with a high-strength reinforced boom, arm and rock bucket, and has strong digging and breakout force, which can easily handle hard rocks and ore.
Q: What is the fuel consumption per hour of the XE1350?
A: The fuel consumption per hour is approximately 45–55 L, which varies according to the working load and operation scenario. The intelligent energy-saving system can effectively reduce fuel consumption.
Q: What is the maintenance cycle of the XE1350 excavator?
A: The regular maintenance cycle is as follows: 50 hours (first maintenance) - check and tighten bolts, replace engine oil and filter; 250 hours - replace hydraulic oil filter and fuel filter; 500 hours - replace hydraulic oil and coolant; 1000 hours - inspect the boom, arm and undercarriage, replace worn parts if necessary.
Q: What attachments can the XE1350 be equipped with?
A: The XE1350 is compatible with a variety of heavy-duty attachments, including standard rock bucket, heavy-duty rock bucket, hydraulic breaker, grapple, ripper and quick coupler, which can meet different operation needs.
