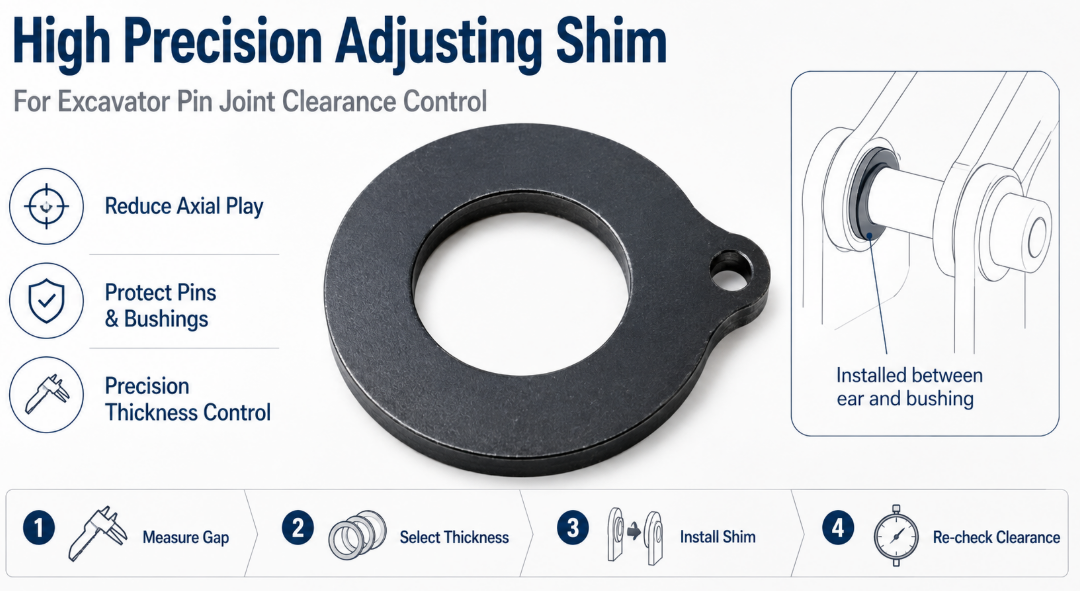

Excavator shims are high-precision mechanical spacers installed between excavator bucket pins, bushings, and linkage ears to eliminate excessive clearance, prevent axial side-play, reduce uneven wear on heavy machinery joints, and restore original manufacturing tolerances during field operation.
What are Excavator Shims?
When should you use Excavator Shims?
How To Use Excavator Shims
Summary and Technical Recommendations

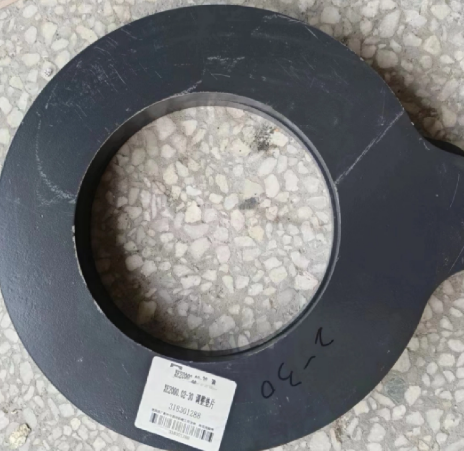

Excavator shims are specialized high-precision adjusting washer elements designed to absorb axial mechanical clearance between bucket ears, boom pins, arm connections, and rotating bushings.
These precision components function as durable wear-absorbing barriers inserted directly into the pin assembly gap. In hydraulic excavators, the bucket-to-arm and bucket-to-linkage connection points experience perpetual sliding friction and lateral thrust forces. Excavator shims fill the micro-gaps created by continuous friction, preventing the bucket ear from sliding laterally along the pin axis. By stabilizing this connection, shims ensure that applied hydraulic forces convert entirely into digging torque rather than destructive lateral movement.
From an engineering perspective, excavator shims are manufactured using high-tensile alloy steel, hardened synthetics, or specialized treated polymers capable of withstanding extreme surface pressure without permanent deformation. Machined to exacting flat tolerances, these components distribute axial thrust loads evenly across the contact surface. The integration of a High Precision Adjusting Shim ensures that the pin joint maintains optimal thermal expansion room while completely eliminating unwanted mechanical slop.
Standard equipment designs prioritize high radial strength in pins and bushings, but axial clearance along the pin shaft is often left to field adjustment. As earthmoving machinery works through tough strata, rock, or demolition debris, side forces push the bucket ears against the stick, leading to asymmetric face wear. High precision adjusting shim plates act as sacrificial wear surfaces, protecting expensive cast or forged structural ears from direct metal-to-metal abrasion.
Engineering Property | Standard Industrial Specification | High Precision Heavy-Duty Specification |
Core Material | Carbon Steel (Q235 / Q355) | Heat-Treated Alloy Steel / High-Density Polymer |
Thickness Tolerance | +/- 0.10 mm | +/- 0.02 mm |
Surface Hardness | HRC 25-30 | HRC 45-52 |
Yield Strength | 355 MPa | >= 850 MPa |
Surface Finish | Standard Machined (Ra 3.2) | Precision Ground (Ra 0.8) |
Friction Coefficient | 0.45 (Unlubricated) | 0.15 - 0.25 (Engineered Dry/Lubricated) |
Working Principle: Excavator shims operate on the principle of load equalization across constrained mechanical gaps. When installed tightly against the inner face of the bucket ear, the shim converts point-contact axial impacts into planar surface pressure. This prevents micro-fretting of the pin housing, reduces cyclic bending stress on the main pin shaft, and ensures that grease distribution across the grease grooves remains consistent without excessive side-leakage.
You should install excavator shims whenever visual inspection or mechanical measurement reveals axial end-play exceeding manufacturer tolerances at the pin connection joint.
The primary signal that an excavator requires shim intervention is visible bucket slop during operation. When an operator tilts or shakes the bucket mid-air and notices side-to-side rattling or delayed response, excessive clearance has already developed. Operating machinery with loose pin joints causes severe shock loading each time the bucket contacts hard ground. The impact force spikes dramatically when gaps exist, transferring concentrated stress spikes back into the dipper arm, boom cylinders, and main swing bearing.
In field operations, service technicians should measure joint clearance during routine maintenance schedules or immediately following pin and bushing replacements. Even brand-new pins and bushings installed in used equipment can exhibit axial play due to historical wear on the bucket ear inner faces. Utilizing a high-precision adjusting shim element during routine pin replacement ensures that new components seat with exact tolerances, preventing accelerated initial wear on fresh bushings.
Furthermore, specific working conditions demand proactive shimming strategy. Equipment engaged in heavy breaker operations, trenching through granite, or side-sloping applications subjects bucket joints to extreme lateral thrust. Under these conditions, standard factory clearances wear down rapidly. Installing a specialized durable High Precision Adjusting Shim plate balances lateral forces and prevents premature destruction of the grease seals surrounding the pin boss.
Bucket Wandering and Reduced Grading Accuracy: When precision grading or trenching becomes difficult due to lateral bucket drift, shims must be added to re-align the cutting edge precisely with the stick axis.
Audible Metal Metallic Clacking: Distinct metallic knocking sounds during bucket rotation indicate that axial play is allowing the bucket ear faces to strike the arm end-bosses.
Grease Leakage and Seal Destruction: Excessive side clearance opens gaps in the dust seal assembly, causing grease to squeeze out rapidly and allowing abrasive silica sand into the pin journal.
Asymmetric Bushing Wear: Irregular taper wear on internal pin bushings indicates uneven axial load distribution caused by an unshimmed, tilted joint assembly.
Inspection Indicator | Mechanical Root Cause | Immediate Operational Risk | Recommended Shim Action |
Axial gap > 1.5 mm | Structural ear face abrasion | Accelerating ear cracking | Insert high precision adjusting shim stack |
Rapid grease purge | Dust seal gap enlargement | Pin scoring and seizure | Re-shim joint and renew dust seals |
Jagged grading line | Unrestrained bucket lateral swing | Reduced jobsite productivity | Precision shim to under 0.5 mm gap |
Oval pin boss hole | Concentrated impact hammering | Frame structural repair needed | Bore line repair + complete shim overhaul |
To properly use excavator shims, clean the connection joint thoroughly, measure total axial play, select the correct thickness shim stack, position the shims flush against the ear boss, and secure the pin assembly to factory torque specifications.
Proper installation of a high precision adjusting shim requires meticulous attention to cleanliness, alignment, and dimensional accuracy. Installing shims onto dirty, uneven, or damaged pin bosses will result in point-loading, which can crack or distort the shim plate under high load. Field service procedures must follow a structured engineering protocol to maximize the lifespan of both the shim and the underlying pin components.
The first phase of the shimming process involves identifying the exact location of clearance and preparing the mechanical contact surfaces. Lower the excavator bucket to a flat, solid surface, relieving all hydraulic pressure from the stick and bucket cylinders. Turn off the engine, engage safety locks, and establish a stable work zone.
Thoroughly inspect the pin joint using a mechanical feeler gauge or digital caliper to determine the exact total axial gap between the bucket ear face and the stick bushing end-face. Measure the gap at multiple points around the circumference of the pin boss to detect any uneven wear or angular misalignment of the ear.
Once the gap is measured, clean the inner surfaces of the bucket ears and stick end-bosses using industrial solvent and wire brushes. Remove all accumulated dirt, hardened grease, corrosion scale, and metal burrs. A flat, smooth mounting surface is vital so that the engineered High Precision Adjusting Shim lies completely flat against the joint face without stress concentration points.
Selecting the appropriate thickness and outer diameter of the high precision adjusting shim stack is critical for optimal joint performance. Never attempt to force a shim into a gap that is too narrow, as tight binding will lock the pin connection, prevent proper rotation, and destroy grease lubrication films.
Calculate the total required shim stack thickness by taking the total measured axial gap and subtracting the manufacturer-recommended operating clearance (typically 0.2 mm to 0.5 mm to allow for grease film retention and thermal expansion). If the total measured gap is 3.5 mm, target a total shim stack thickness of 3.0 mm.
Divide the total required thickness equally between both sides of the joint whenever possible to maintain central alignment of the bucket along the arm centerline. Combine different standard thickness shims (such as 1.0 mm, 1.5 mm, and 2.0 mm) to form the precise required dimension. Verify that the inner diameter matches the pin shaft diameter with minimal radial slop, and that the outer diameter covers the full contact face of the ear boss.
Measured Joint Gap (mm) | Recommended Operational Clearance (mm) | Target Total Shim Thickness (mm) | Distribution (Left Ear / Right Ear) |
1.5 mm | 0.3 mm | 1.2 mm | 0.5 mm / 0.7 mm (or nearest standard) |
2.5 mm | 0.4 mm | 2.1 mm | 1.0 mm / 1.0 mm + 0.1 mm precision pad |
4.0 mm | 0.5 mm | 3.5 mm | 1.75 mm / 1.75 mm |
6.0 mm | 0.5 mm | 5.5 mm | 2.5 mm + 0.25 mm / 2.5 mm + 0.25 mm |
With the correct high precision adjusting shim configuration selected, prepare to insert the components into the pin assembly. Partially withdraw or align the main bucket pin so that the joint gap is accessible while maintaining structural safety using overhead hoists or hydraulic jacks.
Apply a generous layer of high-pressure lithium complex grease to both flat faces of the high precision adjusting shim. This grease film holds the shim temporarily in place against the bucket ear during pin insertion and provides initial lubrication during startup. Slide the shim into the gap, aligning the central hole precisely with the pin bore of the ear and bushing.
Carefully drive or push the main pin through the ear, through the high precision adjusting shim, through the stick bushing, through the second shim, and finally through the far bucket ear. Ensure the pin passes smoothly without catching or shearing the edges of the shims. Install the retention bolt, keeper plate, or lock-nut assembly, tightening to the equipment manufacturer's specified torque rating.
After completing the mechanical installation, perform an operational verification cycle before releasing the machine for heavy field production. Start the excavator engine and slowly articulate the bucket through its full range of motion without load.
Observe the joint closely to confirm that rotation is smooth, without binding, squeaking, or stiffness. Cycle the bucket hydraulic cylinder several times to distribute grease evenly across all internal journal surfaces and shim faces. Apply fresh grease through the zerk fitting until clean lubricant purges slightly from the dust seal edges.
Re-check the joint clearance with a feeler gauge after the initial operating cycle and again after 10 hours of field operation. Shims and mounting faces undergo minor initial seating under working loads. If initial wear creates additional clearance, adjust the shim stack height by adding a thin precision adjusting shim element to maintain tight, protective joint tolerances.
Summary of Excavator Shim Integration: Utilizing high-precision adjusting shims is an essential engineering practice for maintaining heavy excavator bucket joints, preserving structural alignment, reducing pin wear, and extending operational equipment life.
Regular Wear Inspections: Incorporate pin gap measurements into bi-weekly preventive maintenance routines to catch joint slop early before ear damage occurs.
Balanced Shim Stacking: Always distribute shim stack thickness evenly across both sides of the pin joint to preserve central bucket geometry and prevent offset loading on hydraulic cylinders.
Quality Material Selection: Utilize hardened alloy or high-performance engineered adjusting shim plates designed specifically for heavy equipment service rather than generic mild steel washers.
Cleanliness During Assembly: Clean all mating surfaces to a smooth, flat state prior to installation to ensure full surface contact and prevent localized stress fracturing of the shim body.
Proper Clearance Retention: Maintain an operational clearance gap between 0.2 mm and 0.5 mm; never over-tighten a joint to zero clearance, as thermal expansion during heavy work will cause pin binding.
Maintenance Safety Tip: Always lock out hydraulic systems, ground the implement, and utilize proper mechanical lifting aids when servicing heavy pin assemblies. Never use fingers to check pin hole alignment—always use alignment bars or punch tools to prevent crushing injuries.
Operational Parameter | Unshimmed / Neglected Joint | Precision Shim Managed Joint |
Axial Joint Movement | Uncontrolled (3.0 mm - 10.0 mm+) | Constrained (0.2 mm - 0.5 mm) |
Pin & Bushing Service Life | Reduced by 50% - 70% | Extended to 100% Factory Rating |
Stress Distribution | Concentrated edge-loading & impact shock | Even planar load distribution |
Grease Seal Integrity | Rapid seal failure and contamination | Intact dust seals and grease retention |
Bucket Ear Wear Rate | High risk of permanent structural gouging | Zero face wear (shim acts as sacrificial layer) |
Grading Precision | Poor (bucket drifts under side load) | High (stable tool trajectory) |
Total Service Cost | High (frequent pin replacement & line boring) | Low (inexpensive shim replacements) |
By implementing a rigorous high-precision adjusting shim protocol across your fleet, machine availability increases, repair costs drop significantly, and overall earthmoving efficiency is maximized across demanding construction environments.
