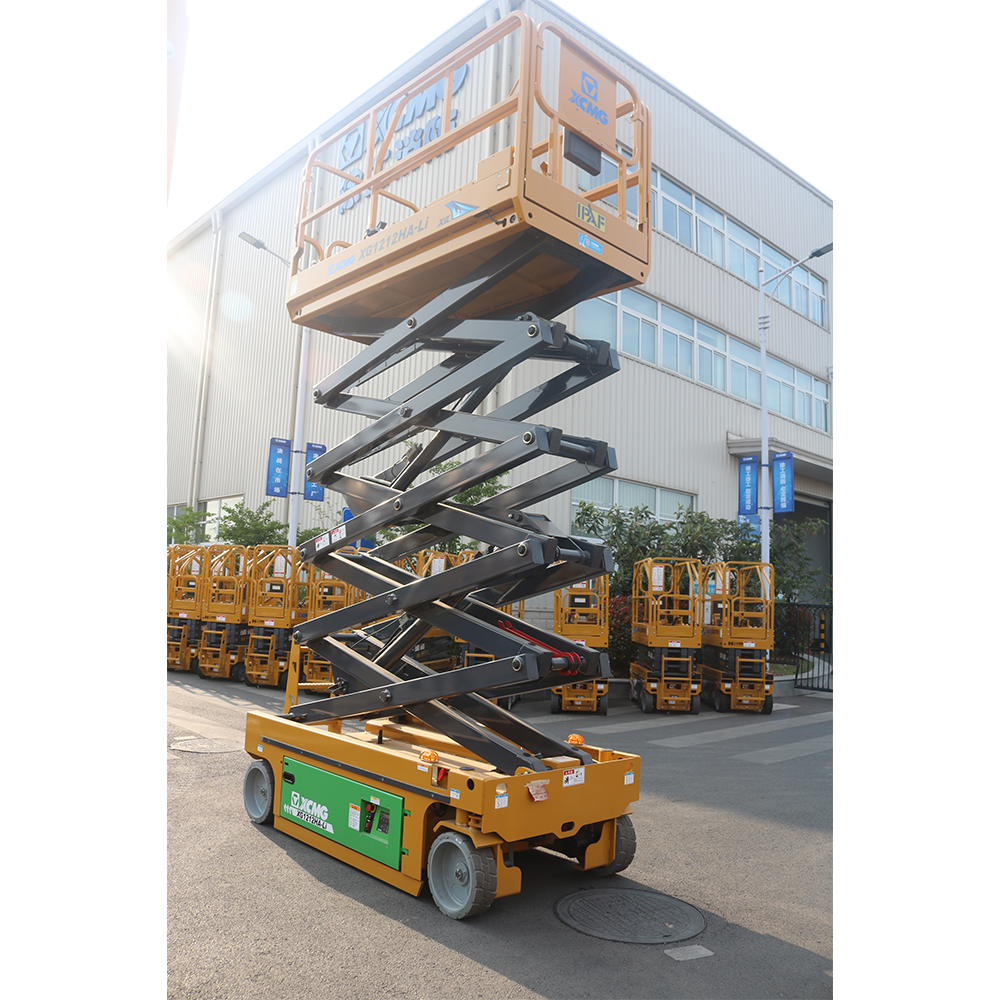

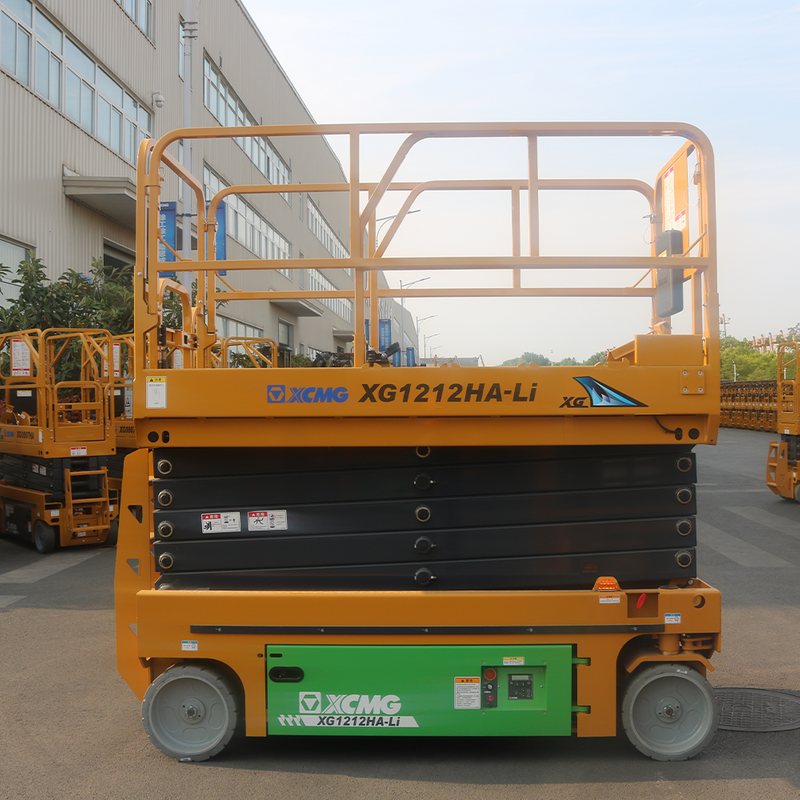

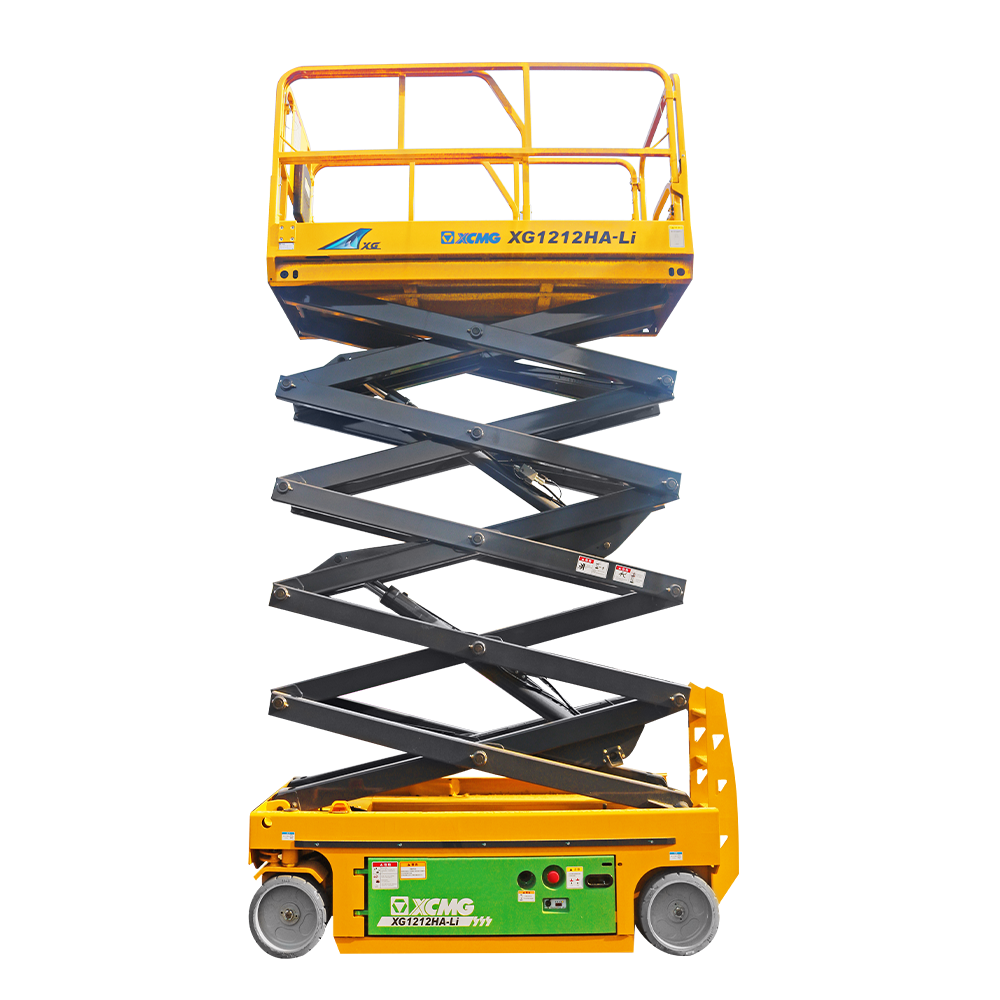

Product Introduction

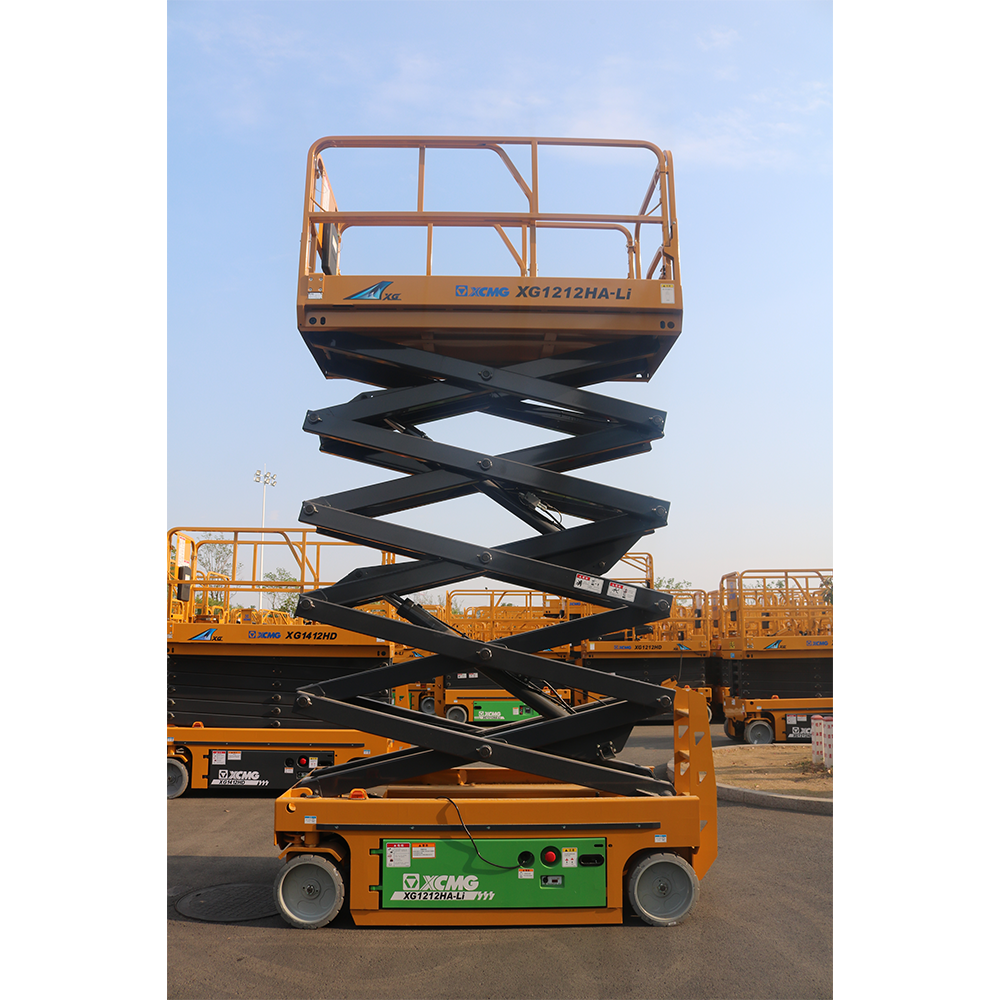

The XG1212HA-Li is a high-quality scissor lift aerial work platform that integrates environmental protection, high efficiency, safety and flexibility. Its lithium battery power solution not only conforms to the current global trend of energy conservation and emission reduction, but also brings users lower operating costs and a better working experience. For leasing companies and end users who pursue high efficiency, low maintenance and green construction, it is an ideal choice with strong market competitiveness.
Product Advantage
Zero emissions, low noise: Fully driven by a large-capacity lithium battery pack, with no exhaust emissions and extremely low operating noise, it is highly suitable for indoor operations in confined Spaces with high environmental requirements.
Long-lasting battery life and high efficiency: Lithium batteries have a high energy density and support long-term continuous operation, usually meeting the working needs of a full shift (8-10 hours), reducing the trouble of frequent charging.
Long service life and low maintenance cost: Compared with traditional lead-acid batteries, lithium batteries have a longer cycle life and do not require daily maintenance (such as adding water), significantly reducing the maintenance cost and time in the later stage.
Technical Parameters
| Item | Unit | XG1212HA-Li |
| Lift capacity | kg | 320 |
| Lift capacity of auxiliary platform | kg | 115 |
| Occupant Capacity | - | 2 |
| Working height | m | 12 |
| Platform height | m | 10 |
| Length of auxiliary platform | mm | 900 |
| Ground clearance(Pot hole protector - raised/lowered) | mm | 100/20 |
| Turning radius(inside/outside) | m | 0/2.3 |
| Lift motor | kW | 4.5 |
| Drive speed-full retracted | km/h | 3.2 |
| Drive speed-full extended | km/h | 0.8 |
| Lift/Lower time | s | 50~75/43~65 |
| Gradeability | % | 25 |
| Tilt alarm(side/forward and backward) | º | 1.5/3 |
| Batteries | V/Ah | 4 x 6/280 |
| Charger | V/A | 24/30 |
| Tires | - | 381 x 127 |
| Weight | kg | 3000 |
| a Length(without ladder) | mm | 2477(2267) |
| b Width | mm | 1170 |
| c Height(platform folded) | mm | 2480(1930) |
| d x e Platform size(Length x Width) | mm | 2277 x 1120 |
| f Wheelbase | mm | 1877 |
Product Uses
• Interior decoration: Ceiling installation, lighting fixture repair and wall spraying for shopping malls, office buildings and hotels.
• Equipment maintenance: Installation and maintenance of lighting systems, fire protection pipelines, and monitoring equipment in factories and warehouses.
• Warehousing and logistics: Storage and retrieval of goods on high shelves, warehouse maintenance.
• Large venues: Cleaning, exhibition setup and equipment commissioning for stadiums, theaters and exhibition centers.
• Outdoor work: Partial maintenance of building facades, property repair in residential areas, etc. (Good ground conditions are required).
Product Operate Guide
Before operating the XG1212HA-Li scissor lift, it is necessary to check the appearance, battery level and safety devices of the equipment. When operating, move the device to the operation point through the ground control box and switch to the platform control mode. The operators must fasten their safety belts and fix the hooks at the designated points before they can operate the platform to rise and fall smoothly and move slowly. Overloading, overstaffing, climbing over guardrails and working in bad weather are strictly prohibited. Press the emergency stop button immediately in case of emergency. After the operation, lower the platform to the lowest position and turn off the power. Detailed operations must be subject to the official manual and training. Safety first!
FAQ
1.What does "HA-Li" in the product model stand for?
A: "HA" stands for the high-altitude operation series, and "Li" indicates the adoption of a lithium battery power system, which is the main difference from traditional lead-acid battery models.
2.What power does it use?What advantages does it have over traditional lead-acid batteries?
A: It is powered by lithium batteries. Advantages include: zero emissions, low noise (suitable for indoor use), long battery life (often able to work a full shift), long lifespan, and maintenance-free (no need to add water, reducing later costs).
3.How to lower the platform in an emergency such as a power outage?
A: The equipment is equipped with a manual emergency descent device (usually a manual pump). When power is cut off, operating this device can safely lower the platform to the ground. Please be sure to familiarize yourself with its location and operation method during the training.
4.How is its climbing ability?
A: Its climbing ability typically ≥20%, capable of easily handling common slopes such as those in factories and underground garages.
5.How should lithium batteries be maintained and charged?
A: Lithium batteries are maintenance-free and do not require water addition. It is recommended to charge the battery in time after the end of the shift, using the original charger to avoid over-discharging and extend the battery life. Please keep the battery level between 50% and 80% before long-term storage.
6.What daily checks are needed?
A: Before starting work every day, a daily inspection should be carried out, including: checking whether the structure is damaged, the condition of the tires, whether there is any hydraulic oil leakage, whether the safety devices (emergency stop, alarm) are effective, and whether the battery power is sufficient, etc.
