Differences Between Hydraulic Crane And Crawler Crane

The construction and heavy-duty logistics industries rely heavily on specialized lifting machinery to move massive components across complex jobsites. Among the most vital pieces of equipment are hydraulic cranes and crawler cranes, each designed with distinct engineering principles to handle varying terrains and load capacities. Selecting the wrong machine can lead to project delays, increased costs, or safety hazards, making it essential for project managers and procurement specialists to understand the nuances of each system.

Hydraulic cranes utilize a high-pressure fluid system to extend a telescopic boom for rapid deployment and versatility, whereas crawler cranes use a lattice boom mounted on a tracked undercarriage to provide exceptional stability and massive lifting capacities on soft or uneven ground.

In this comprehensive guide, we will break down the mechanical differences, operational advantages, and specific industrial applications of these two heavy lifters. By examining mobility, load charts, and terrain adaptability, you will be equipped to make an informed decision for your next large-scale infrastructure or industrial project.

Table of Contents

• What is a Hydraulic Crane and How Does it Work?

• Understanding the Mechanics of a Crawler Crane

• Key Differences in Mobility and Transportation

• Lifting Capacity and Load Stability Comparisons

• Terrain Adaptability and Ground Bearing Pressure

• Setup Time and Operational Efficiency

• Applications in Modern Construction and Infrastructure

• How to Choose Between a Hydraulic and Crawler Crane

What is a Hydraulic Crane and How Does it Work?

A hydraulic crane is a type of heavy-duty equipment that uses a fluid-driven system, typically involving oil and high-pressure pumps, to power its telescopic boom and hoisting mechanisms for efficient lifting.

The core of a hydraulic crane lies in its simplicity and speed. Unlike fixed-length booms, the telescopic sections of a hydraulic crane can be extended or retracted at the push of a lever. This allows the crane to adjust its reach dynamically while on the job. The hydraulic system works on the principle of Pascal’s Law, where pressure applied to a confined fluid is transmitted undiminished in all directions. This allows a relatively small engine to generate the immense force required to lift several tons of material.

Most hydraulic cranes are mounted on rubber tires, making them highly mobile. They are often referred to as "mobile cranes" because they can drive on public highways at standard speeds, reaching the jobsite without the need for additional transport trailers. Once on-site, they utilize outriggers—retractable "legs" that extend from the chassis—to provide a stable base and lift the tires off the ground.

In the B2B sector, companies often prioritize these machines for urban projects where space is limited and the schedule requires the crane to move between multiple locations in a single day. Their ability to quickly retract the boom and drive away makes them the go-to choice for short-term maintenance tasks or rapid emergency repairs.

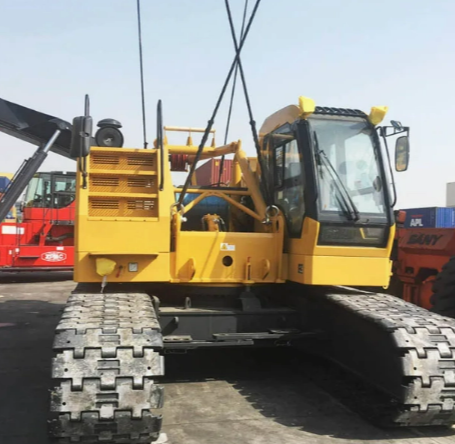

Understanding the Mechanics of a Crawler Crane

A crawler crane is a heavy lifting machine characterized by a lattice-structured boom and a tracked undercarriage that provides superior weight distribution and the ability to move while carrying a load.

The most striking feature of a crawler crane is its "tracks" or "crawlers," similar to those found on a tank. This design serves a dual purpose: it allows the crane to traverse soft, muddy, or sandy terrain where wheeled vehicles would get stuck, and it significantly lowers the ground bearing pressure. Because the weight of the crane is spread over a large surface area, it can operate on sites that have not been fully stabilized or paved.

The boom of a crawler crane is typically a lattice structure—a series of welded steel struts in a triangular pattern. This design is exceptionally strong and lightweight compared to a solid telescopic boom, allowing for much greater heights and heavier load capacities. However, because the boom is fixed in its assembled length, changing the reach requires adding or removing boom sections, which is a labor-intensive process.

One of the greatest advantages of this machine is its "pick-and-carry" capability. Unlike hydraulic cranes that must be stationary on outriggers to lift, a heavy duty crawler crane can lift a massive component and slowly crawl across the jobsite to deposit it elsewhere. This makes them indispensable for large-scale projects like bridge assembly or stadium construction.

Key Differences in Mobility and Transportation

Mobility refers to how a crane moves around a jobsite, while transportation involves how the crane is moved from one geographical location to another; hydraulic cranes excel in road travel, while crawlers require disassembly.

Hydraulic cranes are designed for "taxi" service. Because they are mounted on multi-axle truck chassis, they are road-legal. An operator can simply drive the crane from the warehouse to the construction site, perform the lift, and drive back. This eliminates the cost of hiring separate transport trucks and reduces the carbon footprint of the mobilization process. For smaller hydraulic units, even the counterweights can remain attached during travel.

Crawler cranes, conversely, are logistical giants. Due to their massive size and the width of their tracks, they cannot be driven on public roads. Moving a crawler crane requires disassembling the boom, removing the tracks (in some models), and detaching the counterweights. These components are then loaded onto multiple flatbed trailers for transport. Upon arrival, a smaller "assist crane" is often required to help put the crawler crane back together.

While the transport of a crawler crane is more expensive and time-consuming, it is a one-time cost for long-term projects. If a crane is expected to stay on a site for six months to a year, the stability and capacity of a specialized lifting crawler crane far outweigh the initial logistical hurdles of getting it there.

Lifting Capacity and Load Stability Comparisons

Lifting capacity is determined by the boom's structural integrity and the crane’s center of gravity, with crawler cranes generally offering higher maximum capacities and better stability than hydraulic telescopic cranes.

The lattice boom used in crawler cranes is a marvel of engineering. Because the triangular design manages tension and compression forces more efficiently than a solid beam, it can reach heights exceeding 400 feet and lift loads surpassing 3,000 tons in the largest models. The stability comes from the tracks and the massive counterweights, allowing the crane to maintain a steady center of gravity even when the boom is at a low angle.

Hydraulic cranes, while powerful, face physical limitations due to the weight of the telescopic boom itself. A solid steel boom is heavy, and as it extends further, the "leverage" against the crane increases. Most hydraulic cranes are used for loads between 30 and 600 tons. While high-capacity hydraulic cranes exist, they often require significant additional support structures to match the reach of a lattice boom.

Stability in hydraulic cranes is dependent on outrigger placement. If the ground under an outrigger shifts, the crane can become unstable. Crawler cranes do not have this point-failure risk because their base is continuous. For projects involving the installation of heavy industrial turbines or massive HVAC units, the stability of a high capacity hydraulic crawler crane provides the safety margins required for high-value assets.

Terrain Adaptability and Ground Bearing Pressure

Terrain adaptability describes a crane's ability to operate on various surfaces, where crawler cranes thrive on soft, unprepared ground while hydraulic cranes require firm, level surfaces and outrigger pads.

Ground Bearing Pressure (GBP) is a critical SEO and safety metric in construction. Hydraulic cranes exert massive pressure on the four small points where the outriggers touch the ground. If the soil is soft, these outriggers can sink, leading to a tip-over. To prevent this, engineers must often use "crane mats" or large timber pads to spread the load. This adds prep time and cost to the project.

Crawler cranes are the masters of rough terrain. Their tracks distribute the weight over a surface area of several hundred square feet. This means that even a 200-ton crane might exert less pressure per square inch than a human walking on the same soil. They can navigate through mud, loose gravel, and steep grades that would be impassable for a wheeled crane.

For B2B projects in the oil and gas sector or wind farm development, the terrain is rarely paved. Using a track mounted hydraulic crawler crane allows the crew to begin work immediately without waiting for extensive site grading or concrete pouring. This adaptability is a primary driver for selecting crawler units in "greenfield" projects.

Setup Time and Operational Efficiency

Setup time is the duration required to transition a crane from its transport state to being ready for its first lift; hydraulic cranes are significantly faster, often ready within an hour.

The efficiency of a hydraulic crane is its greatest selling point. In a B2B environment where "time is money," the ability for a crane to arrive, extend its outriggers, telescope its boom, and start lifting in 30 to 60 minutes is invaluable. This makes them ideal for day-rate rentals and jobs where multiple lifts need to be performed at different corners of a large city.

In contrast, a crawler crane setup can take anywhere from two days to two weeks, depending on the size of the unit and the complexity of the lattice boom configuration. The assembly involves pinning boom sections together, reeving the wire rope, and stacking counterweights. This requires a dedicated crew and an additional assist crane, increasing the initial labor cost significantly.

However, once the crawler crane is set up, its operational efficiency is high for repetitive tasks. Because it can travel with a load, it eliminates the need to constantly reset outriggers. In long-term pile driving or steel erection projects, the time lost during setup is quickly recovered through the crane's superior mobility across the jobsite and its high-duty cycle performance.

Applications in Modern Construction and Infrastructure

Each crane type serves specific niches: hydraulic cranes dominate urban maintenance and short-term construction, while crawler cranes are the backbone of heavy infrastructure and energy sectors.

1. Urban Development and Maintenance

Hydraulic cranes are perfectly suited for city environments. Their compact footprint (when the boom is retracted) and road mobility allow them to navigate tight streets. Common applications include:

• Installing air conditioning units on rooftops.

• Assisting in the assembly of smaller tower cranes.

• Quick-response bridge repairs.

2. Wind Energy and Power Plants

The massive height and weight of wind turbine components require the stability of a crawler crane. These cranes can lift the heavy nacelle to the top of the tower and hold it steadily against wind gusts. Their ability to move between turbine pads without disassembly is a massive cost-saver for wind farm developers.

3. Marine and Port Construction

Crawler cranes are often placed on barges to perform dredging or pier construction. Their low center of gravity and weight distribution make them more stable on a floating platform than a wheeled crane. They are also used in shipyards for moving large hull sections.

Comparison Table: Hydraulic vs. Crawler

How to Choose Between a Hydraulic and Crawler Crane

Choosing the right crane involves a careful analysis of your jobsite conditions, budget, and project duration. If your project is in an urban area and requires only a few lifts over a couple of days, the Hydraulic Crane is the logical choice due to its low mobilization costs and high speed. It minimizes traffic disruption and requires a smaller crew for operation.

On the other hand, if you are managing a multi-month infrastructure project on unpaved ground, the Crawler Crane is the superior investment. The ability to "pick and carry" and the massive lifting capacity provided by the lattice boom will streamline the erection process of heavy steel or concrete structures. Furthermore, the reduced need for ground preparation can save thousands in civil engineering costs.

Summary of Selection Criteria:

1. Project Duration: Use hydraulic for days/weeks; crawler for months/years.

2. Soil Conditions: If the ground is soft or muddy, choose the crawler.

3. Lift Frequency: If you need to lift and move the load across the site, choose the crawler.

4. Space Constraints: In tight city centers, the hydraulic crane's compact footprint is essential.

In conclusion, both hydraulic and crawler cranes are essential tools in the modern industrial landscape. By understanding their core mechanical differences and operational strengths, businesses can optimize their lifting strategies, ensure site safety, and maximize the return on their equipment investment. For those seeking the ultimate in heavy-duty versatility, exploring the latest models in the industrial hydraulic crawler crane category offers a blend of power and stability that defines modern engineering excellence.
