Product Introduction

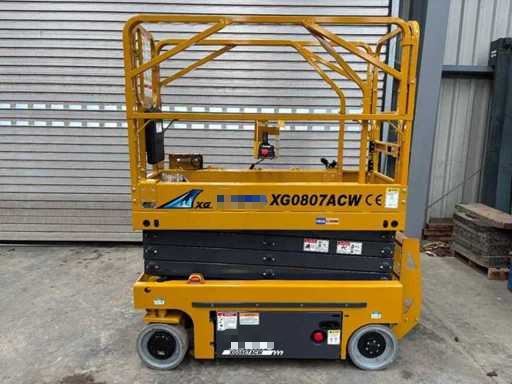

XG0807ACW is a self-propelled AC electric scissor lift built for versatile aerial operations. It features a maximum working height of 7.8m and a rated load of 230kg. With a compact body and durable all-steel scissor structure, this unit runs steadily with low noise and zero emissions. Equipped with widened solid tires and reliable hydraulic system, it adapts to indoor environments and light outdoor working conditions. Fully compliant with CE standards, it is a practical aerial work solution for facility maintenance, commercial venues and light construction projects.
Product Advantages
Stable AC Power System: Steady power output, low running noise and no exhaust pollution, suitable for long-hour continuous operation.
Compact & Flexible Movement: Narrow body design and flexible steering performance, easy to pass through standard doors, elevators and narrow aisles.
Excellent Ground Adaptability: Widened solid tires improve grip and stability, works well on flat ground and slightly uneven surfaces.
Complete Safety Protection: Built-in overload protection, tilt alarm, emergency stop device, automatic pothole protection and anti-slip platform to ensure operational safety.
Expandable Working Area: Equipped with extendable platform to enlarge working space and improve operation flexibility.
Robust & Easy Maintenance: Heavy-duty mechanical structure and high-quality components, low failure rate and simple daily maintenance.
Product Specification Table
Item | Specification |
Model | XG0807ACW |
Max. Working Height | 7.8 m |
Max. Platform Height | 5.8 m |
Rated Load Capacity | 230 kg |
Extended Platform Load | 115 kg |
Platform Size (L × W) | 1670 × 740 mm |
Extended Platform Length | 0.9 m |
Overall Dimension (L×W×H, Folded) | 1900×810×2160 mm |
Total Weight | 1560 kg |
Inner Turning Radius | 0 m |
Outer Turning Radius | 1.75 m |
Ground Clearance | 20 mm (Raised) / 70 mm (Stowed) |
Travel Speed (Lowered / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 13 ~ 30 s |
Lowering Time | 25 ~ 35 s |
Power Supply | AC Electric + 24V Battery |
Certification | CE |
Application Scenarios
Warehouse & Logistics: Inventory checking, shelf installation and lighting maintenance in narrow warehouse passages.
Building Facility Maintenance: Ceiling cleaning, air conditioner and pipeline repair for office buildings, apartments and public buildings.
Commercial Venues: Lamp replacement, decoration layout and billboard installation in shopping malls, hotels and exhibition centers.
Light Construction Work: Interior painting, electrical wiring and wall renovation for indoor projects.
Light Outdoor Operations: Facade maintenance, street lamp repair and simple construction work on flat outdoor ground.
Event Arrangement: Stage setup, banner hanging and equipment installation for exhibitions and conferences.
Operation Guide
1 Pre-operation Inspection
Check battery power, AC connection, tire condition and hydraulic oil level.
Inspect safety railings, extendable platform and locking parts to make sure they are firm.
Test emergency stop button, tilt alarm and pothole protection function.
Clean up obstacles on the site and confirm the ground is flat and solid.
2 Driving Operation
Turn the key switch to ON to start the machine.
Control forward and backward movement via joystick. The driving speed will be limited when the platform is lifted.
Operate the steering wheel gently. Do not make sharp turns or drive on steep slopes when working at height.
3 Lifting & Lowering
Press the lift button to raise the platform, release the button to stop.
Press the lower button to descend. Keep the area below clear of people and obstacles.
Only extend the auxiliary platform after the main platform is fully lifted. Do not exceed the limited load.
4 Safety Rules
Do not overload. The maximum load is 230kg for main platform and 115kg for extended platform.
It is forbidden to drive on slopes over 25% while the platform is elevated.
Operators must wear safety harness during high-altitude work.
Always fully lower the platform before moving the machine.
5 Shutdown & Daily Maintenance
Fully lower the platform and retract the extended deck.
Turn off the key switch and cut off the power supply.
Clean the machine body and check for loose parts or abnormal damage.
Charge the battery in time after use, and store the machine in a dry and ventilated place.
FAQ
Q1: What is the maximum working height of XG0807ACW?
A: The maximum working height is 7.8 m, and the maximum platform height is 5.8 m.
Q2: Can this scissor lift be used outdoors?
A: Yes, it is available for light outdoor work on flat and solid ground. Please stop working in heavy rain, strong wind or severely uneven terrain.
Q3: What power mode does this machine adopt?
A: It adopts AC power combined with 24V battery system, supporting stable long-time operation.
A: The extended platform can bear maximum 115 kg. Please do not overload.
Q5: What safety devices are equipped?
A: It is equipped with overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip platform.
A: It can hold up to 2 people, and the total weight shall not exceed 230 kg.
